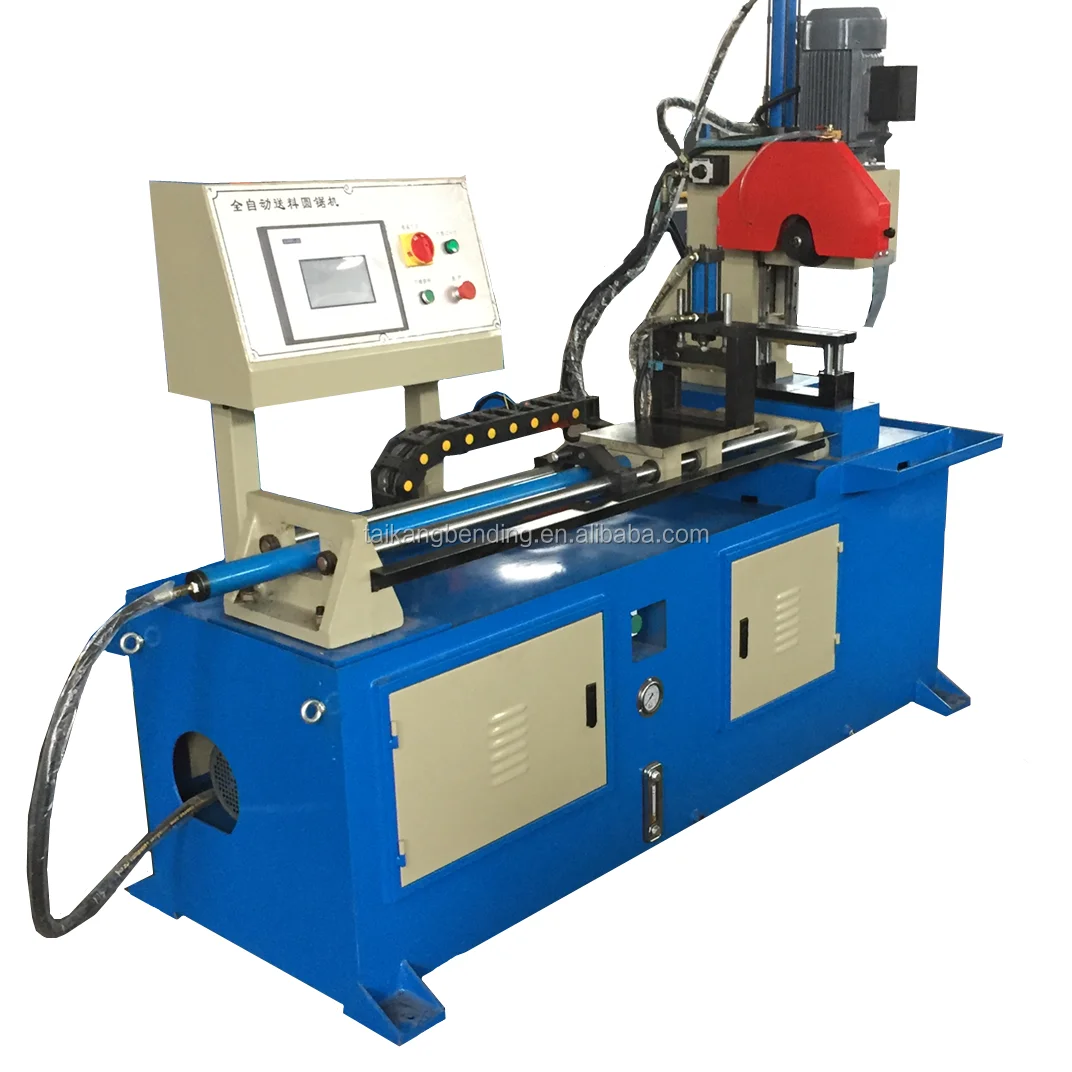

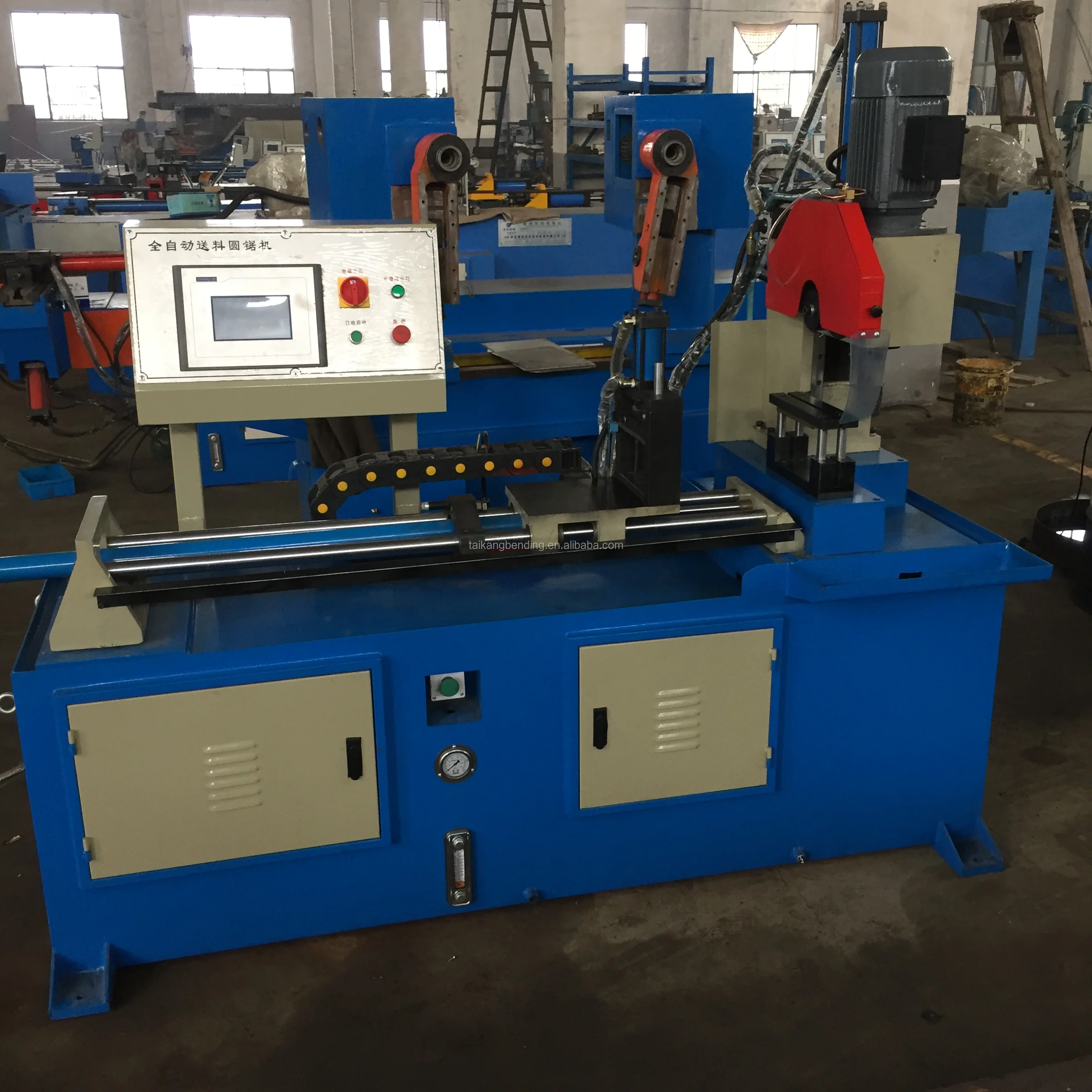

Mc 355ZL Hydraulic CNC Pipe Cutting Machine Tube Cutting Machine Profile Cutting Machine
- Category: Pipe Cutting Machines >>>
- Supplier: Suzhou Taikang Machinery Co. Ltd.
Share on (62334696375):
Product Overview
Description
Product Description
Product Application
Mc-355ZL Hydraulic CNC Pipe Cutting Machine Tube Cutting Machine Profile Cutting Machine Metal cutter is fully automatic pipe cutting machine with PLC control system. Servo feed for cutting. Touch screen panel display English and the Language you required, servo feeding leght can be selected from 6mm to 1000mm, dialogue operation on touch screen , you can choose manual , semi-automatic and full automatic operation, portable pedal switch with start and emergency stop function.
Item No. | Name | Parameters | |
1 | Master motor | 3.3/4kw | |
2 | Spindle speed | 96/48 RPM | |
3 | Apply cutting blade | Outer Diameter | Φ250-350mm |
Center hole | Φ32mm | ||
Pin hole | 2XΦ11X65mmPCD | ||
4 | Feed length | 1000mm, option can be extended to 1500mm | |
5 | oil pump system | 2.2kw,4 motor, Double oil pump, Working Pressure25-35 Bar | |
6 | cooling system | 0.09kw motor,Automatic cooling cycle | |
7 | Machine weight | 1000KG | |
8 | Machine Size | 1600x850x1600mm |
Cutting ability (mild steel) | ||||
Specifications/Model | Mc-355SL CNC 5 inch Tube Automatic Cold Saw Pipe Cutting Machine | Remarks | ||
Cutting blade size | Φ350mm×3mm | The CNC pipe cutting machine is automatic feeding, clamping and cutting. | ||
Type | ○ Round pipe | Φ125mm | ||
□square hollow pipe | 110x110mm | |||
□ Rectangle hollow | 120x90mm | |||
● Solid bar | Φ75mm | |||
■Solid square bar | 65x65mm | |||

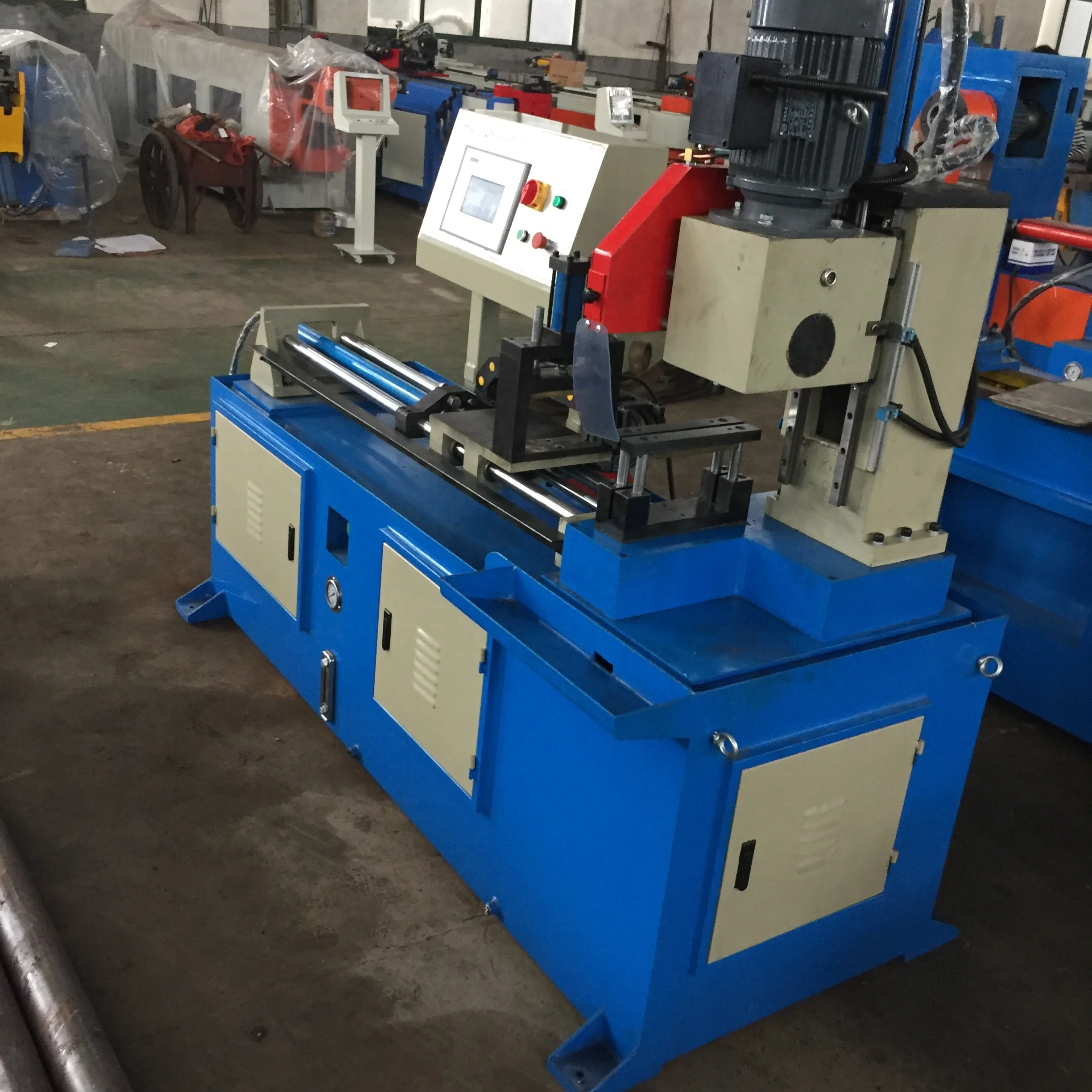

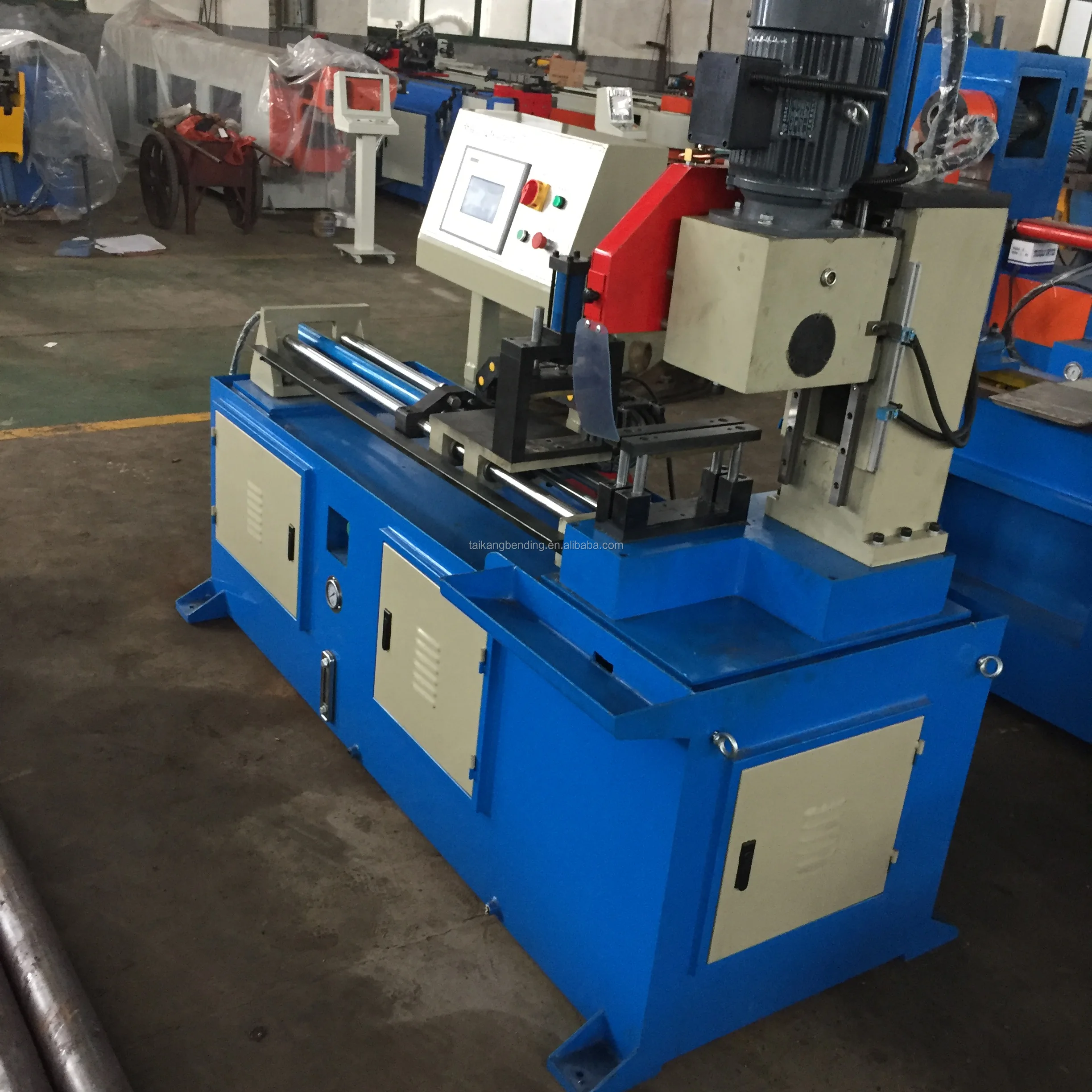

Mc-355ZL Hydraulic CNC Pipe Cutting Machine Tube Cutting Machine Profile Cutting Machine Metal cutter
Main Features

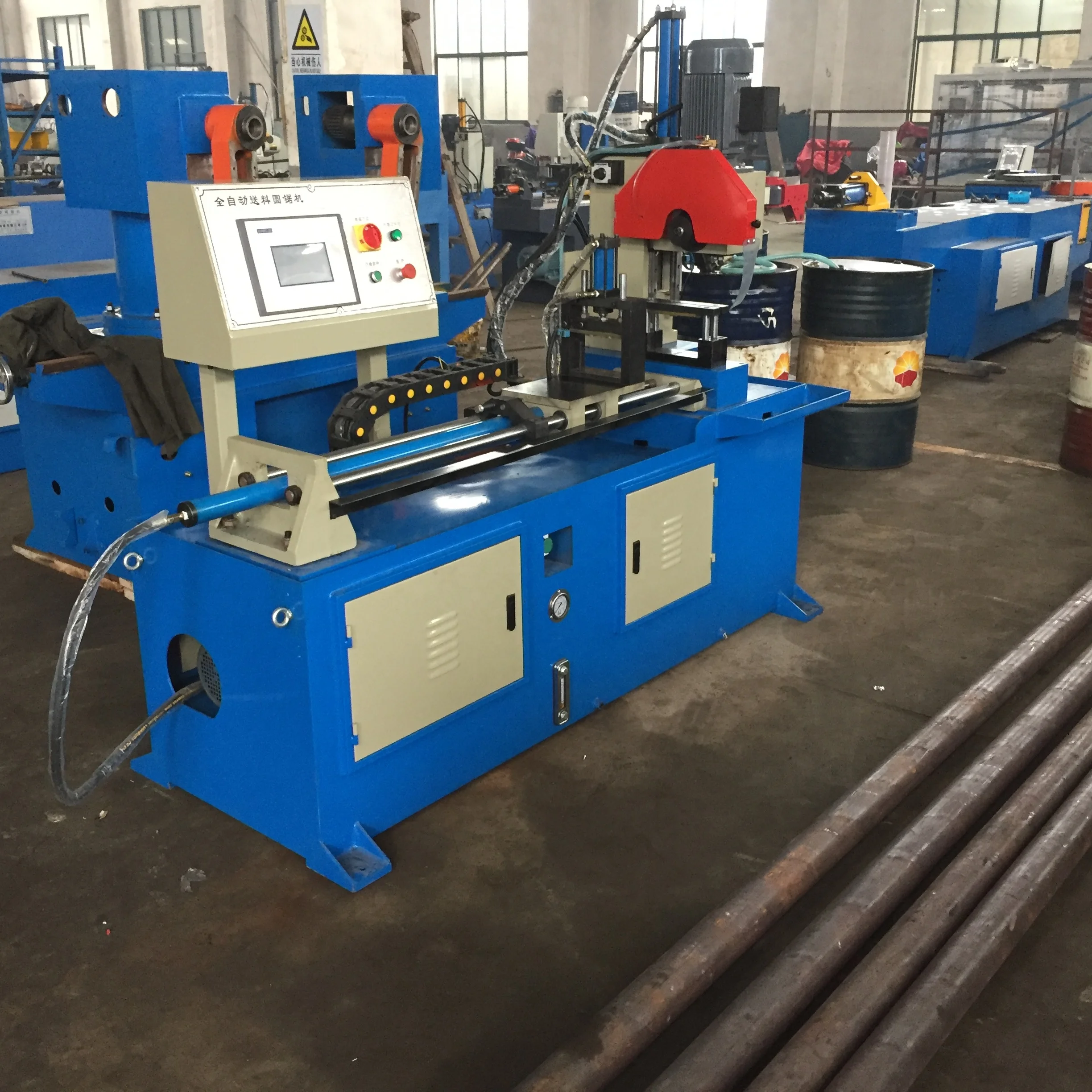

Mc-355ZL Hydraulic CNC Pipe Cutting Machine Tube Cutting Machine Profile Cutting Machine Metal cutter

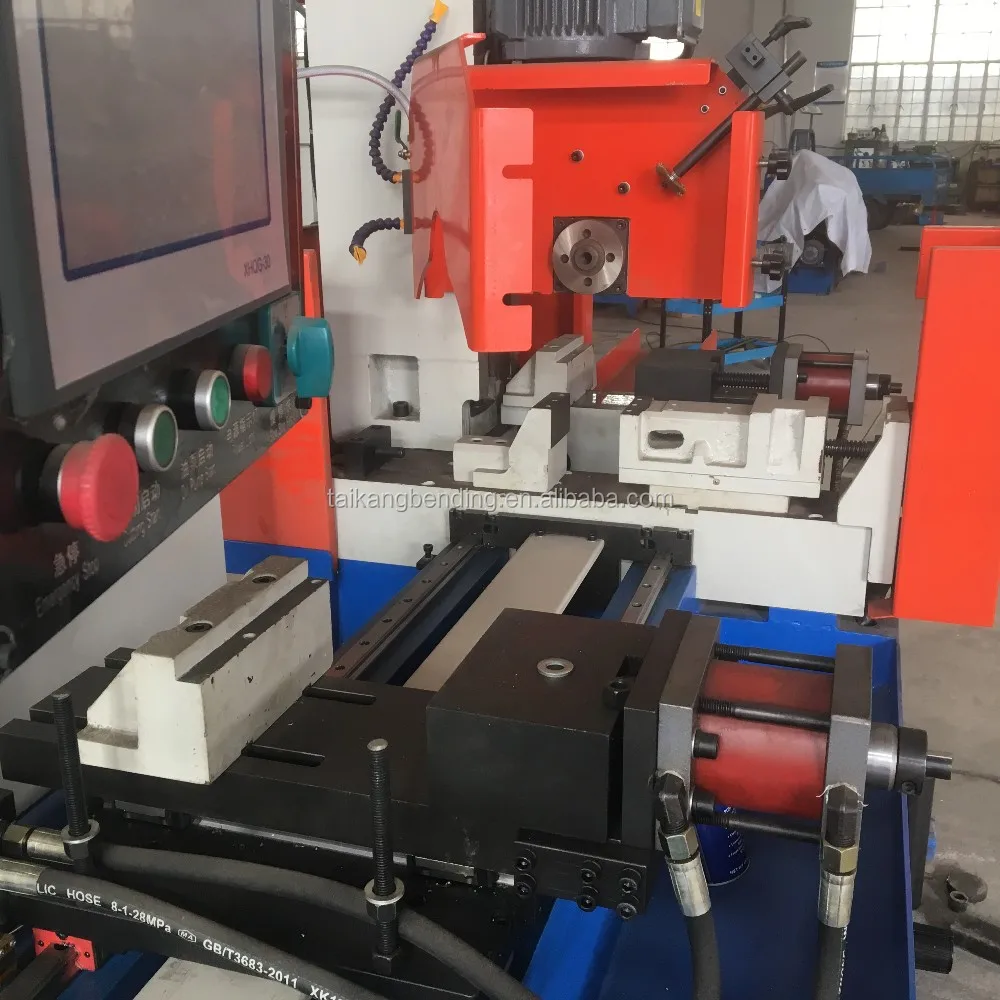

1) The cutting head sliding down and up on rail driven by hydraulic pump, stable cutting force and increase the service life of cutting blade.
2) Special design for gearbox suitable for heavy cutting, improve precision and stability
3) The machine foundation structure is strong with little vibration, service lifelong
4) Cooling automatic circulation, ensure the workpiece cutting edge smooth.
5) Floating feeding system, accurate and rapid, no damage on workpiece surface.
6)Clamping pressure adjustable, to avoid deformation during clamping the workpiece.
7)Equipped with electronic protection for cutting blade wear, automatic shutdown.
8)Counting scale can be set number and stop function.
Detailed Images

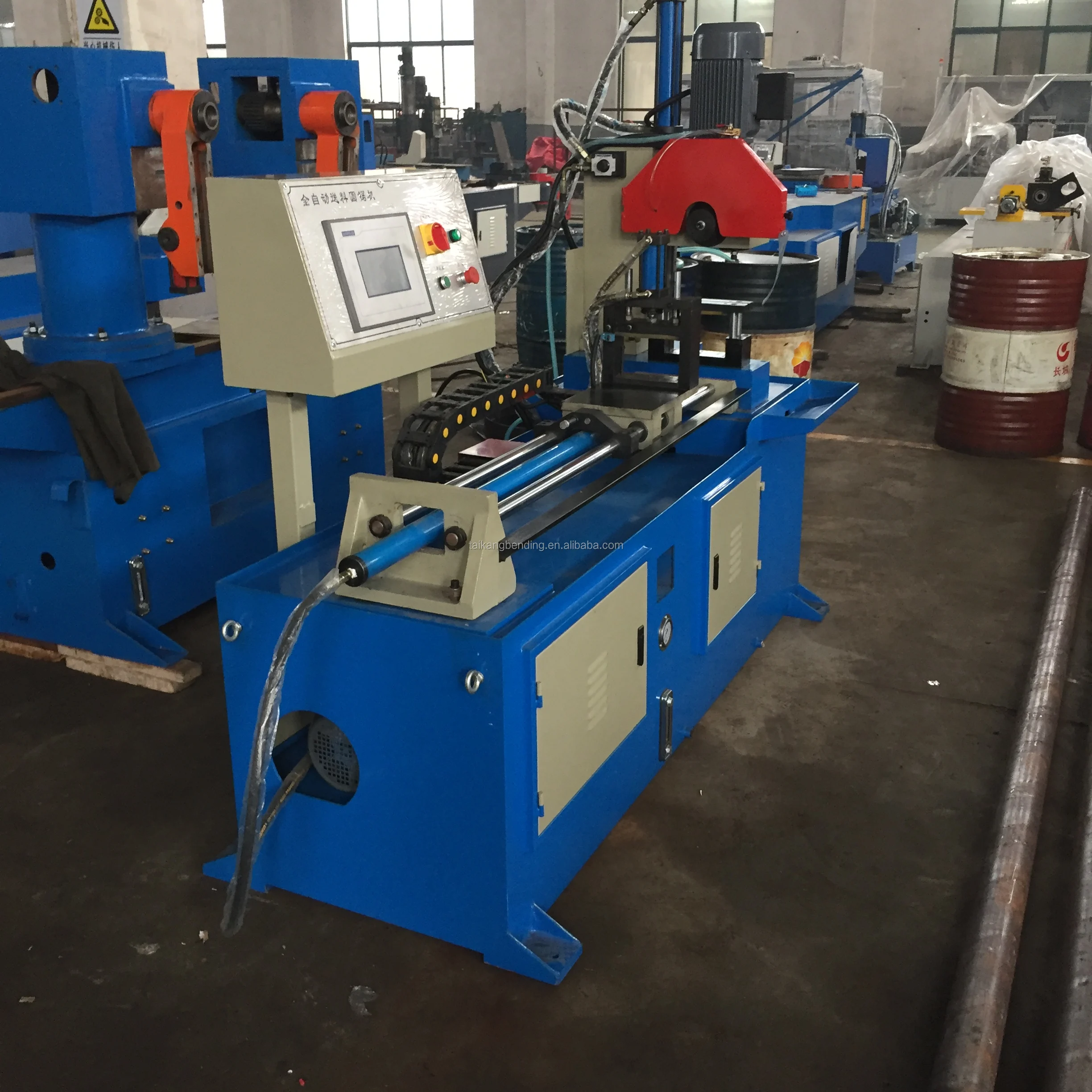

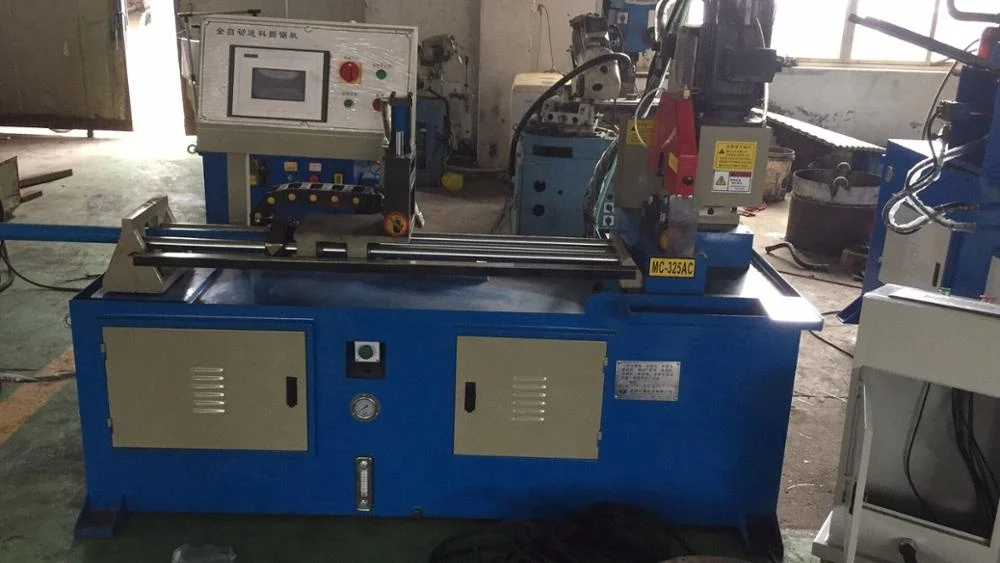

Mc-355ZL Hydraulic CNC Pipe Cutting Machine Tube Cutting Machine Profile Cutting Machine Metal cutter
Machine Parts
Name: Hydraulic clamping system
Brand: Hengli
Original: China
the clamping force can be adjusted to avoid workpiece surface damage or deformation .

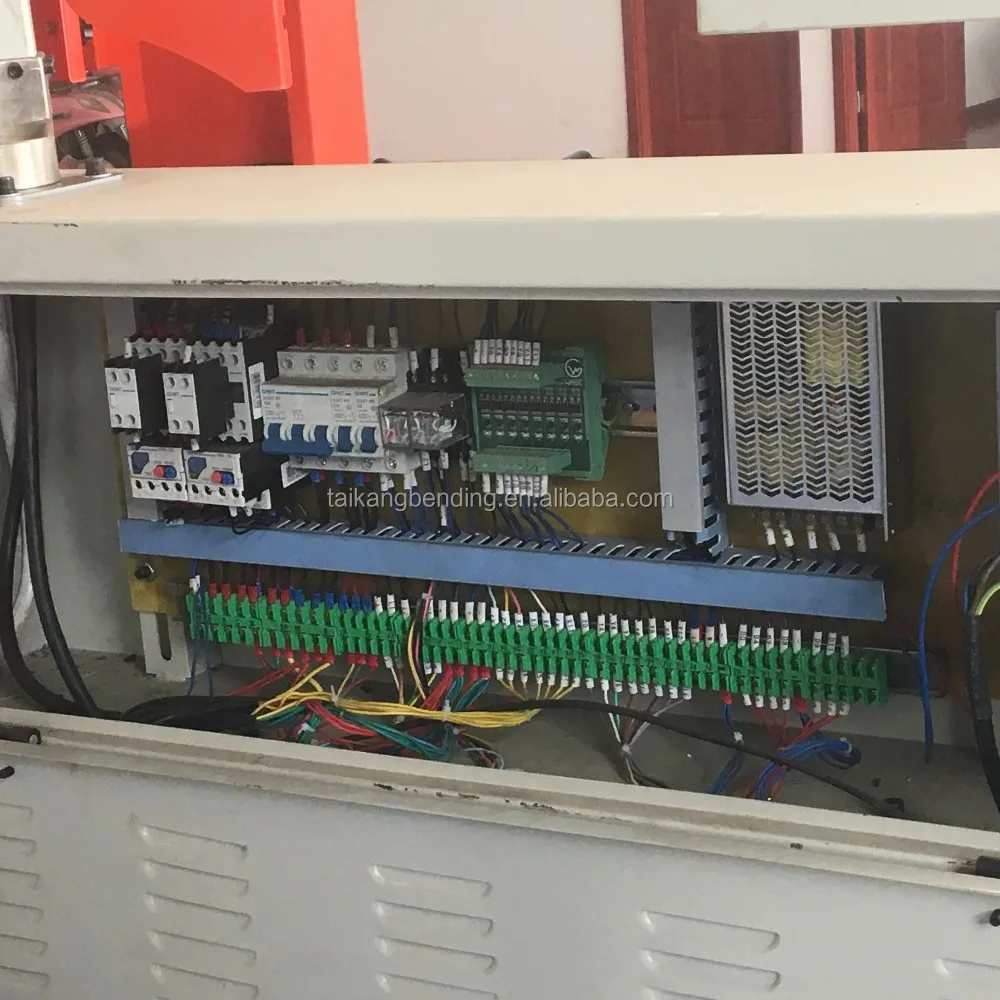

Electrical Part
Name: Electrical switch
Brand: ZhengTai
Original: China
Domestic famous electrical switch brand, high reliability
Machine Parts

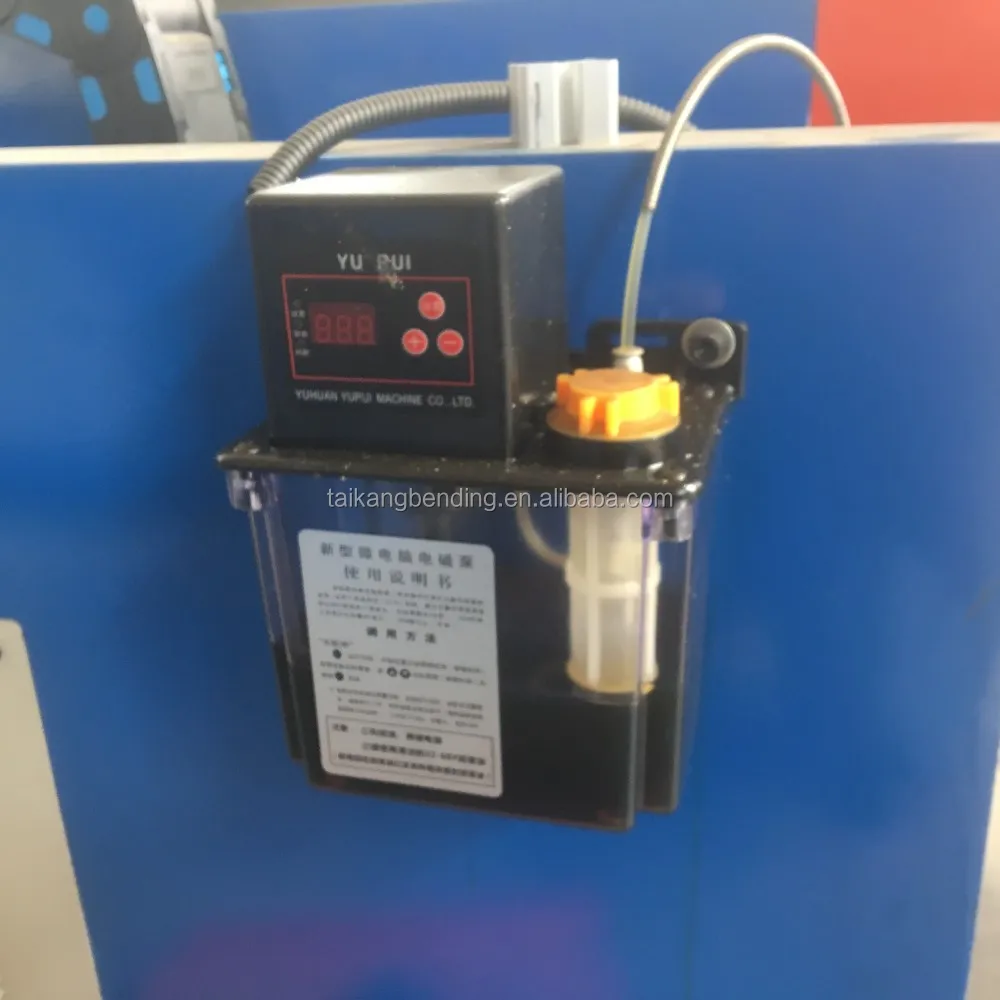

Name: Auto lubrication pump
Brand: Yu PUI
Original: China
Every working shift make setting and automaticly lubricate moving parts

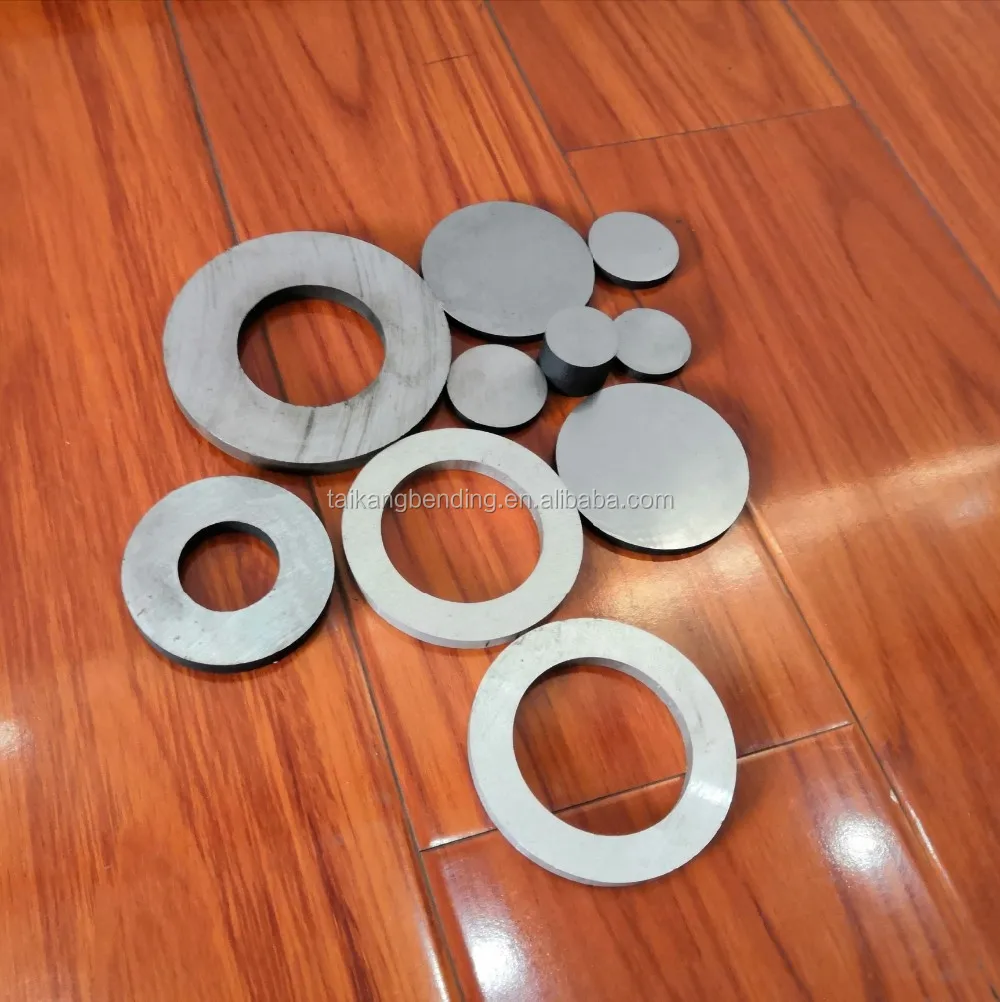

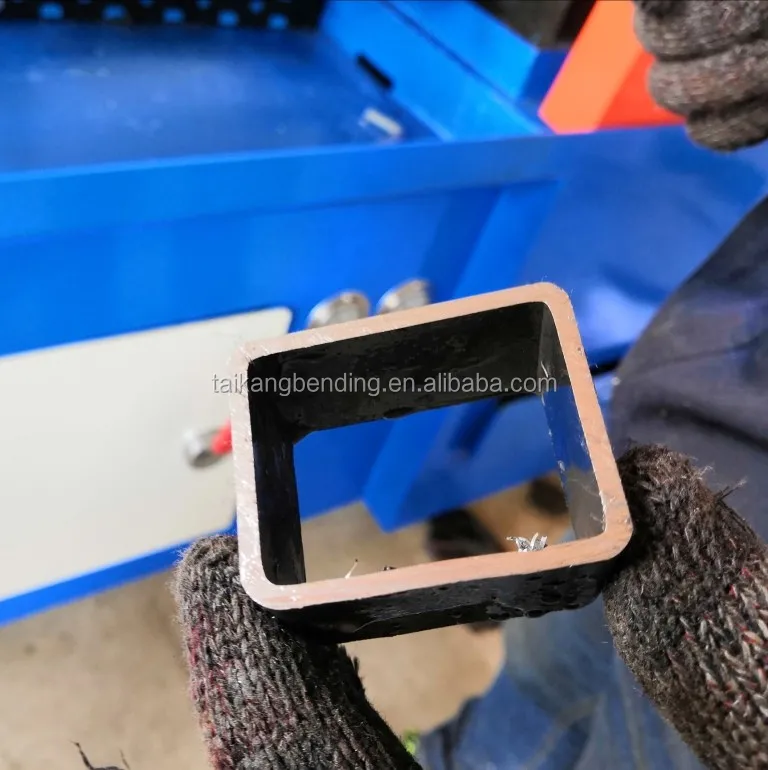

Samples
Mc-355SL Hydraulic CNC Pipe Cutting Machine Tube Cutting Machine Profile Cutting Machine Metal cutter
Our Service
Pre-Sales Service
* Inquiry and consulting support.
*Provide technical suggestion and package solution
* Sample testing support.
*Reply within 24 hours
*Provide progress information
* View our Factory.
After-Sales Service
*Test the machine before shipment
* Provide technical training relate to use the machine.
* Engineers available to service machinery overseas.
* Free spare parts within one-year warranty period
* Reasonable price for spare parts after warranty
* Provide long-term technical assistance.
Packing & Delivery
Mc-355SL Hydraulic CNC Pipe Cutting Machine Tube Cutting Machine Profile Cutting Machine Metal cutter
Packaging | ||
Size | 123 (L) * 456 (W) * 789 (D) | |
Weight | 1.2 T | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
Packaging | ||
Size | 123 (L) * 456 (W) * 789 (D) | |
Weight | 1.2 T | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
