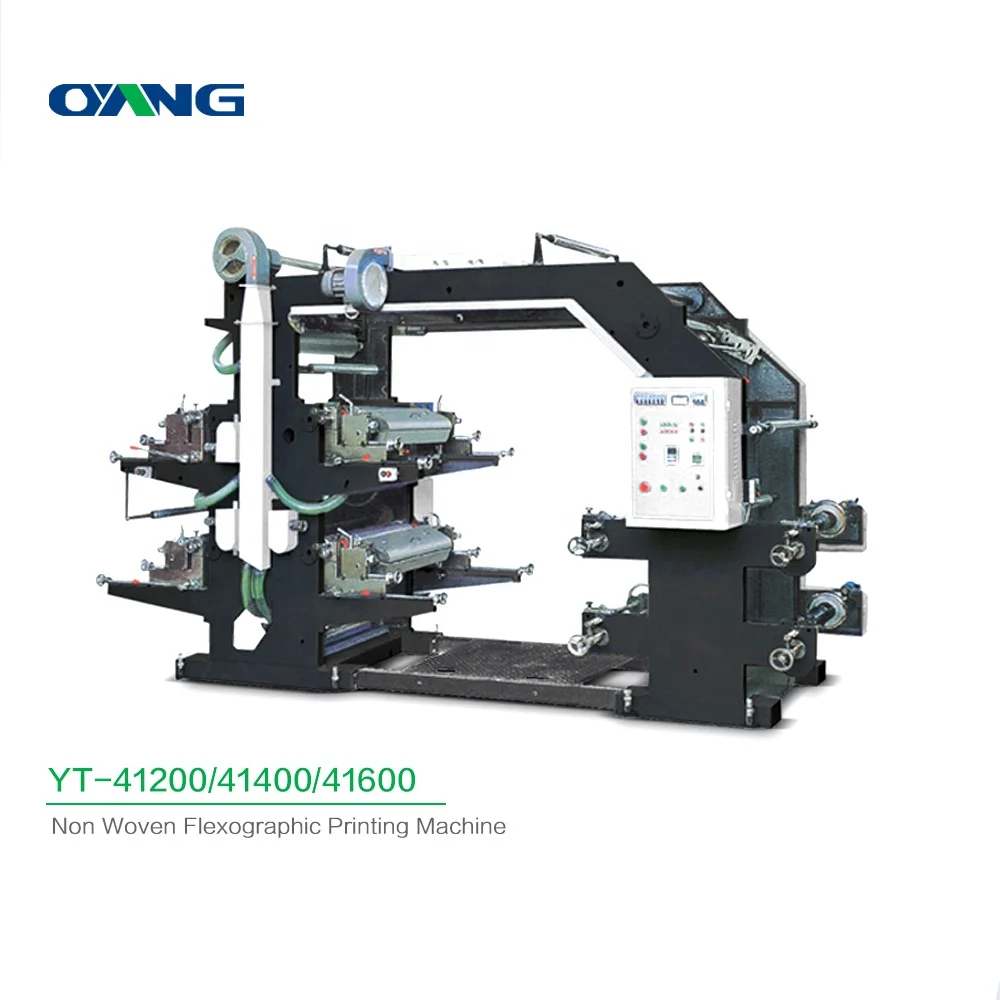

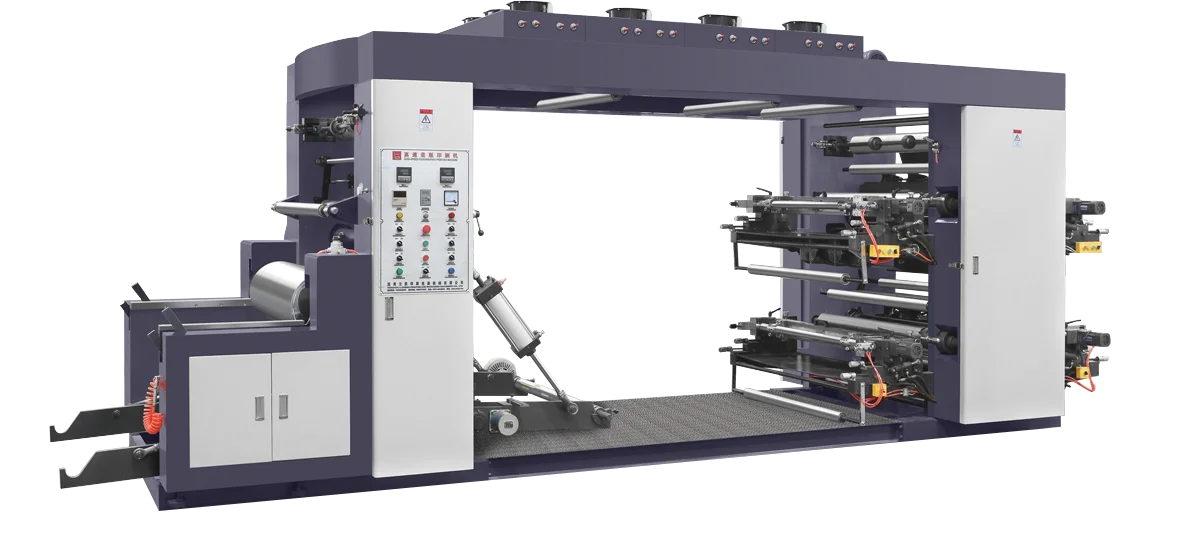

Автоматическая Нетканая флексографическая печатная машина с 4 цветными мешками, гибкая печатная машина с нетканым флексографским прессом для продажи
- Category: Flexographic Printers >>>
- Supplier: Zhejiang Allwell Intelligent Technology Co. Ltd.
Share on (62336335735):
Product Overview
Description
Product Description
Feature
The machine adopts rubber plate or (photosensitive resin plate) as of plate printing machine,
professional printing of non-woven material, it is the ideal equipment of nonwoven fabric printing.
1. Simple operation, accurater
2. The meter counter can set printing quantity according to the number of the automatic stop, broken material automatic stop.
3. Include the ink roller, uniform process.
4. Reliable drying system, with high-speed rotation, it will automatically open circuit.
5. 360 degrees of continuous adjustable longitudinal sets of equipment.
6. Frequency control, to adapt to the different printing speed.
professional printing of non-woven material, it is the ideal equipment of nonwoven fabric printing.
1. Simple operation, accurater
2. The meter counter can set printing quantity according to the number of the automatic stop, broken material automatic stop.
3. Include the ink roller, uniform process.
4. Reliable drying system, with high-speed rotation, it will automatically open circuit.
5. 360 degrees of continuous adjustable longitudinal sets of equipment.
6. Frequency control, to adapt to the different printing speed.
Suitable Material:
No woven | 15-150g/㎡ | |||||
Woven | 15-120g/㎡ | Weave fabric | 15-500g/㎡ | |||
PVC | 10-120g/㎡ | OPP | 10-120g/㎡ | |||
PE | 10-120g/㎡ | PET | 10-120g/㎡ | |||
CPP | 10-120g/㎡ | |||||
Kraft paper | 40-350g/㎡ | single-sided coated paper | 30-350g/㎡ | |||
Copy paper | 15-350g/㎡ | firecrackers and paper | 40-350g/㎡ | |||
Paper money and incense | 25-350g/㎡ | silicone paper | 50-350g/㎡ | |||
Coated paper | 30-350g/㎡ | dust-free paper | 25-350g/㎡ | |||
Release paper | 40-350g/㎡ | composite paper | 30-350g/㎡ | |||
Thermal sensitive paper | 30-150g/㎡ | |||||
Roller width | 1200mm |
Printing width | 50-1160mm |
Printing speed | 50m/min |
Material | Non-woven fabric, Paper, Film(PVC.PE.BOPP.PE), Aluminum foil |
Printing length | 180-1000mm (customized by client) |
Transmission drive type | Spur gear drive |
Thickness of plate | 2.28mm |
Power supply | 380V |
Total power | 23KW |
Rated power | 8KW-10KW |
Overall size | L4500 * W2200 * H2500 mm |
Weight of Machine | 3200KGS (20GP*1) |
