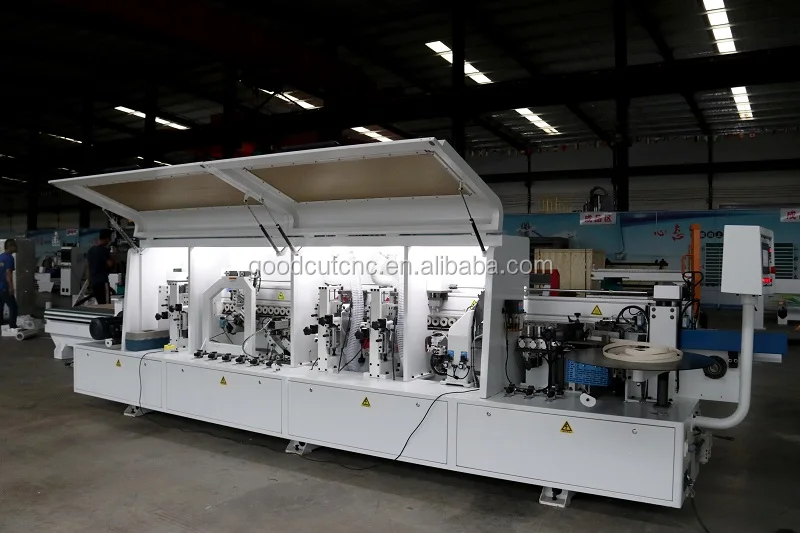

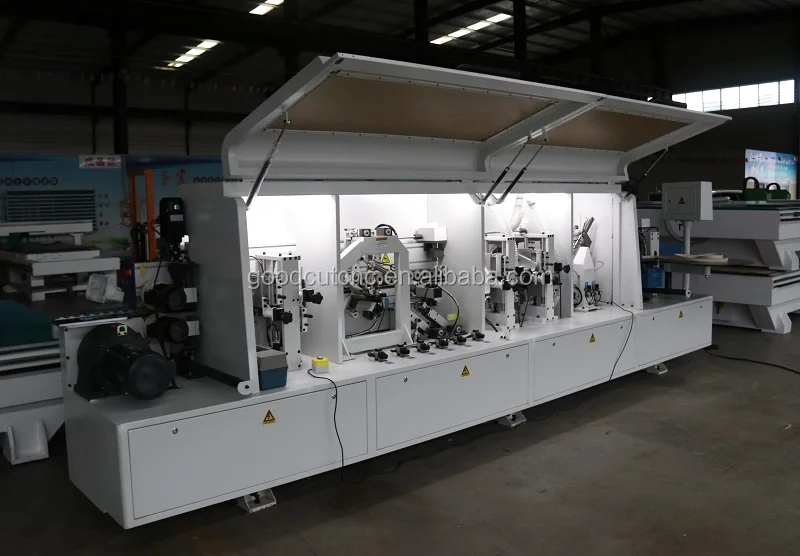

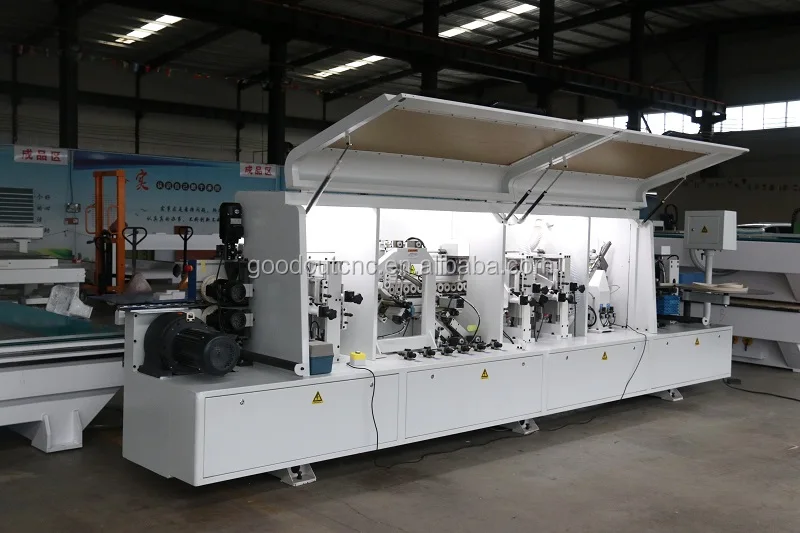

Hot sela automatic wood working machinery edge bander cnc edge banding machine

45/90 degree edge banding machine for woodworking of Hot sela automatic wood working machinery edge bander cnc edge banding machine:

11 functions:

1,Pre-milling.

2,Straight edge gluing.

3, Edge band slotting.

4, Bevel edge gluing.

5, edge band tight and cut off.

6, Heating and second press.

7, End trimming.

8, Rough trimming.

9, Fine trimming.

10, Scrapping,

11, Buffing.

GoodCut edge banding machines are mainly used for bevel and straight two face edge banding, solid wood boards and shaving boards.

This equipment is most popular for kitchen,doors and office furniture production.

Equipped with fault alarm device, it shut down automatic once failure appears. It has failure detected automatic, easy to check failure reason.

(1)  Woodworking 45 degree edge banding machine structure is compact and have a reasonalbe disposition. It works steadily and operates safely.

(2) It is adjustable.The machine adopts the devices of sound insulation, controlling of dust, prevent the overlading,auxiliary frame electrical adjusted.

(3) Blow up and down the side, surface polishing up and down and so on

1.Safety and thickness limitation

----Avoid wrong panel putting and hand pressing

2.Double rail fast end cutting

----Improve efficiency

3.Pneumatic pressing

4.Pre-milling

---- Milling the damaged part of the plate edge to achieve better edge sealing effect

5.Double glue pot

---- Save time and increase efficiency

6.Four heads corner trimming

---- Improve efficiency and effectiveness

7.Coding precise control

--- Precisely control tape cutting and conveyor,saving edge tape

 8.Pneumatic double trimming

--- Better trimming and higher efficiency

9.Auxiliary feeding

--- Optional for narrow plate safe feeding

10.Pneumatic scraping

11.Fracture wire and pneumatic polishing

--- Pneumatic swing polishing better effect;Remove the shaved wire, avoid twining on the buffing wheels caused the motor stalled and burned out.

12.Automatic knife adjustment system

--- No professional engineer required to adjust the machine

Introduction for edge banding machine:

Jinan GoodCut automatic edge banding machine is equipped with Delta touch screen ,any errors of the machine are visiable in the touch screen control panel ,easier to repair and operate .Also the fine trimming sectionapplys high speed motor,ensure the high performance for trimming .Standard machine functions include gluing ,end cutting ,fine trimming ,flat scraping and buffing .All in one model that can meet your demands for various work for panel furniture edging .

Features for GoodCut high quality China edge bander woodworking pre milling edge banding machine in Uzbekistan:

1 The glue mechanism adpot a special structure to gelatinize the plates and coating materials uniformly, ensure a more solid conglutination.

2 The buffling device adopt the board processed by cotton polishing wheel, by end-polishing to make a more smooth surface.

3 Scraping unit for a perfect finishing of the applied edge.

4 Fine trimming unit using automatic tracking contour wheels and high speed motors ensure edges of panels smooth when trimming.

5 Rough trimming use flat knife which can prevent the thin veneer cracked.Besides rough trimming can be the first banding process of PVC and acrylic. This can reduce the cutting forces and wear of fine trimming cutter.
