China Factory Drilling And Tapping CNC Machine Tool
US $1500-$32000

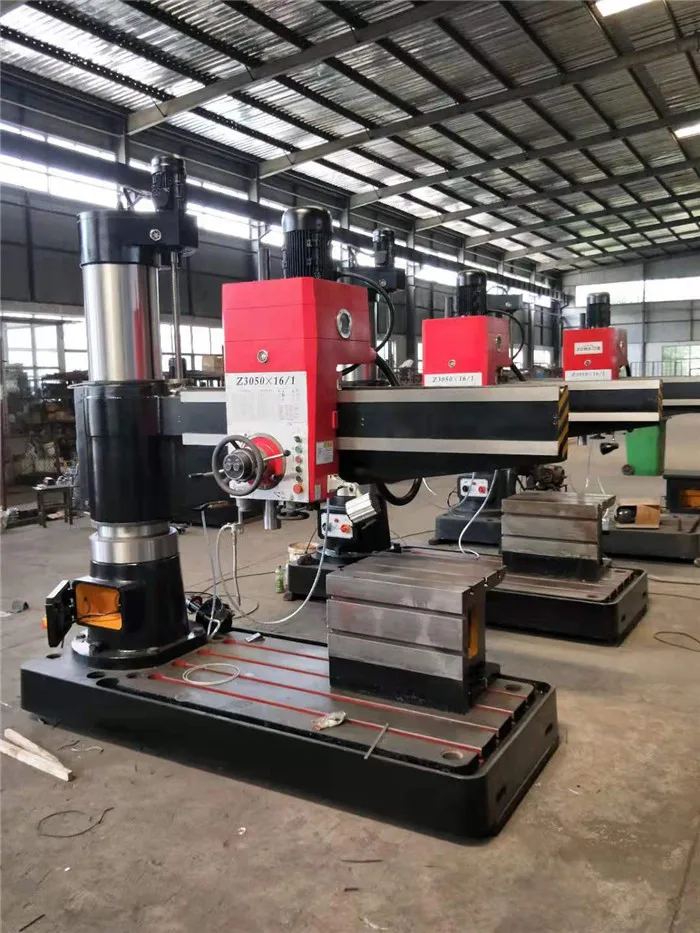

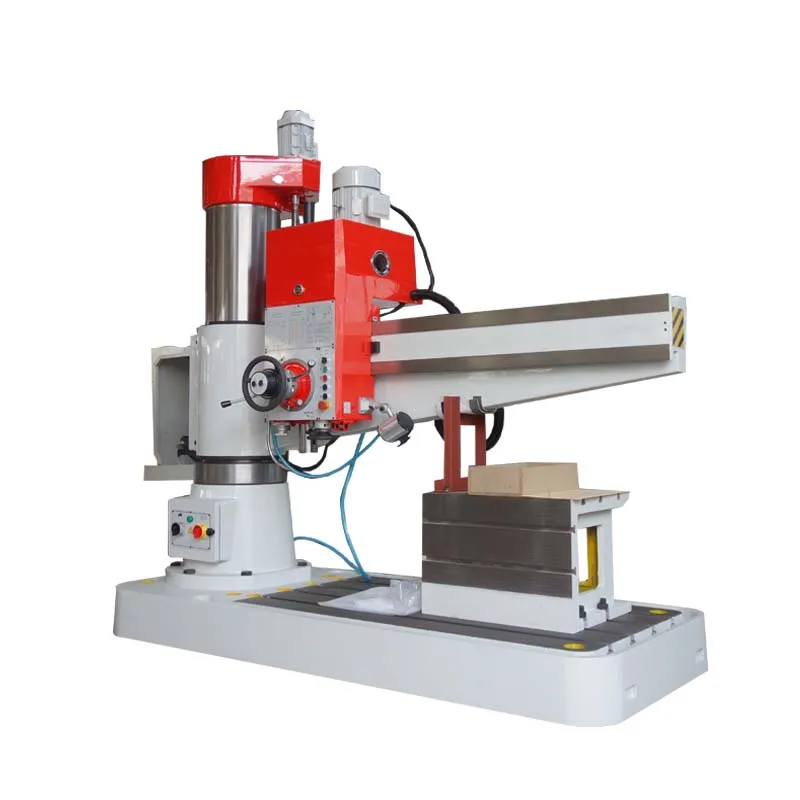

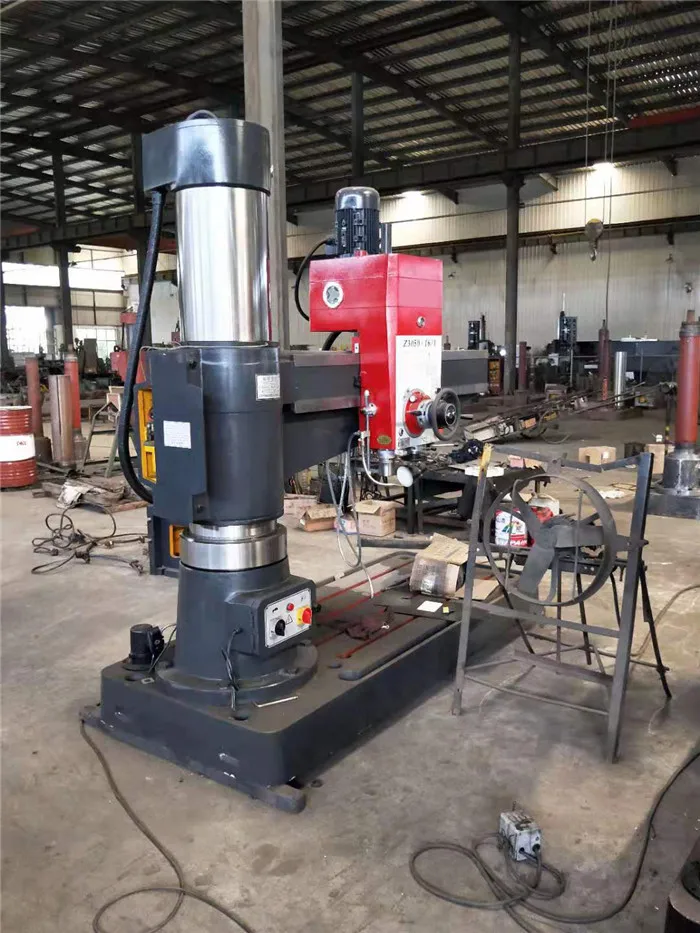

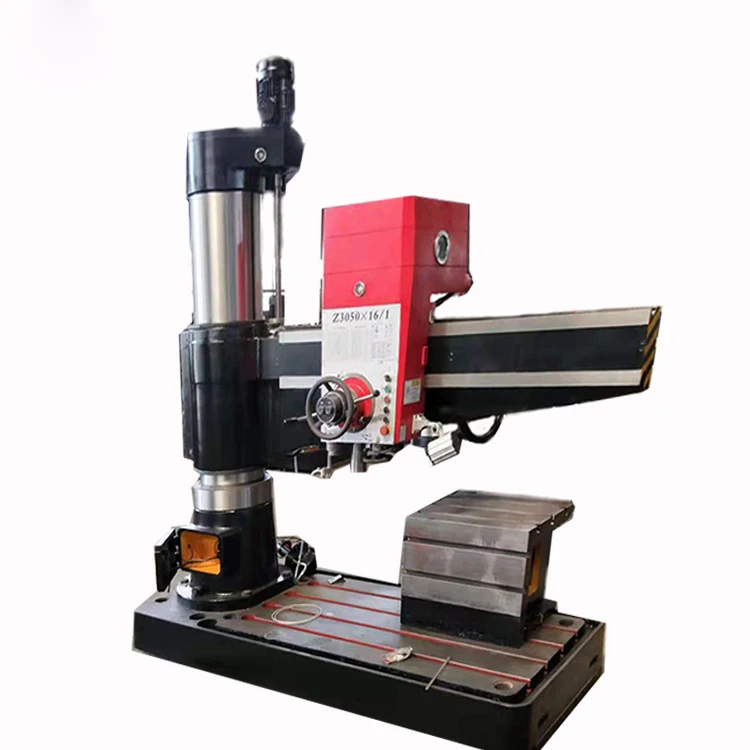

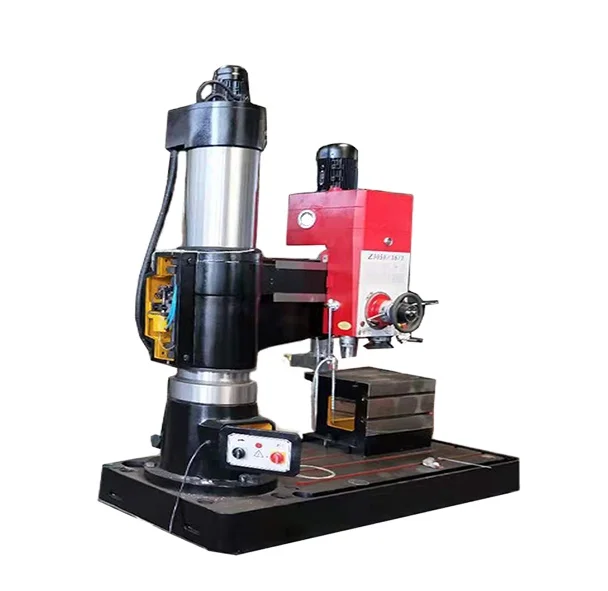

Z3063 China Factory Mini Radial Drilling Machine Rocker Arm Dill Machine Cheap Price
- Category: Drilling Machines >>>
- Supplier: Henan Wadley CNC Machinery Co. Ltd.
Share on (62348121738):
Product Overview
Description
Product Overview
1. The main key pieces of high strength cast iron and special steel.
2. By the specialized equipment to ensure continuous processing, sophisticated infrastructure components.
3. Using the hydraulic preselected speed change mechanism, can save auxiliary time.
4. Spindle positive, parking ( brake ), transmission, free action, with a handle control, operate more conveniently and
quickly.
5. The spindle box, rocker arm, inner and outer column driven by hydraulic pressure rhombic block clamping mechanism, reliable clamping.
6. 16 levels of spindle speed and feed optional economic and efficient cutting
7. Rocker guide rail, the outer column surface, spindle, spindle sleeve and the inner and outer column rotary raceway are
conducted quenching treatment, can maintain the stability of machine tool accuracy, prolongs the service life.
8. Have good safety protection device and the outer column protection.
9. The structure design and in the manufacturing process, but also adopted a series of effective measures, so that the
precision of the machine tool durability and the service life of the whole machine are enlarging.
10. The new coating technology and the continuous improvement of appearance display style of the times.
2. By the specialized equipment to ensure continuous processing, sophisticated infrastructure components.
3. Using the hydraulic preselected speed change mechanism, can save auxiliary time.
4. Spindle positive, parking ( brake ), transmission, free action, with a handle control, operate more conveniently and
quickly.
5. The spindle box, rocker arm, inner and outer column driven by hydraulic pressure rhombic block clamping mechanism, reliable clamping.
6. 16 levels of spindle speed and feed optional economic and efficient cutting
7. Rocker guide rail, the outer column surface, spindle, spindle sleeve and the inner and outer column rotary raceway are
conducted quenching treatment, can maintain the stability of machine tool accuracy, prolongs the service life.
8. Have good safety protection device and the outer column protection.
9. The structure design and in the manufacturing process, but also adopted a series of effective measures, so that the
precision of the machine tool durability and the service life of the whole machine are enlarging.
10. The new coating technology and the continuous improvement of appearance display style of the times.
Product Parameters
Specification | Z3032X10 | Z3040X14 | Z3050X16 | Z3063X18 | Z3080X20 |
Max drilling diameter (mm) | 32 | 40 | 50 | 63 | 80 |
Distance between spindle axis and coulumn(mm) | 170-1100 | 260-1210 | 350-1500 | 400-1600 | 550-1600 |
Spindle travel(mm) | 120 | 260 | 350 | 400 | 450 |
Spindle taper(morse) | MT4 | MT4 | MT5 | MT6 | MT6 |
Number of spindle speeds | 6 | 12 | 12 | 16 | 16 |
Steps of spindle feeds | 3 | 3 | 4 | 16 | 16 |
Radial ratation angle | 360 | 360 | 360 | 180 | 180 |
Main motor (kw) | 1.5 | 2.2 | 4 | 5.5 | 7.5 |

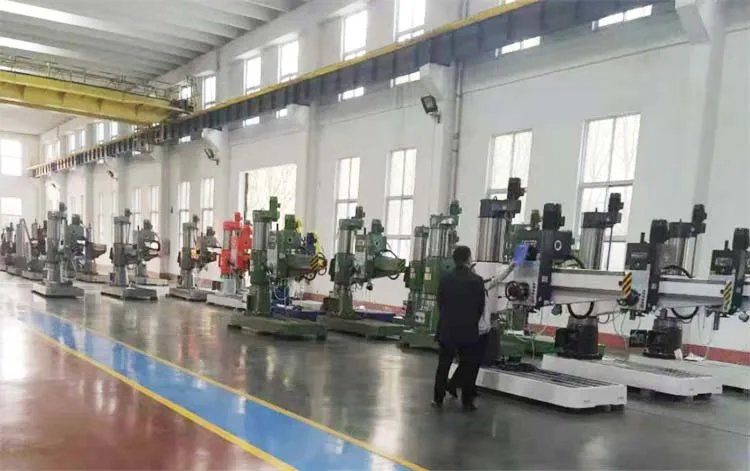

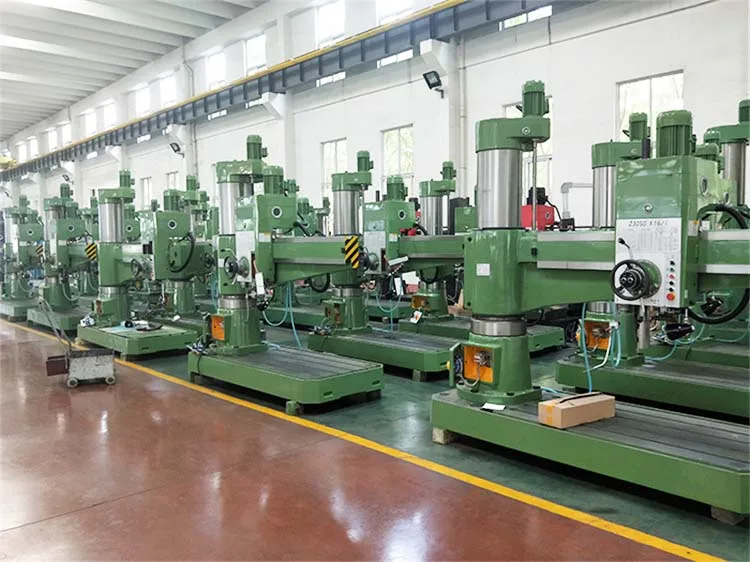

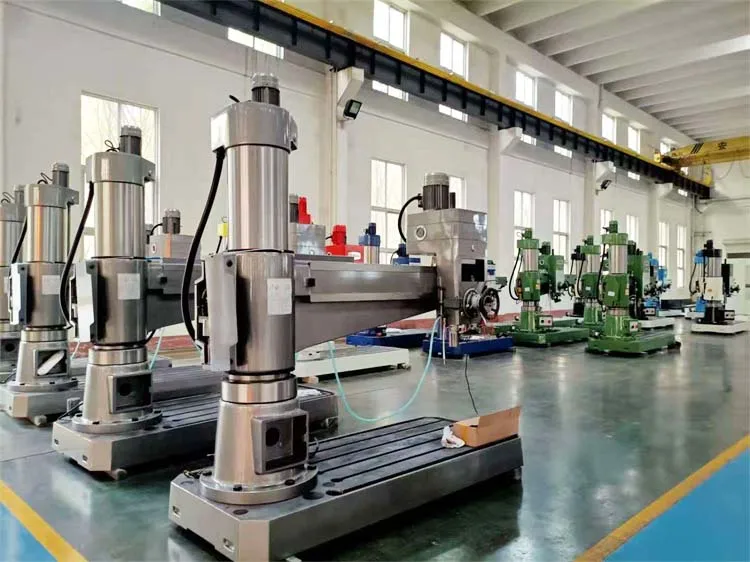

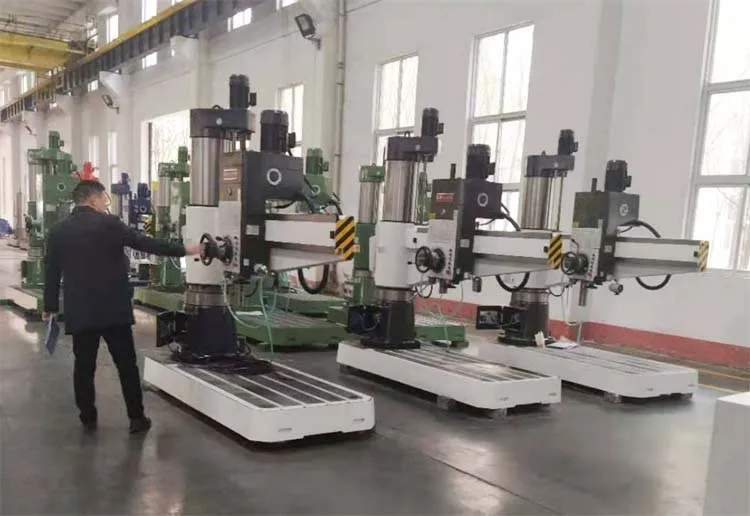

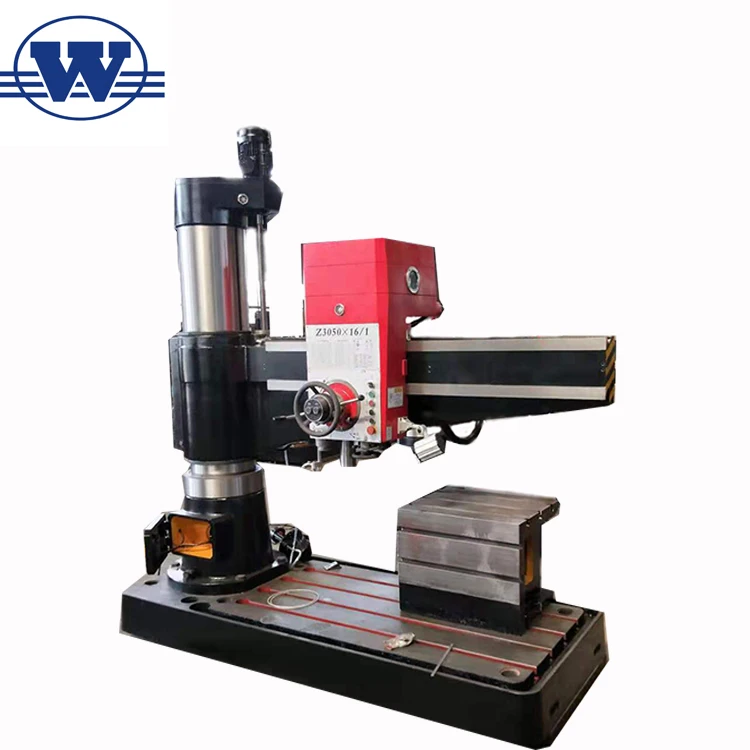

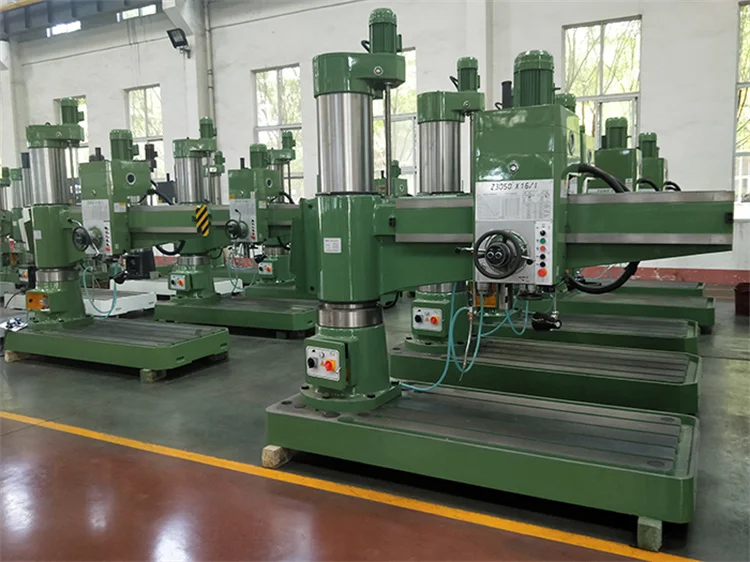

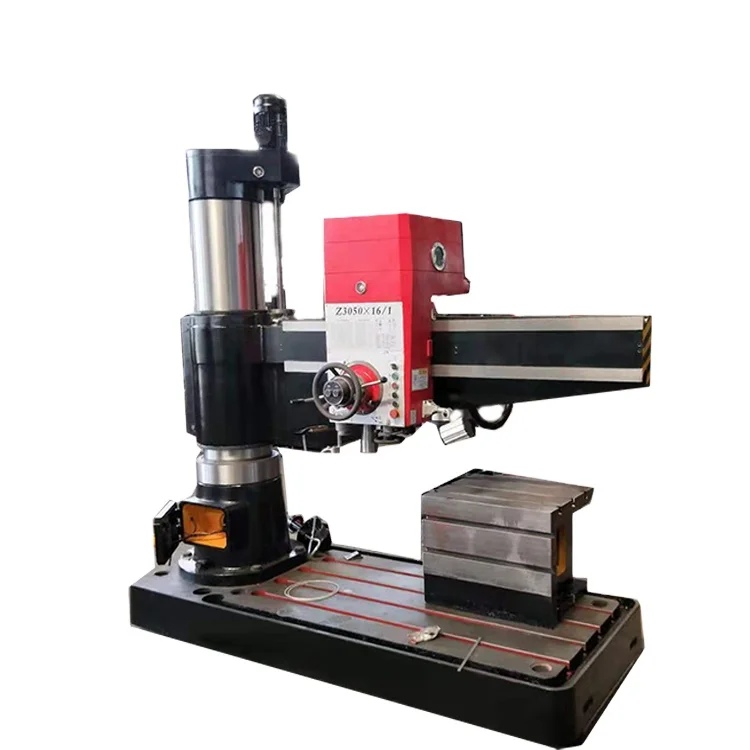

Product Show
