Factory direct-in wholesale stainless steel 1/4" hall effect water flow meter sensor for equipment
Product Description
Material
Nylon and fibre
Product Color
Black
Product Type
Latched Hall Element
Output Signal
Pulse waves (Hz)
Working Voltage
3V~18V DC
Max. Current
25MA(DC12V)/15MA(DC5V)
Start-up Flow
≥1L/Min.
Flow Range
1.0~20 L/Min.
Flow Feature
F=8N (F=HZ, N=L/Min.)
Accuracy
±5%
Pressure
≤1.75Mpa
Installation
Vertical and horizontal direction (as per arrow)
Temperature
0~90℃
Wire spec
UL1007 AWG24

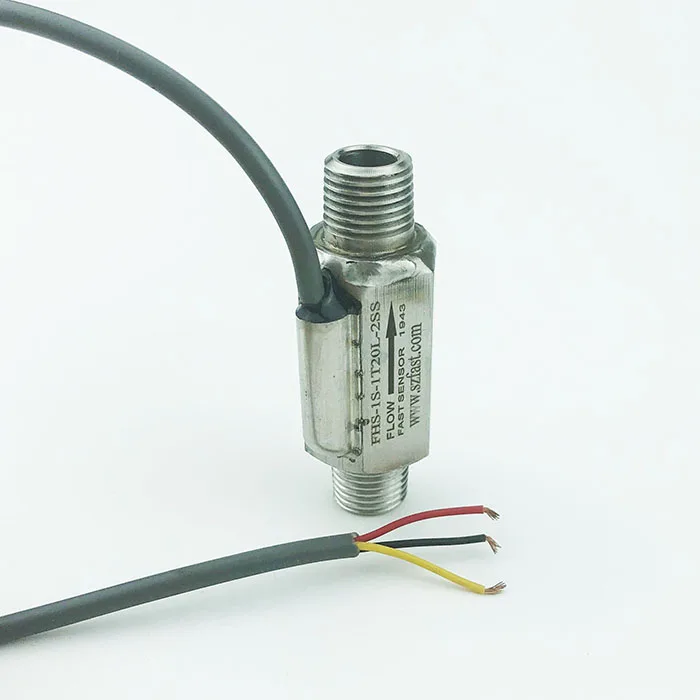

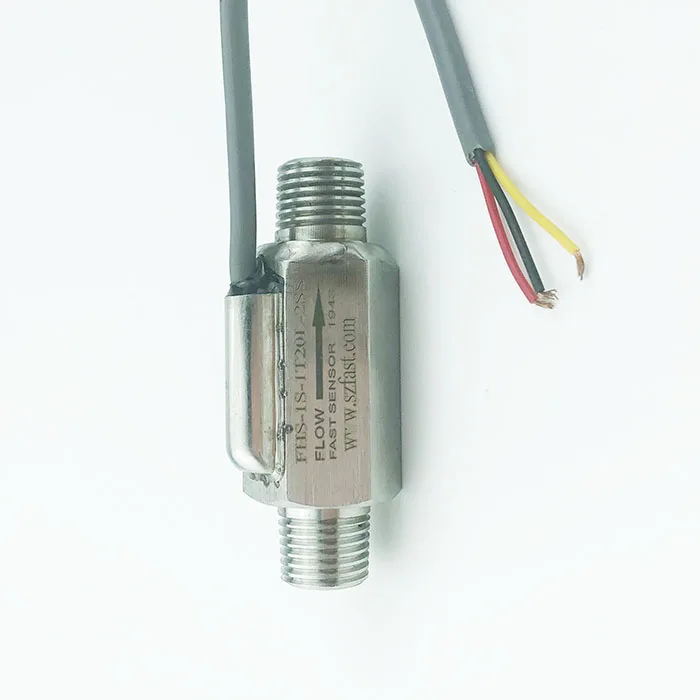

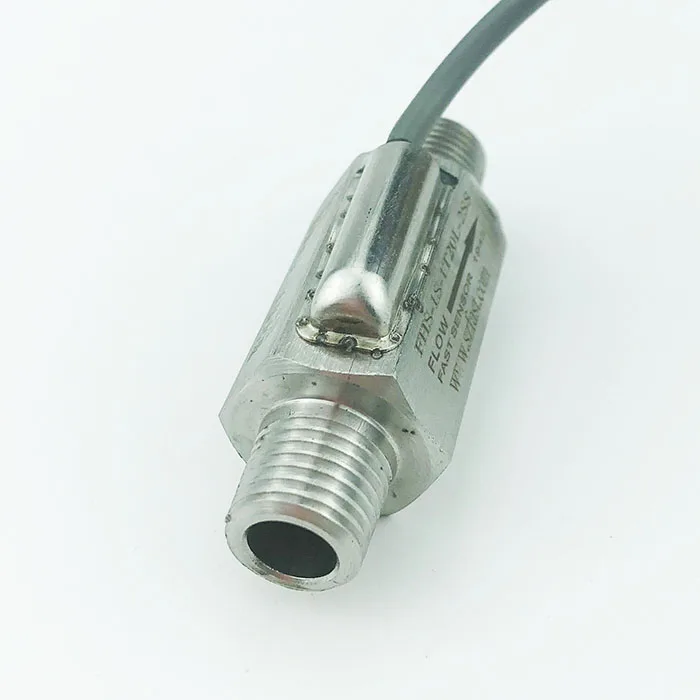

Product show
Company Information
Payment & Transporta
FAQ
1. Q: How To Order ?
A: Step 1, please tell us what model and quantity you need;
Step 2, then we will make a PI for you to confirm the order details;
Step 3, when we confirmed everything, can arrange the payment;
Step 4, finally we deliver the goods within the stipulated time.
2 . Q: When will make delivery ?
A: Delivery Time
-Sample Order: 1-3 days after receipt of the full payment.
-Stock Order: 3-7days after receipt of the full payment
-OEM Order: 12-20days after receipt of the deposit.
3. After-sales Service
1 year warranty for all kinds of products;
If you find any defective accessories first time, we will give you the new parts for free to replace in the next order, as an experienced manufacturer, you can rest assured of the quality and after-sales service.
4.Payment
T/T, Western Union, Moneygram , Escrow.
5. Transportation
Transported by DHL, UPS, EMS, Fedex, Air freight. sea freight.
