Direct sales Variable Speed Drill Press with Digital Speed Readout and Laser Light HD2500
- Category: Drilling Machines >>>
- Supplier: Jugetek Co. Ltd.
Share on (62354212973):
Product Overview
Description
Product Description
Hisimen 15-inch Variable Speed Drill Press powers through metal, wood, plastic and other materials. Drill a hole through heavy
duty cast iron. The mechanical variable speed allows you to target in the exact RPM (from 240 to 2750) for your project with the
simple turn of a lever while the digital LED readout displays the current speed. The powerful induction motor features ball
bearings for an extended life and balanced performance. The chuck with MT2 spindle taper gives you versatility with a variety of

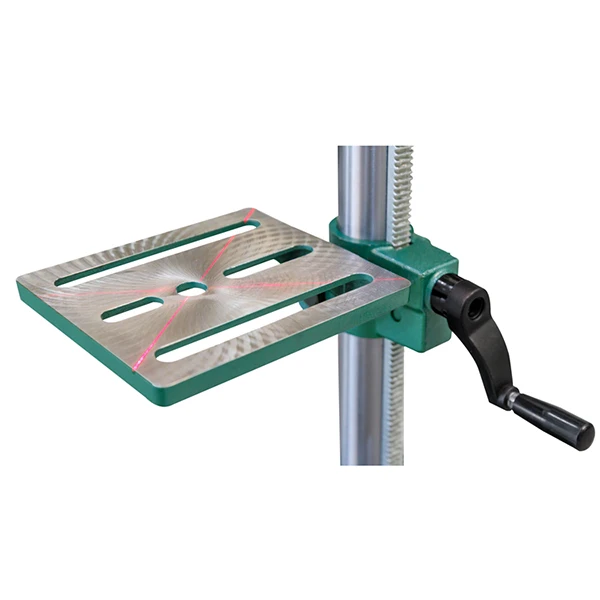

bits and features on-board chuck key storage. Worktable bevels 45° left and right for those tricky operations for the perfect
right angles consistently. The X-pattern laser locks-on to your drill points, saving on guesswork and sparing expensive materials.
Hisimen series drill press: fantastic compact solution and great for miniature work.
10-inch HD2500 Drilling Specification:
Motor type: Induction Motor 220V / 50Hz
Motor power: 550W
Motor speed: 1450RPM

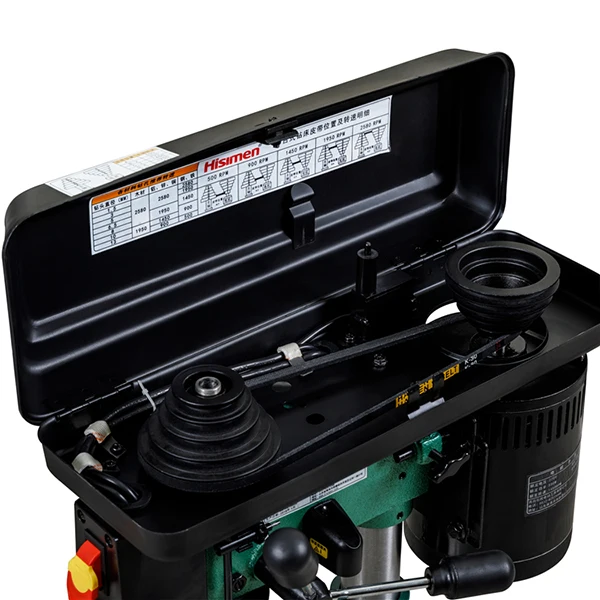

Belt speed control: 5 speed, 500-2580RPM
Chuck type: B16
Chuck size: 1.5-13MM
Spindle taper: B16
Spindle travel: 50MM
Drilling ability: 1.5-13MM
Drilling depth: 50MM
Spindle to column distance: 127MM
Workbench type: Cast Iron Workbench
Workbench size: 195x165MM
Table tilts: 0-45°, left and right 45°, 360° table swing
Maximum distance from spindle to table: 300MM
Column diameter: 48MM
Base size: 319x186MM
Base table size: 160x170MM
Maximum distance from spindle to base: 410MM
Machine height: 732MM
Switch type: Safety Switch
Laser light: with
Working light: without
Net weight / gross weight: 23.5 / 26KG
Package size: 610x370x290CM
duty cast iron. The mechanical variable speed allows you to target in the exact RPM (from 240 to 2750) for your project with the
simple turn of a lever while the digital LED readout displays the current speed. The powerful induction motor features ball
bearings for an extended life and balanced performance. The chuck with MT2 spindle taper gives you versatility with a variety of
bits and features on-board chuck key storage. Worktable bevels 45° left and right for those tricky operations for the perfect
right angles consistently. The X-pattern laser locks-on to your drill points, saving on guesswork and sparing expensive materials.
Hisimen series drill press: fantastic compact solution and great for miniature work.
10-inch HD2500 Drilling Specification:
Motor type: Induction Motor 220V / 50Hz
Motor power: 550W
Motor speed: 1450RPM
Belt speed control: 5 speed, 500-2580RPM
Chuck type: B16
Chuck size: 1.5-13MM
Spindle taper: B16
Spindle travel: 50MM
Drilling ability: 1.5-13MM
Drilling depth: 50MM
Spindle to column distance: 127MM
Workbench type: Cast Iron Workbench
Workbench size: 195x165MM
Table tilts: 0-45°, left and right 45°, 360° table swing
Maximum distance from spindle to table: 300MM
Column diameter: 48MM
Base size: 319x186MM
Base table size: 160x170MM
Maximum distance from spindle to base: 410MM
Machine height: 732MM
Switch type: Safety Switch
Laser light: with
Working light: without
Net weight / gross weight: 23.5 / 26KG
Package size: 610x370x290CM
Detailed Images
