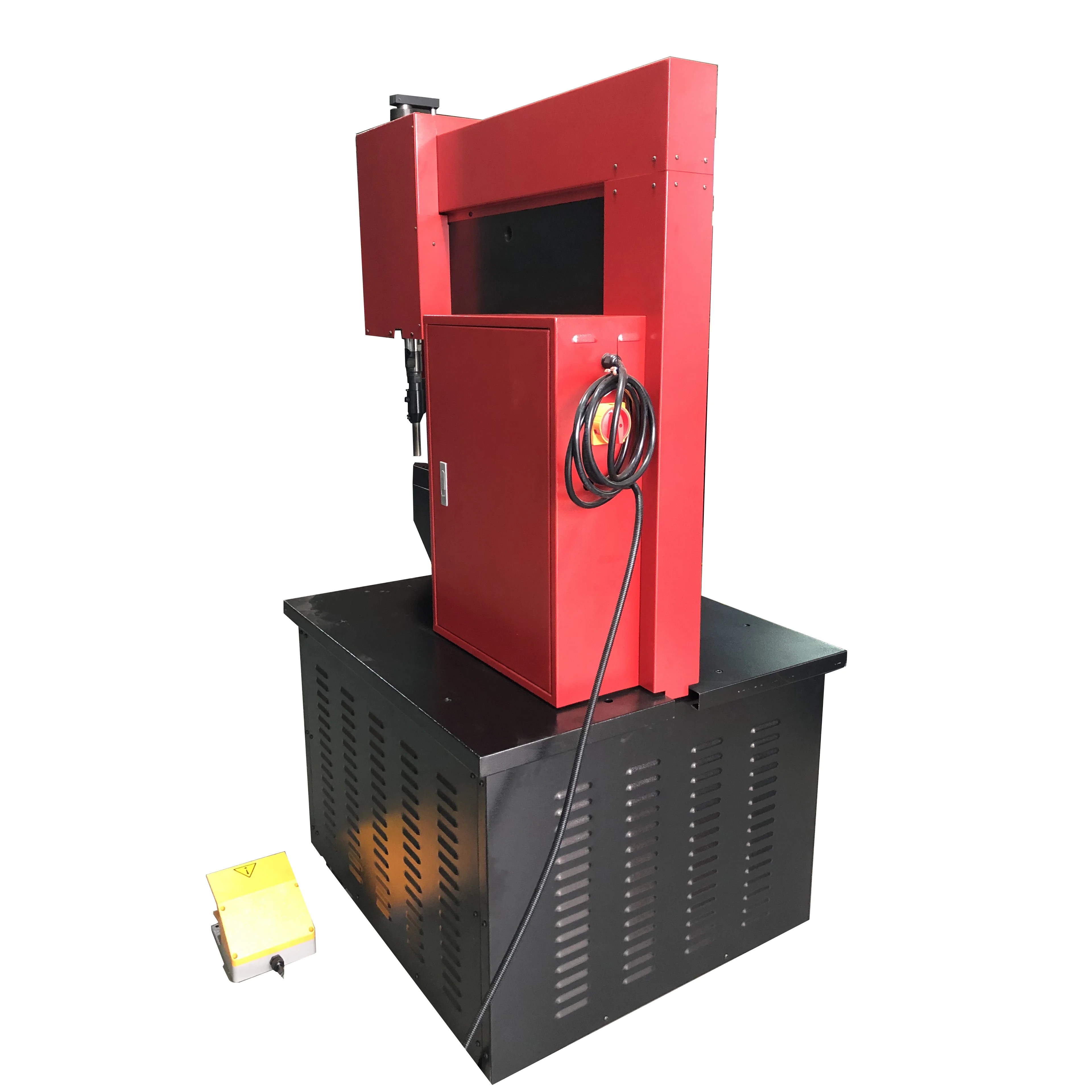

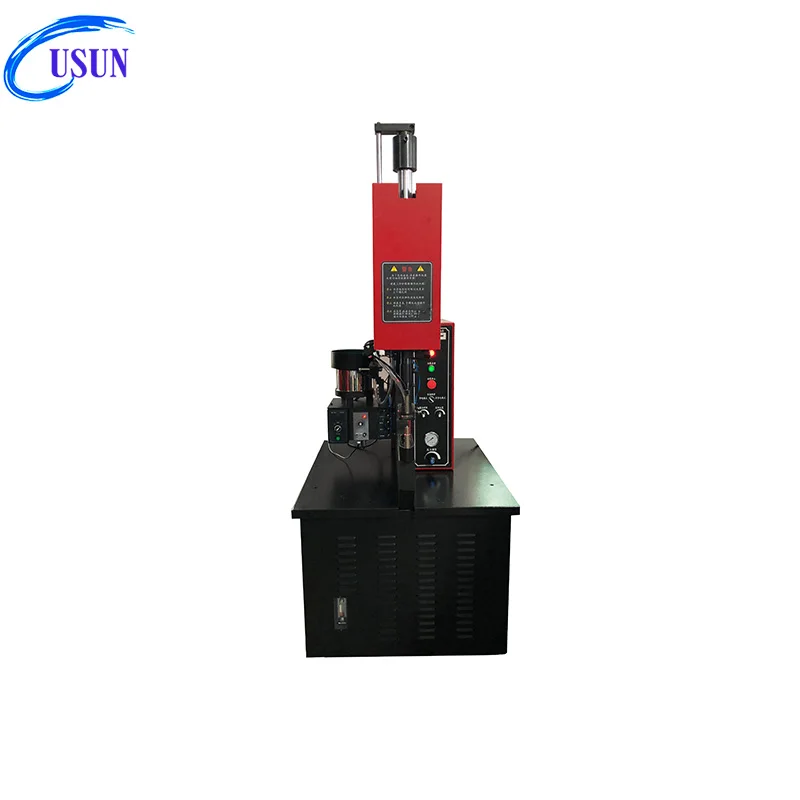

Сшаоон Модель: ULYP 518 PEM серии гидравлический Застежка Вставка пресс машина с палец пожарной техники

Product Overview

Description

Promotional Best Quality  C frame  6-8 Tons  auto-feeding p hydraulic fastener



insertion press machine  for bolts or nuts  or standoff







1)ULYP  Series C-frame console pressess are specialized riveting equipments without rivets. In stead of all previous methods

which have involved economic and technical problems, they will join different materials by means of a deep drawing-pressing process, and which do so without damage to the surface, purely by displacing and forming.



2) It assures you with high productive efficiency as well as full process automaticly monitoring and joining strength checking.



3) In the process of pressing , sheet metals of different thicknesses or materials, even with adhesives or other intermediate layers are fully joined.



4) In industrial applications,Its available of clinching for single sheet thicknesses of 0.5 mm up to a total layer thickness of



11.0 mm and up to 7500 N tensile strength. In laboratory tests significantly higher values have already been achieved!

 Product Main features



1)  Compact structure, clean design



2) Increased productivity with automatic feeding system and multi-point riveting



3) Large anti-ejecting forces and anti-torsion torques



4) High flexibility with height-adjustable



5) High stroke frequency High stroke frequency



6) Easy maintenance and changeable



7) Available for riveting nuts diameter larger than M10



Product Specifcation

1.Riveting ability (Nut below M10,bolt below M8 and srew below M6 carbon steel material riveting fastener)

2.Turned edge tapping thread (below M6 carbon steel material turned edge tapping thread technology)

3.Convex hull formation(formation arear diameter below 45MM techonlogy

4.No rivet screw conjunction(total thickness below 4.0MM carbon steel material no rivet screw conjunction technology)

5.Pierce out lock rivet conjunction (total thickness below 4.0MM carbon steel material pierce out lock rivet
conjunction technology)

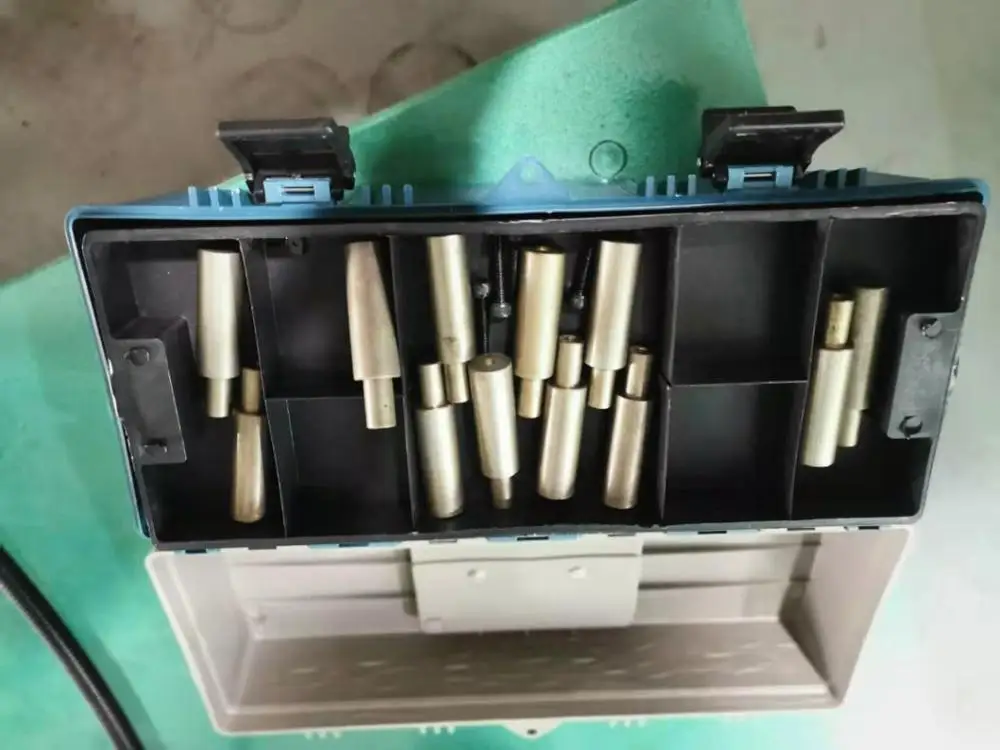

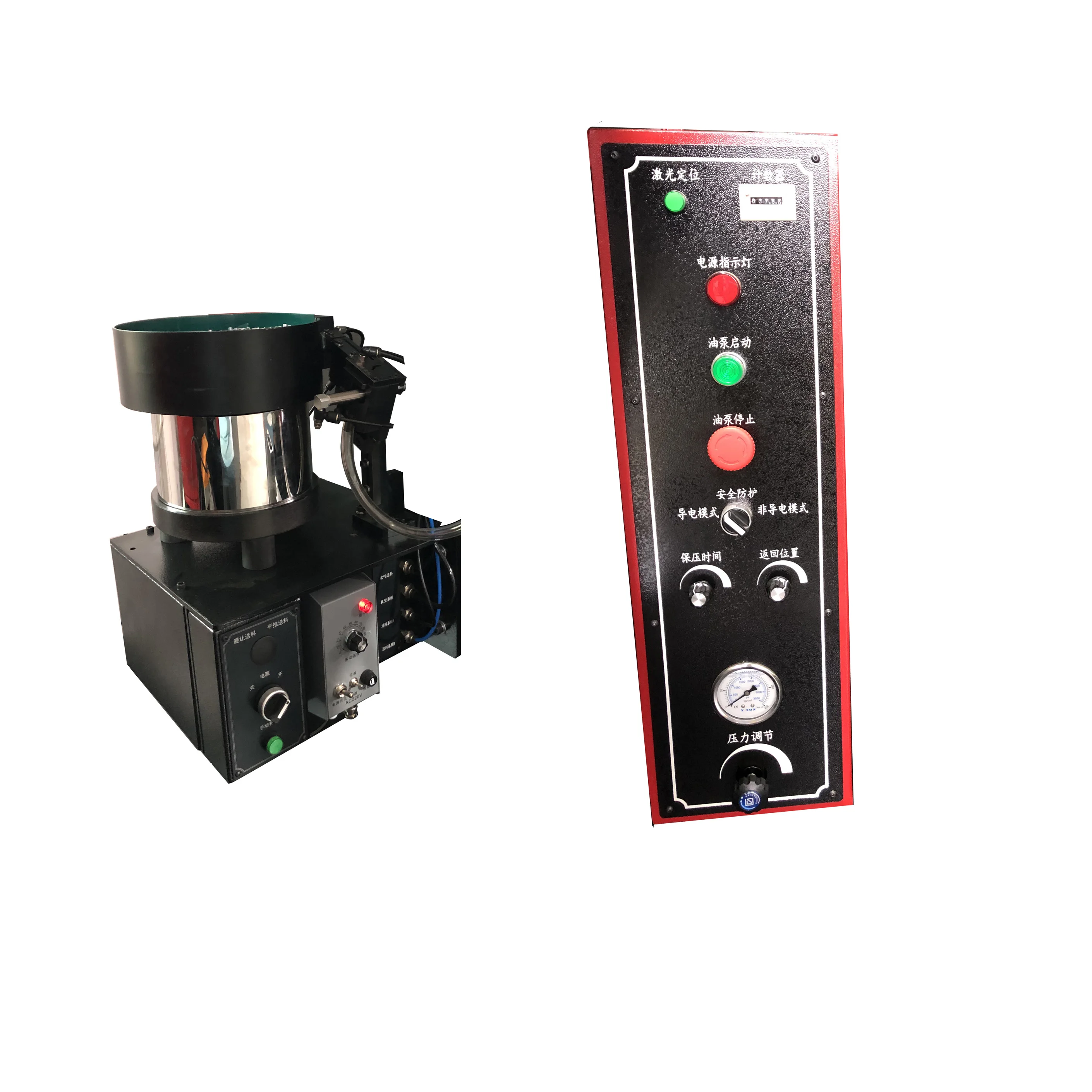

Additional parts together with machine





Performance parameters



Point diameter (mm)	Sheet thickness (mm)	Shear strength (N)	Tensile strength (N)	Punching force (KN)
Φ3	0.5-1.5	260-520	130-360	7-15
Φ4	0.6-2.0	710-1300	350-850	13-28
Φ5	0.9-2.5	750-2000	200-1000	15-30
Φ6	1.0-3.0	560-3400	300-2200	12-40
Φ8	1.6-6.0	510-6200	290-2800	18-60
Φ10	1.75-7.0	1600-8500	800-6200	36-105
Φ12	4.0-11.0	2700-10000	1100-7500	61-125



 Main  Technical parameters



Type	ULYP
Max. pressing force	80KN
Power source	Hydraulic power from hydraulic cylinder
Power supply	380V/ 50Hz

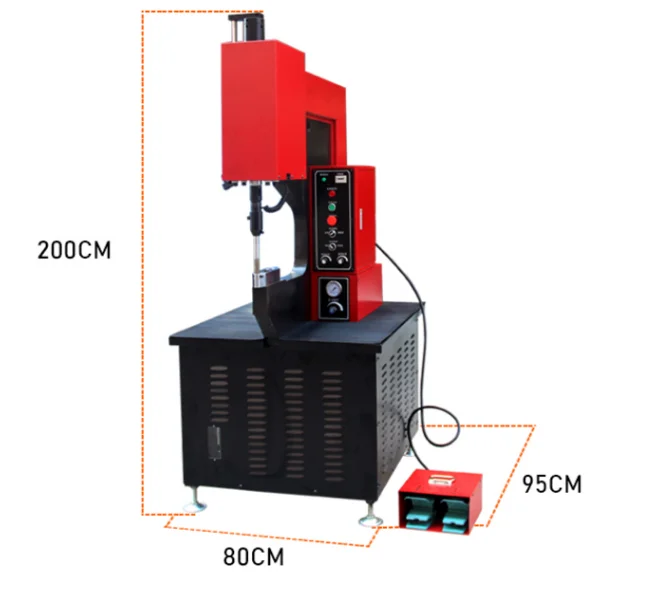

Max. total stroke	100 mm
Hydraulic tank	60L
Weight	600 KGS



Product applications







Recommended output force table





Real clinching samples for C frame bolts or nuts













Packing and Shipping







By sea	Cheapest but longest option 18~30 days by sea delivery for mass shipment
By air	More expensive than sea delivery, But cheaper than express 5~7 days by air to airport.
By express	door to door service,the fastest and most expensive one, 3~5 day for DHL /Fedex /UPS/TNT express
