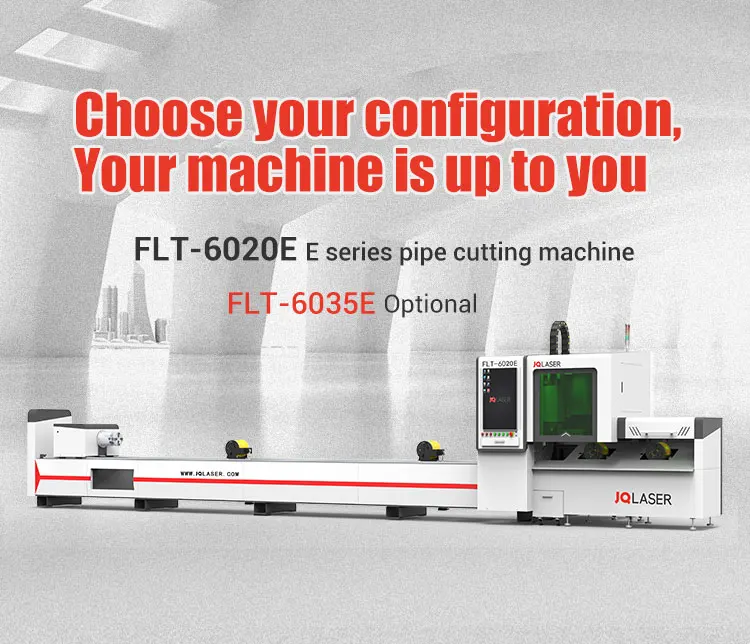

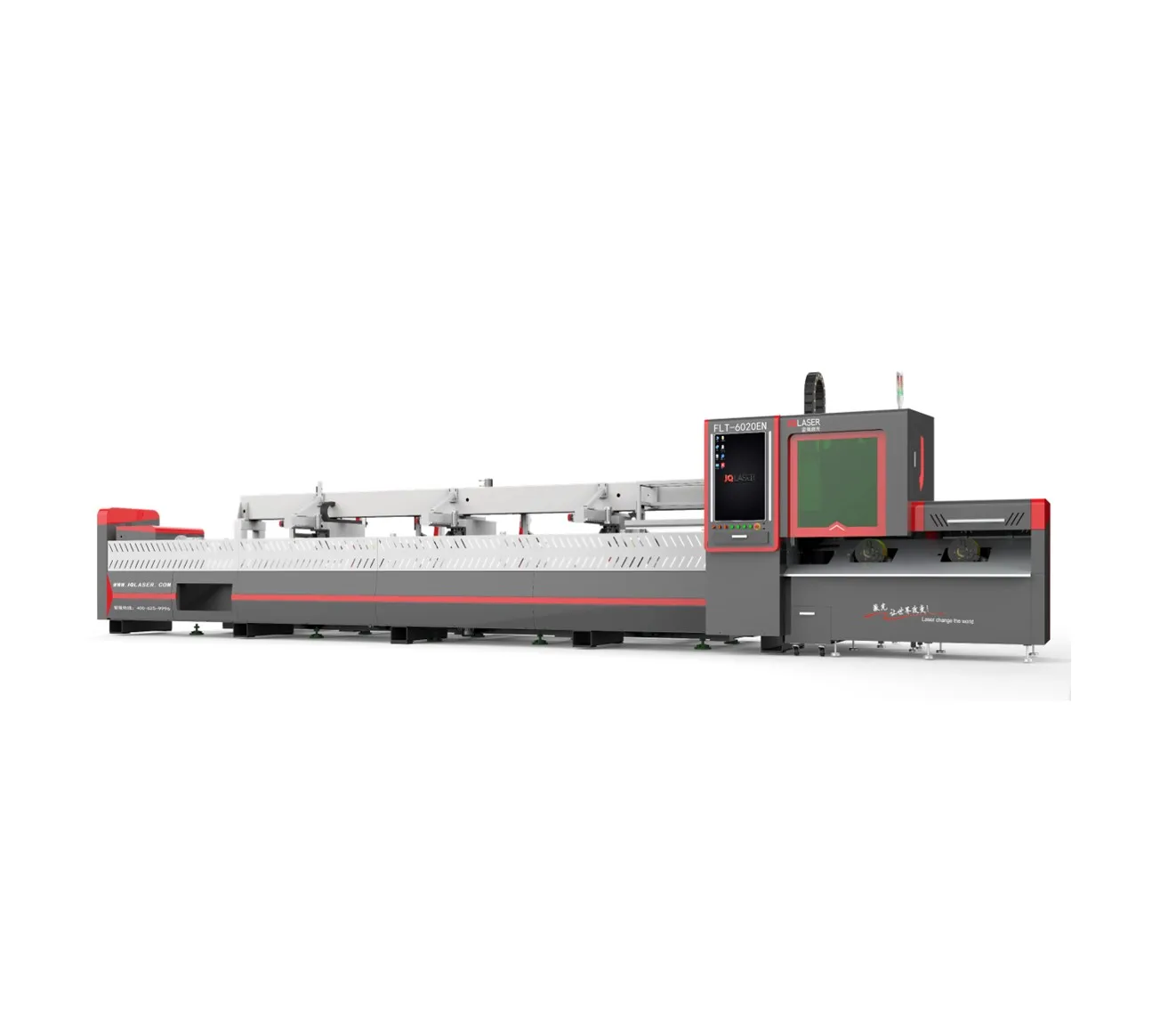

High Performance CNC Tube Metal Fiber Laser Cutting Machine for Metal Tubes Pipes
- Category: Machine Tool Equipment >>>
- Supplier: Jinan Jinqiang Laser Cnc Equipment Co. Ltd.
Share on (62359138315):
Product Overview
Description
Product introduction: Chuck diameter Φ15-Φ220mm (the circumscribed circle of the workpiece), and the maximum length is 6000mm. The machine can be equipped with a manual loading system or auto loading system. It has a high degree of open source and is an ideal choice for most pipe processing business owners.

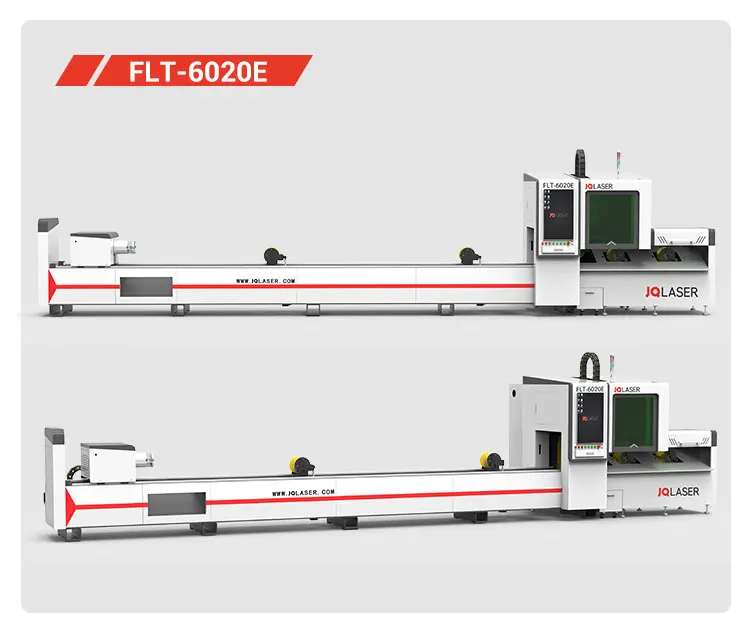

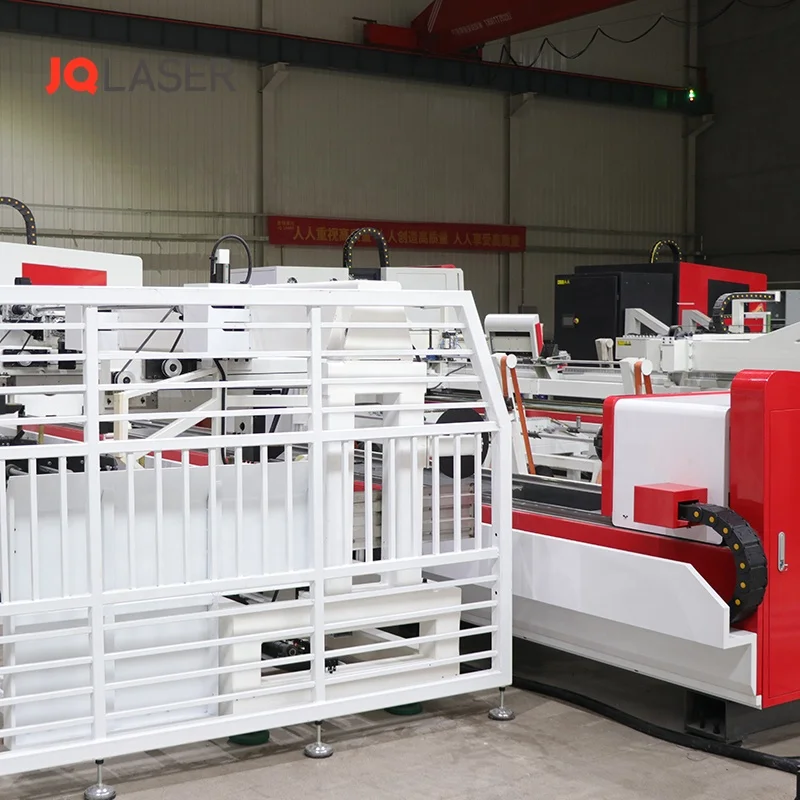

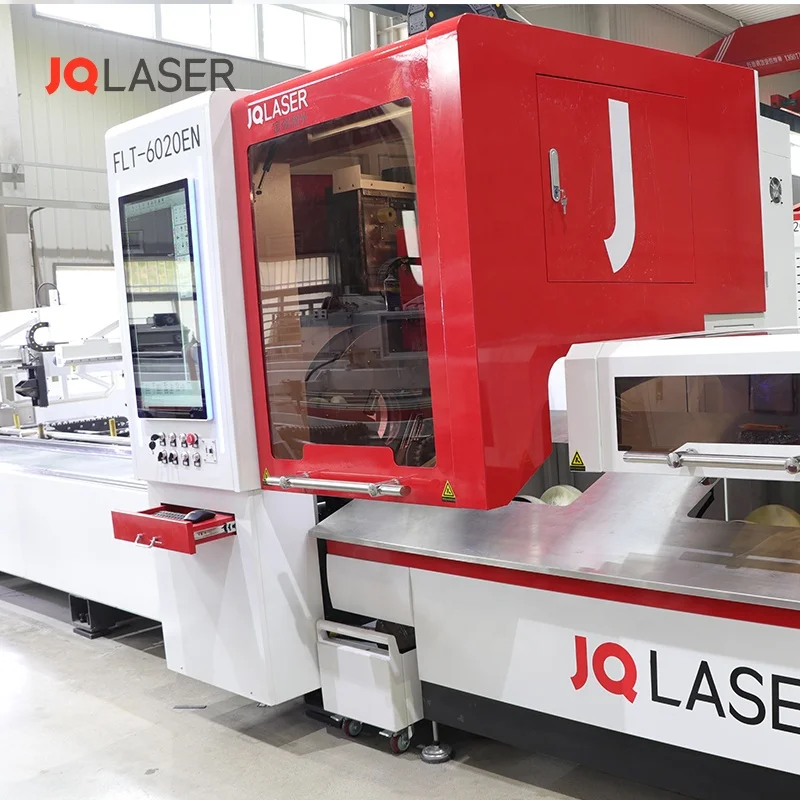

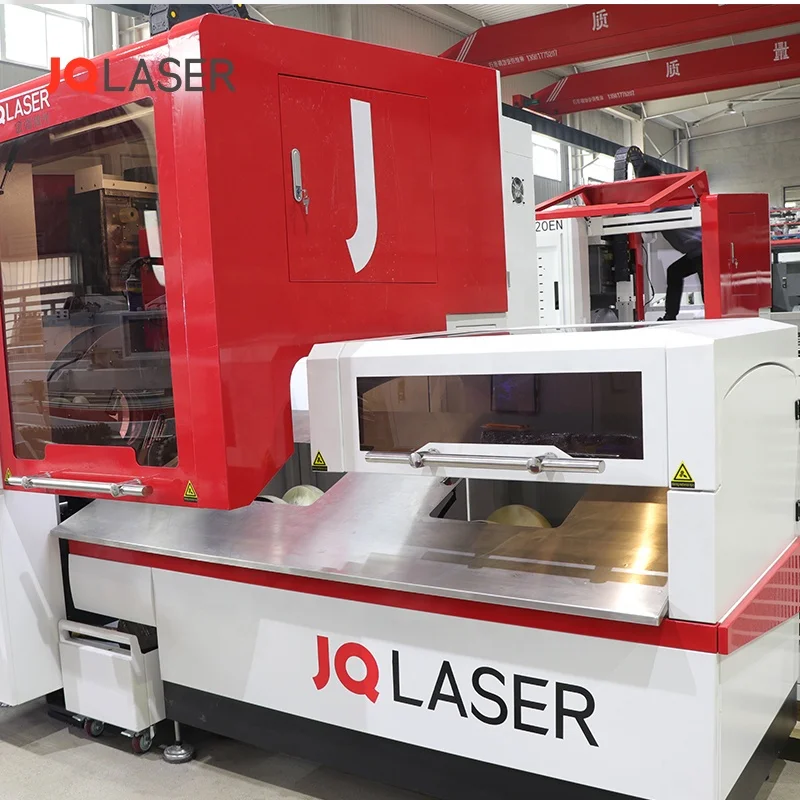

Products Show

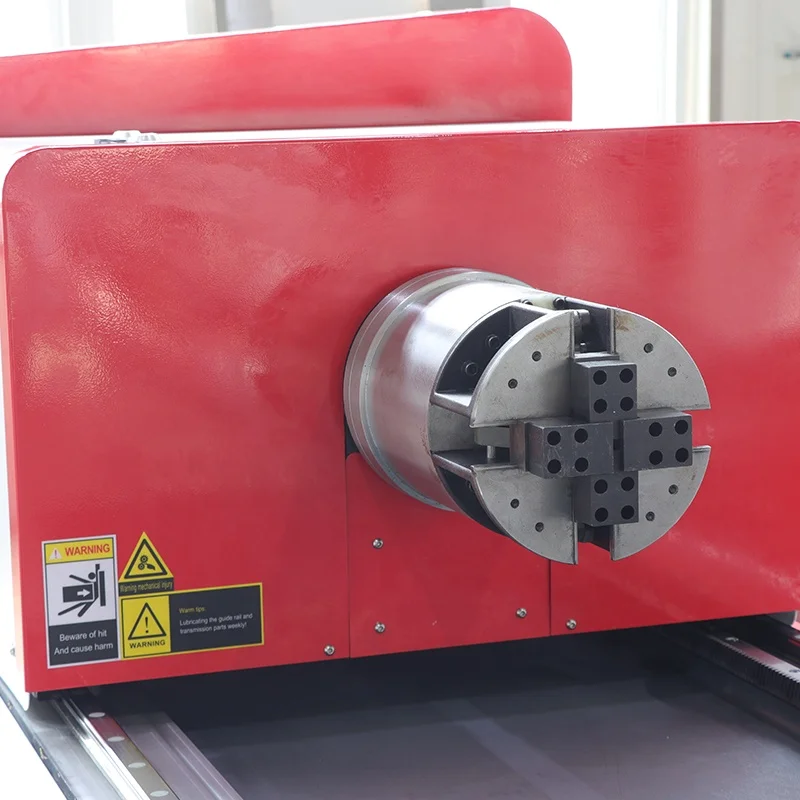

Product acessories

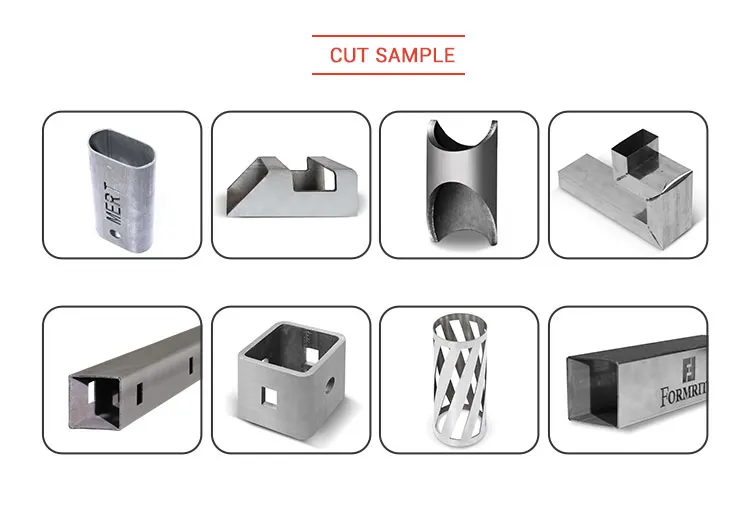

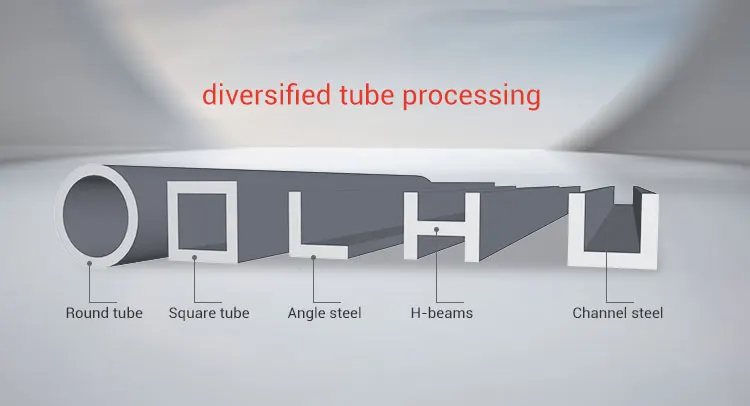

Powerful cutting function, capable of cutting square pipes, round pipes, rectangular pipes and various special-shaped pipes at the same time.

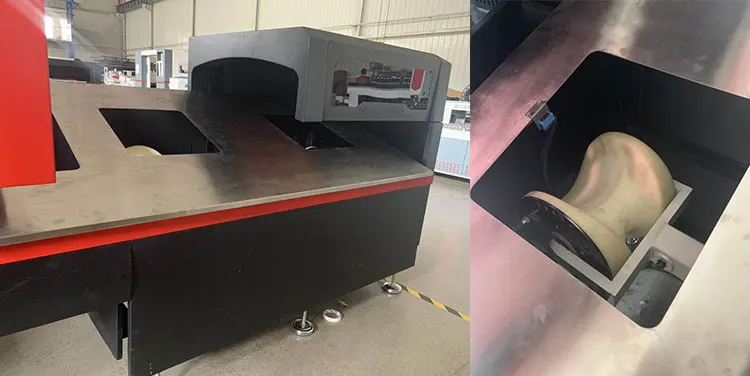

Front receiving device can complete the continuous cutting of the pipe and improve the processing efficiency.
Excellent processing system, friendly interface, convenient operation, and real-time feedback on the processing status, to ensure the orderly progress of processing.
Fiber laser device (Raycus) Laser Power：1000w Laser wavelength：1070nm Output power adjust：10%-100% Input power: within 2KW Working temperature：15-35°C

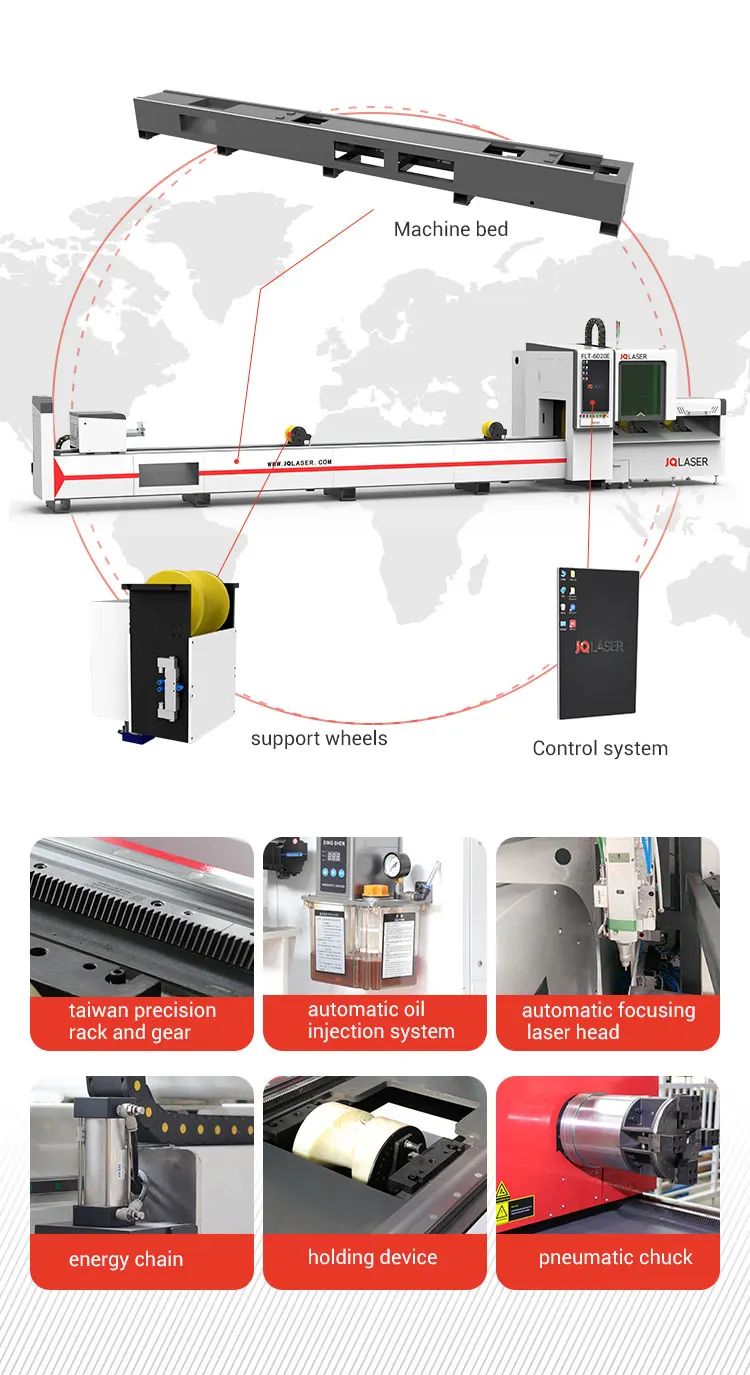

The machine base adopts a pipe welding structure, which is treated by annealing to eliminate internal stress. After rough machining, vibration aging is performed before finishing, which greatly improves the rigidity and stability of the machine base and ensures the processing accuracy.
NO. | Item | Parameter | Unit |
1 | Maximum cut pipe length | 0-6000（cut more then 3000mm,need add unloader | mm |
2 | Cutting diameter | 15-220(outer diameter) | mm |
3 | X, Y axis positioning accuracy | ±0.05/1000mm | mm |
4 | X, Y, Z axis repeat positioning accuracy | ±0.03/1000mm | mm |
5 | Acceleration speed | 1g | m/s² |
6 | Max. running speed | 75 | m/min |
7 | MachineWeight of loading machine | 4500 | kg |
8 | Machine size(length×width×height） | 10500×3000×2400 | mm |
Product Applications
Exhibition display

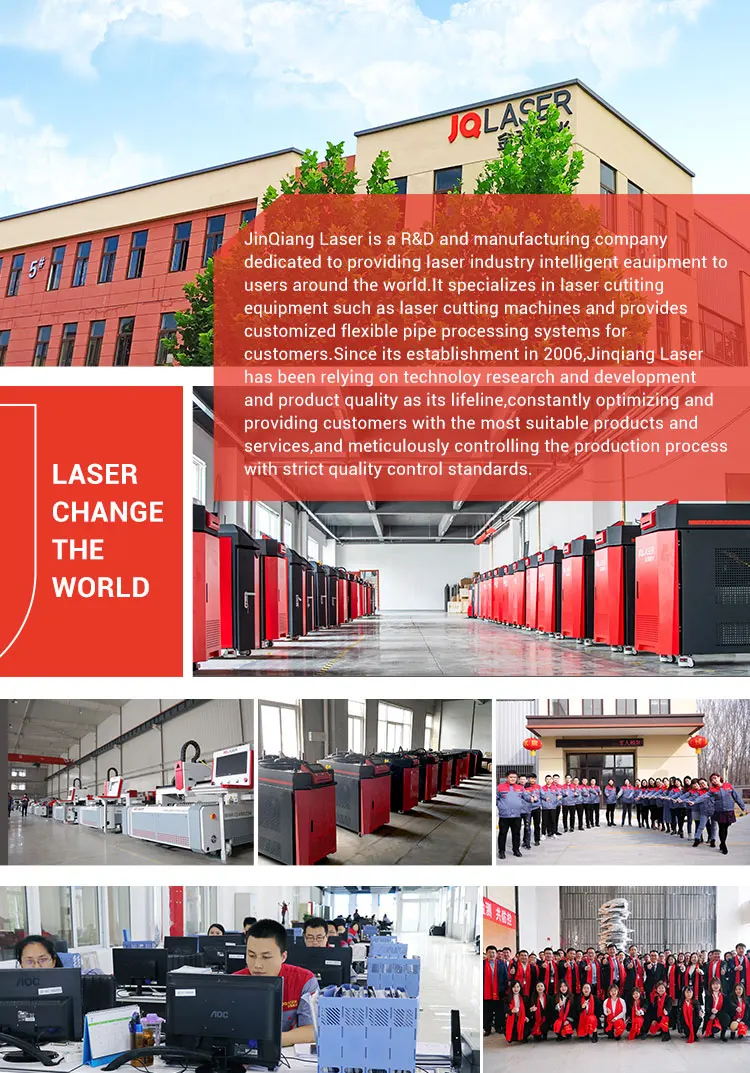

Enterprise Show
Cooperation brand
packing &shipping
packing standard
packaged based on anti-water,anti-rusted,anti-shocked,and with hanging device for easy hoisting
transportation
in the instructions of customers to transport:trucking,shippng etc
packing list
the whole documents list:packing list,certificates of quality,warranty cards,etc
packaged based on anti-water,anti-rusted,anti-shocked,and with hanging device for easy hoisting
transportation
in the instructions of customers to transport:trucking,shippng etc
packing list
the whole documents list:packing list,certificates of quality,warranty cards,etc
