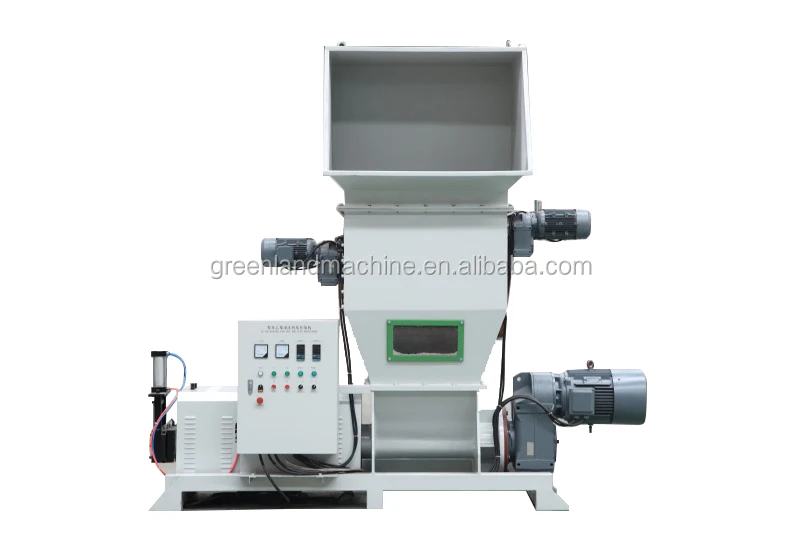

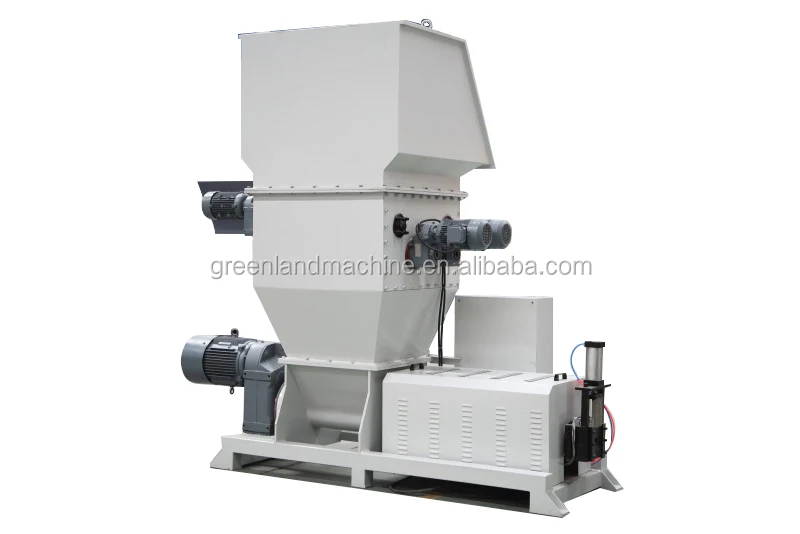

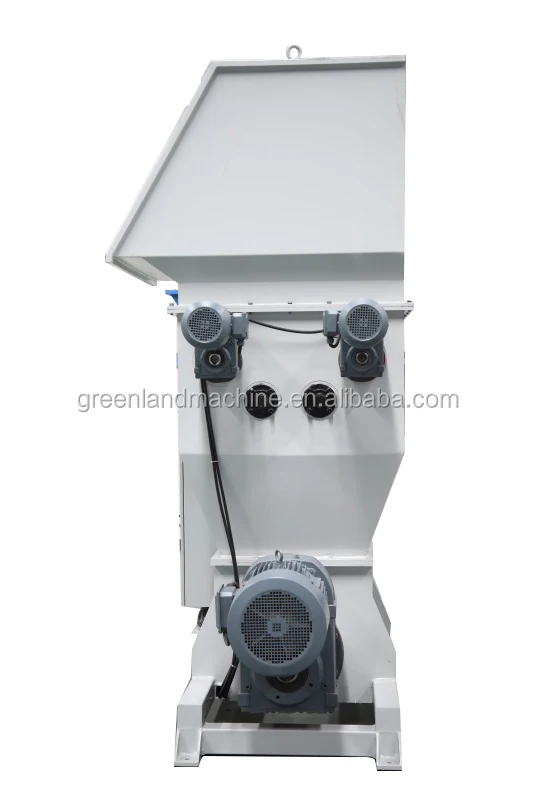

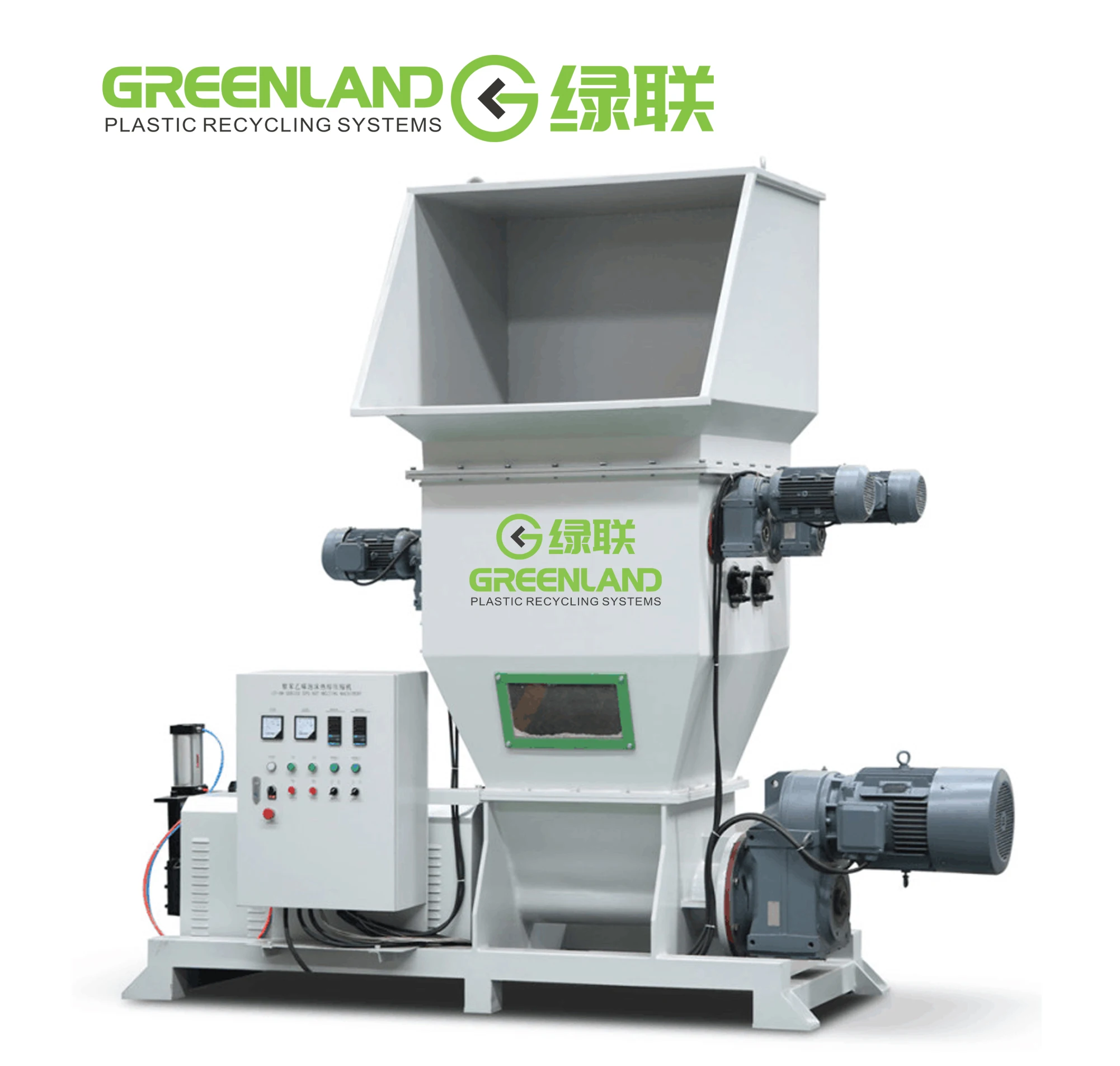

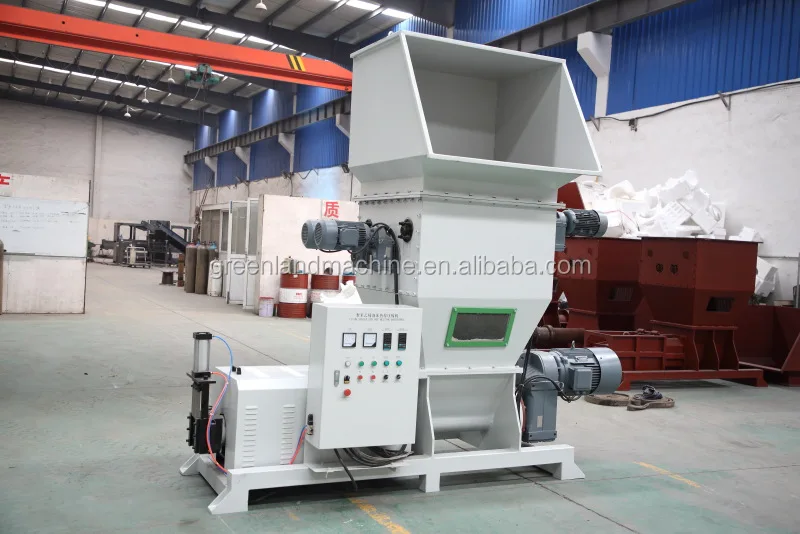

This machine for expanded polystyrene foam recycling is by screw heating melting extrusion way,then make the foam scrap d into an EPS foam compression blocks. Our Greenland brand foam hot melting compressor machines, can reach max up to 90 times compression ratio, greatly reduce the storage and transportation costs of EPS foam, are good choice for EPS foam recycling.
Model
GL-HM100
GL-HM200
GL-HM400
Screw diameter
Φ100 mm
Φ180-120mm
Φ180-120mm
Screw length
1050 mm
2500mm
2500mm
Screw speed
150 r/min
110r/min
110m/min
Capacity
40-50Kg/h
80-120kg/h
180-200kg/h
Screen hole diameter
40 mm
50mm
50mm
Extrusion center height
300 mm
366mm
366mm
Motor power
5.5KW
15kw
22kw
Heating power
4KW
10kw
14kw
Crusher motor power
1.5KW
2.2+2.2kw
2.2+2.2+2.2+2.2kw
Crusher blades quatity
9sets
9+10sets
9+10+9+10sets
Crusher rotation speed
110r/m
110mm
110mm
Size L×W×H
1410×1085×1600mm
2030×1400×2050mm
3400×1880×2550mm
Weight
1000 Kg
1800kg
2500kg
Detailed Images

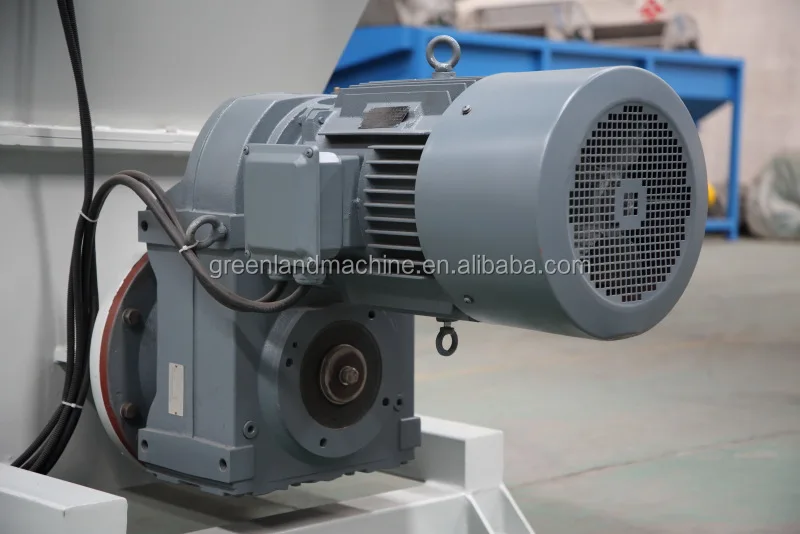

Main motor
Main motor is with high torque gear gearbox

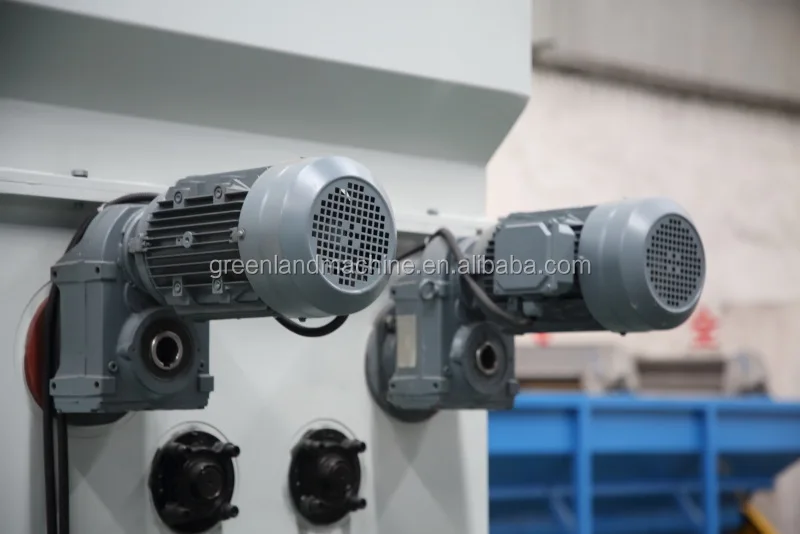

Crushing motor
Adopt 2 shaft crushing or 4 shaft crushing according to capacity and model

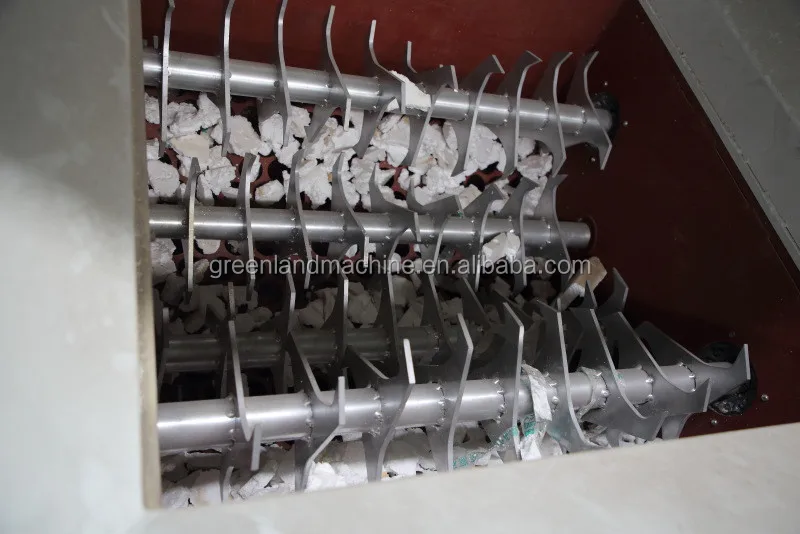

Crushing chamber
Crushing ,then melting and compressing
expanded polystyrene foam recycling
Screw&barrel's heating
ceramic heating ,fast heating

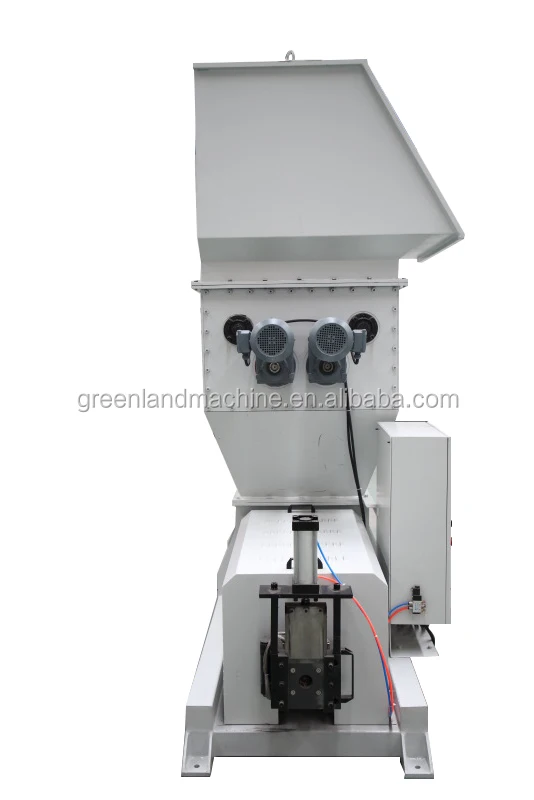

Pneumatic cutting
Pneumatic cutting ,fast and safety
Hot melting ingot
hot melting ingot can reach 90:1 compression ration
Related Products
Packing&Shipping
Standard exporting wooden cases packing expanded polystyrene foam recycling
After Sales Service
Good after-sales service
make commissioning ,and help installation
Company Introduction
ZHANGJIAGANG GREENLAND MACHINERY CO, LTD is a professional plastic recycling machine and extrusion machine manufacturer. We are dedicated to designing and developing the high technology plastic machinery. We have more than 10 years experiences in the plastic machinery manufacturing. We have full processing equipment,skillful and experienced production process .
We are always keeping improve our products by the feedbacks and communication from our customers which makes our products better and better.
Our products mainly include PET bottle washing recycling line, PE/PP film bags washing recycling line, PP/PE bottle,drum washing recycling line, HDPE/ABS/ PVC recycling line, PE/PP recycling pelletizing line, PET ,ABS and etc material pelletizing line!
Plastic shredder series include single shaft shredder ,double shaft shredder ,plastic crusher/granulator.
At the same time, our company is also the leading EPS foam recycling machine manufacturer in China, manufacturing high quality EPS foam cold compression machine, hot melt machine, and EPS foam granulation equipment, fill the gap of domestic EPS foam high-end recycling equipment! .
Technical innovation ,Quality first
Greenland Machinery pays attention to technology research & development and product quality. Based on the company's mature R&D design team, we carry out technical reforms on traditional plastic recycling equipment. It insists on high-quality configuration for each component and detail of the equipment, compared with traditional recycling equipment ,more stable, high performance and efficiency, increase the economic benefits of recycling manufacturers!
Offer different customers customized solutions of plastic recycling
Greenland Machinery provides customized and integrated crushing washing and pelletizing solutions according to different recycling materials and capacity requirements of customers, which can help customers recycle various of materials and different pollution levels.Includ PET bottles, PP/PE Films/plastic bags/bottle, waste plastic packages agricultural film greenhouse film, jumpo bag, home appliance plastic, etc.
One-stop turnkey project concept
Since the customer consider setting up recycling project, we will design the most suitable production line process and installation plan according to the customer's capacity demand, workshop condition, etc. Our design and engineering team will provide customers with one-stop turnkey plastic recycling project. With complete pre-sale and after-sales service
Installation ,training & Good after-sales service
We have professional technicians who can come to customer's factory provide installation and commissioning, train operators, so that ensure the correct operation and maintenance of the equipment! We have dedicated after-sales personnel and spare parts warehouse to ensure the timely supply of some conventional accessories parts!
FAQ
1.What is your MOQ ?
1set
2.Do you make commissioning before delivery?
yes ,we make commissioning for every machine before delivery ,ensure it works well completely
3.Do give spare parts of the machines ?
Yes ,we offer full set free spare parts for every machine
