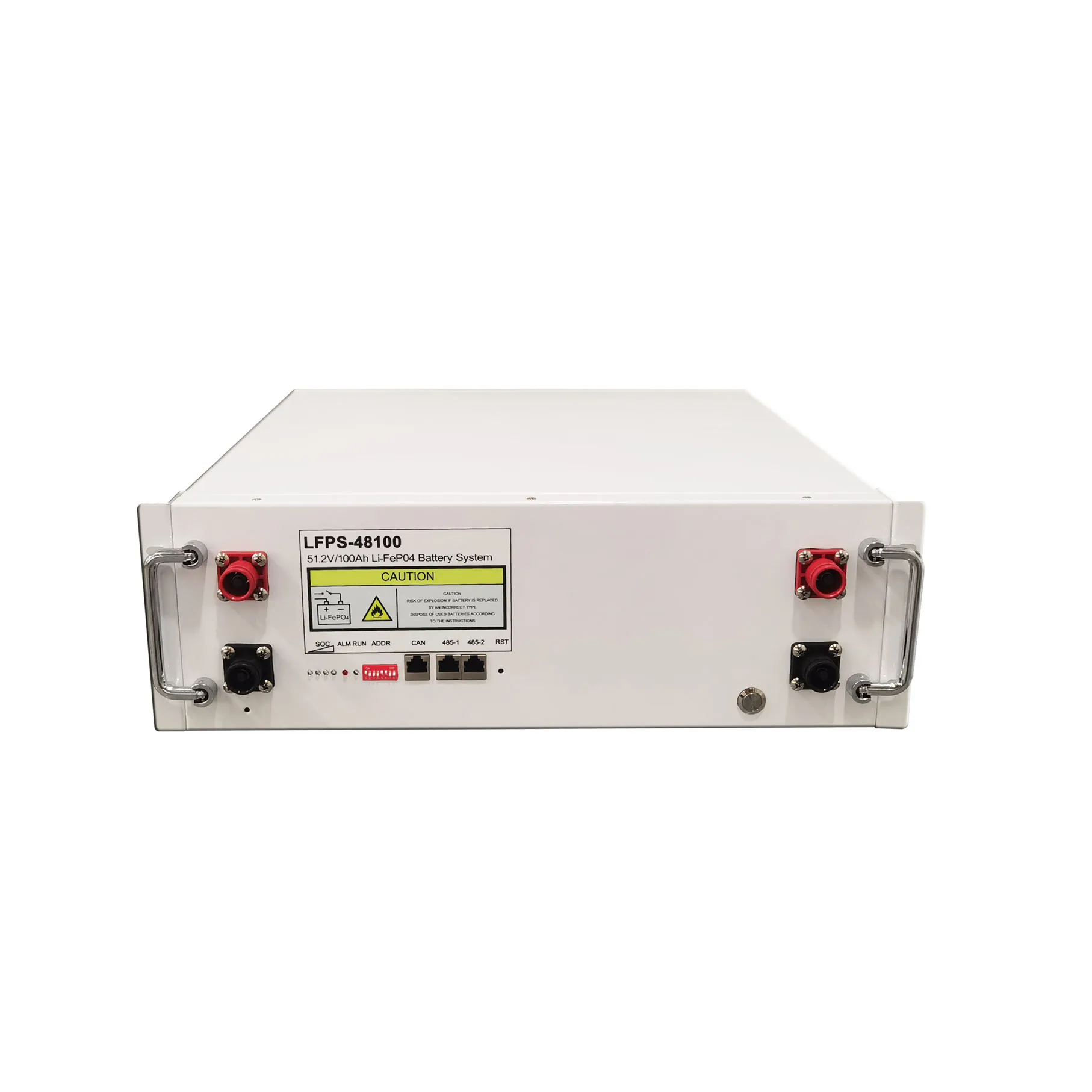

20kWh литий ионный аккумулятор солнечной системы для негераторов солнечной энергии для хранения 5000 циклов 48В 400Ah аккумулирования энергии литиевая батарея
- Category: Batteries >>>
- Supplier: Shenzhen Yihui Energy Technology Company Ltd.
Share on (62360575366):
Product Overview
Description
Company Profile
OSM Battery is located in Hefei city Anhui province and covers 30 acres of area. It was funded by wealthy knowledge about LiFePO4 battery, EV pack, energy storage, and smart control solutions. Safe EV pack solutions are at the heart of our product range and have been supplied successfully for many famous EV brands. For energy storage solutions, we developed intelligent EMS and BMS for optimizing energy utilization and maximizing electricity cost savings by peak shifting or solar generation self-consumption. OSM Battery is aiming for providing safe and high-efficiency energy solutions to our global customers on the strength of strong R&D capabilities, outstanding technologies and advanced manufacture management.
Home Battery Packs
Battery SPEC

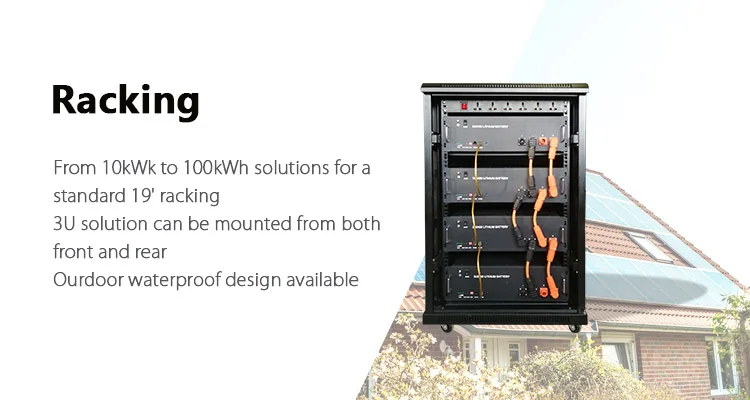

Item | 19’ Rack Battery Pack Description | ||||

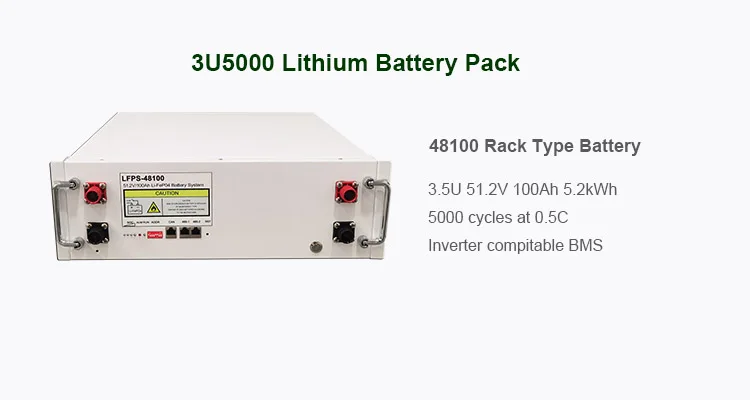

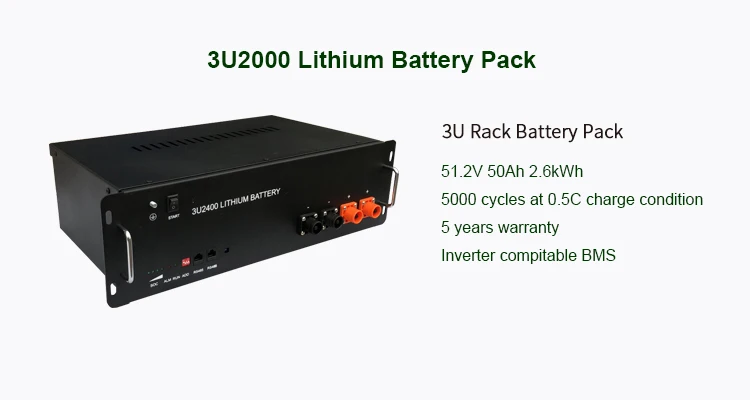

Product Name | 3U2000 LFP | 3U5000 LFP | 4U8000 LFP | ||
Ah Capacity | 51.2V 50Ah | 51.2V 100Ah | 51.2V 150Ah | ||
Energy Capacity | 2.56kWh | 5.12kWh | 7.68kWh | ||
Cell Type | 3.2V LiFePO4 prismatic cells | ||||
Typical Voltage | 51.2VDC | ||||
Working Voltage Range | 44.8V-57.6V | ||||
Dynamic voltage difference between cells | ≤50mv | ||||
Maximum Discharging Current | 1C | ||||
Maximum Charging Current | 0.7C | ||||
BMS Integrated | Yes | ||||
BMS Communication | CAN, RS485, RS232 | ||||
BMS Active Equalization | Yes | ||||
SOC Range | 5% - 100% | ||||
Usable Capacity | 2.4kWh | 4.8kWh | 7.2kWh | ||
Lifespan | 5000 cycles | ||||
Warranty | 9MWh per kWh BTT or 5 years, depends on which one comes sooner | ||||
Working Temperature Range | Charging, 0℃ - 45℃. Discharging, -10℃ - 45℃ | ||||
Storage Temperature Range | -20℃ - 45℃ | ||||
Power Connection | M8 | ||||
Self-consumption | 2% per month | ||||
25℃ 40%SOC | |||||
Dimensions | 2U 420x133x428mm | 3.5U 483x160x428mm | 4U 620x210x380mm | ||
Weight | 24KG | 46KG | 73KG | ||

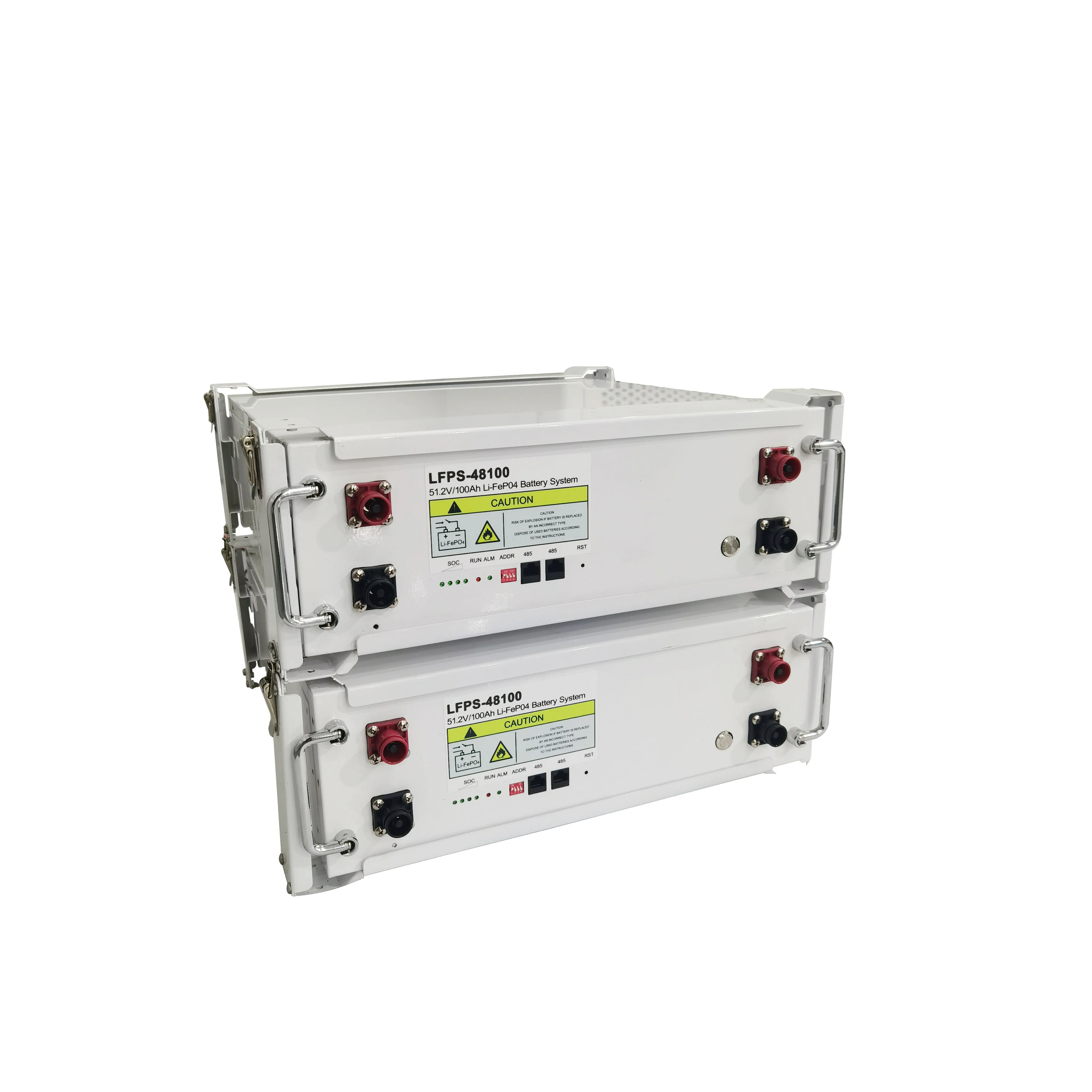

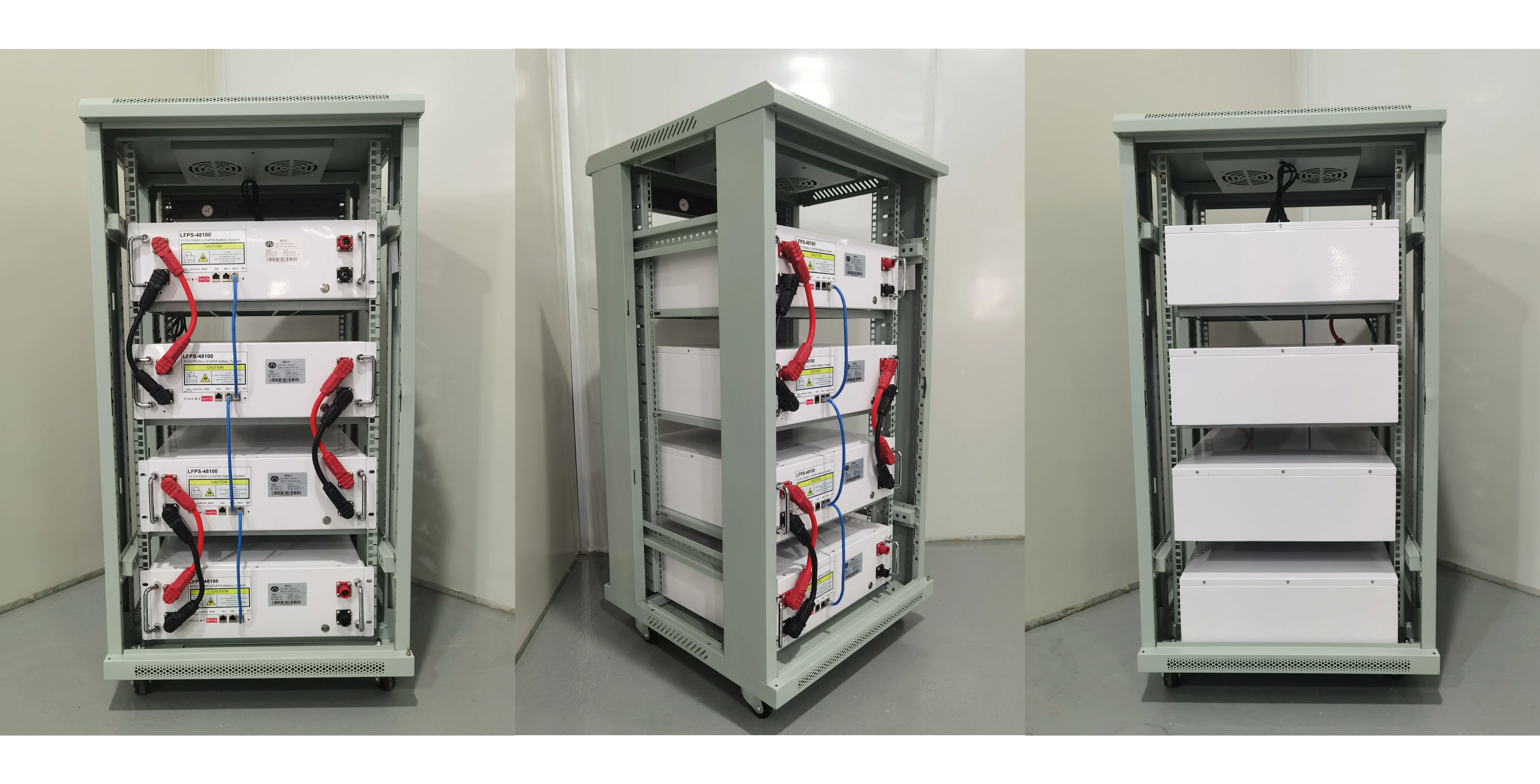

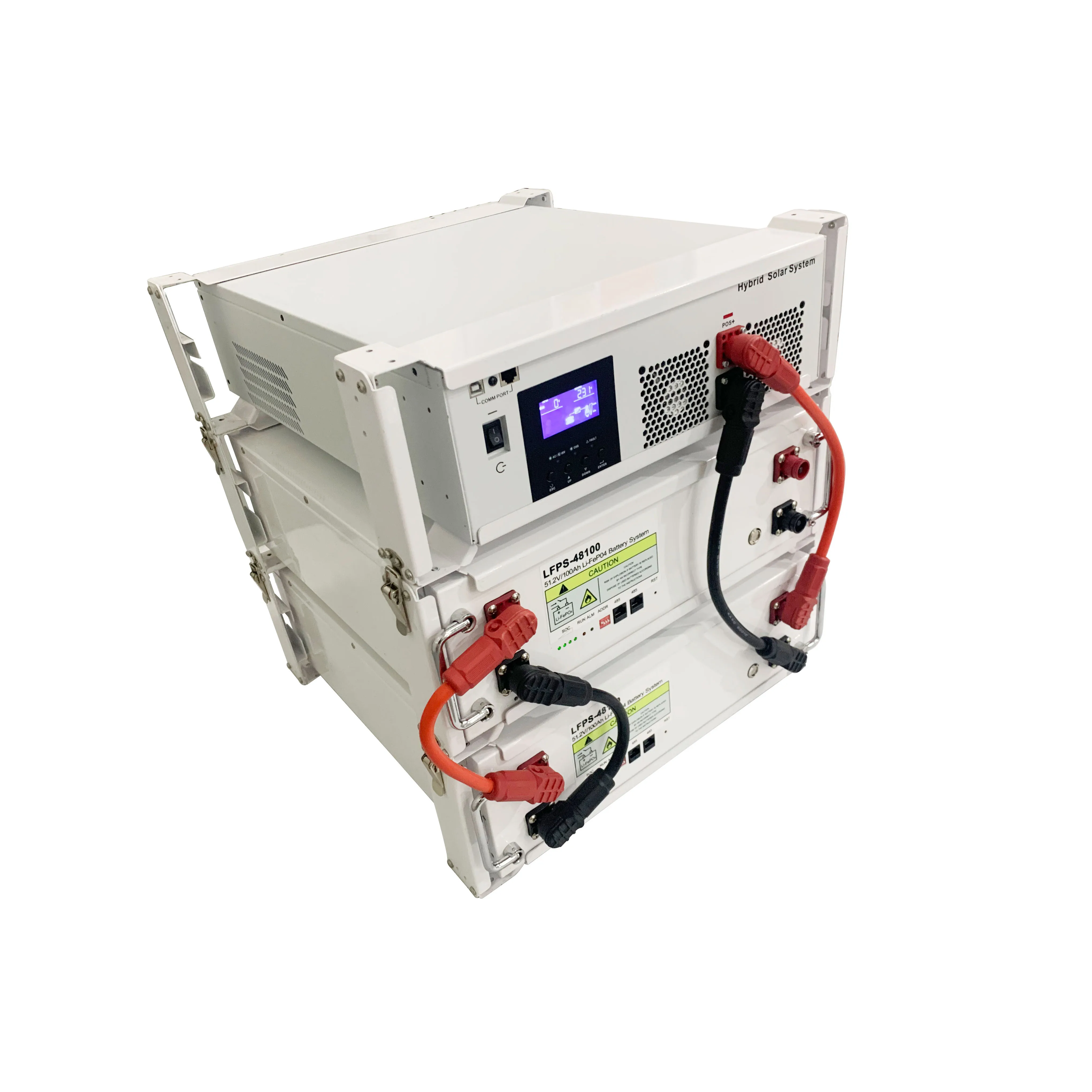

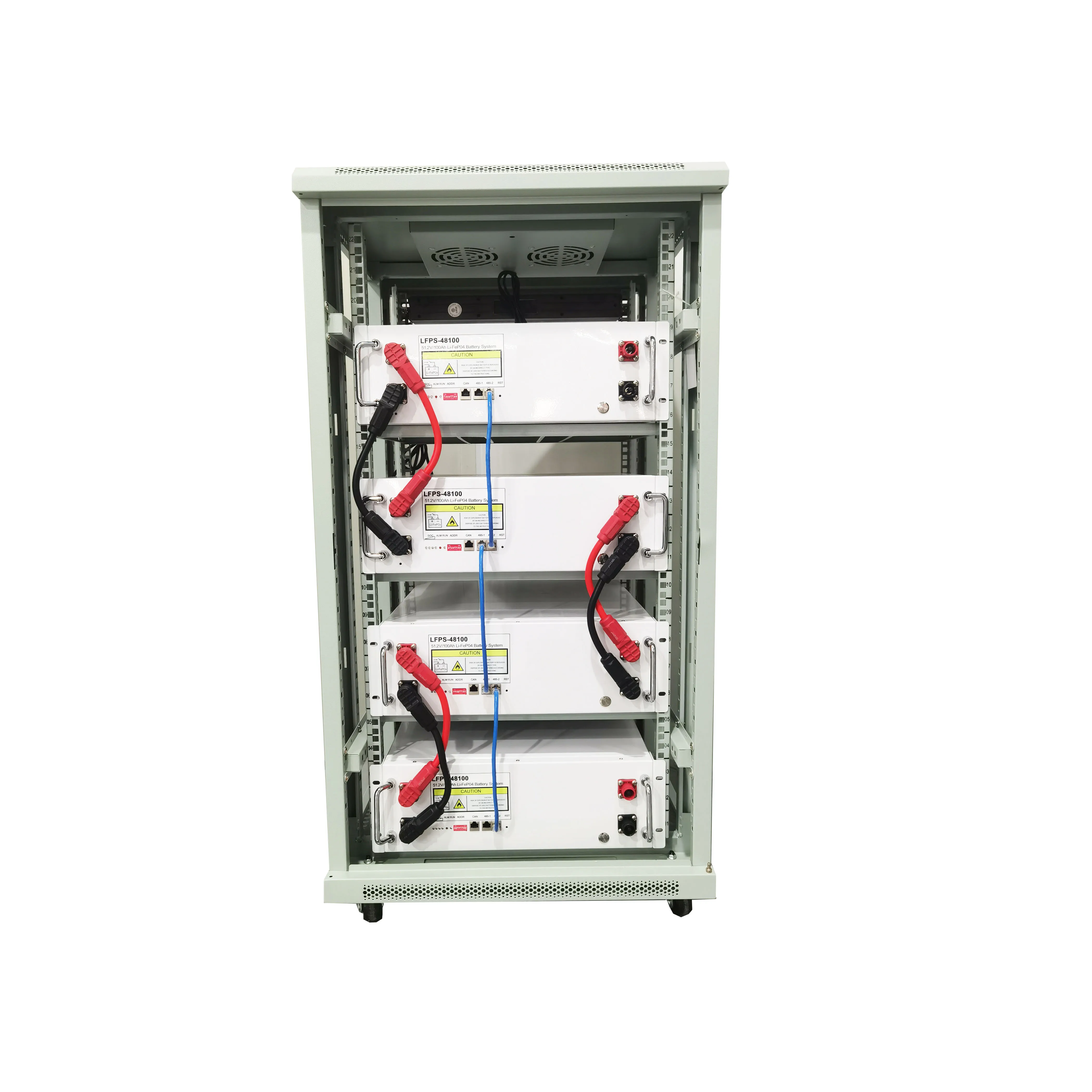

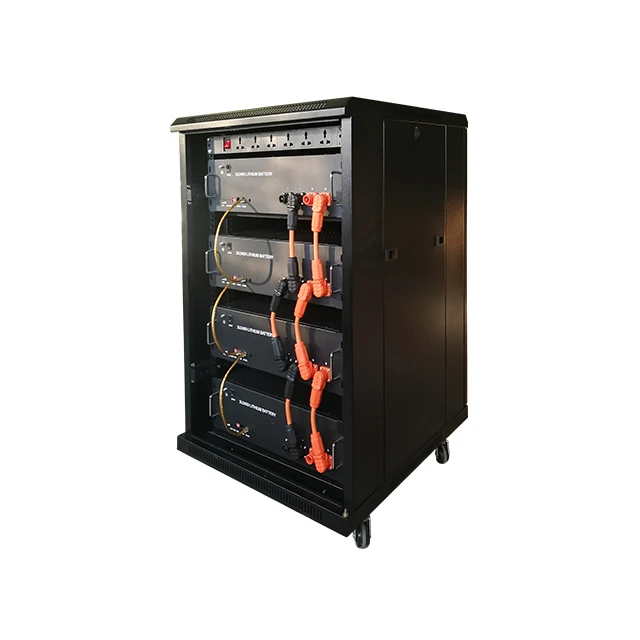

Pictures
Compatible Inverter Brands
Growatt
Goodwe
Luxpower
Deye
Voltronic
Sofarsolar
Victron
Sermatec
There are more home solar battery options please see links below

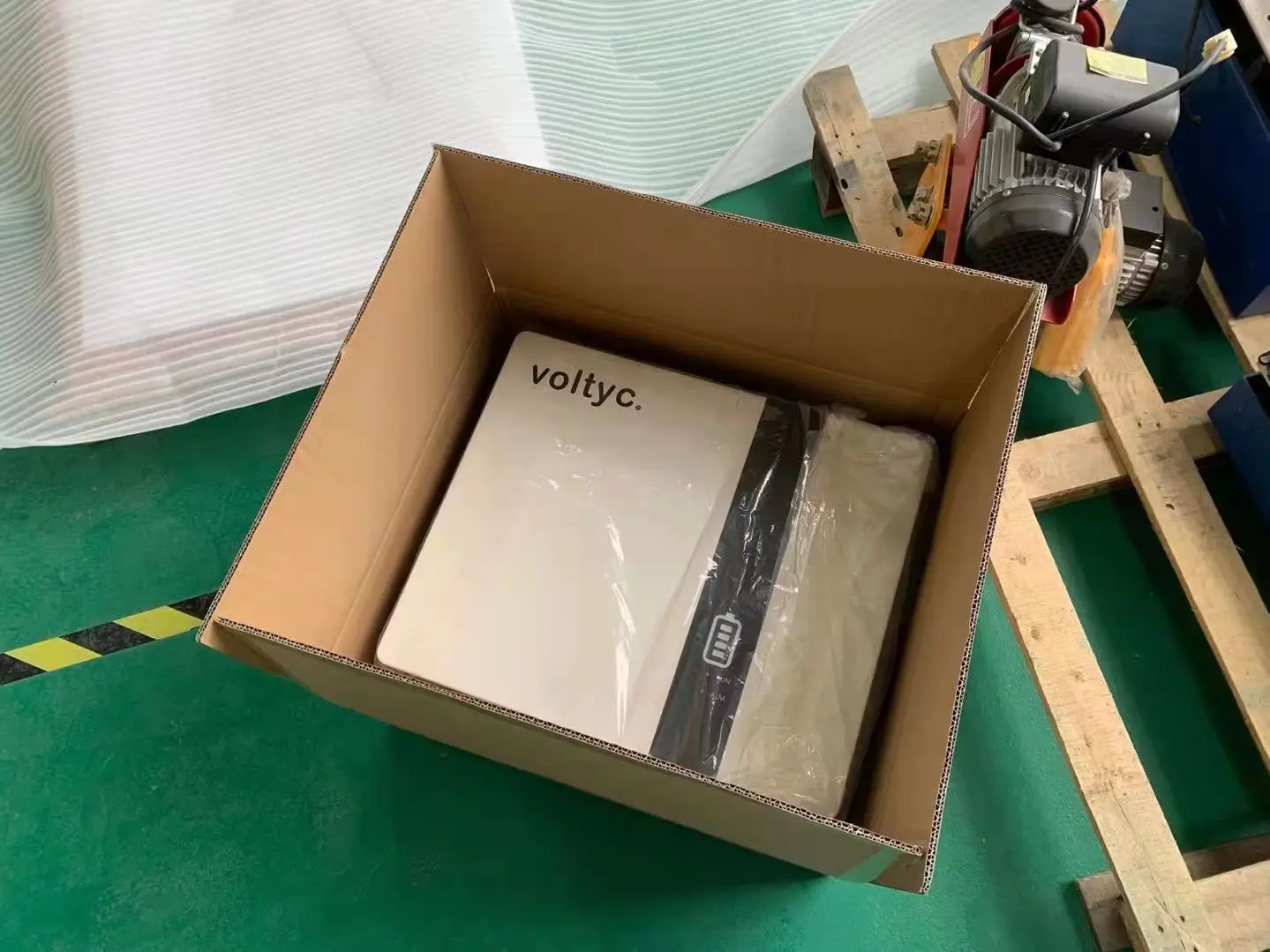

How we package batteries

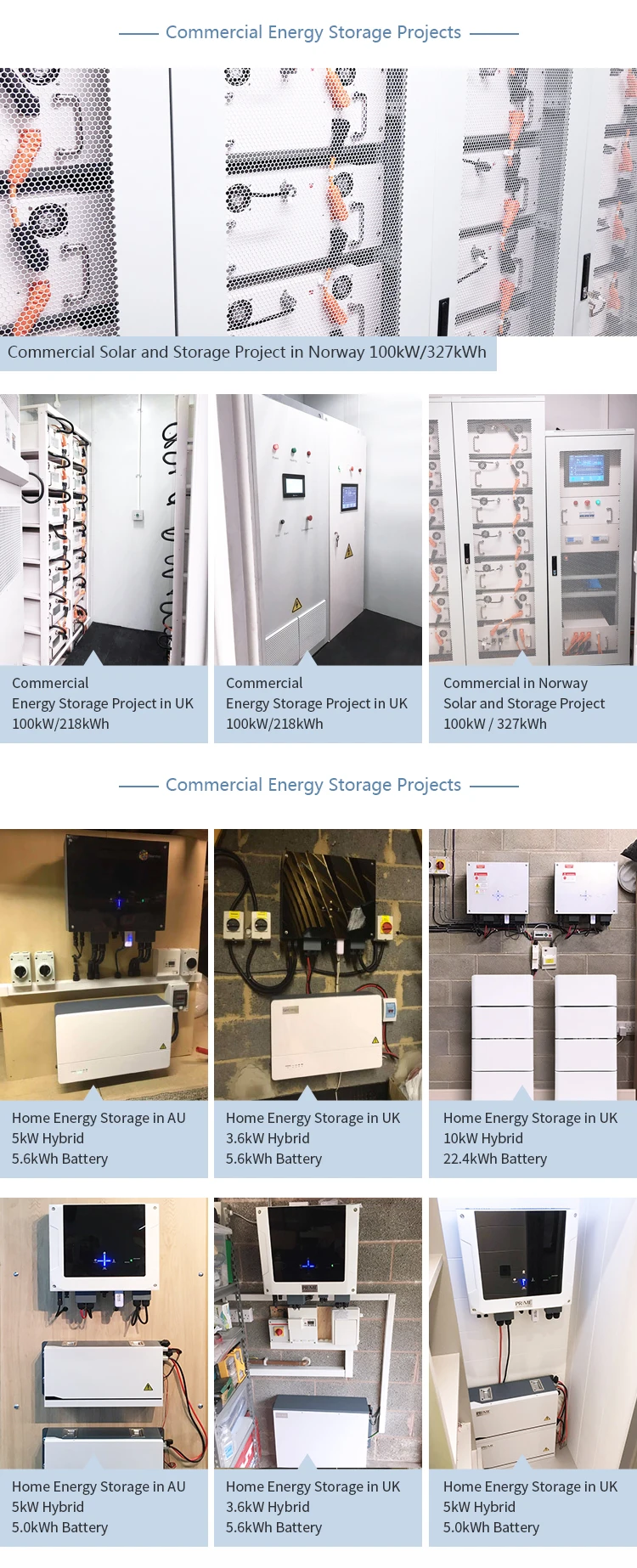

Case Study
