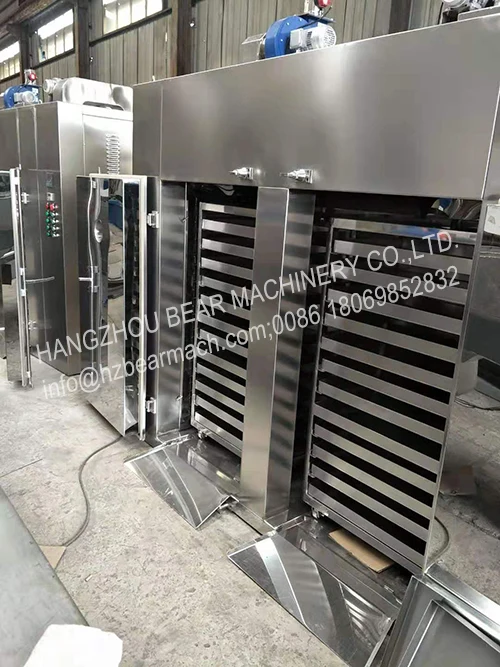

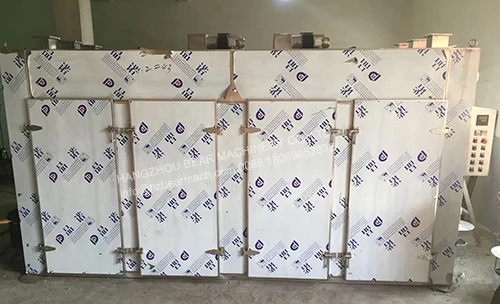

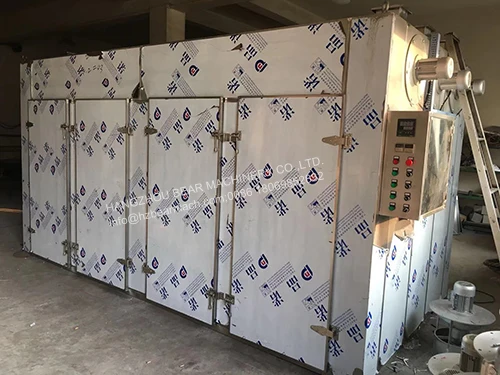

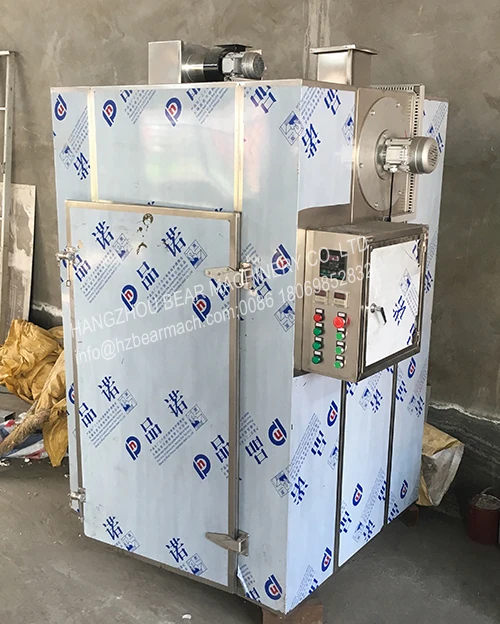

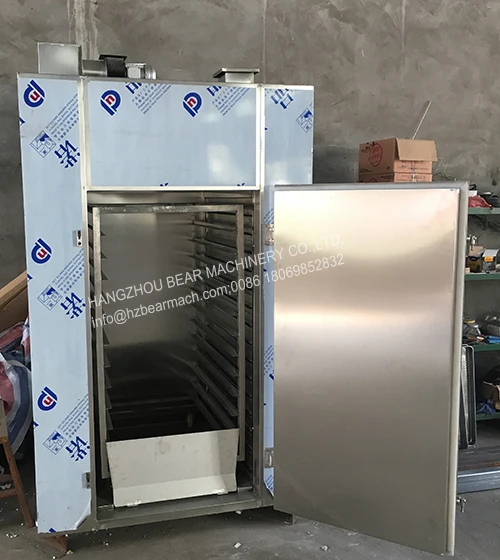

Professional fruit cabinet dryer leaves dryer machine spice seaweed drying machine mango dryer ginger drying machine

Product Overview

Description



Main applications

Hot air circulating oven is one of the major equipments in manufacturing Chinese herbal medicines as well as most of the agricultural products. This machine is widely applicable for heating and dehumidifying the materials in pharmacy, chemical, foodstuff, light industry and heavy industry.

Technical parameters

Model	Capacity	Heating power	Power of air blower	Steam consumption	Radiator area	Volume of wind	Amount of trays	Amount of Trolleys	Dimension	Weight
	(kg/batch)	(kW)	(kW)	(kg/h)	(m2)	(m3/h)			(mm)	(kg)
BHX-0	120	14	0.45	10	10	3450	24	1	1430×1350 ×2100	600
BHX-I	240	24	0.45	18	20	3450	48	2	2430×1350 ×2300	930
BHX-II	480	48	0.9	36	40	6900	96	4	2430×2350 ×2300	1400
BHX-III	720	72	1.35	54	80	10350	144	6	2430×3220 ×2300	1900
BHX-IV	960	96	1.8	72	100	13800	192	8	4460×2200 ×2290	2300
