Traffic Anpr Camera Price Ip Camera Anpr Low Cost Automatic Number Plate Scanner
LPR-101 ANPR Camera Selling Point:
Automatic filling light

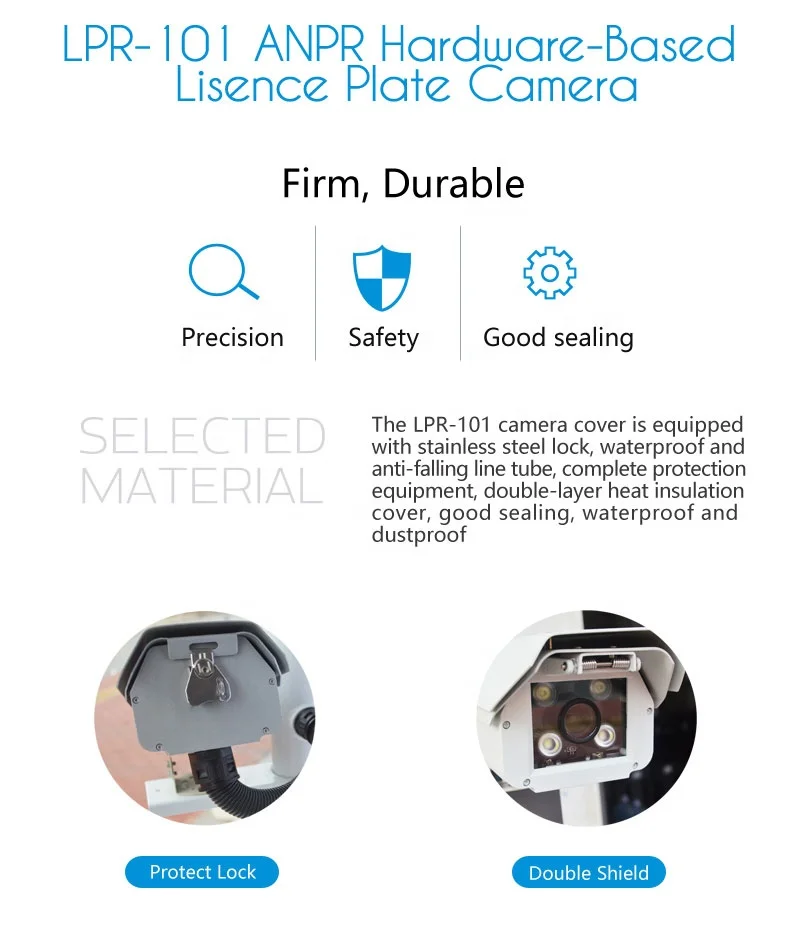

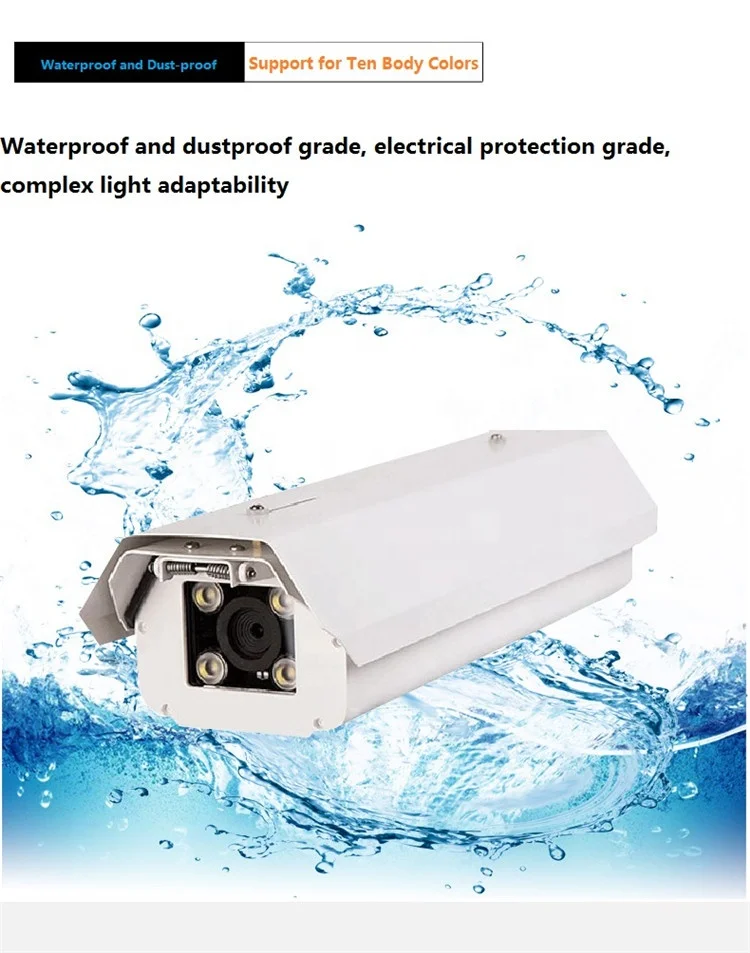

Waterproof and dustproof
Wide identification range
Unattended self-service payment
Shopping mall
LPR-101 ANPR Camera Features:
High-accuracy AI algorithm
A. The mature video vehicle detection technology can identify vehicles running at 0~40km per hour without stopping them for reading a card or cut underground loops.
B. Filter non-motorized vehicles, support virtual loop-based unlicensed vehicle detection
C. Support the recognition of unlicensed vehicles and feature code comparison
Better use of data value
A. Recognize over 150car logos, and more than 1500 vehicle models, accurate to their main brands, sub-brands and production years
B. Recognize different models of vehicles: small/medium/long buses/freight vehicle, allowing auto-charging fee based on different models
C. Recognize ten vehicle colors
Adaptive to complicated environments
A. The 70-degree wide-angle recognition support camera working well in special circumstances: wide roads, short depth, multiple directions of vehicles.
B. Support ultra-wide dynamic image optimization and dynamic adjustment of plate image parameters, and adapt to complicated lighting scenarios: vehicle front-lighting and backlighting, inconsistent of front and back plates, rain or snow

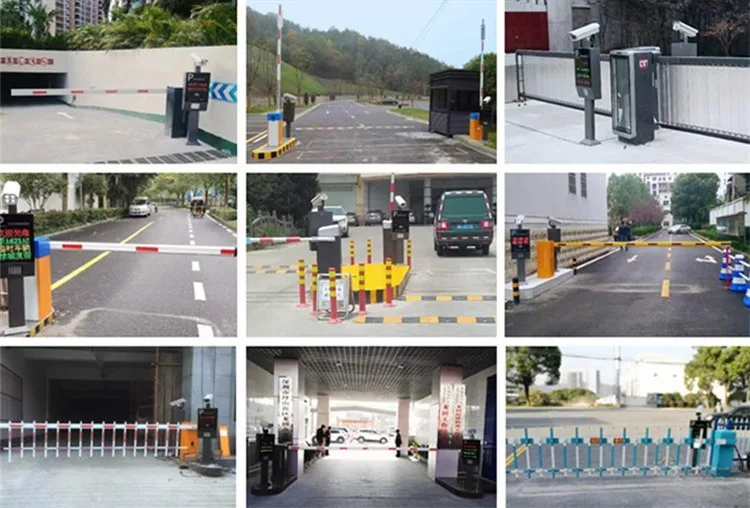

LPR-101 ANPR Camera Application:
Toll gate
Enterprise gate
Technical parameters:
| Hardware | |
| Name | HD All-In-One Hardware-Based ANPR Automatic Number LPR License Plate Recognition IP Camera |
| Model No. | LPR-101 |
| Processor | Hisilicon, specialized license plate recognition chip |
| Sensor type | 1/3" Progressive Scan CMOS |
| Minimum illumination | 0.01Lux |
| Electronic shutter | 1/25 to 1/30,000 seconds |
| Lens | CS interface, fixed iris, 6mm prime lens/ 2.8-12mm electric zoom lens, optional |
| Fill light | 4 high-power LED white lights |
| Performance | |
| Plate recognition rate | >90% for oversea license plate |
| Recognition license plates | >24 countries/area license plate, more in developing Video triggering, coil trigger, vehicle capturing rate≥99% |
| Triggering mode | Video triggering, coil trigger, vehicle capturing rate≥99% |
| Image output | 1080P(1920×1080),960P(1280x960),720P(1280x720),D1(704x576),CIF(352x288) |
| Picture output | 2 mega-pixel JPEG |
| Ultra-wide dynamics | 120dB |
| Video compression format | H.264 High Profile , Main Profile, Baseline , MJPEG |
| Interface parameters | |
| Network interfaces | 10/100M network adaptive,RJ45 adaptor |

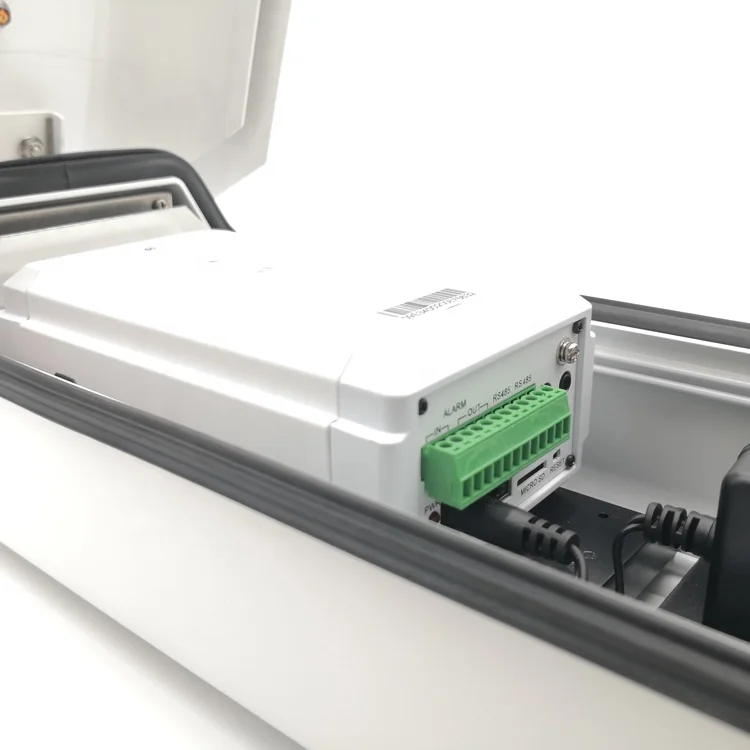

| IO interface | 2-route input/2-route output 3.5mm connecting terminals |
| Audio interface | 2-route input/2route output 3.5mm connecting terminals |
| SD card | Support SD2.0 standard Micro SD(TF)card with a maximum capacity of 32G |
| Serial interfaces | RS485,RS232 |
| Power supply | AC220V |
| Power consumption | ≤7.5W |
| Working temperature | -35℃~+70℃ |
| Protection grade | IP65 |
| Surging overvoltage protection | 4KV |
| Size(mm) | 452(L)*148 (W)*120(H) |
| Weight | 2.75kg |







INTEGER Provide free technical training, guidance, and information on our products and accessories.
2. INTEGER technician staff could instruct our customers on the installation of barrier gates, tripod turnstiles, flap barriers, swing barriers, full height turnstiles, parking lock, loop detector, long-range card reader, parking guidance system and etc by email, skype, WhatsApp, phone and video.
3. INTEGER guarantee 1~3 years’ free warranty (depend on the product) and lifetime maintenance.
4. INTEGER will response within 24 hours, Once receive the customer ANY requirements and complaints.
5. INTEGER provide cheap delivery/shipping cost with cooperation with stable freight forwarder more than 10years export experience. We can help customer collect other goods and ship them together.
About US: Integer (CHINA) TECH CO., LTD. is a leading hi-tech company, We have over 12+ years experience in the installation and or sales of the top-selling gate operators and access controls in the industry. The company's main products: barrier gate, vehicle loop detector, Parking Guidance System, Automatic card dispenser&collector, Long Range Reader, RFID cards, Bluetooth printer. With years of development, we have established long-term partnerships with many global buyers from over 50 countries around the world. When you order a single product or a full project from integer you are not just getting the complete package for a good price, you are getting the knowledge and support of industry professionals.
