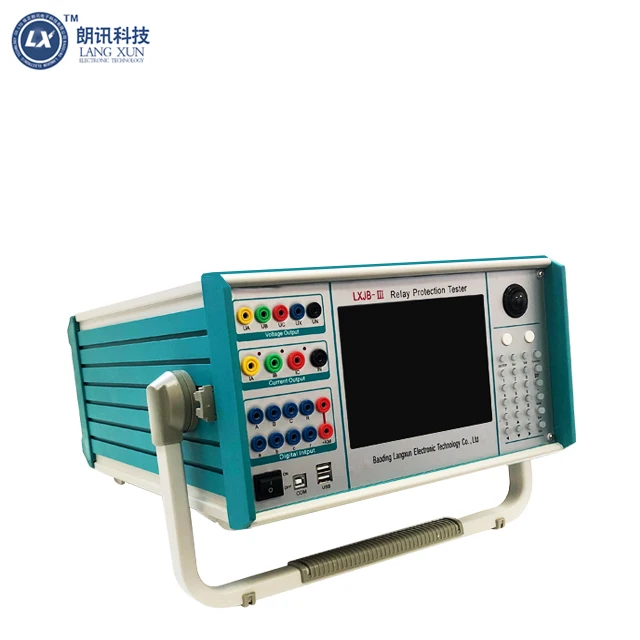

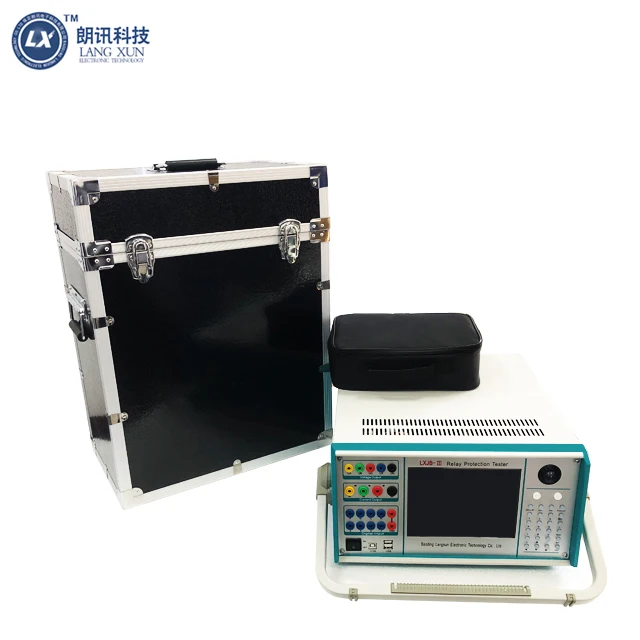

Secondary Current Injection Test Set 3 Phase Protection Relay Tester

1 Alternating current output

Output accuracy: 0.5magnitude

Phase current output (effective value): 0~40A

Three parallel phase current output (effective value): 0~120A

Phase current value with long time under permission (effective value): 10A

Phase current maximum power output: 420VA

Three parallel phase current maximum power output: 900VA

Three parallel phase current maximum work time: 10s

Frequency range (base wave): 20~1000Hz

Harmonic frequency number: 1~20 time

2 Direct current output

Output accuracy: 0.5magnitude

Current output: 0 ~ ± 10 A/each phase, 0 ~ ± 30 A/every three parallel

Maximum output of load voltage: 20v

3 Alternating voltage output

Output accuracy: 0.5magnitude

Phase voltage output (RMS): 0 ~ 120v

Line voltage output (RMS): 0 ~ 240v

Phase voltage/line voltage power output: 80VA/100VA

Frequency range (base wave): 20 ~ 1000Hz

Harmonic frequency number: 1 ~ 20 times

4 Direct voltage output

Output accuracy: 0.5magnitude

Phase voltage output amplitude: 0 ~ +160v

Line voltage output amplitude: 0 ~ + 320v

Phase voltage/line voltage power output: 70VA/140VA

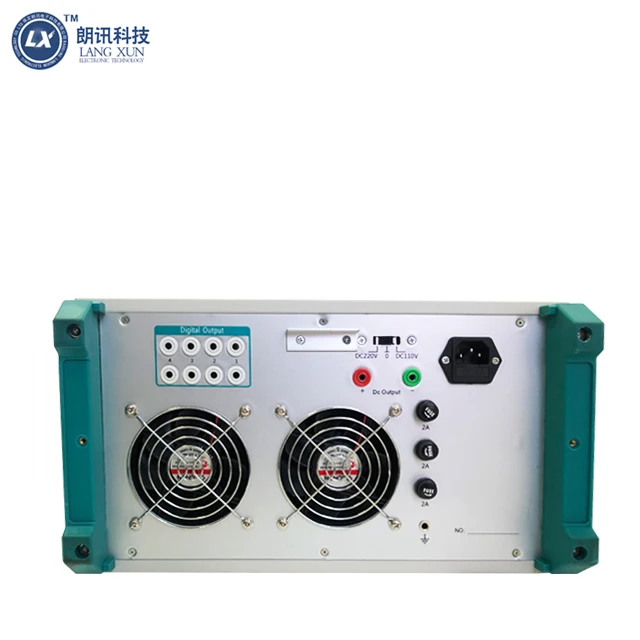

5 The switch quantity and time measurement

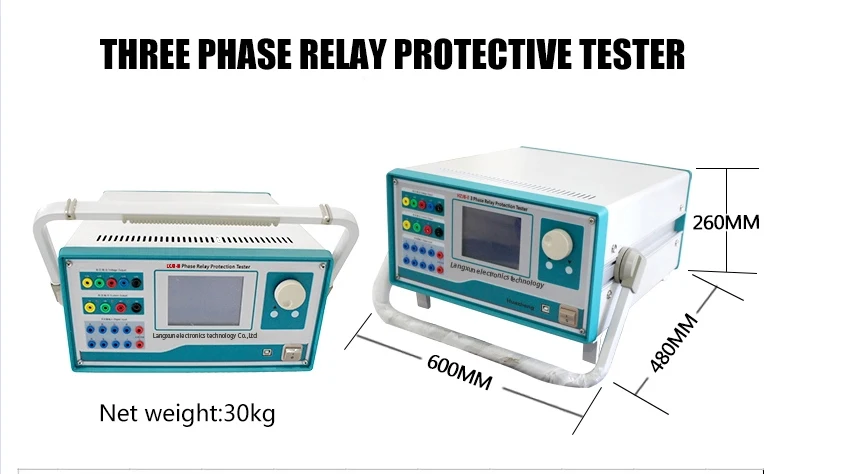

6 Volume and weight
