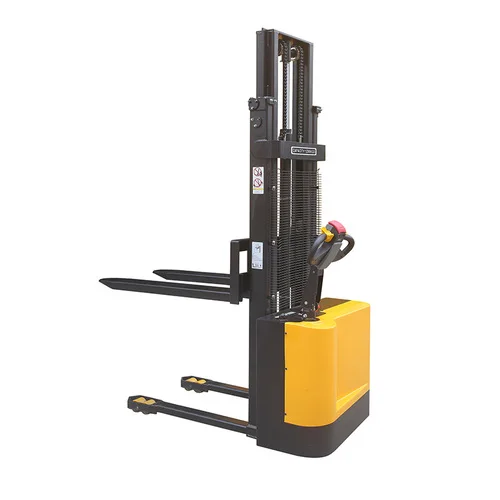

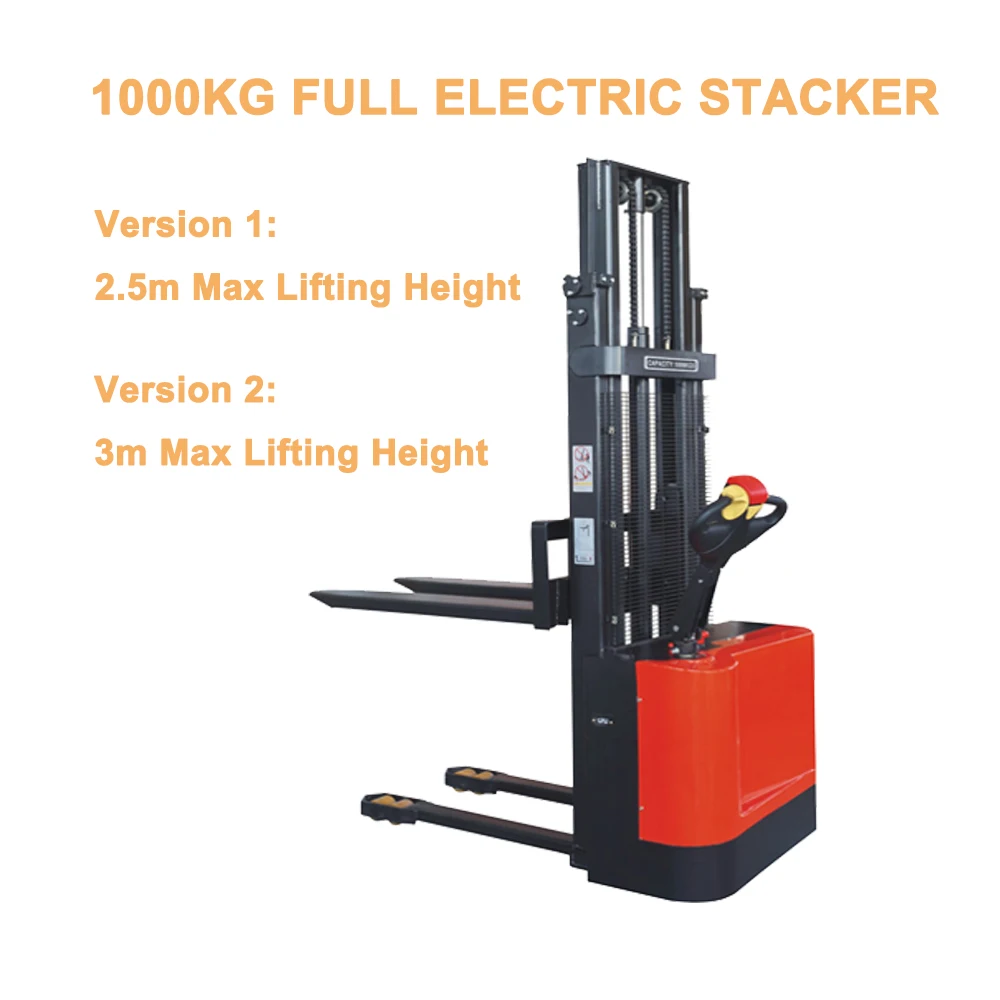

1000KG Full Electric Stacker Hand Forklifts Pallet Stacker

Model Number

ES10-25

ES10-30

Capacity

kg

1000

Load Center

mm

400

Max. Lifting Height

mm

2500

3000

Max. Fork Height

mm

2950

3450

Fork Size

mm

1130

Fork Width

mm

550

Single Fork Size

mm

160x55

Turning Radius

mm

1500

Cargo Passage

mm

2100

Moving Speed

km/h

2.5/3.0 (Full Load / No-Load)

Rising Speed

mm/s

75/116 (Full Load / No-Load)

Descent Speed

mm/s

70/56 (Full Load / No-Load)

Max. Climbing Capacity

%

3/5 (Full Load / No-Load)

Front Wheel Distance

Y

mm

1215

X

mm

380

Drive Part Length

mm

615

Battery

v/Ah

24/90

Driving Motor

kw

0.65

Lifting Motor

kw

1.6

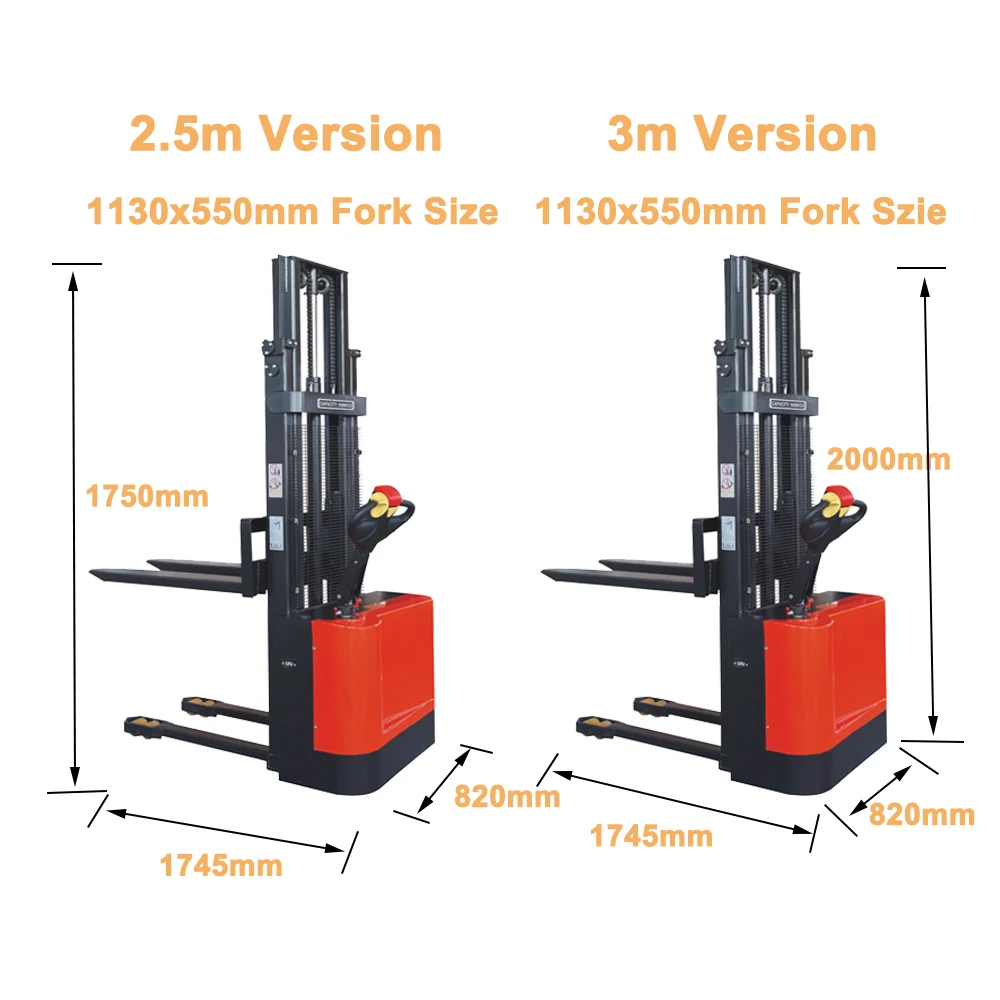

Overall Length

mm

1745

Overall Width

mm

820

Overall Height

mm

1750

2000

Overall Weight

kg

535

550
