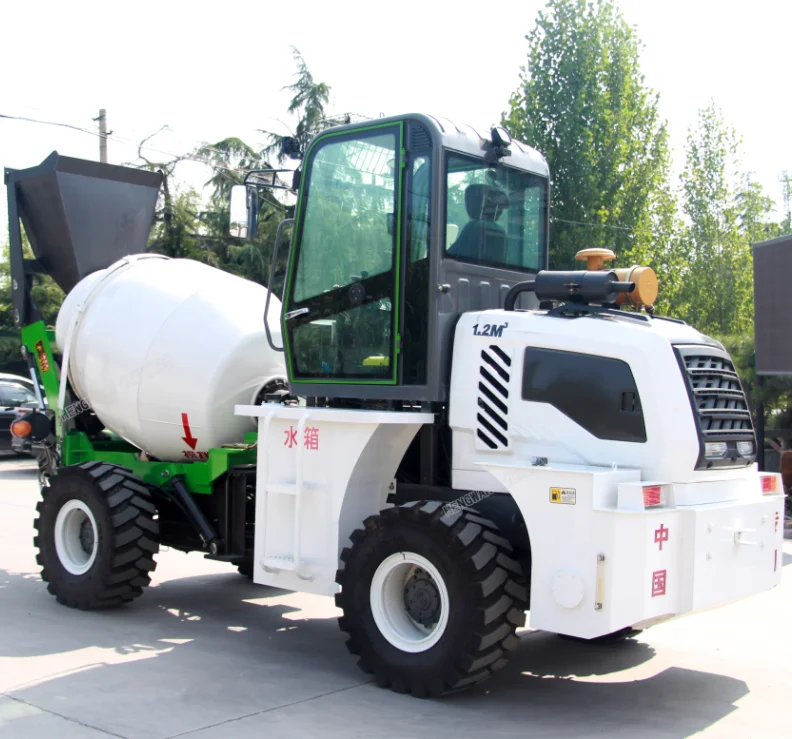

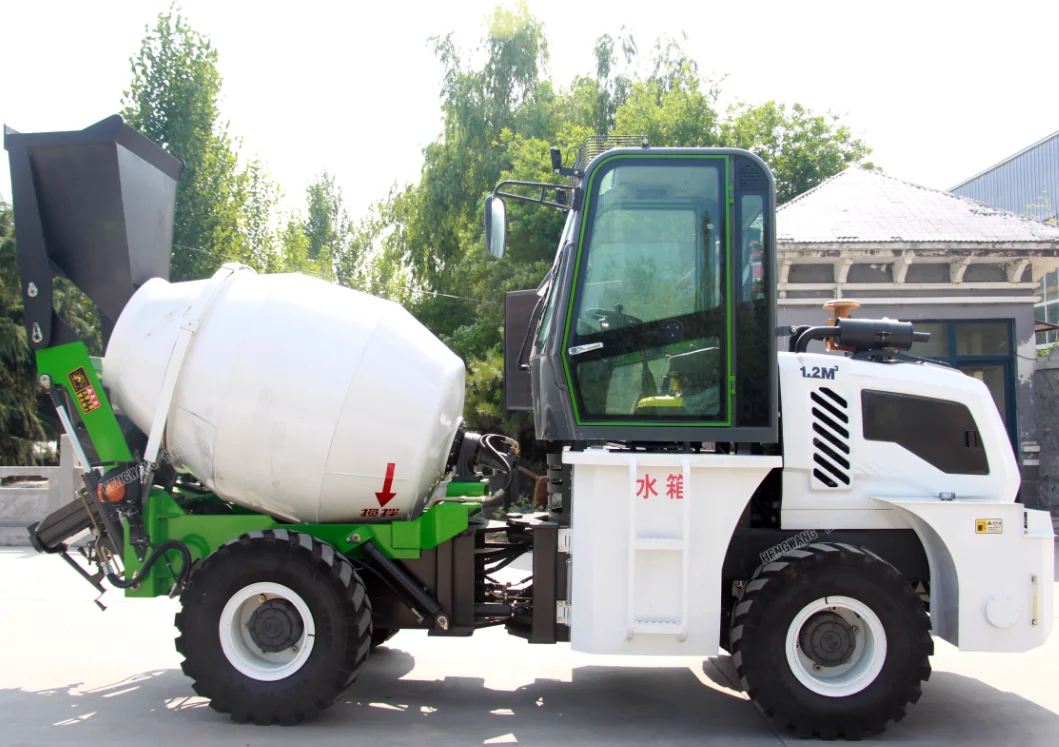

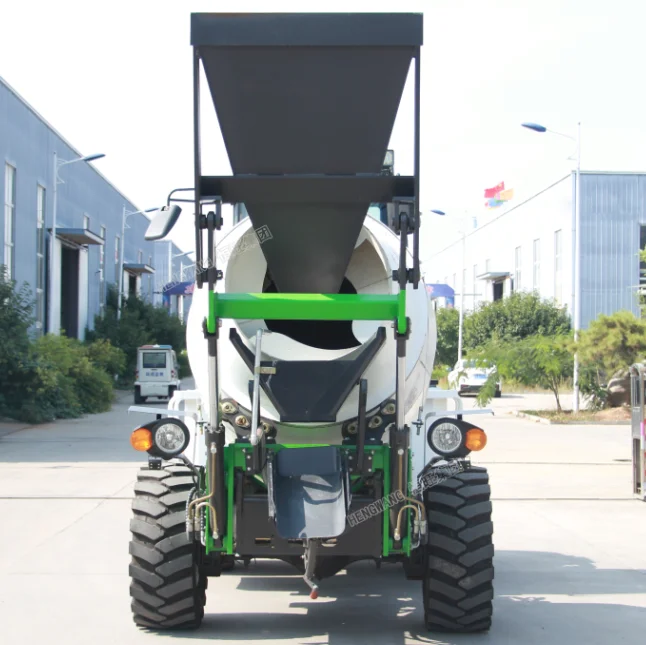

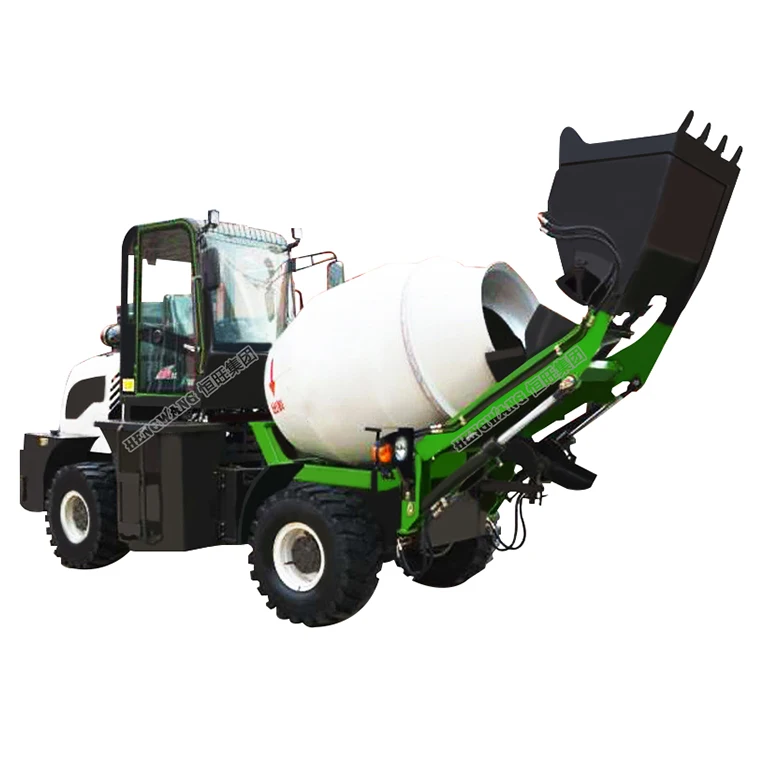

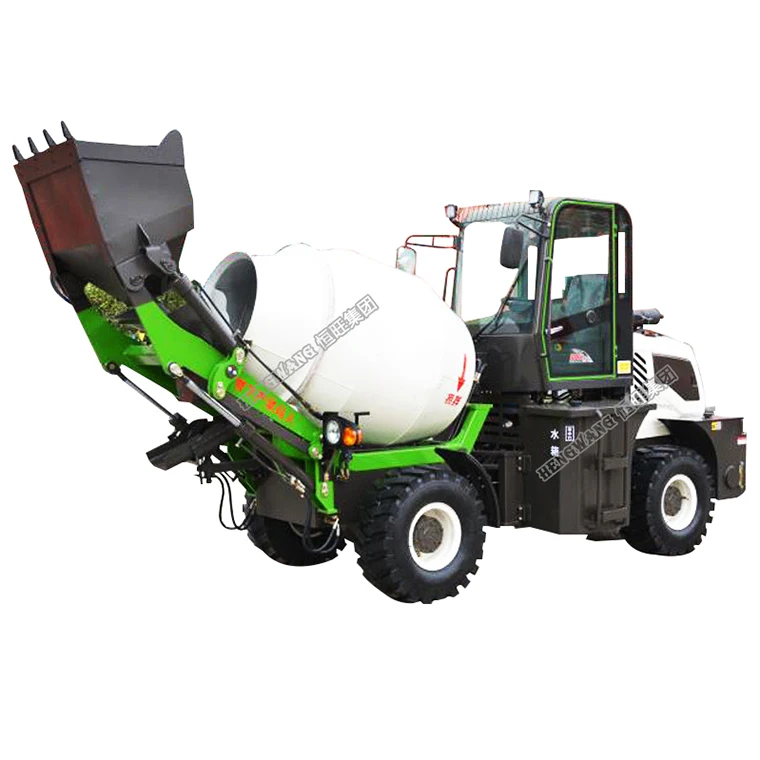

Automatic feeding Concrete mixer machine self loading concrete mixer truck

Price:RUB 536,650.43 - RUB 996,702.23

Quantity:

Specification

Specifications	Unit	Parameter
Model	/	HWJB120
Actual mixing capacity	m³	1.2
Rotary drum capacity	m³	1.4
Degree of bias	°	16
Rotational speed	r/min	0-14
Direction of rotation		Feed:clockwise output:counter clockwise
Mixing drum blade		Two sets of spiral blades and four sets of auxiliary blades
Slump of concrete	mm	70-260
Hydraulic Power Transmission System
Pump model		CBGV-4025
Hydraulic motor model		BMSS-250
Reducer ratio		01:10
Water Supply
Tank capacity/ water supply form	L	540/ automatic timing water supply mechanism with automatic timing
The main performance parameters of the chassis and the engine
Engine type / displacement	L	CF4B68G-Z-13B2/CF4C100T-Z-13B2
model		Straight injection type four stroke water cooled supercharged diesel engine
Rated power	kw/r/min	58KW/2400
Max torque	N.m/r/min	255/1500-1800 380/1500-1800
Max running speed	km/h	24
Min steering radius	mm	5000
Climbing capacity	%	26
Tire		23.5/70-16
Driving way		4×4
Weight	kg	4580
Maximum load capacity	kg	2800
Whole machinery weight	kg	7380
Overall size(LWH)	mm	610018503000
