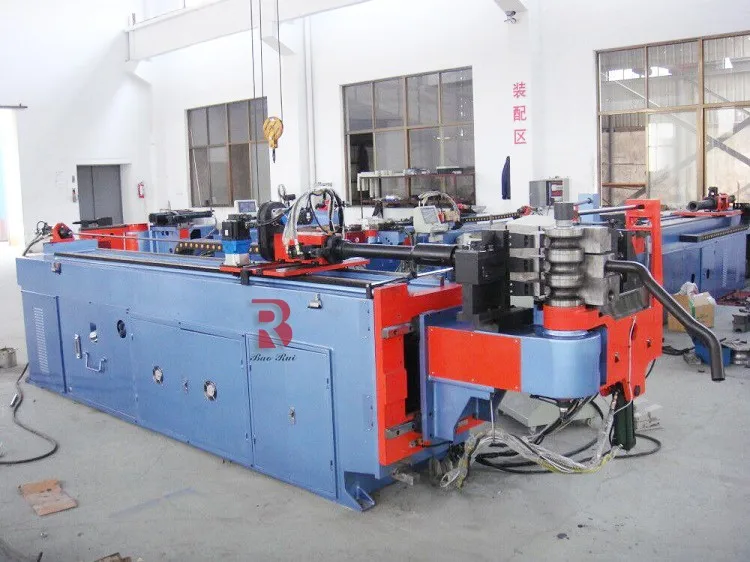

DW 63CNC pipe bending machine automatic pipe bending machine cnc machine
- Category: Pipe and Tube Bending Machines >>>
- Supplier: Zhangjiagang Baorui Machinery Co. Ltd.
Share on (62369332838):
Product Overview
Description
new
Name | Unit | Data | Remark | |||
1 | Max bending capacity | mm | Round pipe | Φ63×4 |
| |
Square pipe | 44 x 44 x 3 | |||||
2 | Max bending radius | mm | 250 | Can according to customer’s requirement | ||
3. | Min bending radius | mm | Depend on the pipe diameter |
| ||
4 | Max feeding length | mm | 3000 | Can according to customer’s requirement | ||
5 | Max bending degree | Degree | 190 |
| ||
6 | Control Panel |
| touch screen |
| ||
7 | Bending unit | piece | 16 |
| ||
8 | Working speed | bending speed | Deg/sec | 85 |
| |
Rotary speed | Deg/sec | 200 | Rotary fast will be dangerous | |||
Feeding speed | mm/sec | 1000 |
| |||
9 | Accuracy | feeding | mm | ±0.1 |
| |
rotary | Degree | ±0.1 |
| |||
bending | Degree | ±0.1 |
| |||
10 | Rotary servo motor power | W | 750 | Japan Mitsubishi | ||
11 | Feeding servo motor power | Kw | 1 | Japan Mitsubishi | ||
13 | The accuracy of roller | mm | Max 70 | Can according to customer’s requirement | ||
14 | Oil motor power | Kw | 5.5 |
| ||
15 | Max storage units | group | 1000 | Can enlarge according to requirement | ||
16 | Max pressure | MPa | 12 | Adjustable | ||
17 | Hydraulic control system |
| Magnetic exchange valve | Japan Yuken | ||
18 | Oil tank | L | 250 |
| ||
21 | Machine weight | Kg | 5000 |
| ||
22 | Machine size | mm | 8000 ×1800 ×1560 |
| ||
24 | Delivery time | days | 30 days |
| ||
25 | Warranty time | month | 14 | |||
