Model
|

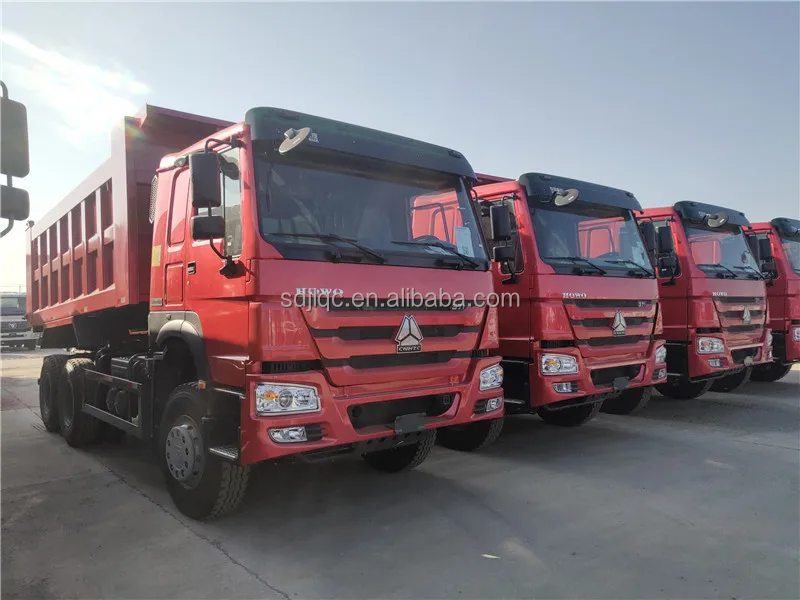

GCW40000kgs Driving Type 6×4 RHD/LHD howo dump truck
|

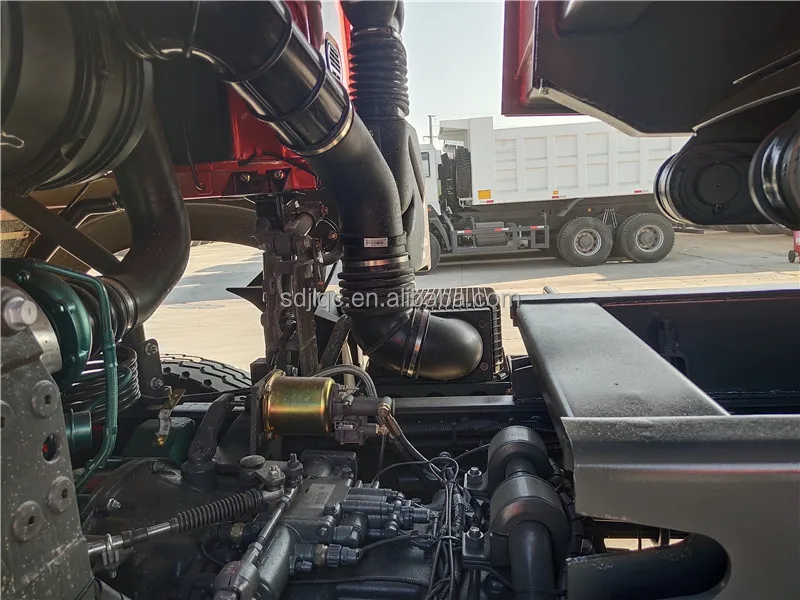

Engine
|
Engine model: WD615.69/WD615.47, Euro II emission standard
4 stroke direct injection diesel engine
6 cylinder in-line with water cooling, turo-charging & intercooling
Maximum output: 336hp(273Kw) at 2200 rpm according to DIN
Maximum torque: 1450Nm at 1300~1600 rpm
Bore: 126mm; Stroke: 130mm;
Displacement: 9.726L; Compression ratio: 17:1
Specific fuel consumption: 198g/kWh; Engine oil filling quantity: 20L
Cooling system filling quantity (long-term filling): 40L
Thermostat opening temperature: 71oC
Rigid fan Twin cylinder air compressor
|
Clutch
|
SINOTRUK’s 430C diaphragm spring clutch, hydraulically operating with air assistance
|
Transmission
|
Transmission, model HW19710, 10 forward and 2 reverse
Ratio:14.28; 10.62; 7.87; 5.88; 4.38; 3.27; 2.43; 1.80; 1.34; 1.00; 13.91/3.18(R)
|
Propeller Shaft
|
Double universal joint propeller shaft with gear-shaped coupling flange
|
Front Axle
|
New HF9 series, with drum brake system
Steering with double T-cross section beam
|

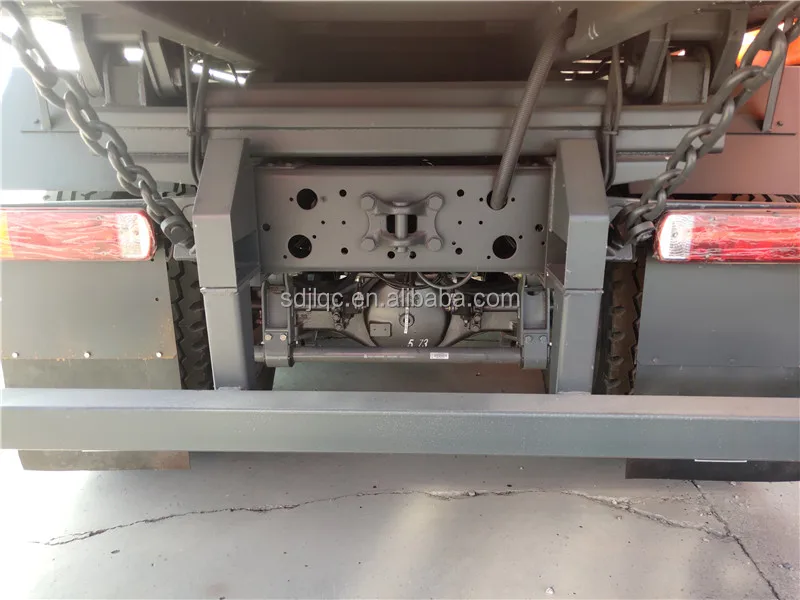

Rear Axle
|
HC16 pressed axle housing, single reduction and differential locks between axles; with drum brake system.
Ratio: 5.73
|
Chassis
|
Frame: High-strength U-profile frame, all cold riveted cross members and reinforced subframe

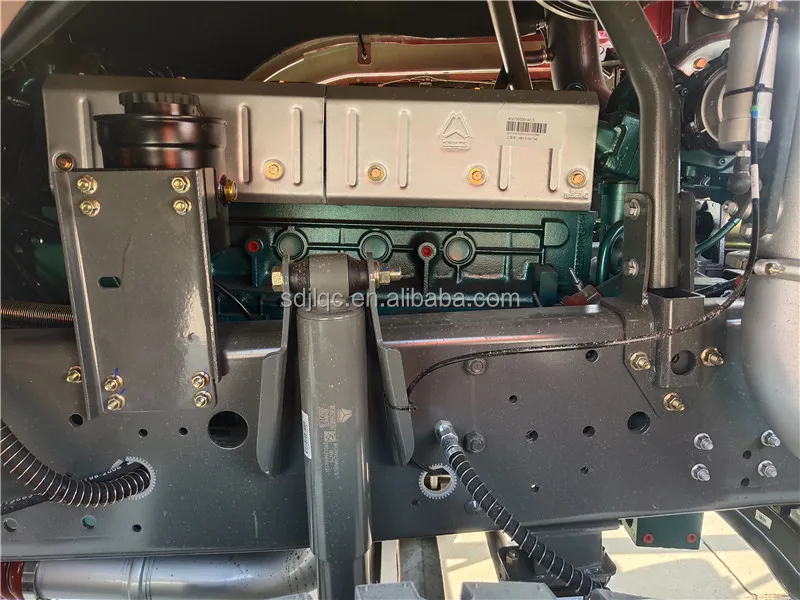

Front suspension: semi-elliptic leaf springs with hydraulic telescopic double-action shock absorbers and stabilizer

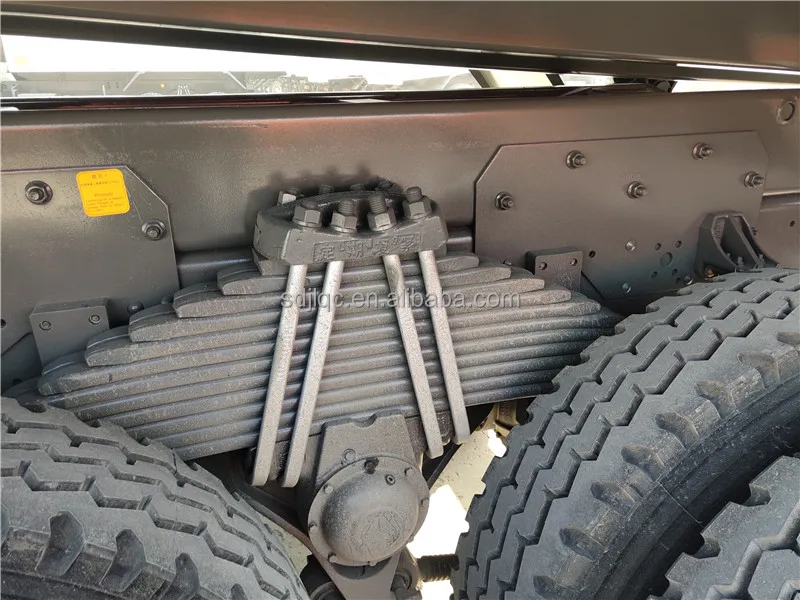

Rear suspension: semi-elliptic leaf springs and bogie springs
Spare wheel carrier: with one spare wheel
|
Steering
|
ZF8118, hydraulic steering with power assistance
Ratio: 22.2-26.2:1
|
Braking System
|
Front and rear drum brake, four-circuit protection valve
Service brake: dual circuit compressed air brake
Parking Brake: spring energy, compressed air operating on rear wheels
Auxiliary brake: engine exhaust brake
|

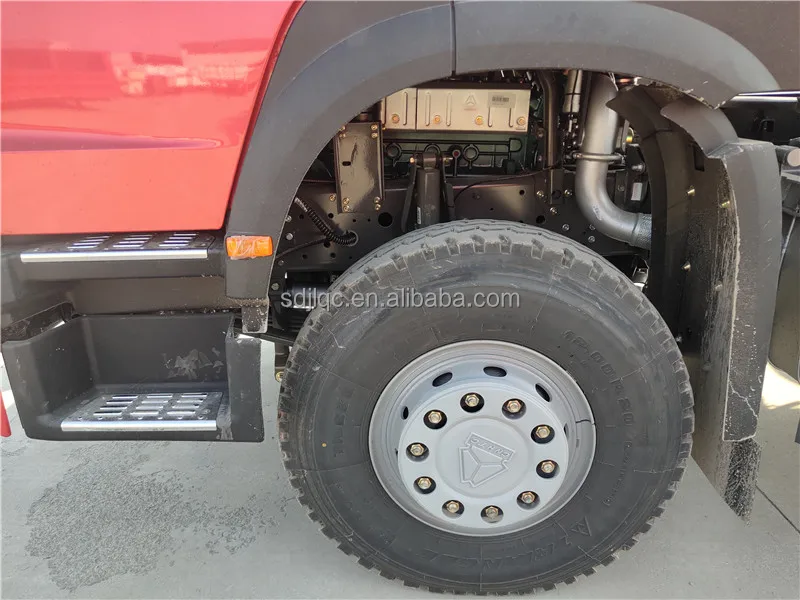

Wheel & Types
|
Rims: 8.5-20,10 hole-steel
Types: 12.00R20, 12.00R22.5, 315/80R22.5, 12.00-20
|
Driver’s cab
|
HW76 Long cab, all steel forward control, 55° hydraulic tilting to the front, 2-arm windscreen wiper system with 3 speeds,VDO electrical control system, laminate windscreen, with casted-in radio aerial, adjustable driver’s seat and rigid adjustable co-driver’s seat, heating & ventilation system, with stereo radio/cassette recorder, one sleeper,sun visor, safety belt, air conditioner, adjustable steering wheel.
|
Electrical System
|
Operating voltage:24V, negative grounded
Starter: 24V, 7.5KW
Alternator: 3-phrase, 28V, 1540W
Batteries: 2×12V, 165Ah
Cigar-lighter, horn, headlamp, fog light, brake lights, indicators and reverse lamp
|
Dimensions in mm
|
Wheel base (mm)
Front wheel track (mm)
Rear wheel track (mm)
Front overhang (mm)
Rear overhang (mm)
Approach angle(°)
Departure angle(°)
Carriage Dimension (mm)
|
3425+1350
2022/2041
1830
1500
1859
19
23
5200x2300x1500 mid lifting, floor 8mm side 6mm
|
Weight in kg
|
Permissible loading capacity (kg)
Dead weight (kg)
Gross vehicle weight (kg)
Gross combination weight (kg)
Front axle loading capacity (kg)
Rear axle loading capacity (kg)
|
30000
12090
25000
30000
9000
2×16000
|
Performance
|
Maximum driving speed(km/h)
Maximum gradeability (%)
Minimum ground clearance(mm)
Minimum turning radius (m)
Fuel consumption(L/100km)
|
75(reference data)
36
314
15
40(reference data)
|
