Single Mode G652D Fiber 2mm Simplex Indoor Fiber Optical Cable GJFJV

Product Overview

Description

Single Mode G652D Fiber 2mm Simplex Indoor Fiber Optical Cable GJFJV

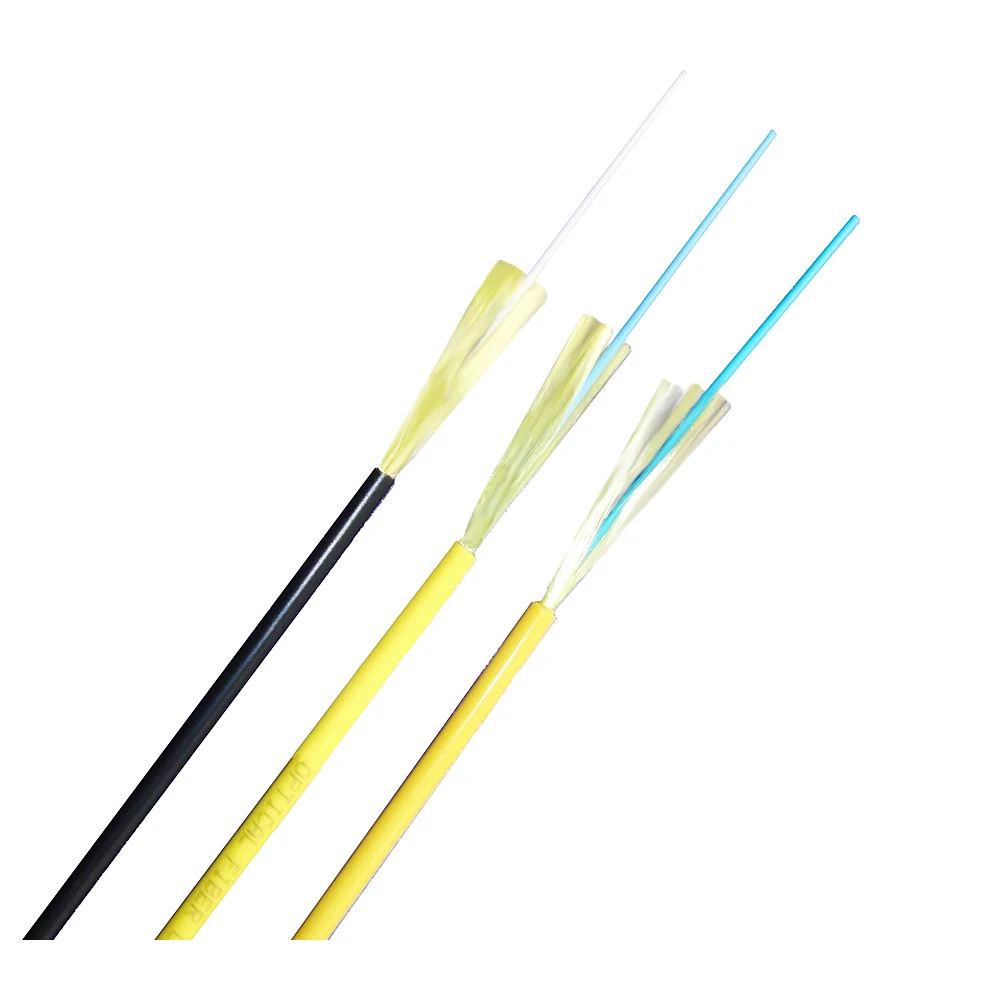

Simplex cable use single ∅900µm flame-retardant tight buffer fiber as optical communication medium, the tight buffer fiber wrapped with a layer of aramid yarn as strength units, and the cable is completed with a  PVC jacket.

 Features:

• Tight buffer fiber ease of stripping;


• Tight buffer fiber have excellent flame-retardant performance;


• Aramid yarn as strength member make cable have excellent tensile strengh;


• The jacket anti-corrosion, anti-water, anti-ultraviolet radiation, flame-retardant and harmless to environment etc;

Applications:

• Optical fiber jumper or pigtail;


• Indoor riser level and plenum level cable distribution;


• Interconnect between instruments, communication equipments;

Technical Parameters:

Fiber Count	TBF Diameter (µm)	Cable Diameter (mm)	Cable Weight (kg/km)	Bending Radius (mm)		Tensile Strength (N)		Cruch Resistance (N/100mm)
			PVC Jacket	Static	Dynamic	Long term	Short term	Long term	Short term
1	900±50	1.8±0.2	3.5	30D	50D	60	100	100	500



Standards:

Comply with Standard YD/T1258, 2-2003,ICEA-596, GR-409, IEC60794-2-10/11, etc; and meet the requirements of UL approval for OFNR and OFNP.



Optical Parameters:

		50/125µm	62.5/125µm	G.652	G.655
Attenuation(+20°C)	@850nm	≤3.5dB/km	≤3.5dB/km
	@1300nm	≤1.5dB/km	≤ 1.5dB/km
	@1310nm			≤0.5dB/km	≤0.5dB/km
	@1550nm			≤0.4dB/km	≤0.4dB/km
Bandwidth (Class A)	@850nm	≥ 500MHz.km	≥ 200MHz.km
	@1300nm	≥ 1000MHz.km	≥ 600MHz.km
Numerical Aperture		0.200 ±0.015NA	0.275 ±0.015NA
Cable Cut-off Wavelength λcc				≤ 1260nm	≤ 1450nm
Attenuation at temperature cycling Δα(-20°C~+60°C)	@1300nm	≤ 0.25dB/km	≤ 0.25dB/km
	@1550nm			≤ 0.1dB/km	≤ 0.15dB/km



Transport/Storage/Operating Temperature: -20°C ~ +60°C

Installation Temperature:  -5°C ~ +50°C
