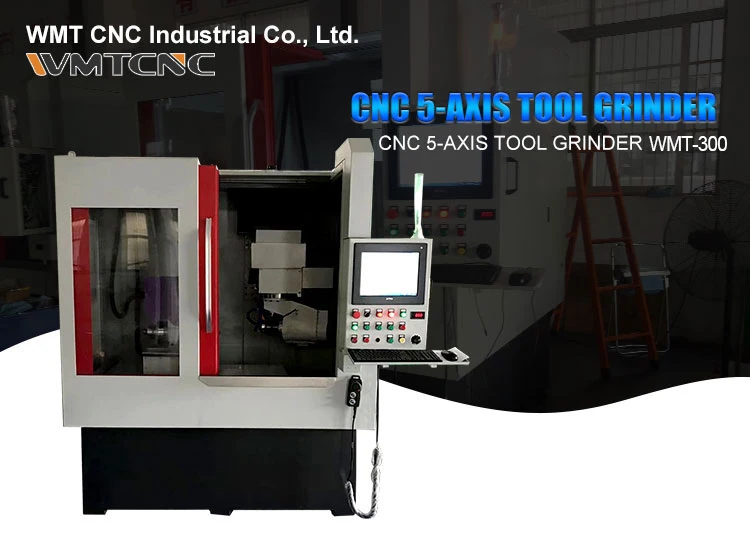

Высокая скорость, высокая точность WMT 300 CNC 5 осевой инструмент шлифовальный станок
- Category: Other Grinding Machines >>>
- Supplier: WMT CNC Industrial Co. Ltd.
Share on (62375775141):
Product Overview
Description

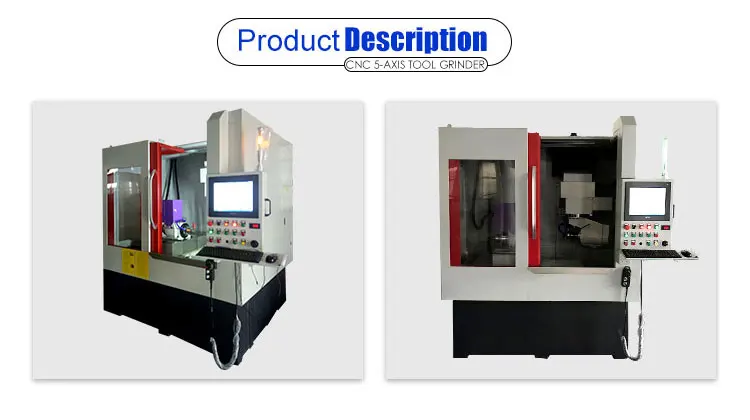

Product Description
Features and Application:
The machine according to user requirements for the design of practical use, reasonable structure, reliable,strong rigidity, high precision.
The machine according to user requirements for the design of practical use, reasonable structure, reliable,strong rigidity, high precision.
The unique modular design makes more convenient debugging tool, strong operation.

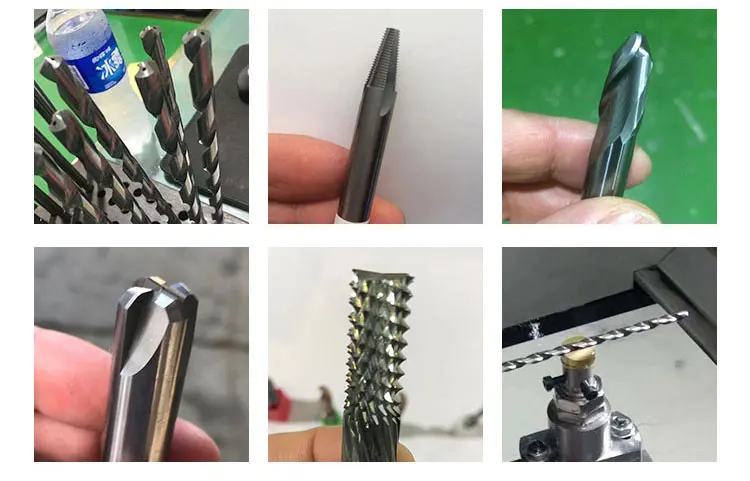

Selection of foreign high-end systems and software, widely used in ball cutter, milling cutter, reamer, drill, department of orthopedics, types of medical equipment, precision gear and all kinds of precision machinery parts and components.
Specification
Grinding range | ||
Max length of tools | 200mm | |
Collect Size | 4-20mm | |
Grinding wheel spindle and motor | ||
Spindle speed | 1000-12000rpm | |
Spindle motor | 9kw | |
Grinding wheel shaft diameter | φ20mm | |
Grinding wheel diameter | φ150mm | |
Workpiece spindle | ||
Spindle inner cone | BT50 | |
Pneumatic clamping Load/The mini.Pressure | 6kg/cm²/80psi | |
Mini.Dividing Precision | 0.001° | |
X/Y/Z axis travel | ||
working stroke(X.Y.Z) | 400x300x300mm | |
Positioning accuracy | 0.006mm | |
Re-Positioning accuracy | 0.005mm | |
Raoid feed speed | 6m/min | |
Rotation angle of C-axis | 270° | |
Rotation angle of A-axis | 360° | |
Servo for axis | ||
Servo motor(X/Y/Z axis) | 1.3kw | |
Servo motor(A/C axis) | 0.85kw | |
Machine | ||
Machine weight | 5000kg | |
Packing size | 2400x2400x2500mm | |

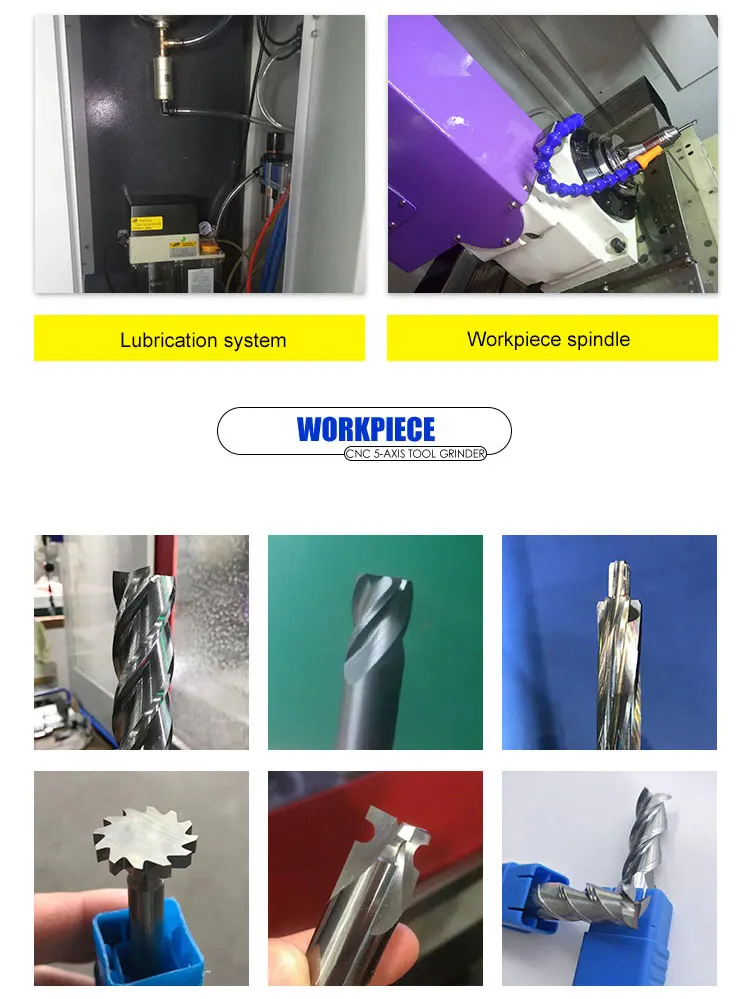

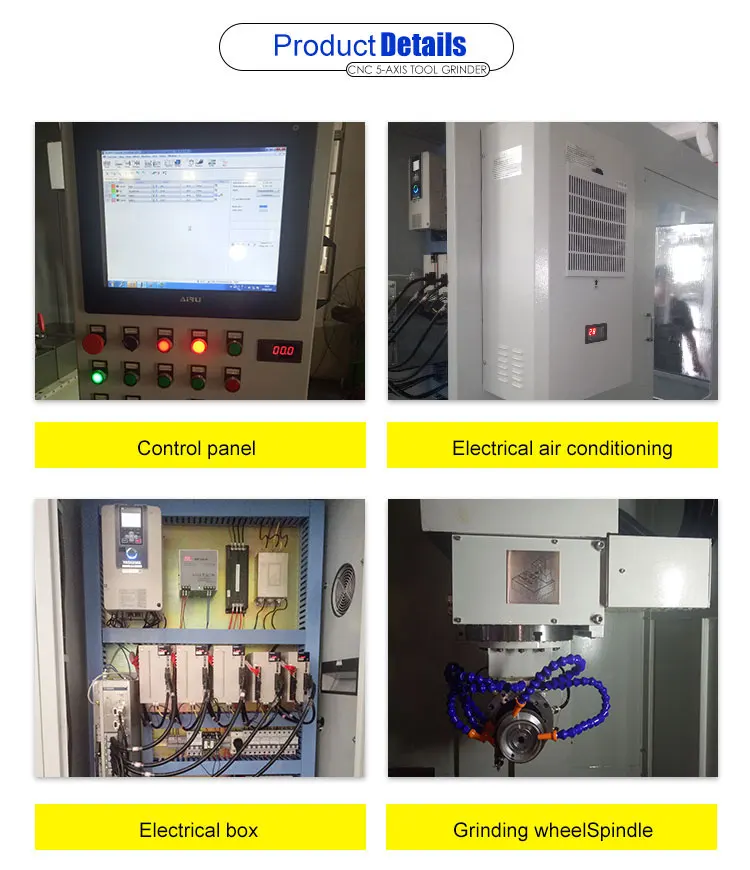

Detailed Images

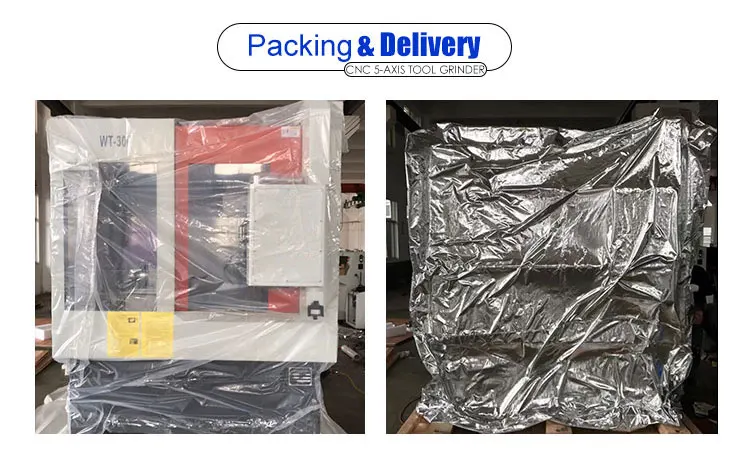

Packing & Delivery
Company Profile
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3:Do you have a stock?
A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4:What’s the MOQ?
A4:One set only.
Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.
Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.
