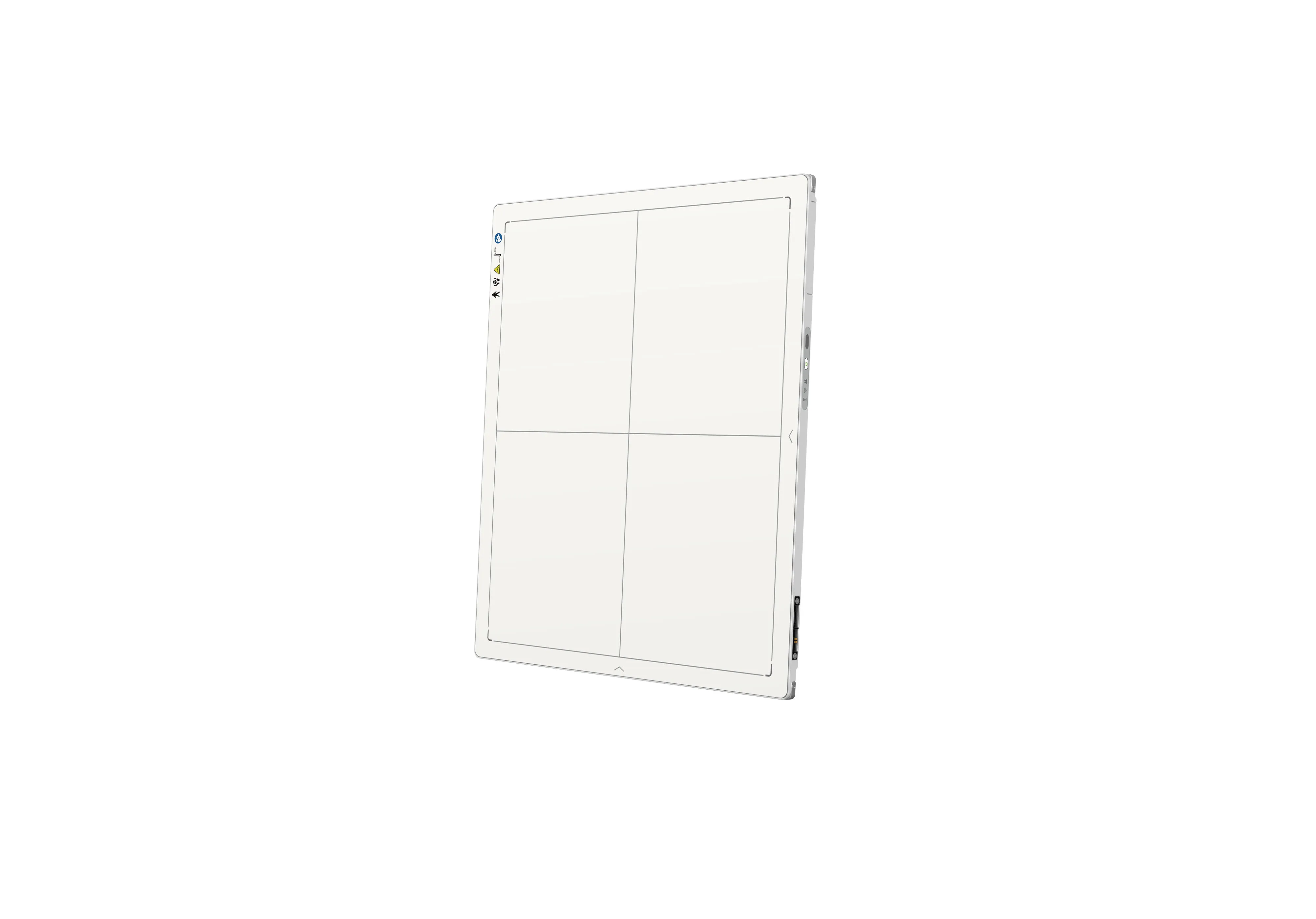

Digital wireless x ray flat panel detector DR system x ray plate

Share on (62376828429):


Price:RUB 250,199.40 - RUB 576,216.80

Quantity:


Product Overview

Description

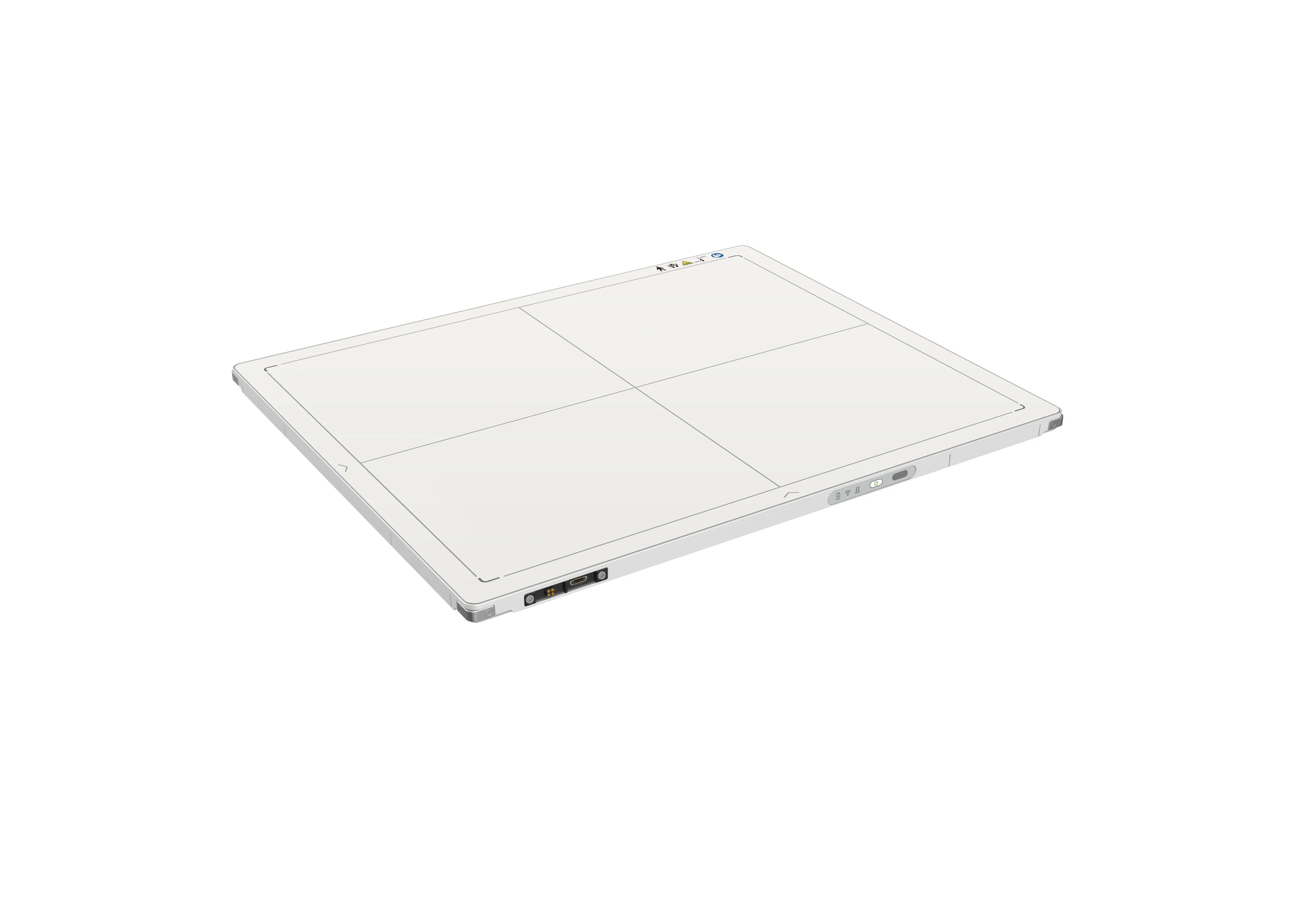

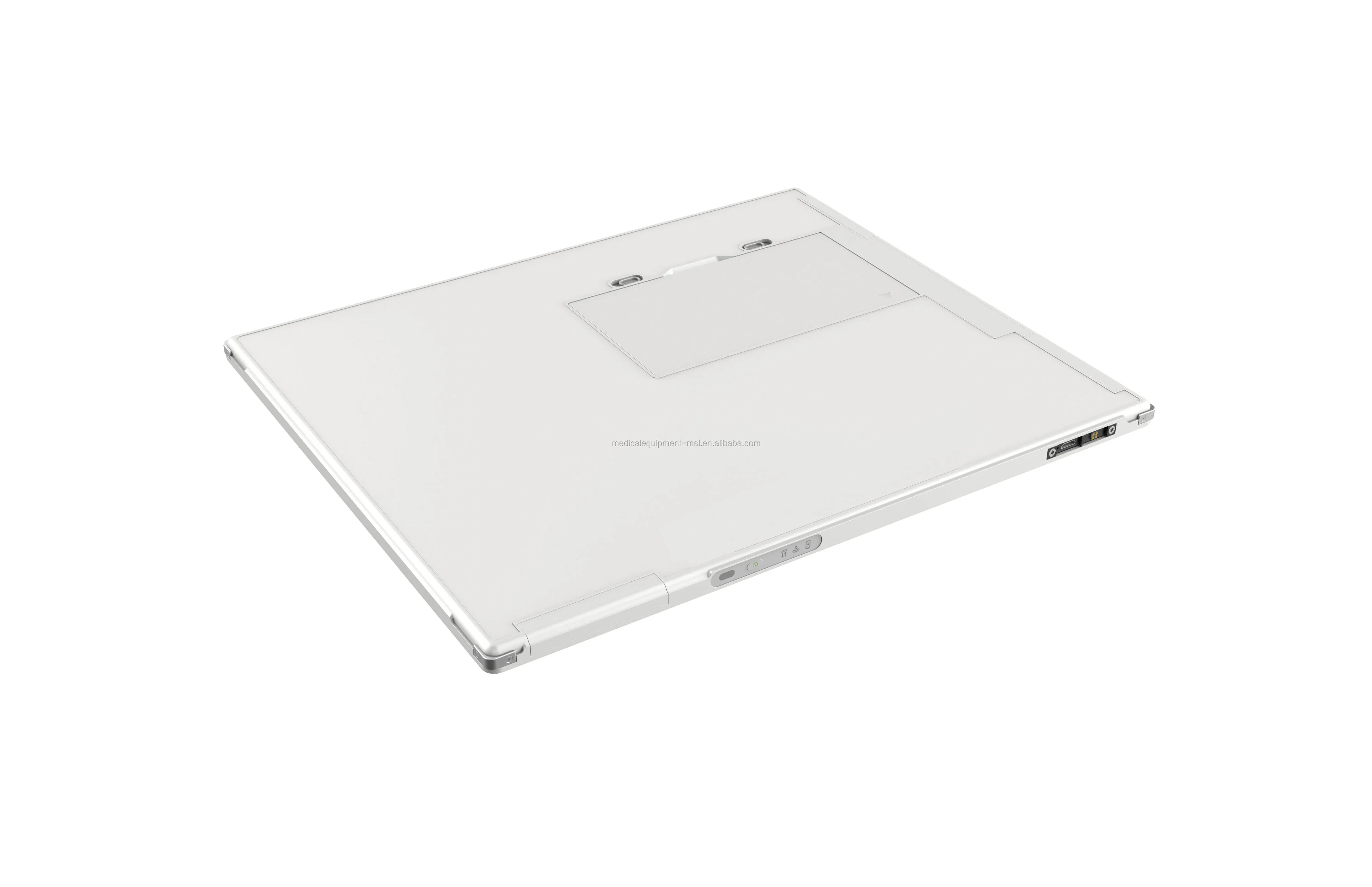

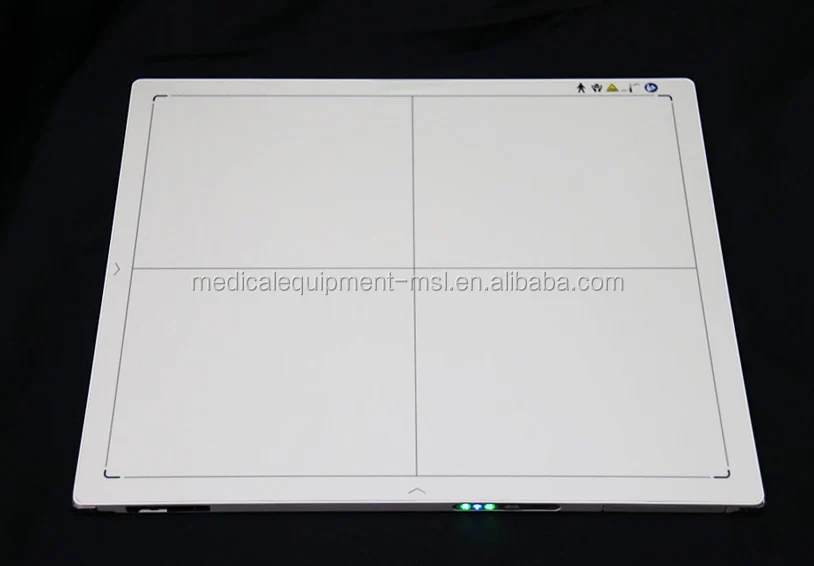

MSLFP03 is a 14x17 cassette-size wireless portable flat panel detector designed for Human used digital radiography. 1, Fast workflow 2, More image details 3, Excellent image quality 4, Cassette-size flat panel detector
Advantage
With increasing demanding workflows in your radiology department, you definitely need a more reliable DR solution, which should be both convenient and easy to use

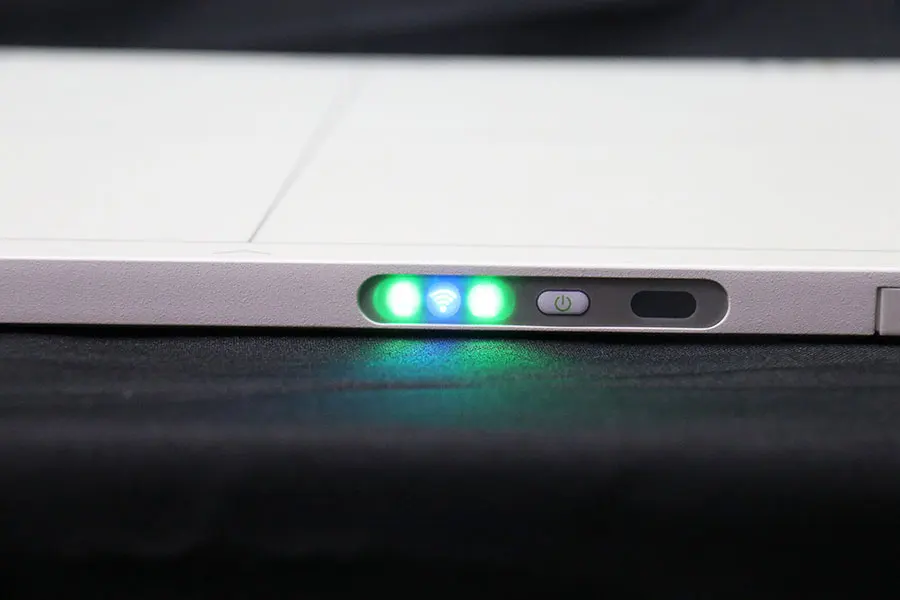

1, AP/ Client model swift with one button

Our wireless cassettes can be connected with computer, when you transfer from x ray room to ward, just change the configuration to swift the wireless model
Longer-lasting battery
More than 200 exposures and up to 3.5 hours continuous operation per recharge of battery. Only a few seconds are needed to replace battery and restart panel. We assure you a faster operation.

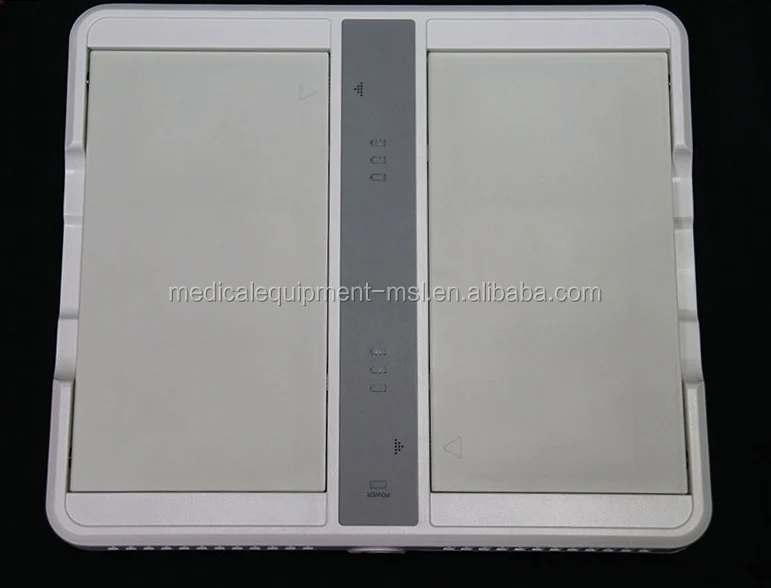

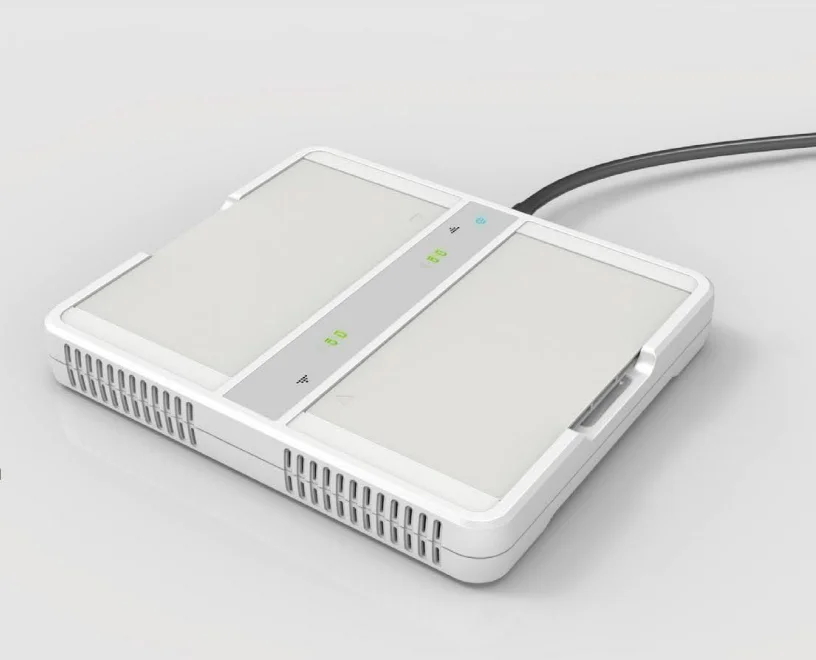

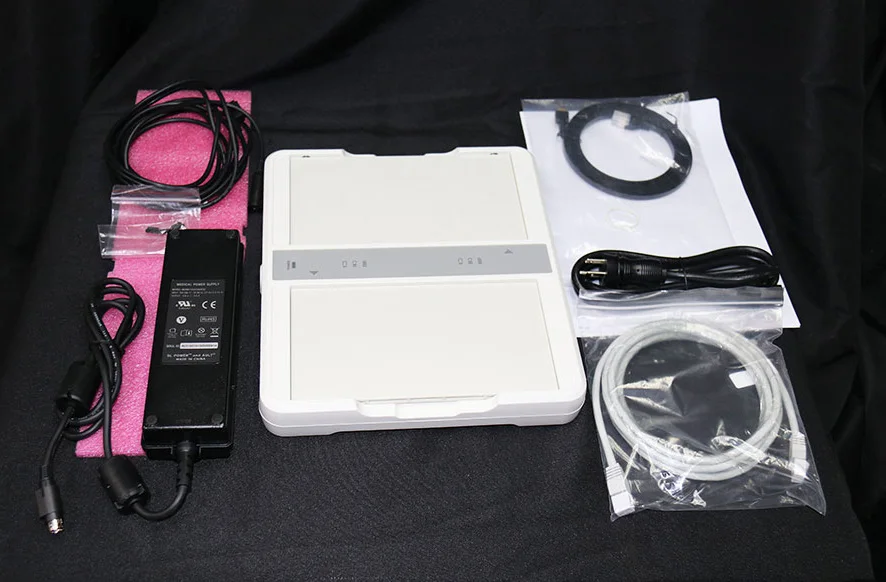

Convenient dual battery charger
Battery charger can charger two batteries simultaneously, which can ensure you always  have 2 full batteries ready all day long, without interrupting your workflow


Faster and seamless connection to mobile devices, with robust WIFI signals


Our wireless cassettes could be connvcted to any mobile device or Windows systems, without any additional Access Point(AP) or router, making it easier to deploy



Both 2.4G and 5G wireless model are supported. With higher stability under 5G modes, the speed has been improved by 189%

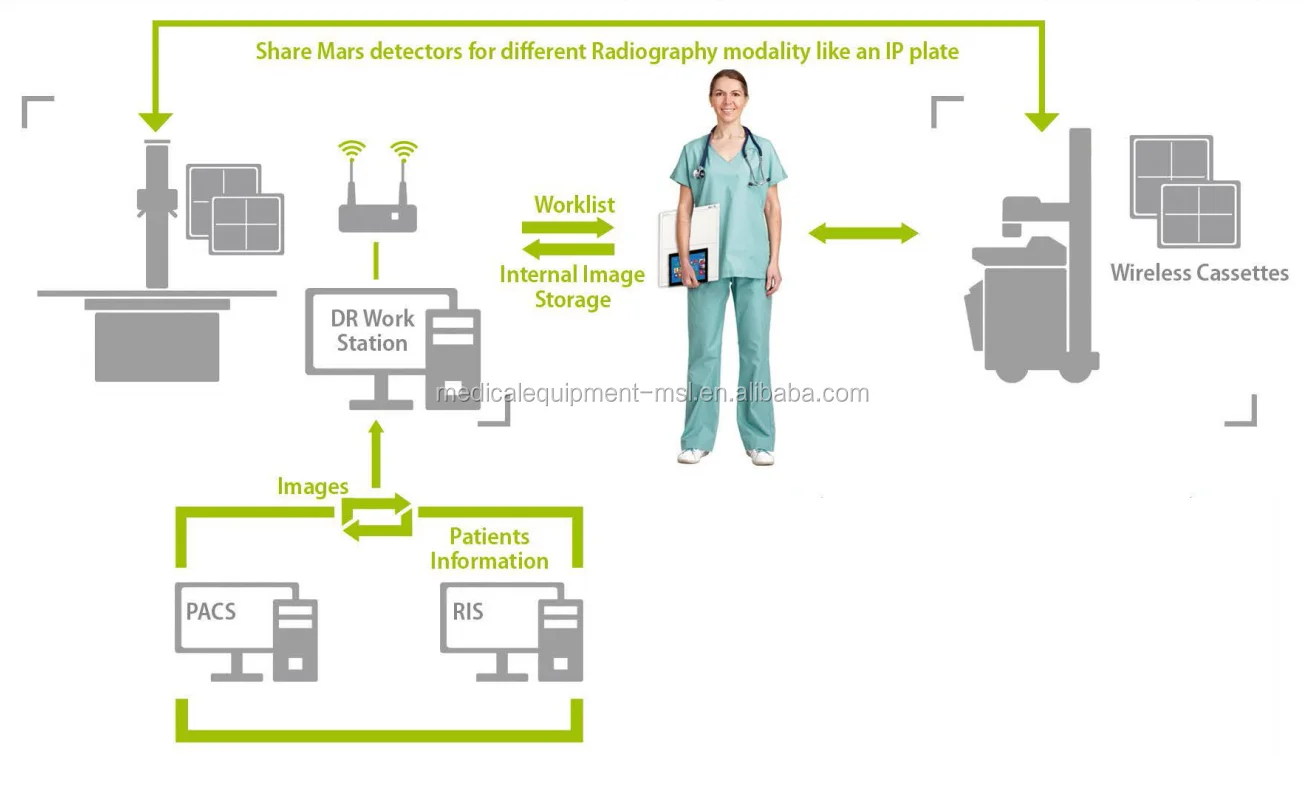

iCassette, the wisest investment you will ever make
With 200 images internal storage and its own CPU, there is no need to cassette wireless cassette detectors if moved between different X Ray systems. Since one flat detector panel can feed a mobile x ray machine and a fixed x ray room, remove it and use it on mobile x ray system if needed. This can lower your costs and speed up your return on investment.
Specification
Basic Technical Specification
Detector Technology
Amorphous Silicon
Scintillator
CsI
Active Area
345.6mm x 420mm
Number of Pixels
2304 x 2800
Pixel Pitch
150 um
AD Conversion
16 bit
Trigger Mode
AED/Software
Data Interface
Ethernet/WiFi(802.11ac)
Static Loading
150kg Uniformly
Battery Capacity
5 h
Image Performace
Sensitivity(LSB/uGy)
Typ. 750
MTF@ 0 LP/mm (@RQA5, Typ.)
1
MTF @ 1.0 LP/mm (@RQA5, Typ.)
67%
MTF @ 2.0 LP/mm (@RQA5, Typ.)
46%
MTF @ 3.0 LP/mm (@RQA5, Typ.)
28%
DQE @ 0 LP/mm (@RQA5, Typ.)
59%
DQE @ 1.0 LP/mm (@RQA5, Typ.)
40%
DQE @ 2.0 LP/mm (@RQA5, Typ.)
27%
DQE @ 3.0 LP/mm (@RQA5, Typ.)
14%
Limiting Resolution (without phantom or grid)
3.3 lp/mm
Workflow
Trigger Mode
AED/Software
Preview Image
Typ. 3s
Full Image Time
Typ. 5s
Cycle Time
Typ. 8s

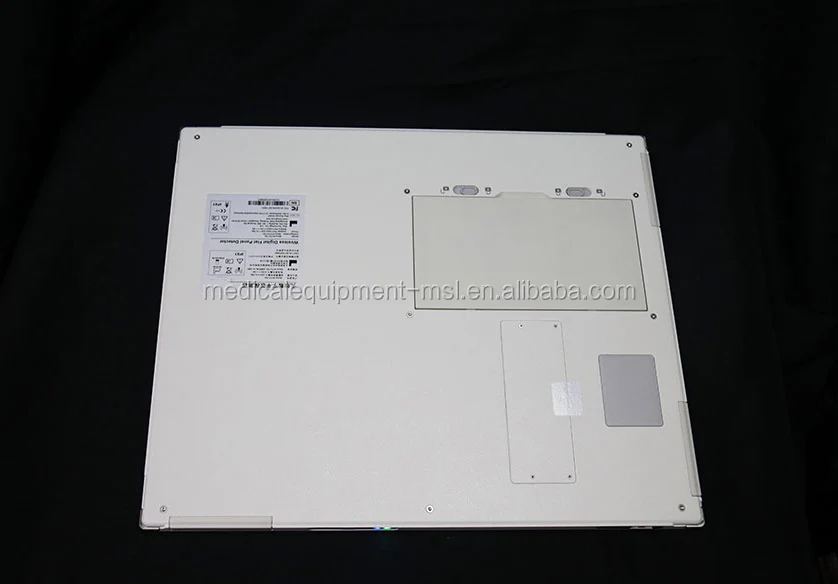

Details Images
Clinical images
Clinic image for human

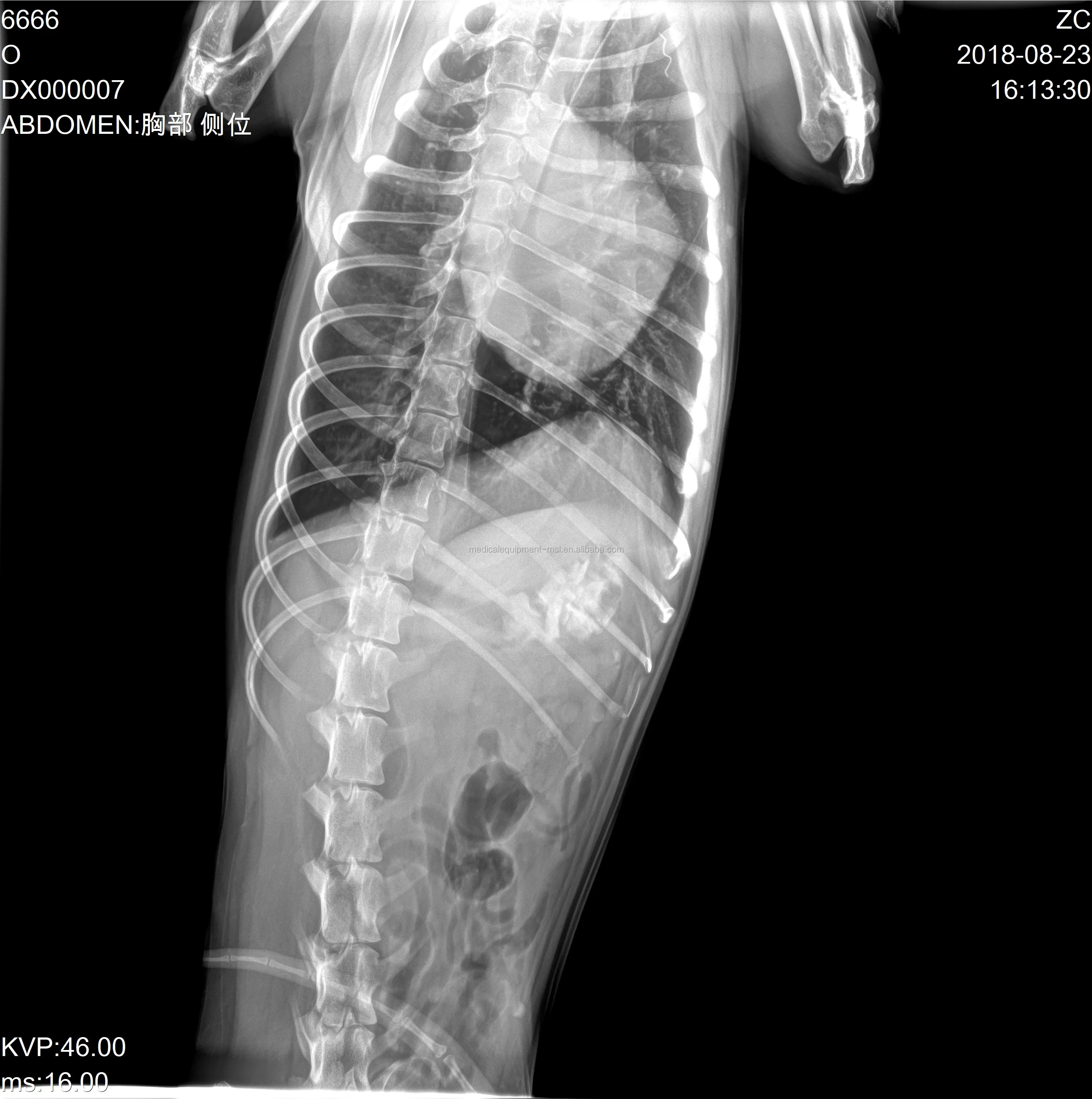

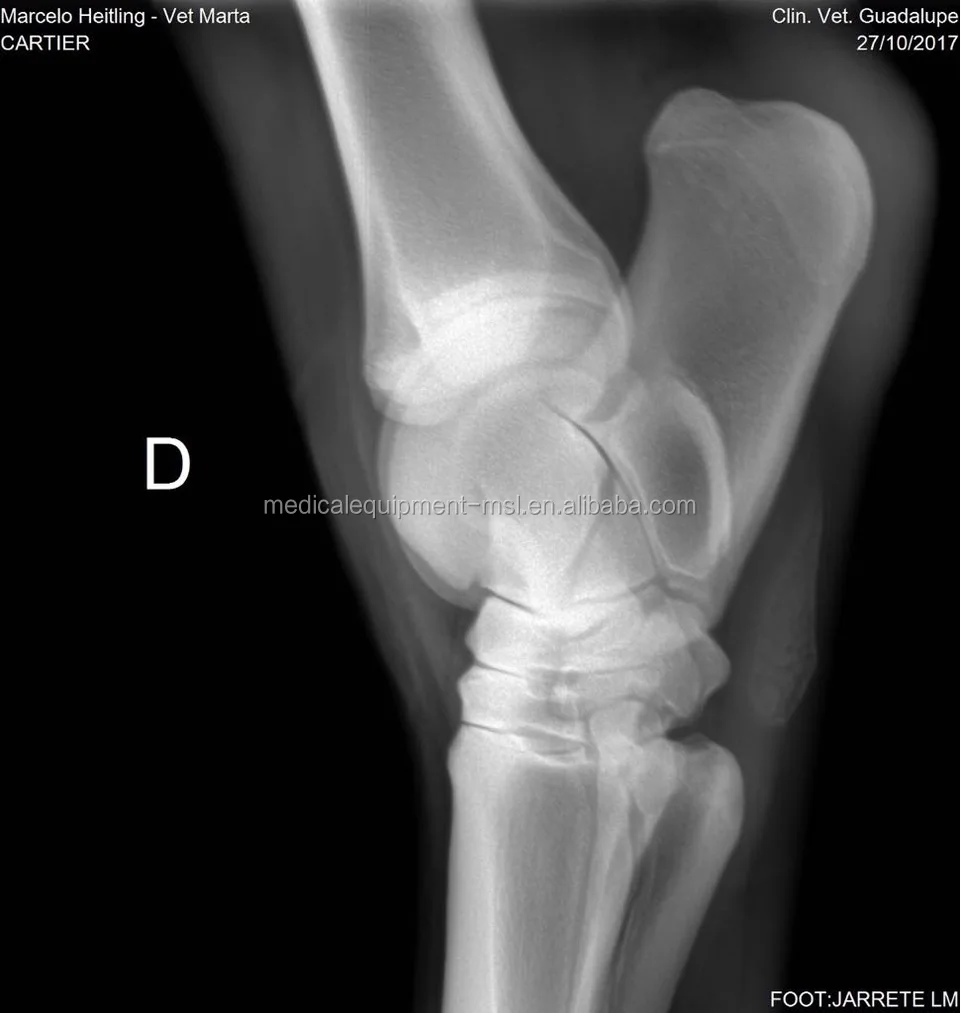

Clinic Image for animal
