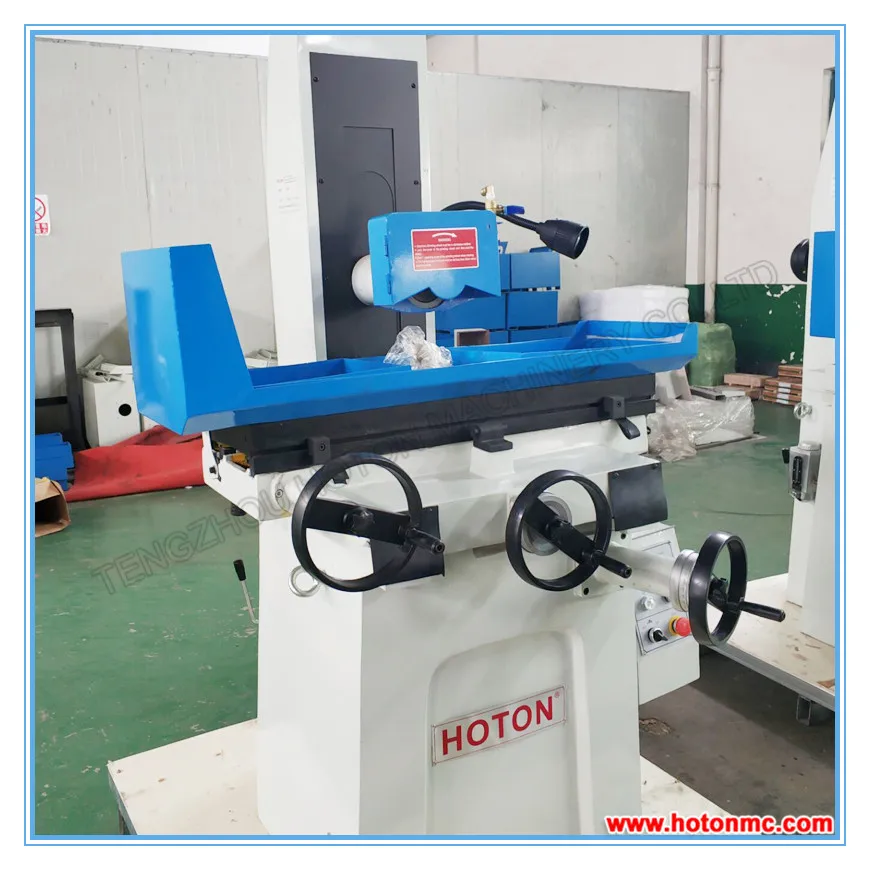

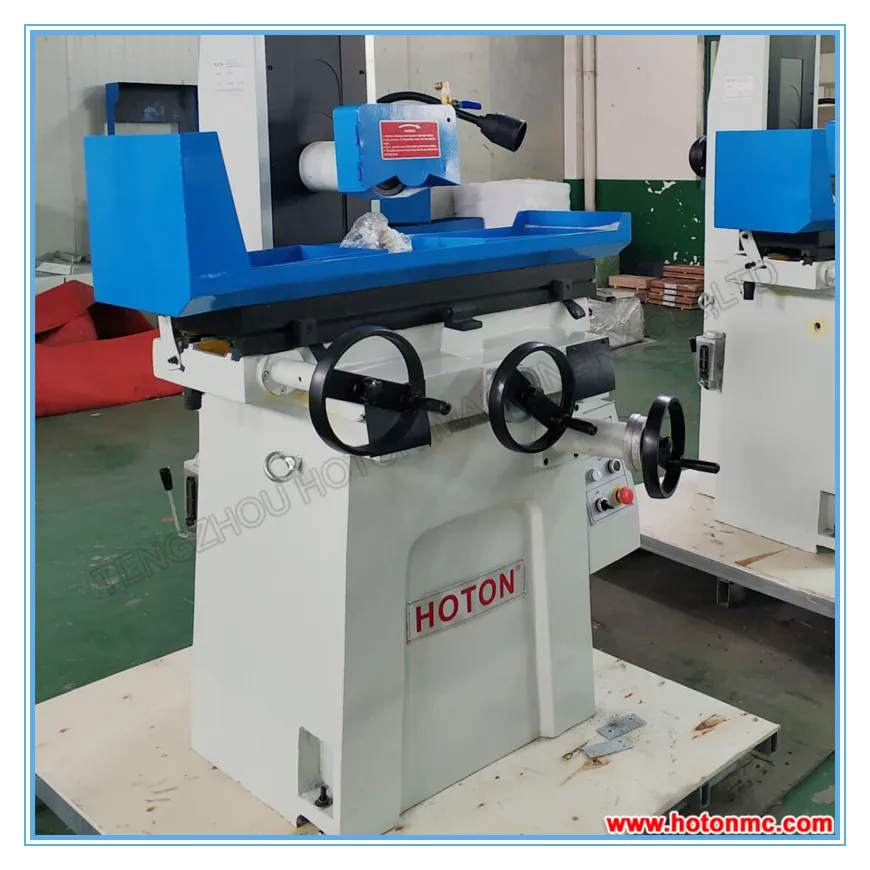

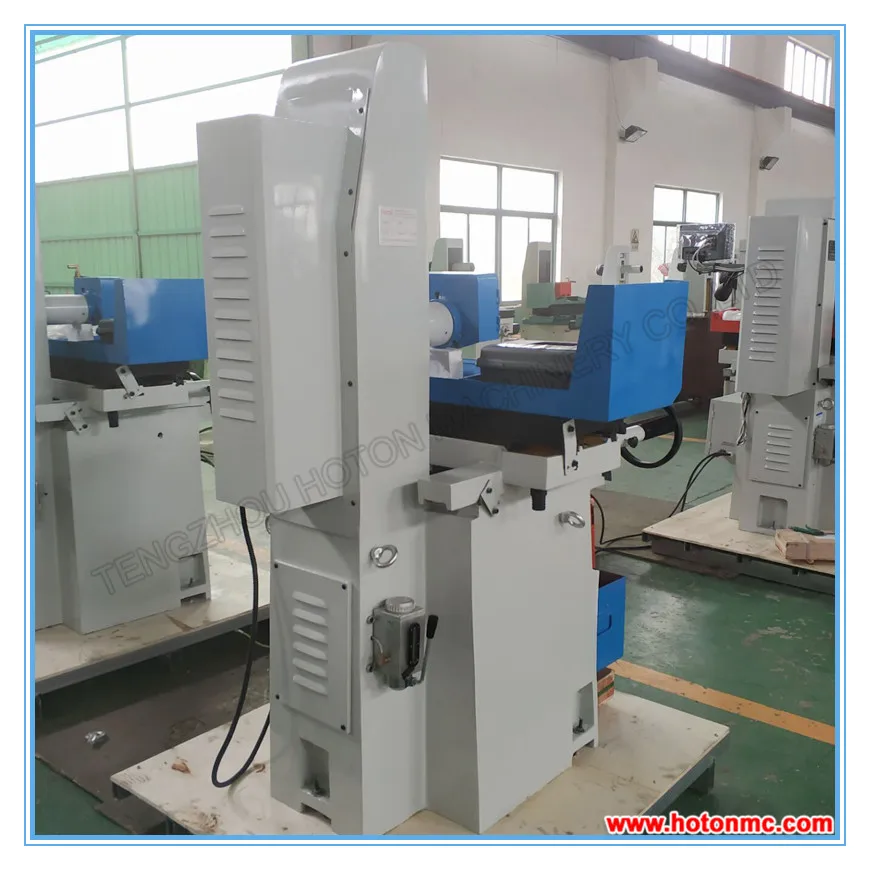

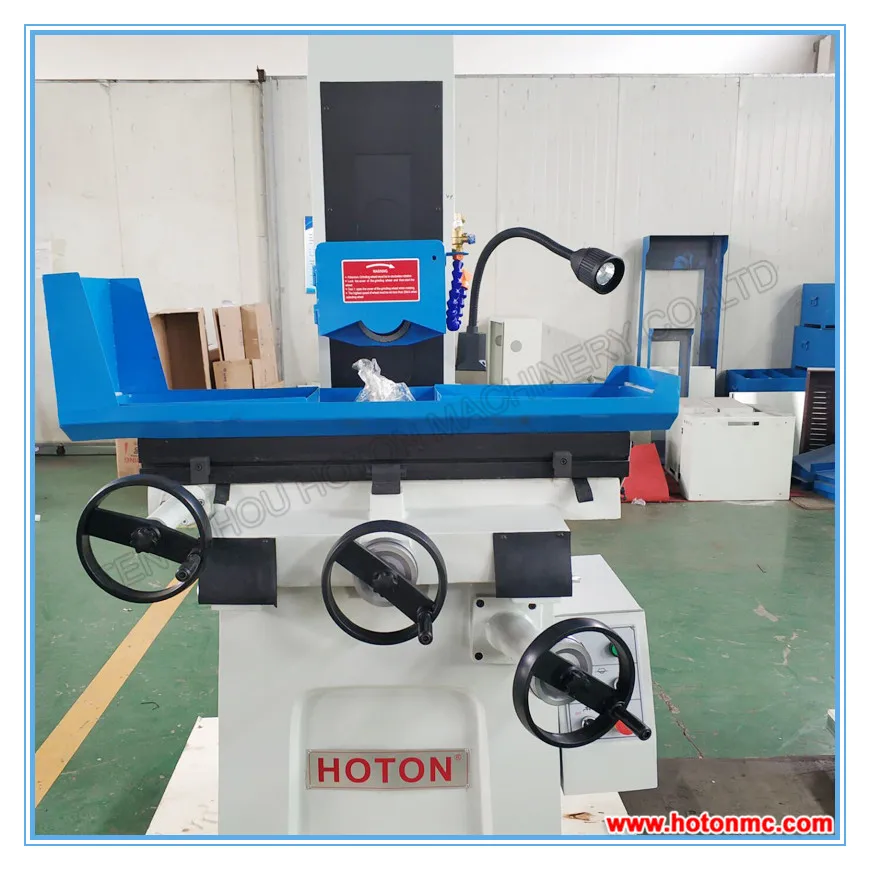

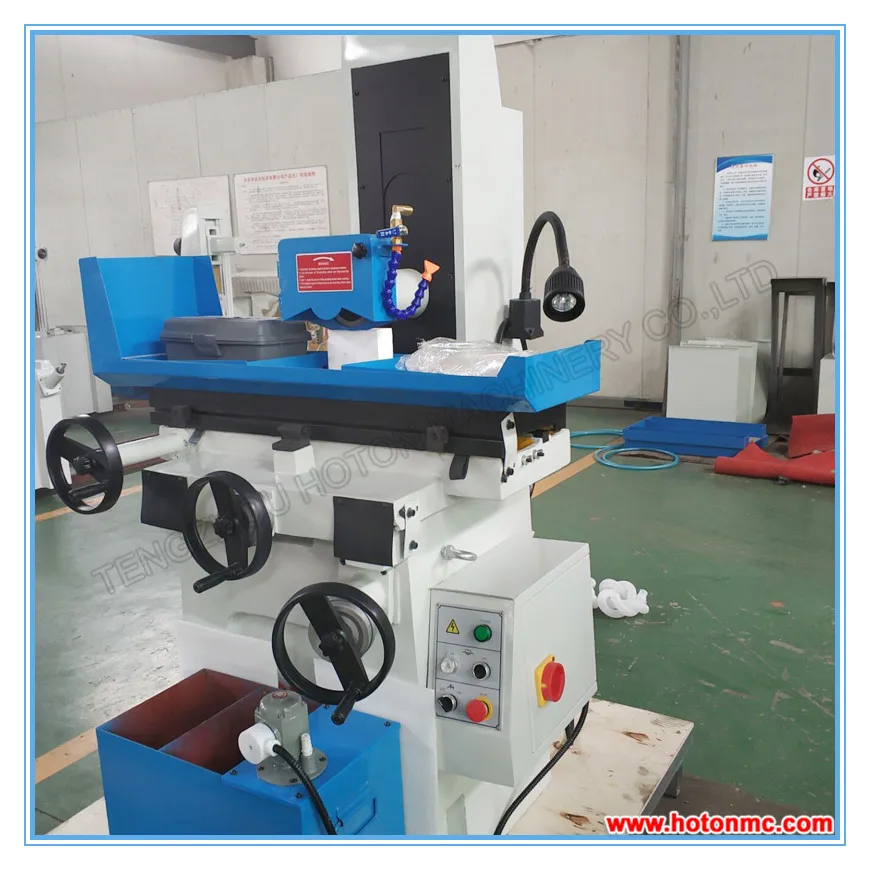

Small surface grinding machine price surface grinder M618A
Small surface grinding machine price surface grinder M618A
Small surface grinding machine price surface grinder M618A
Small surface grinding machine price surface grinder M618A
Small surface grinding machine price surface grinder M618A
Small surface grinding machine price surface grinder M618A
Small surface grinding machine price surface grinder M618A

Small surface grinding machine price surface grinder M618A

Share on (62379142045):


Price:

Quantity:


Product Overview

Description


WELCOME

MANUAL SURFACE GRINDING MACHINE FEATURES:
1 Adopt the exceeding precise class7(P4 level) ball bearing for spindle
2 Bring transmission by synchronous belt, operating simple and convenient
3-axis manual operation, X, Y axis can be eletric auto operation.
High rigidity H-frame column with spindle center to table
Enhanced ribbed full cast iron base
Enlarged spindle housing for heavier grinding
Cartridge w / 4 preloaded class 7 (P4) bearing
Roller steel balls on linear table ways for easy and smooth longitudinal movements.
Double-V saddle ways for rigidity
Manual lubrication system

\t
TECHNICAL PARAMETERS
\t
UNITS
\t
M618A
\t
M818A/M820
\t
Max.work piece to be Ground( L×W×H)
\t
mm
\t
500×190×335
\t
470x220x350
\t
Max. Grinding Length
\t
mm
\t
500
\t
470
\t
Max. Grinding Width
\t
mm
\t
190
\t
220
\t
Distance From Table Surface To Spindle Center
\t
mm
\t
335
\t
450
\t
Slide way
\t
\t
V-type rail with Steel-ball
\t
V-type rail with Steel-ball
\t
Kg
\t
200
\t

\t
Table Size (L×W)
\t
mm
\t
460×180
\t
210x450
\t
Number of T -Slot
\t
mm×n
\t
12×1
\t
12x1
\t
Speed OF Working Table
\t
m/min
\t
3-23
\t
3-23
\t
Cross Feed On Handwheel
\t
mm
\t
0.02/Graduation 2.5/revolution
\t
Vertical Feed On Handwheel
\t
mm
\t
0.01/Graduation 1.25/revolution
\t
Wheel Size (dia.×width×bore )
\t
mm
\t
200×16×31.75
\t
200x13x31.75
\t
Spindle Speeds
\t
rpm
\t
2850
\t
2850
\t

\t

\t
0-6000
\t
3450
\t
Spindle Motor
\t
Kw
\t
1.1
\t
1.5
\t
Coolant Pump
\t
Kw
\t
0.4
\t
0.5
\t
Machine Size (L×W×H)
\t
mm
\t
1550×1060×1590
\t
1330x1150x1675
\t
Packing Size (L×W×H)
\t
mm
\t
1060×1170×1870
\t
1400x1120x1985
\t
Gross,Net
\t
T
\t
O.75, 0.65
\t
0.8
About US
Other

Q1: Are you trading company or manufacturer ?
A: We are factory.

Q2. What about the lead time?
A: Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity  more than.

Q3: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive.  Airline and sea shipping also optional.

Q5. What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance,balance before shippment. If you have another question, pls feel free to contact us as below.
