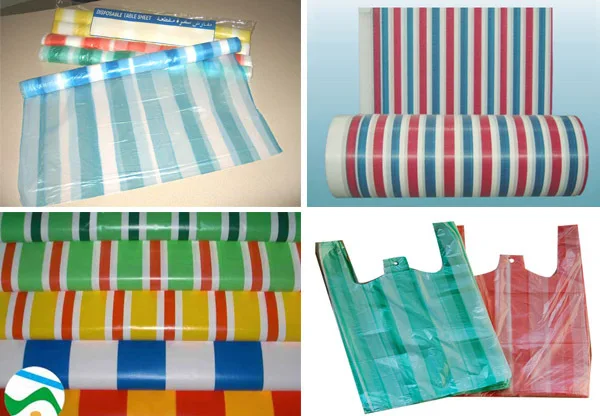

Double-colour film blowing machine set This machine is used to blow various low-density polyethylene (LDPE) and high-density polyethylene (HDPE) color strip plastic films. The plastic films can be widely used for civil and industrial packaging such as food, fruits, apparel, textiles and commodities.
Model
SJ-45/FM600
Screw Diameter
45MM*2
Screw Speed
10-100r/min
Main Motor Power
18.5KW
Output
30-35kg/h
Film thickness
0.01-0.10mm
Film Width
100-600mm
Total Power
32Kw
Weight
3000Kg
Size
4.0*2.0*3.8m
Operator
1 person
Extruder Unit
Extruder Unit
V-plate, Gusest Divice, Calibrating Cage
Upper Pull Unit
Control Pannel
Electric System
Normal Die Head
Seperate Single Winder
Option for fast filter change
Option for Corona Treater
Option for Double Lips Air Ring
Option for Rotary Die Head
Dear customer, pleaes note , machines are custom-made. In order to get wanted machine and accurate quotation,when sent inquiry , please give basic informations as below:
1. Maximum film width want to produce
2. Raw material used
3. End products need print or not
4. Need single rewinder or double rewinder
5. Maximum thickness
6. Other requirements on machine.
Thank you in advance.
Related Products
Packing&Shipping
Standard: Packed in waterproof air bubble film with pretection oil.
Wooden box wanted: Extra cost
After Sales Service
Installation Services Installation Services are available with all new machine purchases. We will provide the technical know-how for your operation smooth transition and support for installing, debugging, operation of the machine, it will indicate you how to use this machinewell. After Sales Service We offer the Preventative Maintenance and After Sales Service. For we strongly feels that importance of supporting our customers and the product solutions we provide. Consequently we offer comprehensive maintenance options to prevent equipment issues before they become problems. Also we offer one year guarantee period.

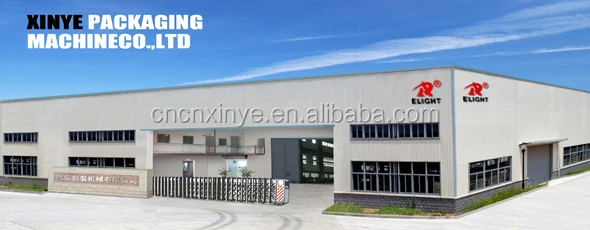

Company Introduction
