Big screen to see more clearly

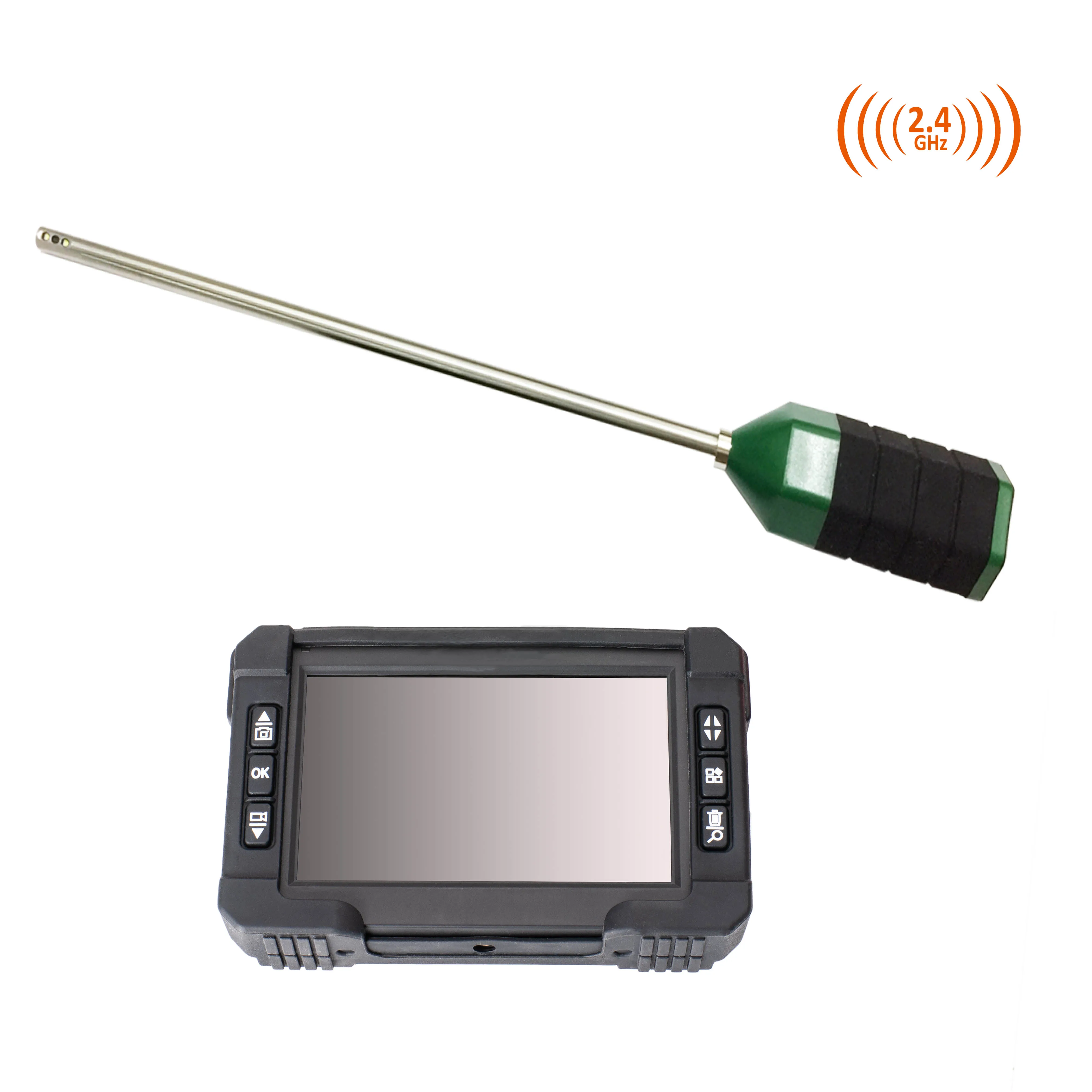

Side view rigid inspection camera with 5inch monitor
This is the new side view inspection camera, the tube is made of wearable stainless steel with optional diameter 9.0mm. The camera, the 2 high intensity LEDs and the stainless steel tube are integrated perfectly to enhance the insertion probe water, gas, desiel and oil proof, the waterproof level is up to IP67.
FEATURES
Mini stainless steel insertion tube, diameter 9mm or 6mm
Insertion tube length 300mm
Side view camera resolution 380TVL
2 high intensity LEDs for 150cm lighting distance
Camera probe is IP67 waterproof and detachable
Wireless handle with video out put function
Built-in rechargeable lithium battery
SPECIFICATIONS
| Items | Specifications | ||||||
| CAMERA PROBE | Image Sensor | CMOS | |||||
| Camera Direction | Side view 90degree | ||||||
| Diameter of Insertion Tube | 9.0mm | ||||||
| Tube Type | Stainless steel | ||||||
| Insertion Length | 300mm | ||||||
| Tube Material | Stainless Steel | ||||||
| Light Source | 2 high intensity LEDs for 1.5m lighting distance | ||||||
| Effective Pixels | 768x494(NTSC) 752x582(PAL) | ||||||
| Mains Battery Charge | Yes | ||||||
| Depth of Field(DOF) | 4cm-infinite | ||||||
| Field of View(FOV) | 55° | ||||||
| Waterproof Level | IP67(Probe only) | ||||||
| Battery Capacity | 1500mAh | ||||||
| Work Time | 4 hours | ||||||
| Charge Time | 5 hours | ||||||
| Current Consumption | 260mA | ||||||
| Operation Tempereture | -10°~+60° | ||||||

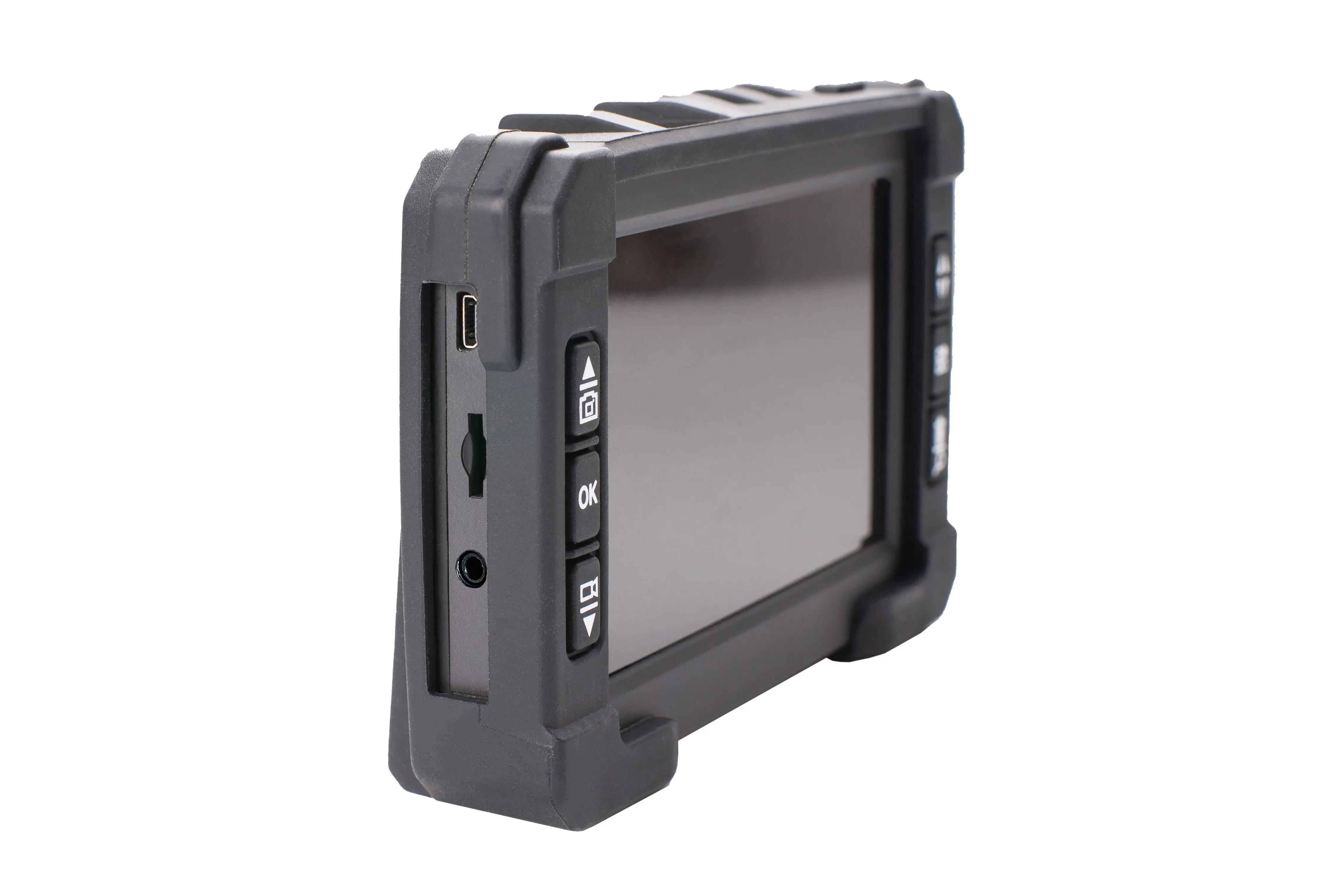

| MONITOR | Product Dimension | 115.6mmX74.38mmX1.43mm | |||||
| Screen Size | 5'' TFT-LCD | ||||||
| Display Resolution | 800(R.G.B.)X480dot | ||||||
| Video Signal Standard | NTSC /PAL | ||||||
| Modulation Mode | FM | ||||||
| Receive Sensitivity | -85dBm (module) | ||||||
| Built-in Li-Battery Capacity | 3300MAH/5V | ||||||
| Charge Time | 4.5hours | ||||||
| Work Time | 4.5 hours | ||||||
| Standby Time | 5 hours | ||||||
| Consumption Current | 500MA(MAX.) | ||||||
| Menory | Micro SD Card | ||||||
| Picture Format | .JPG | ||||||
| Video Format | .AVI | ||||||
| Picture/Video Resolution | 800X480 | ||||||
| Frame Rate | 30Frame/S | ||||||
| Operation Tempreature | 0~+45°C | ||||||
| Storage Temperature | -20~+60°C | ||||||
Applications:
Locating source of water intrusion.
Locating insects or dead rats or corrosion inside cavity walls.
Black mold inspection, insulation levels etc.
Electrical, plumbing, wiring, network/phone and CATV routing.
Construction, property managers and contractors
Small automotive engines and other related inspections.
Gun bore and related inspections.
Motor Inspections.
HVAC duct systems.
Sewer pipe inspections and related plumbing applications.
Avaiation related applications.
Natural gas pipe inspections.
Internal machinery part inspections.
Quality assurance inspections.
Mold and mildew inspections.
Insurance litigation and verification inspections.
Verfication of standards protocols in small and tight areas.
Building appraisal applications
Gun bore and related inspections.
Motor Inspections.
HVAC duct systems.
Sewer pipe inspections and related plumbing applications.
Avaiation related applications.
Natural gas pipe inspections.
Internal machinery part inspections.
Quality assurance inspections.
Mold and mildew inspections.
Insurance litigation and verification inspections.
Verfication of standards protocols in small and tight areas.
Building appraisal applications
