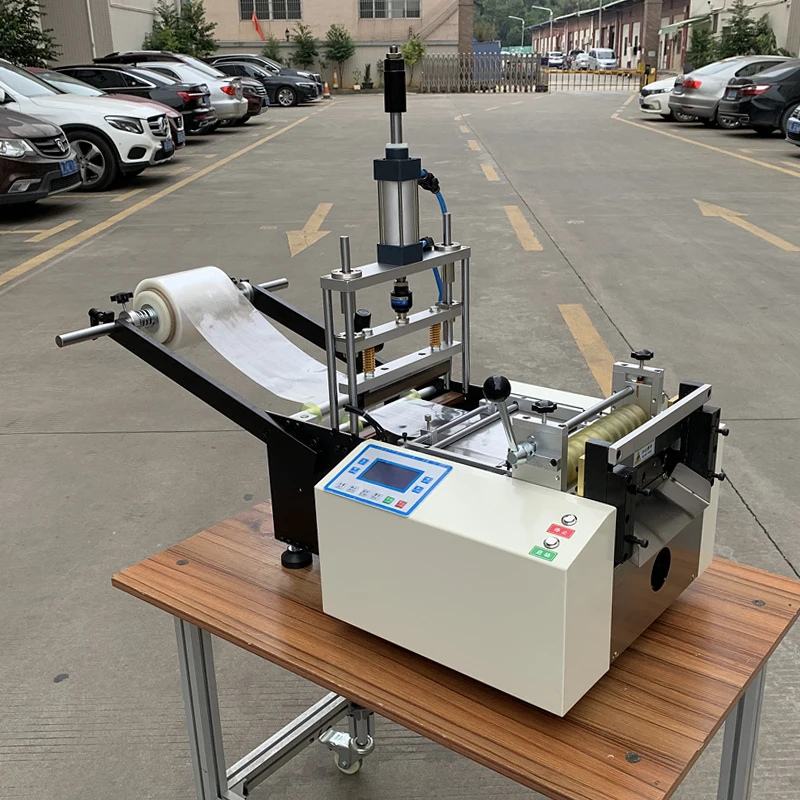

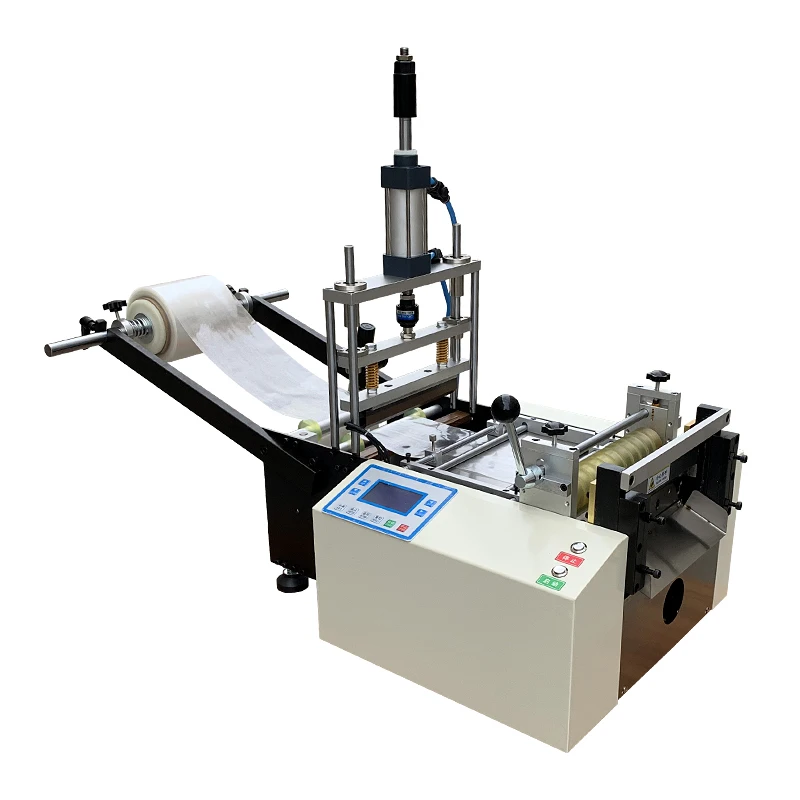

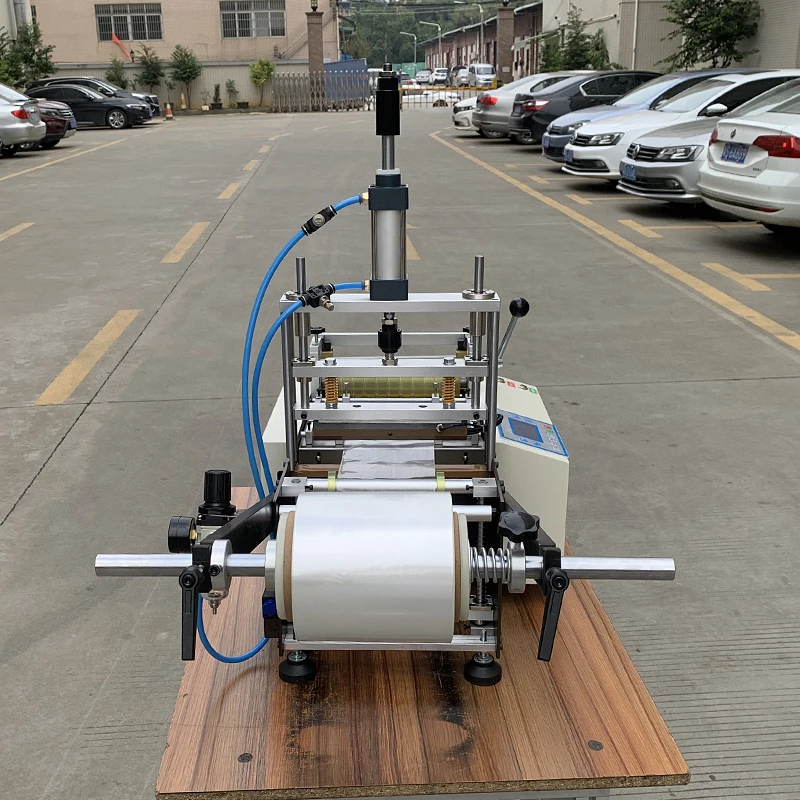

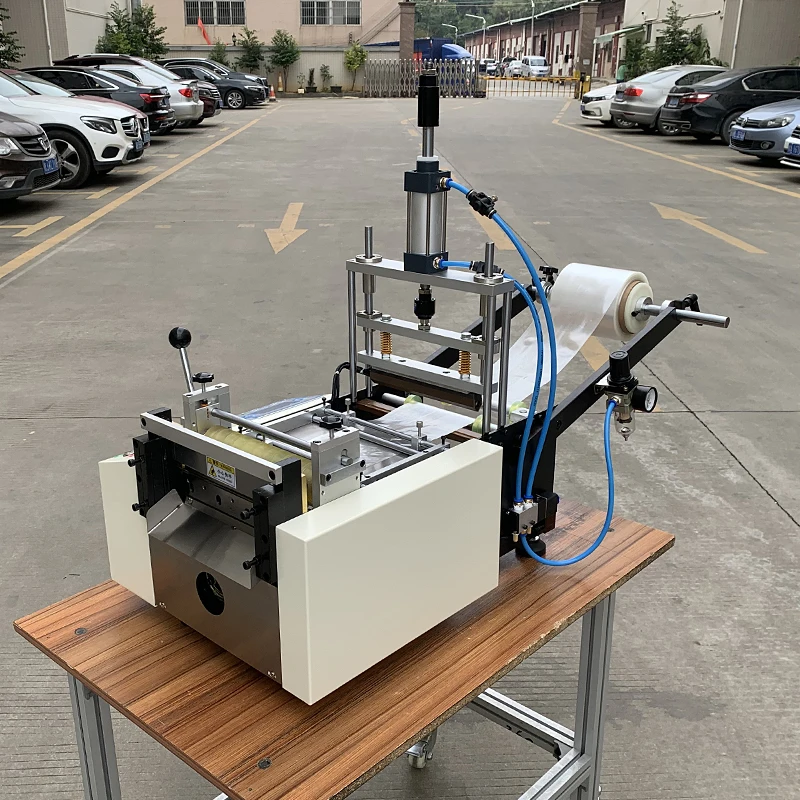

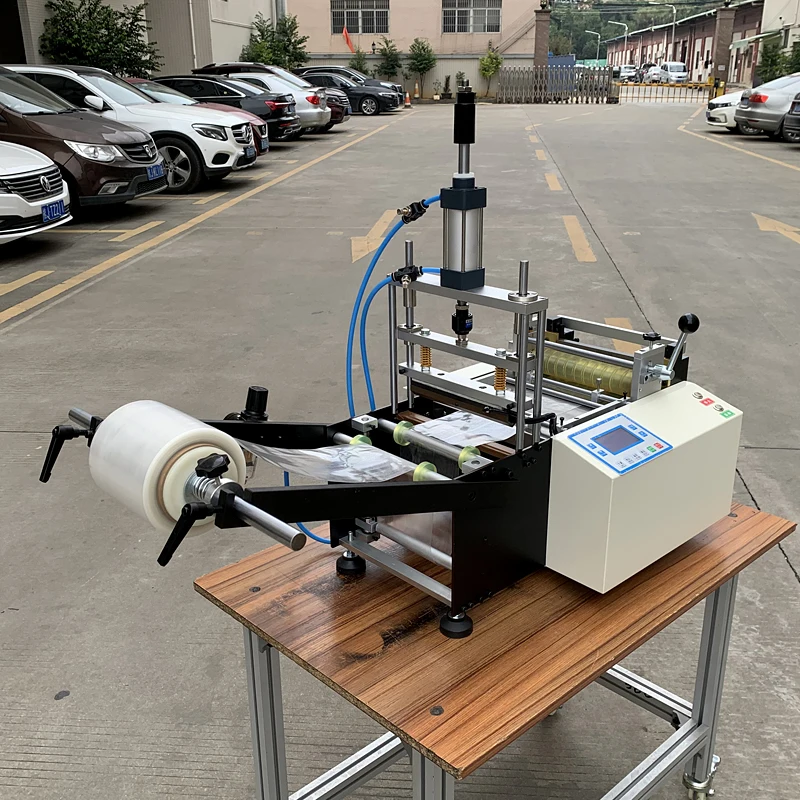

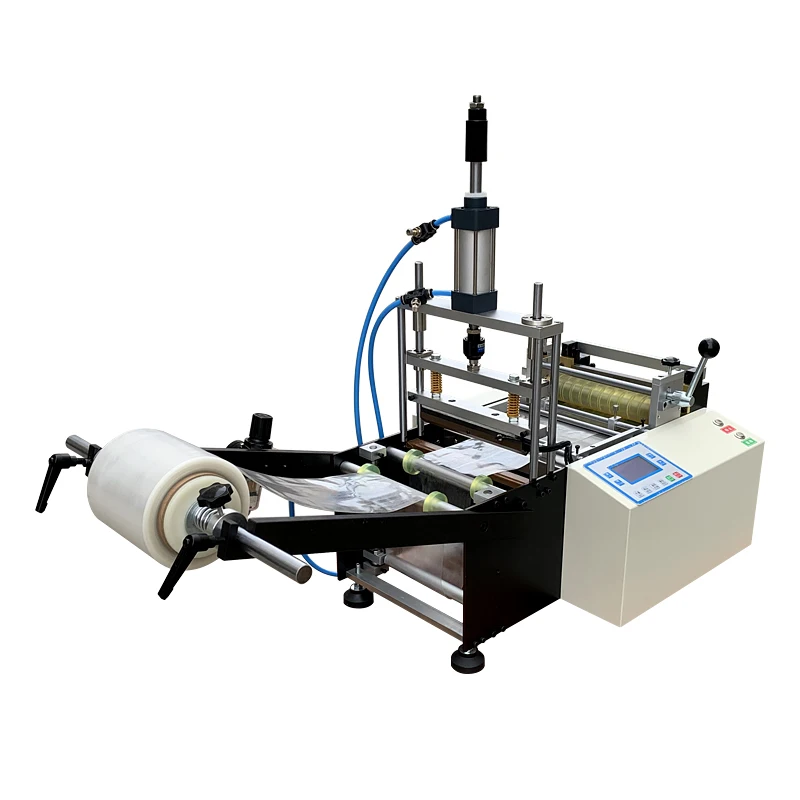

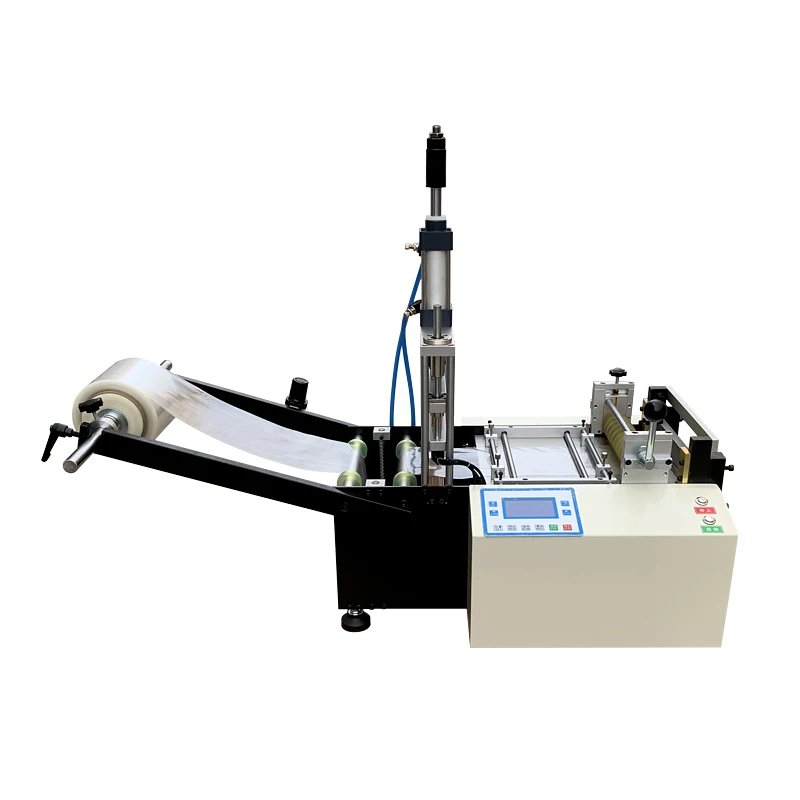

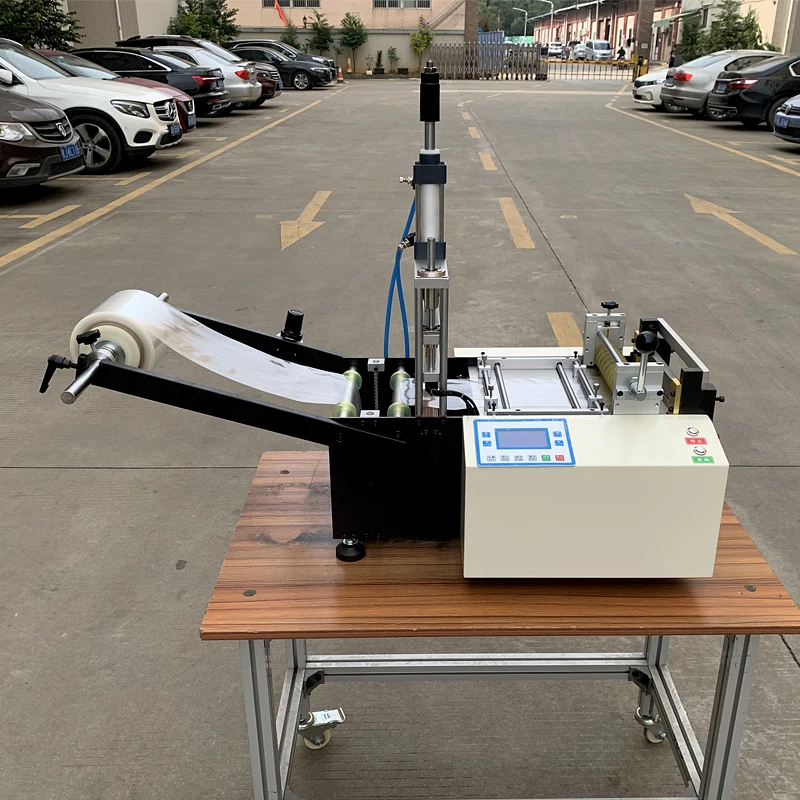

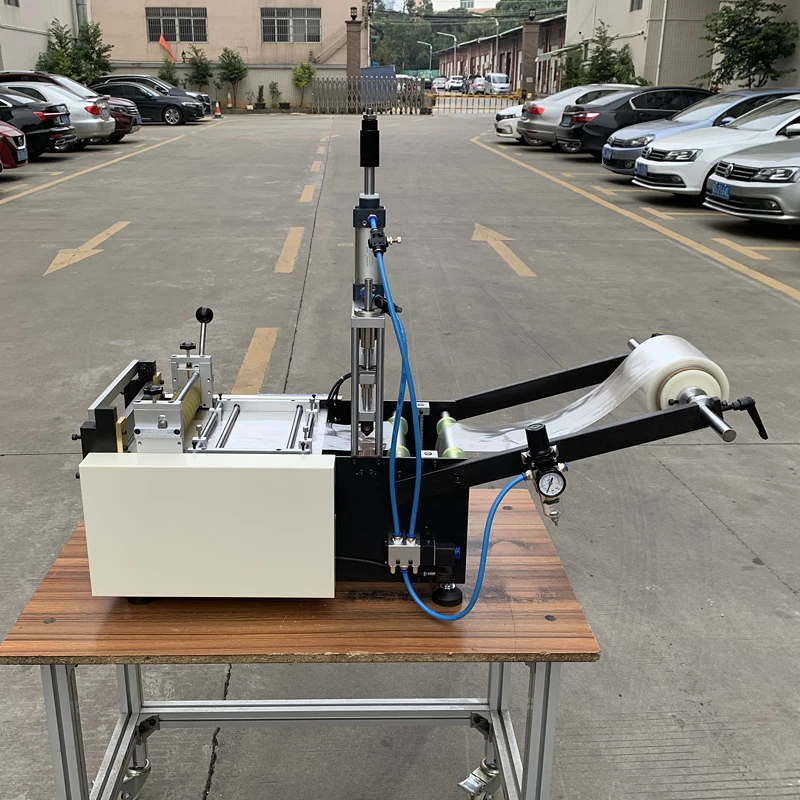

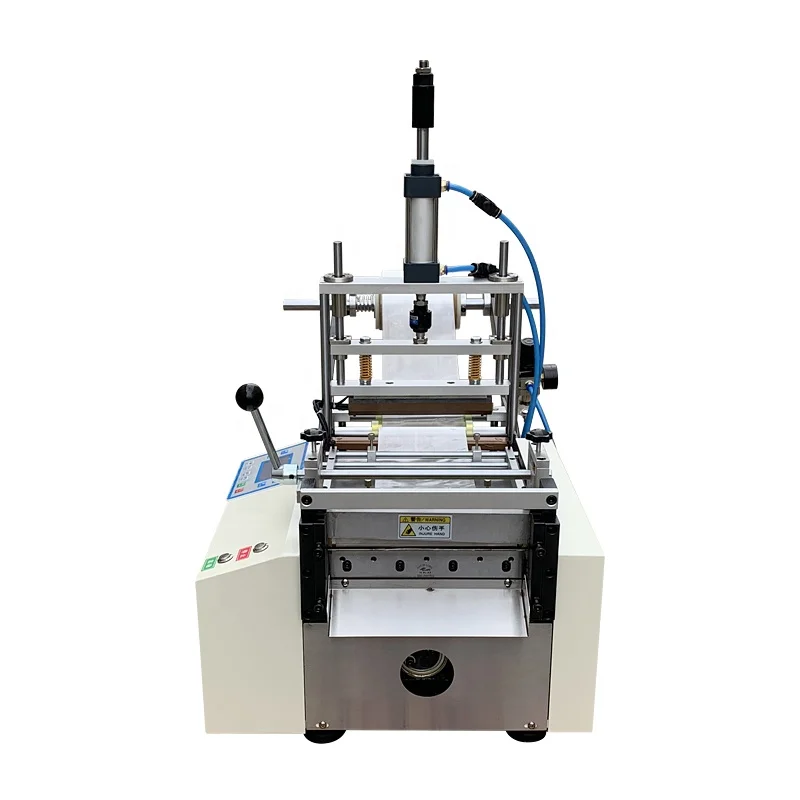

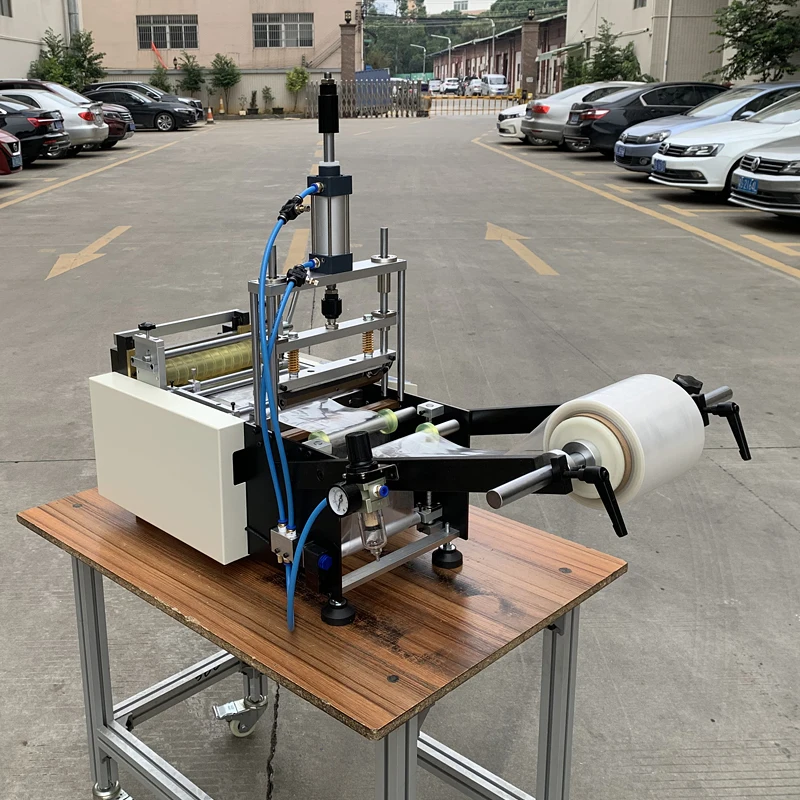

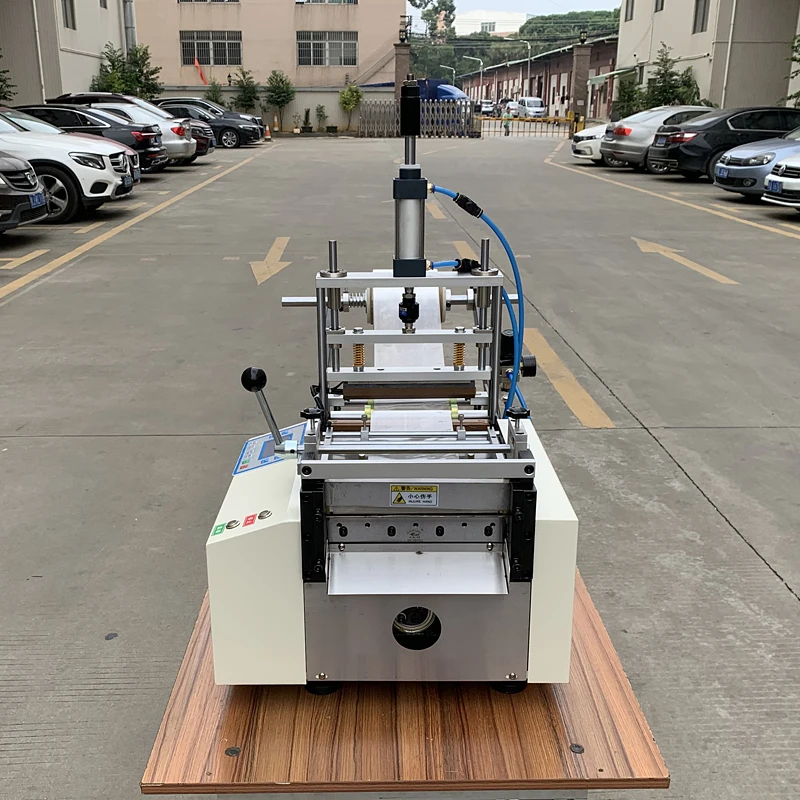

Hot sale hot sealing cold cut PE bag making machine automatic pvc shrink bag cutting bag machine production equipment
Pdoduct name
PE bag cutting machine
Product model
HDK-200ZD
Power supply
220V 50/60Hz
Cutting length(mm)
0.1-9999.9mm
Cutting speed
30-120pcs/min
Heat sealing width
1-180mm
Cutting precision
0.1mm
Weight
46kg
Size (L×W×H)
580*450*730(mm)
Feeding motor
Stepper motor
Cutter motor
AC motor
Cutter material
High-speed steel
Heat sealing method
Pneumatic
Features:

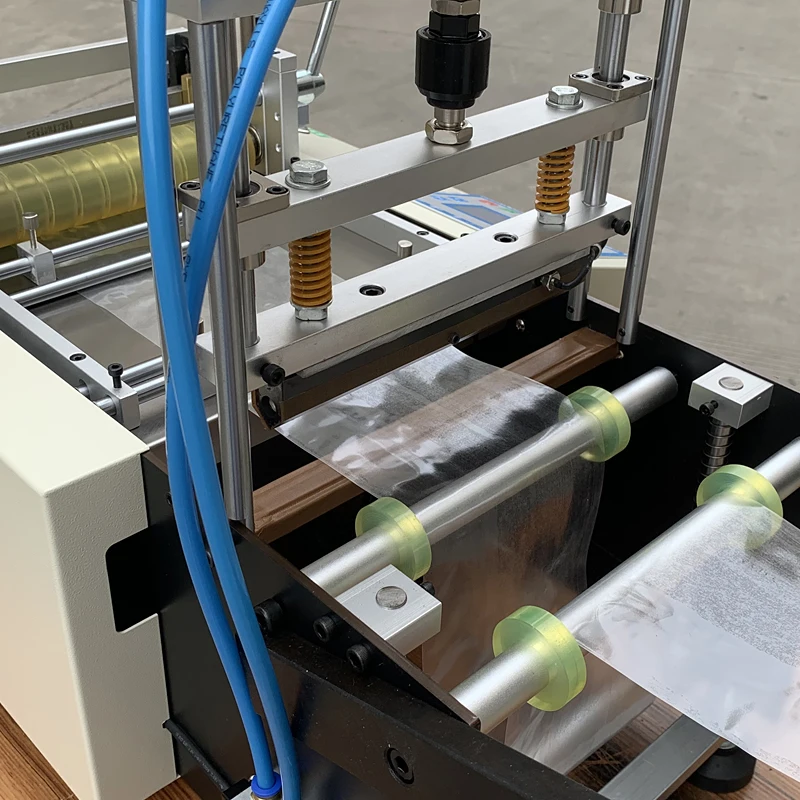

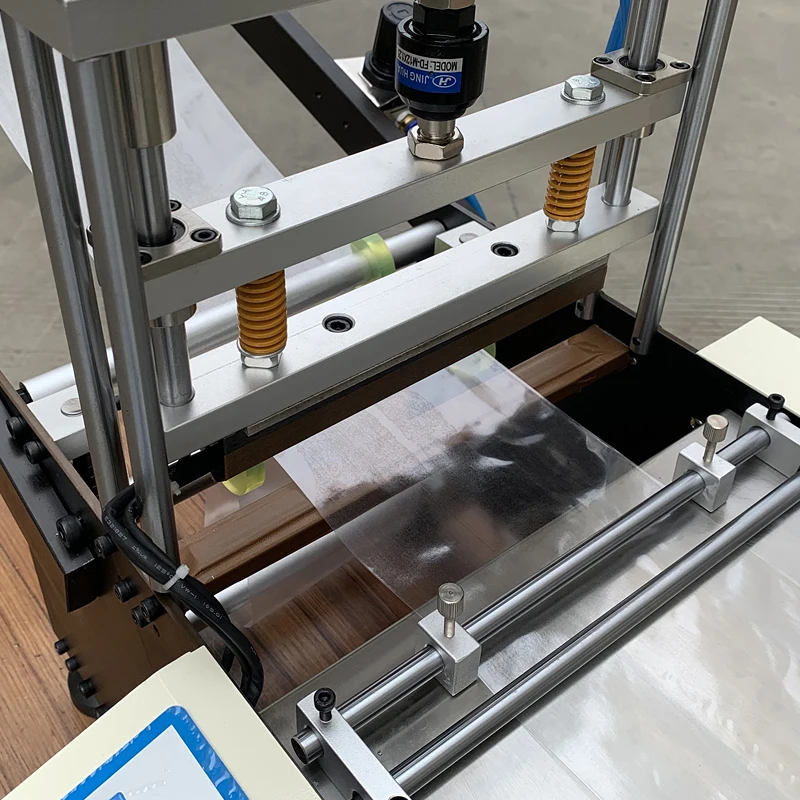

1. Using microcomputer control, the length, speed and quantity can be adjusted arbitrarily. 2. The overall structure design is reasonable and durable. 3. The operation is simple, instead of manual labor, one machine can hold 3 to 5 people. 4. Wide application range, suitable for producing various plastic bags such as PE flat bags, PVC heat shrinkable bags, anti-static bags, OPP bags, etc. 5. With inlaid front steel blade, it has higher hardness, more wear resistance and long service life. 6. The heat-sealing device can be disassembled and replaced, and the temperature is adjustable, suitable for sealing various materials and thickness materials.

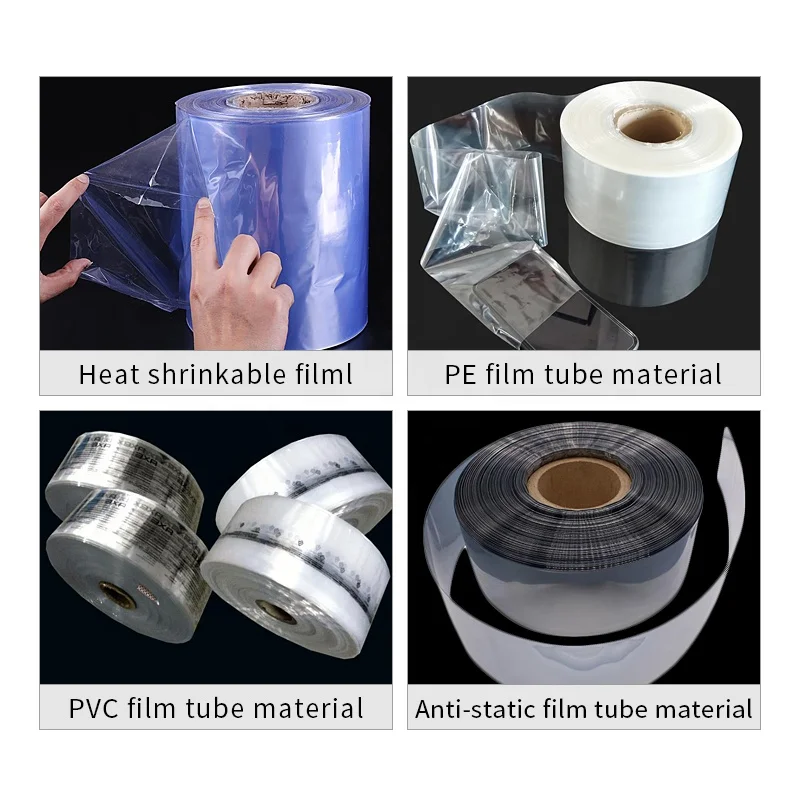

Material application
It is suitable for cutting various roll materials such as PE film, roll film, PVC film, PET film, OPP film, PP film, heat shrinkable film, anti-static film, printing and packaging film.

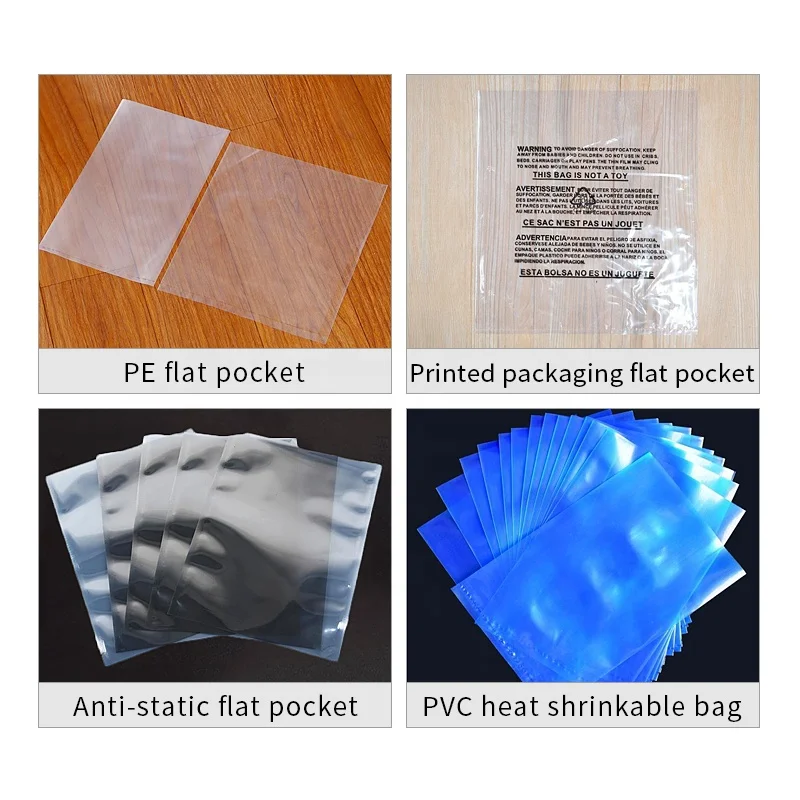

Cut samples
It is suitable for cutting all kinds of plastic bags such as PE flat bags, PVC heat shrinkable bags, PET bags, OPP bags, PP bags, anti-static bags, printed packaging bags, roll film packaging bags, etc.
Product principle:
1. Automatic group accumulation and total cumulative count 2. Batch pause and delay time can be set

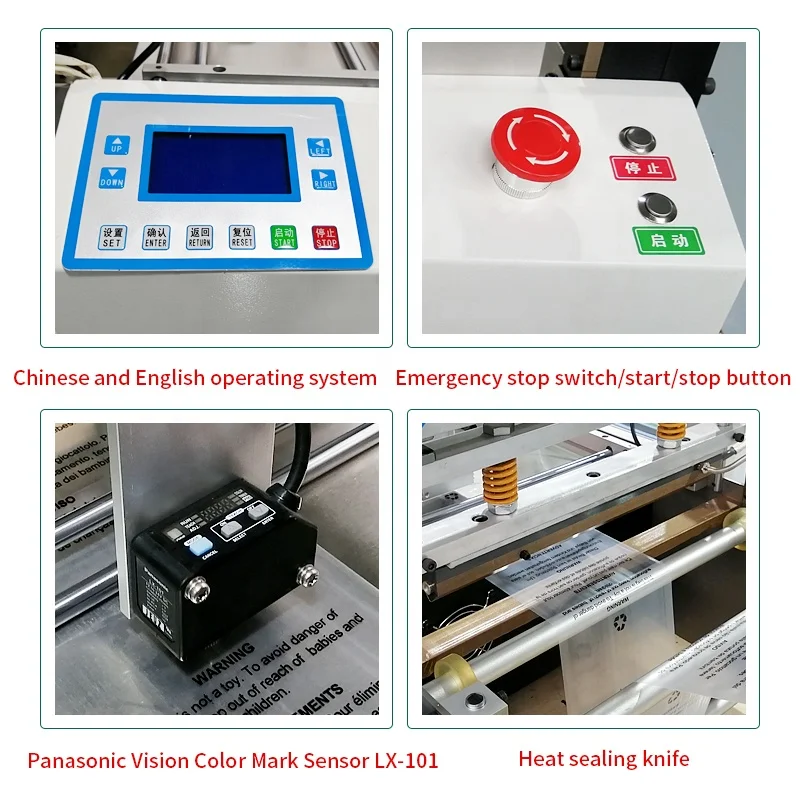

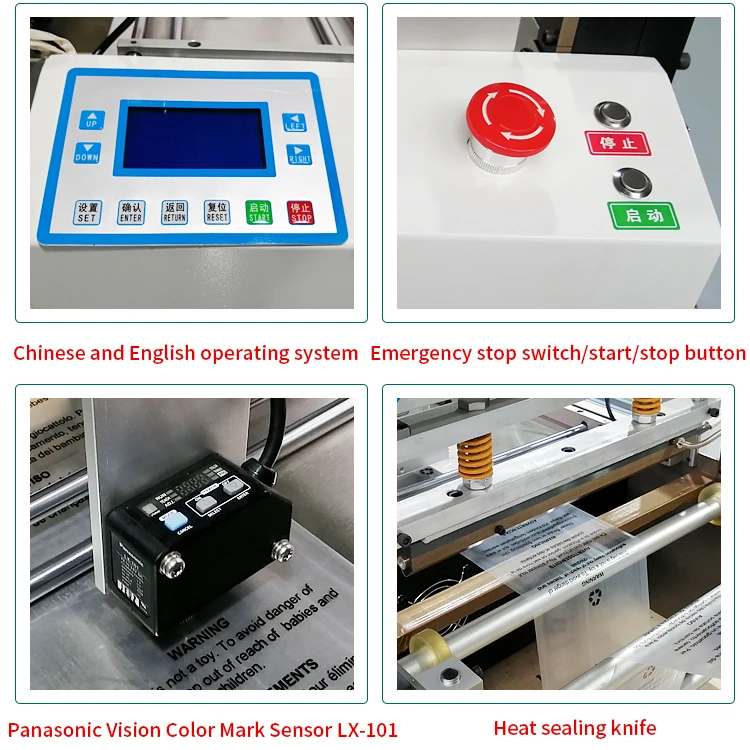

3. There are various manual operations for debugging 4.Fully automatic cutting of various plastic bags, flat bags, heat shrinkable films, electrostatic bags and other materials 5. High-speed feeding, controlled by microcomputer program with an accuracy of 0.1mm 6. High-speed stepping motor accurately controls cutting length and speed 7. Cutting time protection; total setting; sub-setting; adjustable timeout 8. The cutter speed is adjustable, all Chinese LCD display, export or foreign companies can be customized English version 9. The length and speed are arbitrarily adjustable, fully automatic cutting and automatic feeding, completely liberating labor 10.LCD large screen intuitive Chinese display, simple and convenient operation; using special mechanical structure and special tools,With special software control, it solves the problem of uneven cutting in other manufacturers, reaching the level of the slit and the length 11. Fast feeding speed, high cutting force, high cutting efficiency, stable performance, cutting all kinds of hard and thick materials, high cutting precision and straight cut 12. The heat sealing device can be disassembled and replaced, and the temperature is adjustable, which is suitable for sealing various materials and thickness materials.
Adjustable cutting length, speed, sealing position, sealing time, cooling time and sealing mould temperature
Company Information
Company Profile
Dongguan Haidike Automation Equipment Co., Ltd. is located in Dongguan, the world's factory. It is a high-tech enterprise specializing in the development and production of automation equipment, the design and development of non-standard automation, and the design and production of automation engineering.

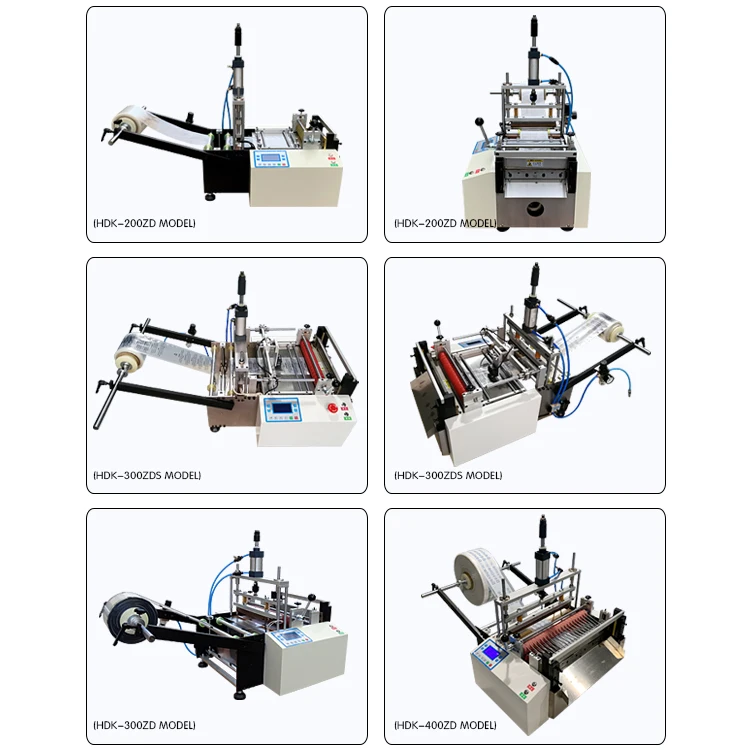

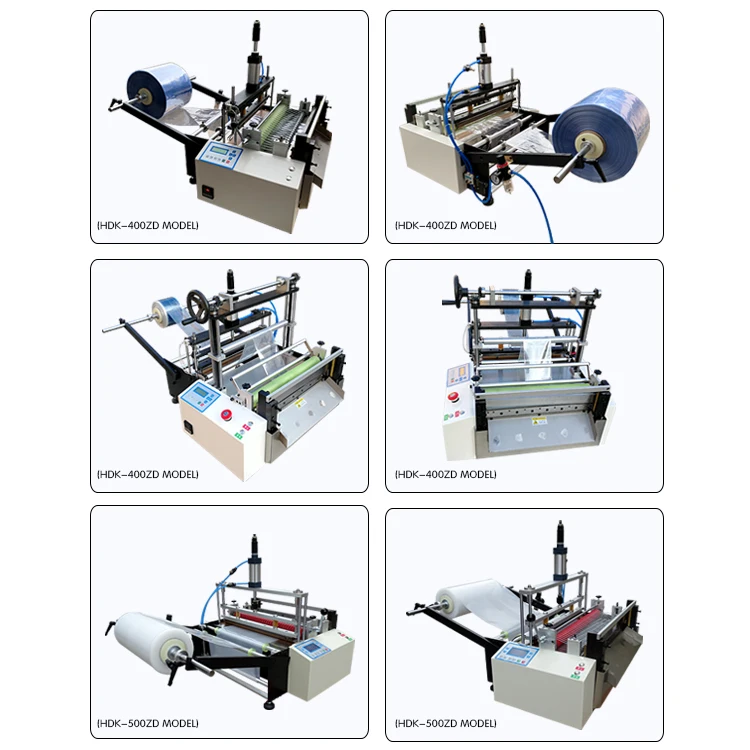

Since its establishment, the company has been adhering to the corporate philosophy of "creating value for customers" and is committed to providing customers with safe, stable and efficient automation equipment. At present, the company’s main products are microcomputer automatic cutting machines, slicers, tape cutting machines, Pipe cutting machine, label cutting machine, cutting machine, cutting machine, cross-cutting machine and other automation equipment, and undertake the design and production of non-standard automation equipment.
The company has a professional R&D, production, and sales team, and constantly absorbs domestic and foreign industry development experience to introduce new ones. At present, the products are exported to foreign countries and are well recognized by people from all walks of life. The cooperative industries include electronics, clothing, packaging, textiles, luggage, printing, printing, clothing, gifts, handbags, plastics and other industries. Friends from all walks of life are welcome to visit, guide and negotiate business, develop together, and share the fruits of technology!
Welcome to send the materials to try the machine for free, we will shoot the video for you to see the material after the test, please rest assured to buy. Address: 2nd Floor, Building B, Sinotech Science and Technology Park, No.118, Xiniubeitangdu Road, Dalang Town, Dongguan City, Guangdong Province ---Hidike Automation Equipment Co., Ltd.
