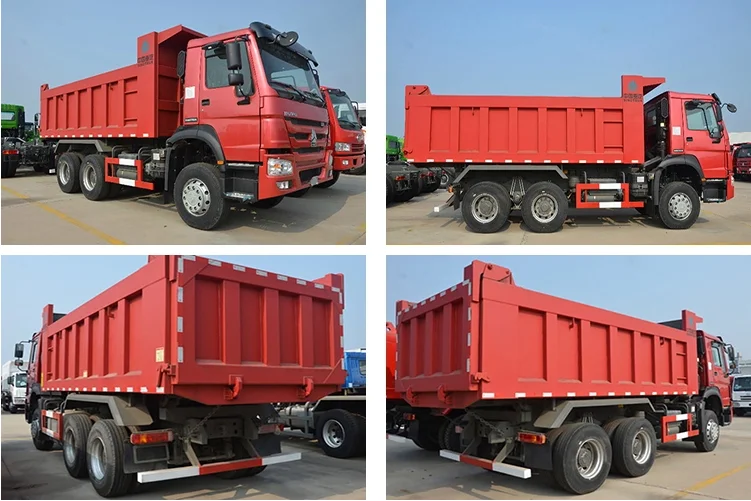

High Quality 30ton 50ton 70ton 6*4 Sinotruck Mining Dump Truck For Sale
- Category: Dump Trucks >>>
- Supplier: Shanghai Super-Above Industry Holdings Co. Ltd.
Share on (62380471326):
Product Overview
Description
Bulldozer
HOWO heavy truck application world heavy card key advanced technology,or the Chinese market and international market,
Independent research and development with international technical level,with independent brand and independent intellectual property rights,
the domestic most advanced, the most highend of a new generation of heavy duty truck.Adopts the advanced key assembly HOWO heavy card,
and the reasonable technology to connect. The whole car be arranged reasonable, each big assembly coordination, unity, and reliable,in the vehicle
power performance, economy, reliability, environmental friendliness, etc, have good performance.
Model | ZZ5707S3840AJ | |
Engine | Make: SINOTRUK Engine model: WD615.47, Euro II emission standard 4 stroke direct injection diesel engine 6 cylinder in-line with water cooling, turbo-charging & intercooling Maximum output: 371hp(273Kw)at 2200 rpm according to DIN Maximum torque: 1350Nm at 1100~1600 rpm Bore: 126mm; Stroke: 130mm; Displacement: 9.726L; Compression ratio:17:1 Specific fuel consumption: 195g/kWh; Engine oil filling quantity: 23L Cooling system filling quantity (long-term filling): 40L Thermostat opening temperature: 80oC Twin cylinder air compressor Rigid fan Option: Thermostat with 71oC opening begin Visco fan | |
Clutch | Single- plate dry coil-spring clutch, diameter 430mm, hydraulically operating with air assistance | |
Transmission | Transmission, model HW19710, synchromesh, 10 forward and 2 reverse Ratio: 14.28;10.62;7.87;5.88;4.38;3.27;2.43;1.8;1.34;1 | |
Propeller Shaft | Double universal joint propeller shaft with gear-shaped coupling flange | |
Front Axle | Steering with double T-cross section | |
Rear Axles | Casted axle housing, central single reduction with planetary wheel reduction (hub reduction), and differential locks between wheels and axles Ratio: 10.47 | |
Chassis | Frame: U-profile parallel ladder type with section of 300×80×8 mm, all cold riveted cross members and reinforced subframe Front suspension: 10 semi-elliptic leaf springs with hydraulic telescopic double-action shock absorbers and stabilizer Rear suspension: 12 semi-elliptic leaf springs with bogie spring and stabilizer With one spare wheel Fuel tank: with 500 L fuel tank with locking fuel cap | |
Steering | ZF8098 , hydraulic steering with power assistance Ratio: 22.2-26.2:1 | |
Brakes | Service brake: dual circuit compressed air brake Parking Brake(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust brake Option: ABS | |
Wheel & Types | Rims: 10.2-25 10 hole-steel Types 14.00-25 tube Option: 14.00R25 | |

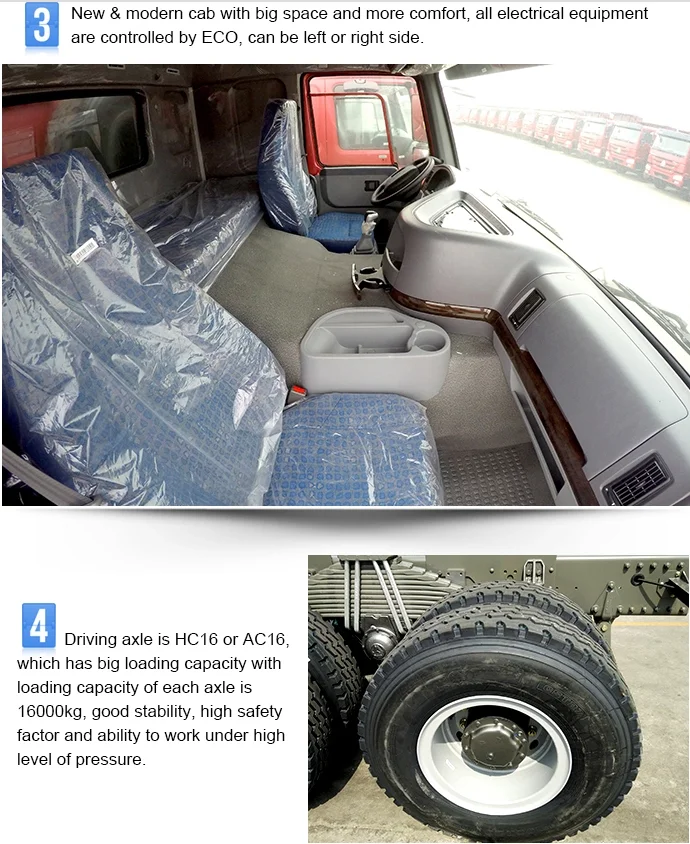

Driver’s cab | Standard cab, all steel forward control, 55o hydraulically tiltable to the front,2-arm windscreen wiper system with 3 speeds, laminate windscreen, with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, heating & ventilation system, with stereo radio/cassette recorder, sun visor, and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorber with transverse stabilizer, air conditioner, safety belt, adjustable roof flap. | |
Electrics | Operating voltage:24V, negative grounded; Starter: 24V, 5.4KW Alternator: 3-phrase, 28V, 1500W; Batteries: 2×12, 180Ah Cigar-lighter, horn, headlamp, fog light, brake lights, indicators and reverse lamp | |
Dimensions in mm | Wheel base Front wheel track Rear wheel track Front overhang Rear overhang Approach angle(o) Departure angle(o) Overall Dimension Cargo body size | 3800+1500 2741 2520 1500 1000 32 40 8900×3300×4340(mm) 6100×3100×1800 (mm) |
Weight in kg | Permissible loading capacity on chassis Dead weight Gross vehicle weight Front axle loading capacity Rear axle loading capacity | 70000 29000 70000 12000 29000×2 |
Performance | Maximum driving speed(km/h) Maximum grade ability (%) Minimum ground clearance(mm) Minimum turning circle(m) Fuel consumption(L/100km) | 50 42 345 22 31 |
• Brand accessories, quality assurance
Super-above provides you with the original brand engine,alternator and other spare parts, the quality is more reliable.
• Best solutions
Super-above will provide you best solutions for spare parts,because we have most experienced technical team and after-sale service team.
Quickly intuitive query by 2D/3D makes sure requested spare parts more accurate.
• 24-hour Service
We understand your needs and difficulties. Hence Super-above after-sales team opened 24-hour service hotline to help you solve any problems.
• The most efficient transport
Super-above maintains good cooperation with DHL, TNT etc.international express company. In case of urgent express, promises sending out within 48 hours, in the shortest time to reach your side.No matter when and where, no matter what you need,
Q:What kind of company you are ?
A:We will be your best expert in construction site if you try
Q:When is the delivery time ?
A:We will send the products in 7 working days
Q:Hong long is the warranty time ?
A:1 year
Q:What is the MOQ ?
A:We can accpet small quantity to support
Q:How to support a company as our distributor
A:We will send engineer to teach the local sales person and do bid advertisement for our distributor
