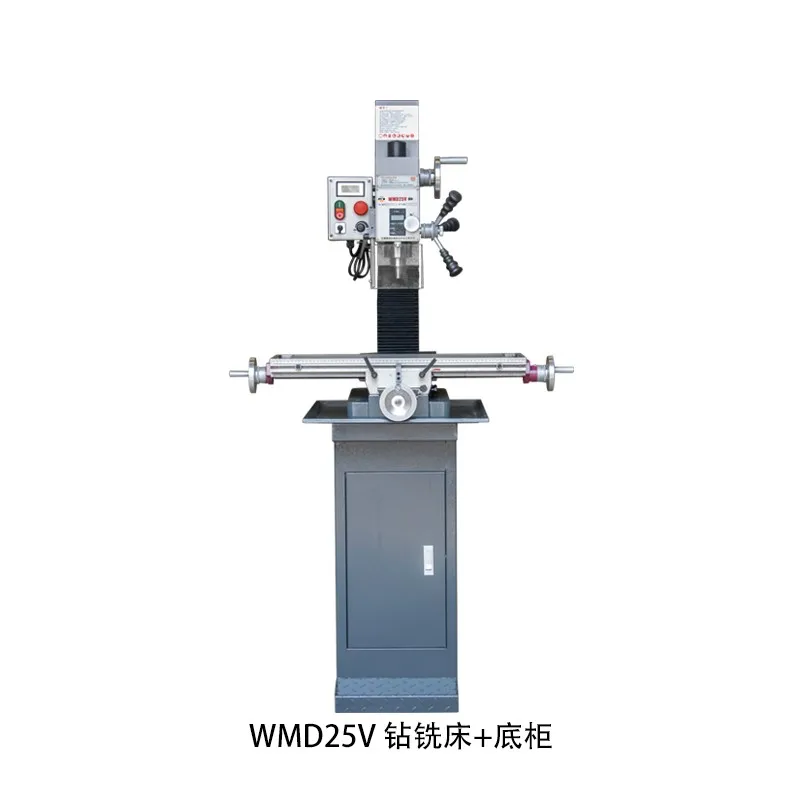

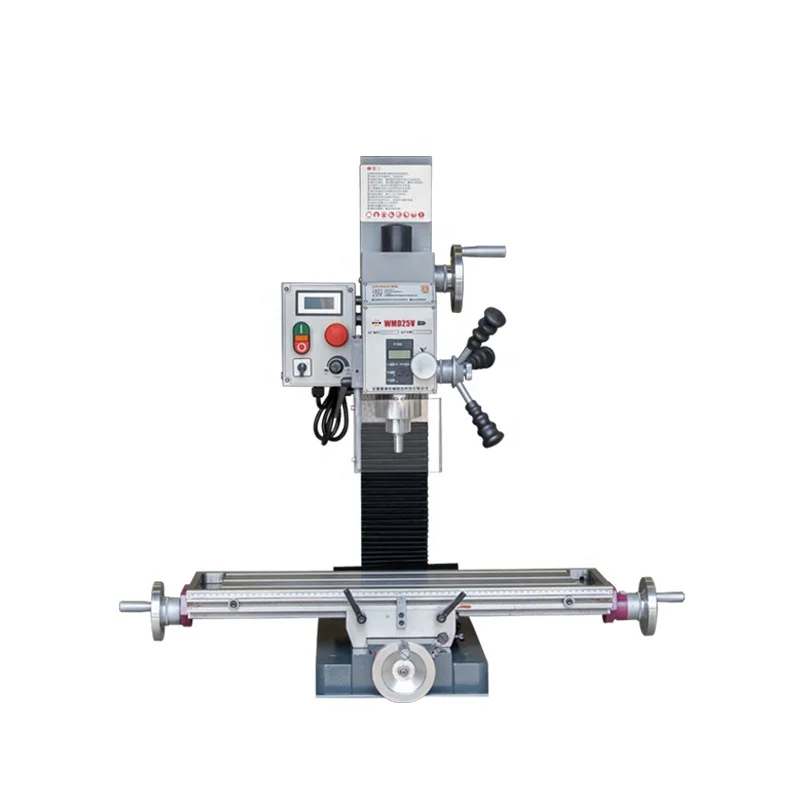

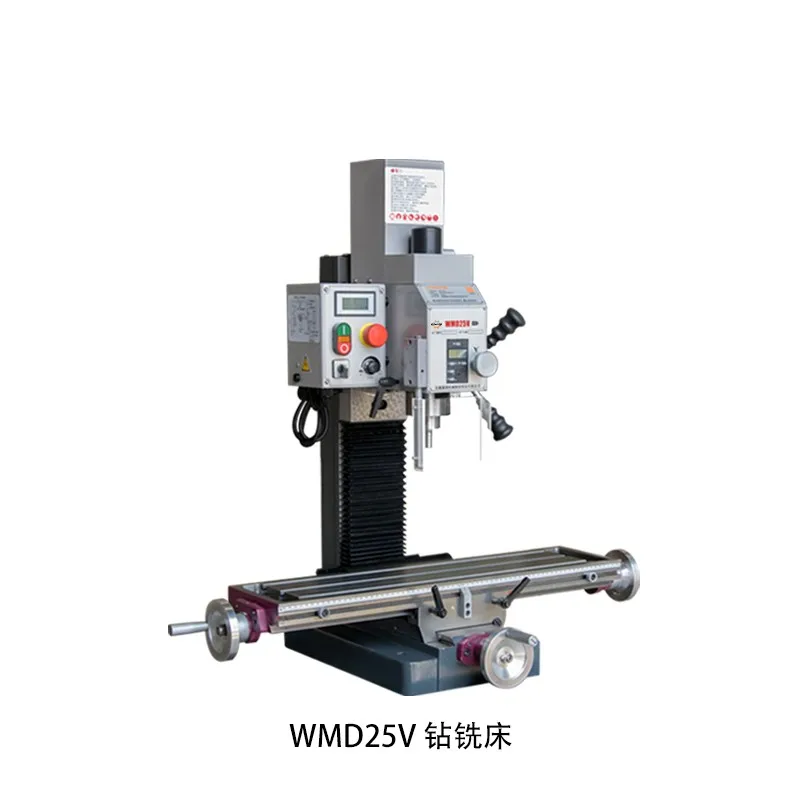

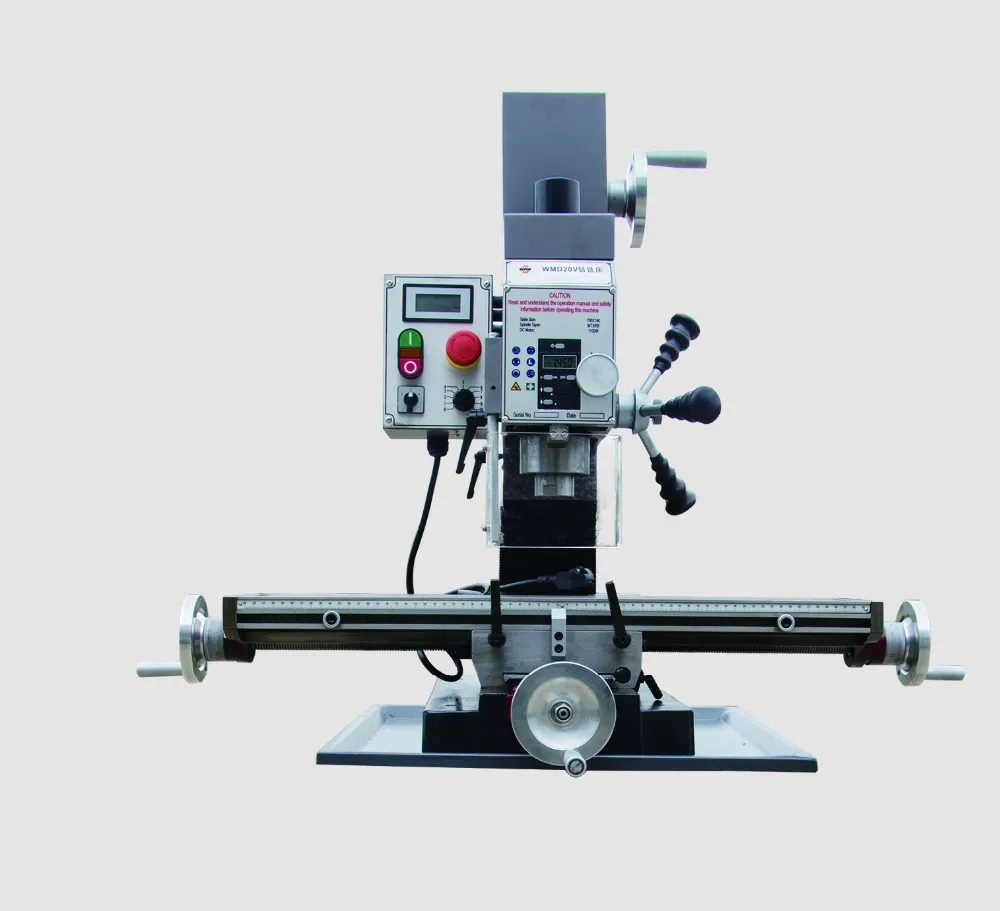

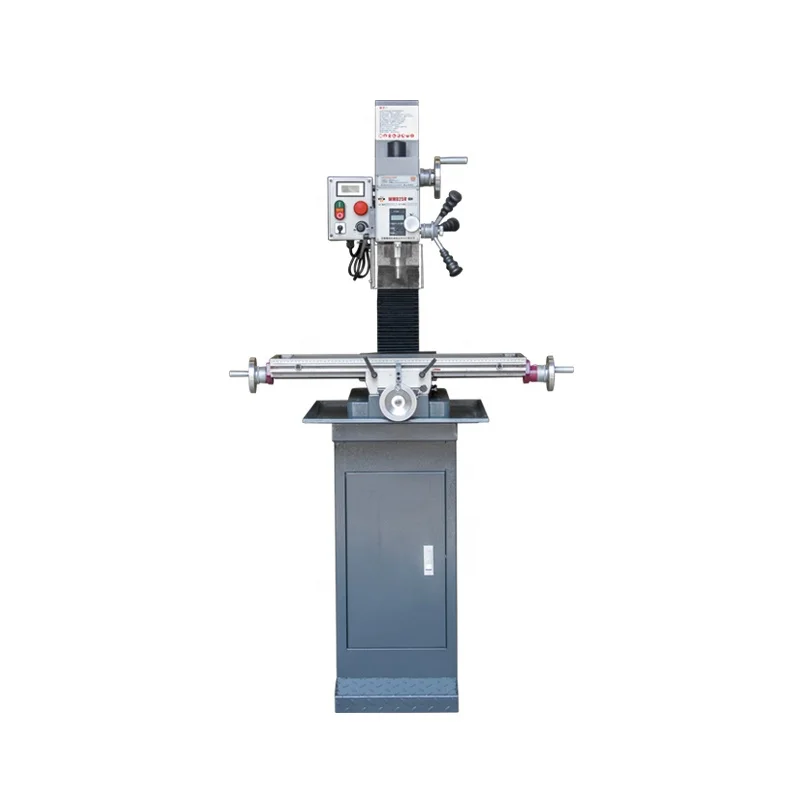

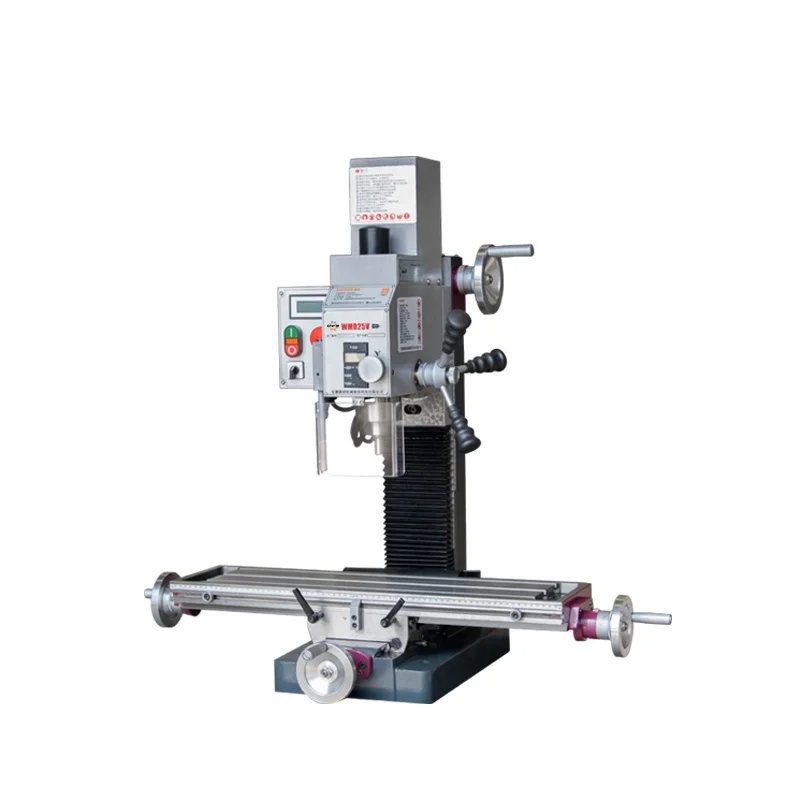

Миниатюрный фрезерный сверлильный станок с бесщеточным Мотором WMD25VB

Миниатюрный фрезерный сверлильный станок с бесщеточным Мотором WMD25VB

Category: Drilling Machines >>>
Supplier: Chizhou Syntop CNC Industrial Co. Ltd.

Price:905,00 $ - 1 005,00 $

Quantity:

Product Overview

Description

Product Description

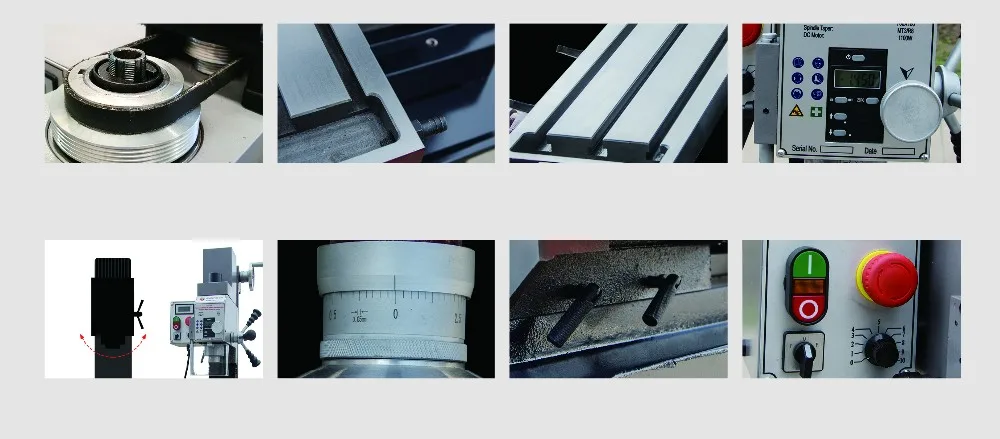

Features

Milling, drilling, tapping, boring and reaming.

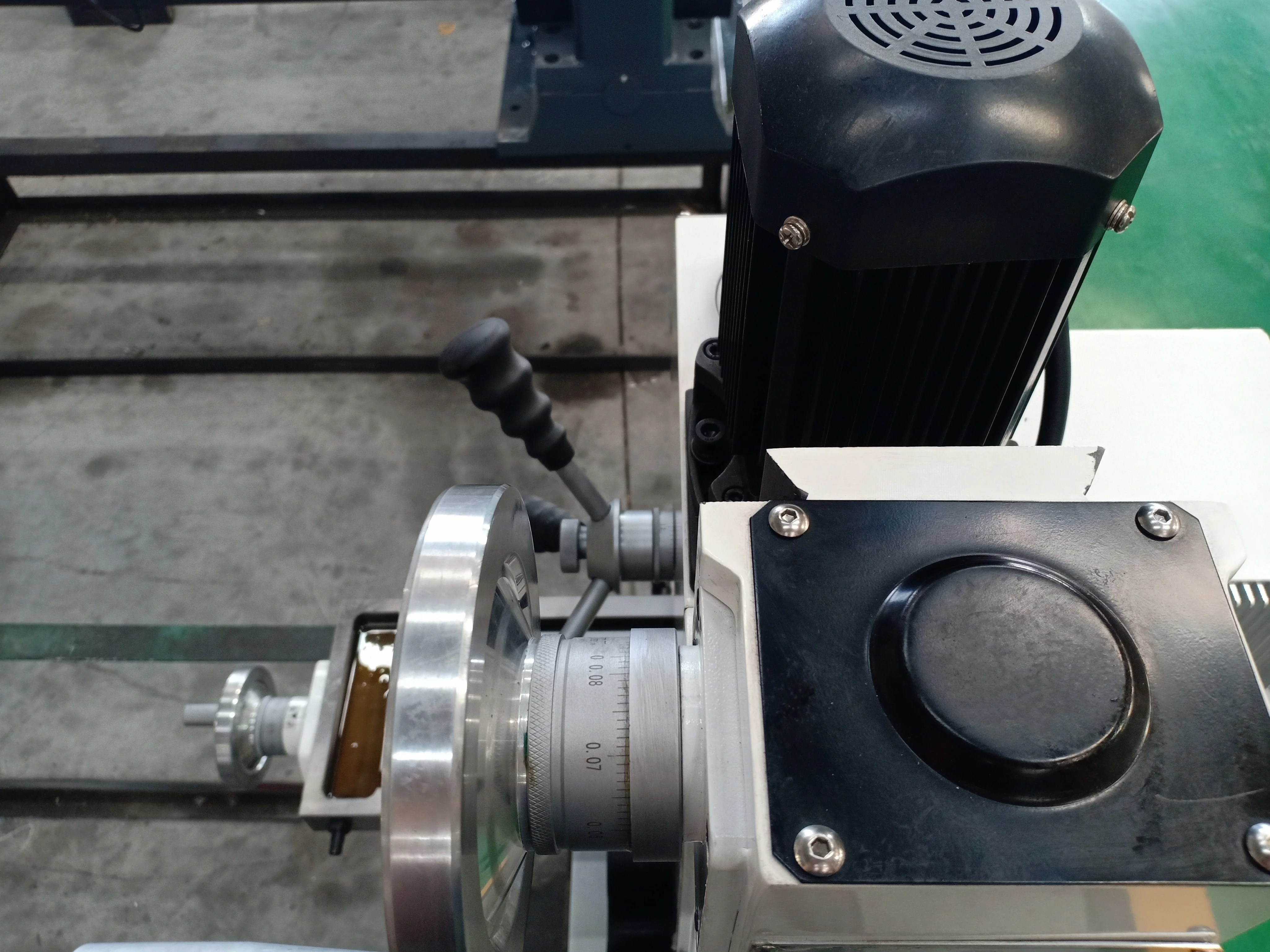

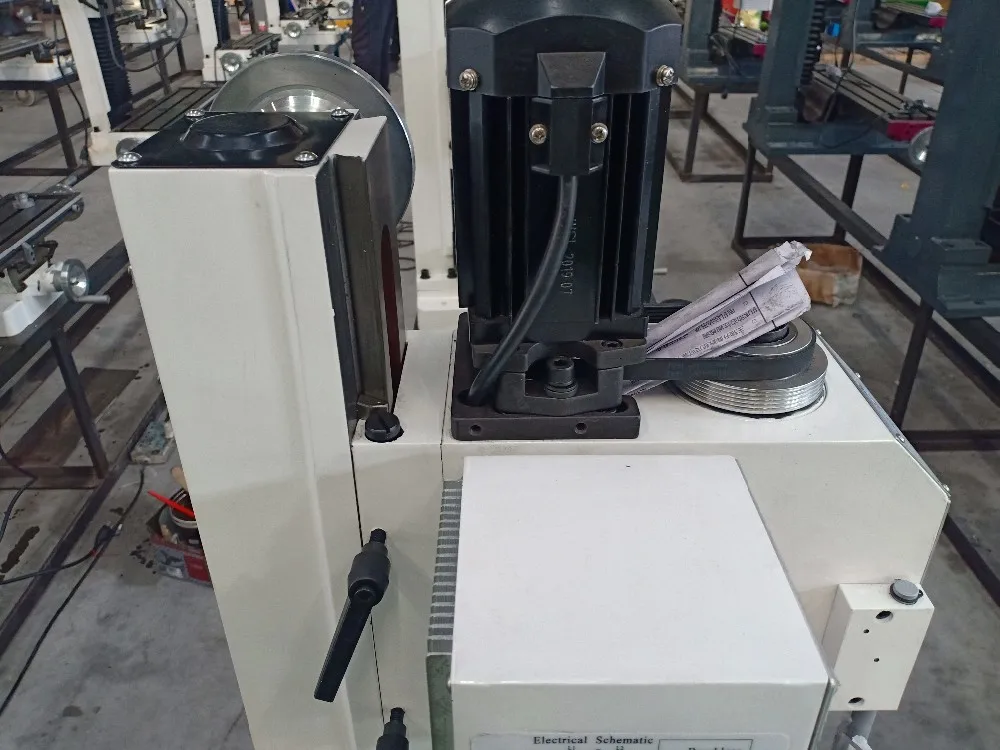

DC blrushless motor, low noise
Variable speed.
Head swivefs ±90º.

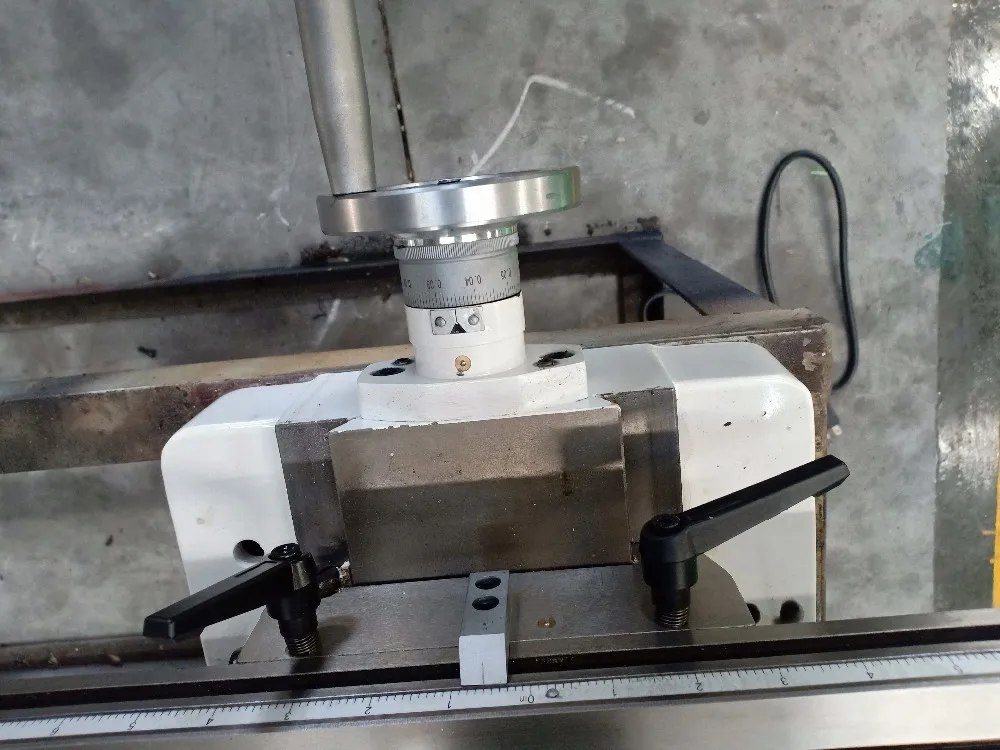

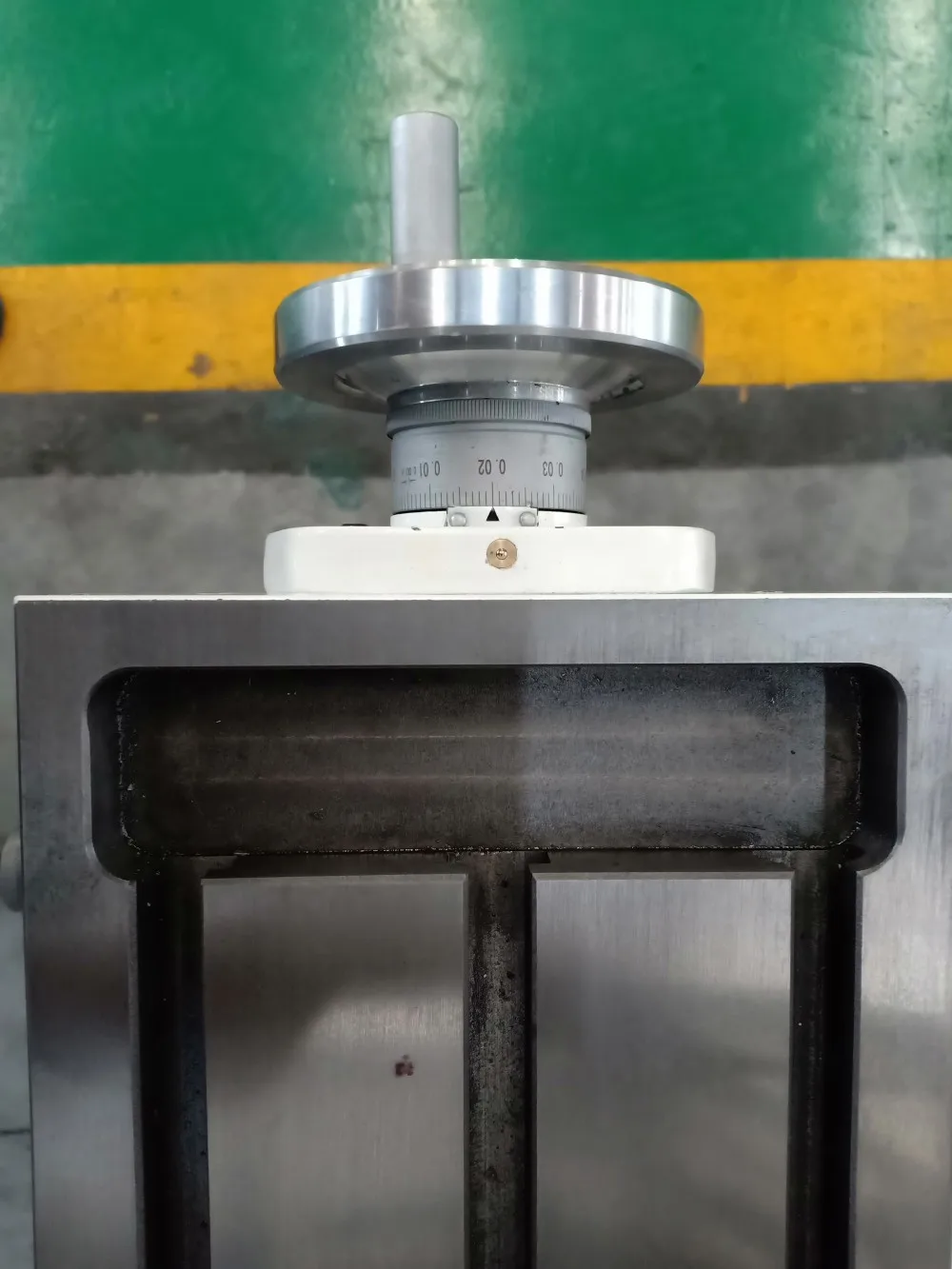

Micro feed precision.
Easily opeating.

Manual tapping.

Posive spindle lock.

Strong rigidity, powerful cutting and precisely positioning.

Specifications for WMD25VB
Maximum Drilling Capacity	25mm
Maximum Tapping Capacity	M16
Maximum Face Milling Capacity	63mm

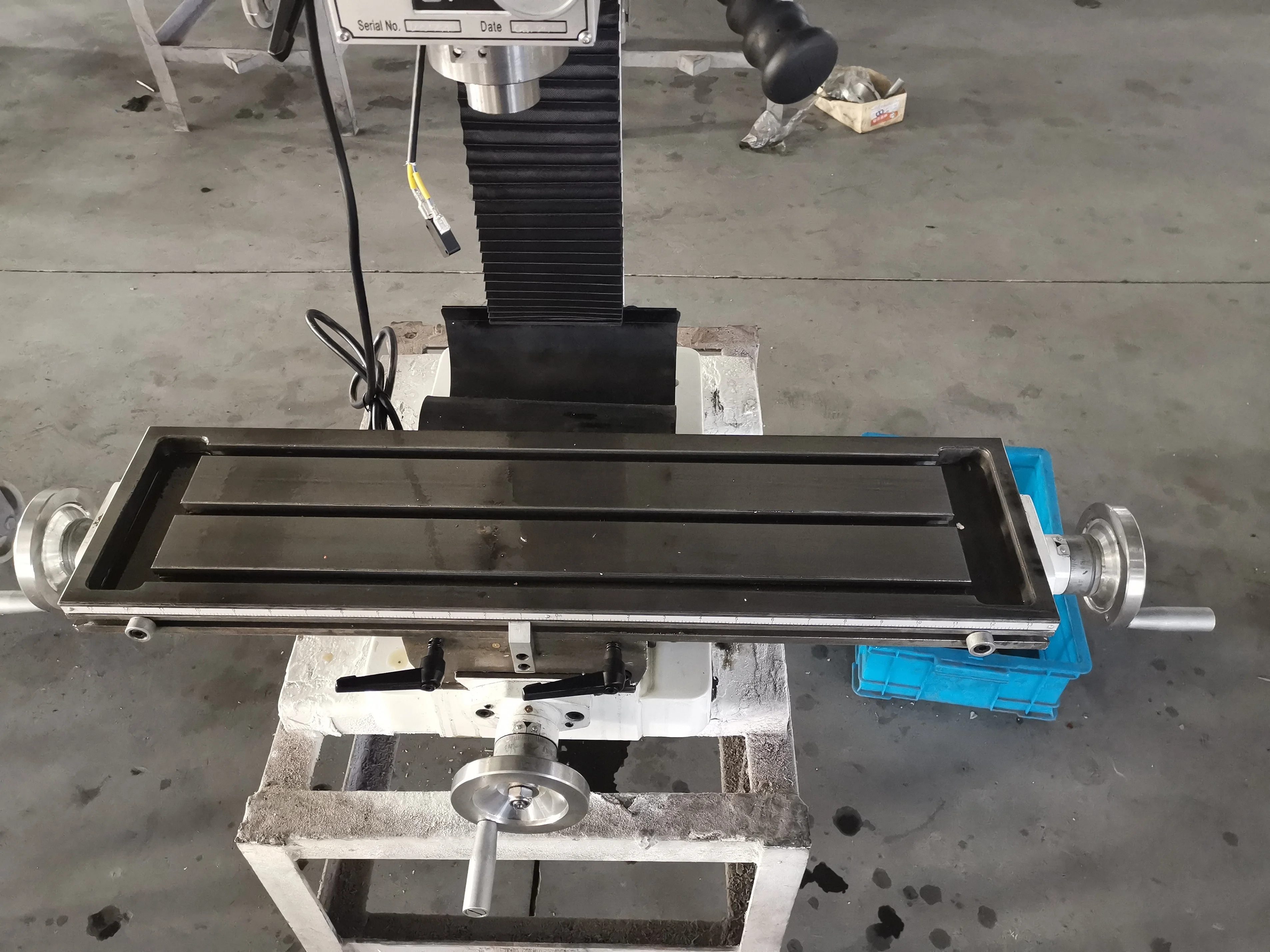

Table size	700×180mm
X-axis Travel	520mm
Y-axis Travel	190mm
Z-axis Travel	380mm
Spindle Speed	20-2250 r.p.m
T-slot Size	12mm
Spindle Taper	MT3/R8
Spindle Stroke	50mm
Swivel angle of headstock	±90º
Distance From Spindle To Table	50-300mm
Distance From Spindle To Column	201mm

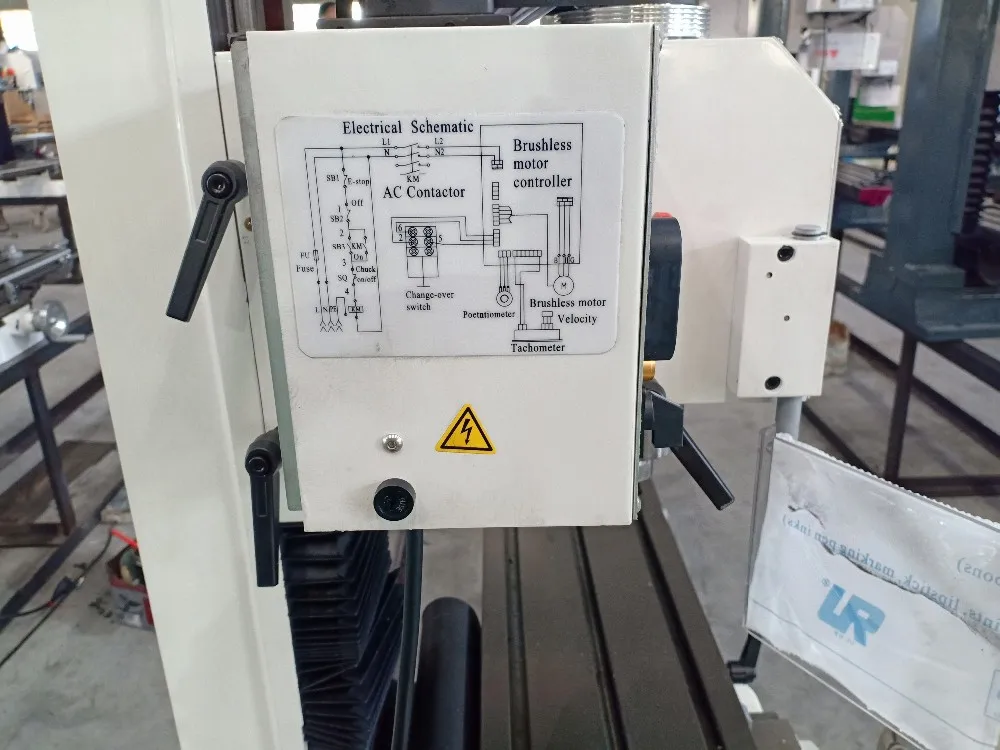

Motor Power	750W, DC Brushless

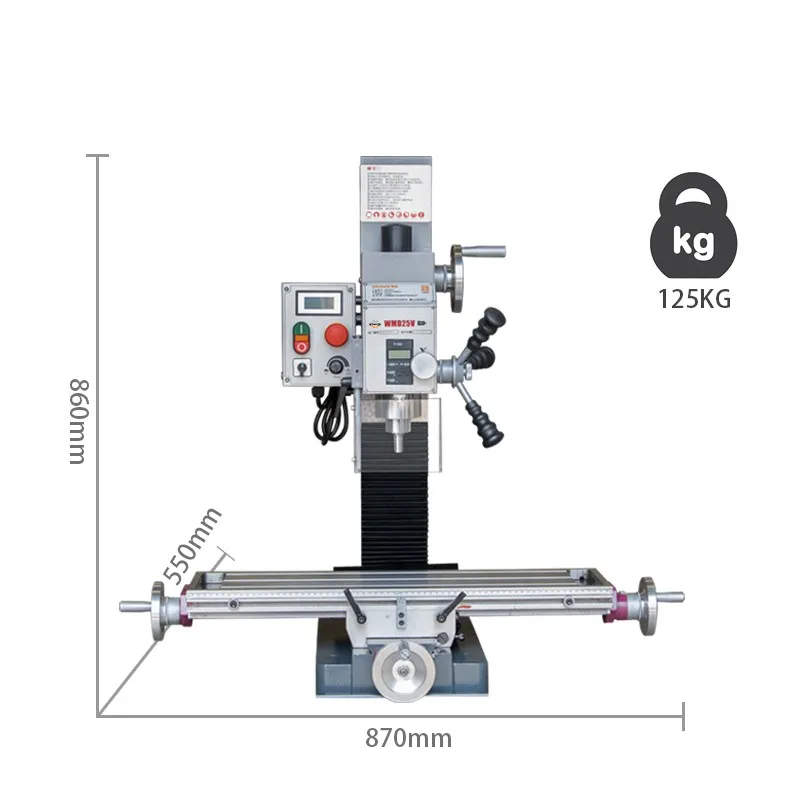

Packing Size	710710890mm
N.W./ G.W.	125/145kgs
