Introduction
The equipment for purification distillation test rotates and shapes a thin film in negative pressure condition by heating, evaporates efficiently, and then condenses and recollects solvent to purify and separate.
Feature
Specification
Model | H-05 |
Condenser | Vertical Condenser |
Collect Flask | 2L |
Rotary Flask | 5L |
Motor Power | 40W |
Power Voltage | 220/110V for Optional |
Bath Power | 1500 W |
Bath Volume | 5L |
Bath Material | SS304 Combined Bath Material Completely Closed Heated |
Evaporation Rate(Water) | 1.5L/ H |
Speed Range | 0 - 120 RPM |
Lift and Stroke | Water Bath Lifting with Manual Control, 120 mm |
Glass Material | GG-17 Glass |
Heating Temperature Range | Rm-99 Degree |

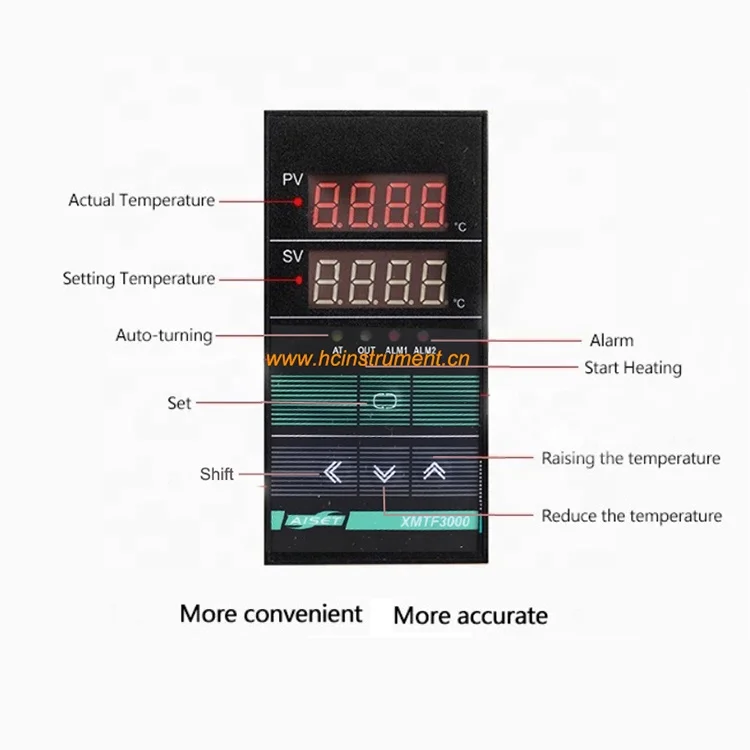

Heat Control | PID |
Heat control accuracy | ±1 Degree |
Ultimate Vacuum | 0.098 Mpa |
Dimensions (W x H x D) | 950×520×550 mm |
Weight | 48 kg |
Remark: Heating Temperature Range can be extend to 199 Degree.
Product details&Matching machine






Q1: Are you trading company or manufacture?
A:We are professional manufacturer of lab equipment and we have our own factory.
Q2 .Where is your company location ? How can I visit there ?
A :Our factory is in Shenzhen city ,Guangzhou province , China , near Shenzhen International Airport , you can fly to Shenzhen International Airport to visit our factory !
Q3:Could you do design for us?
A:Yes. If you provide us the content and tell us where to put, just tell us how to do in detail.
Q4:Will you provide service beyond the warranty?
A:Yes. Our warranty is two year from the delivery date.
5. What is MOQ ?
A: 1 Set.
