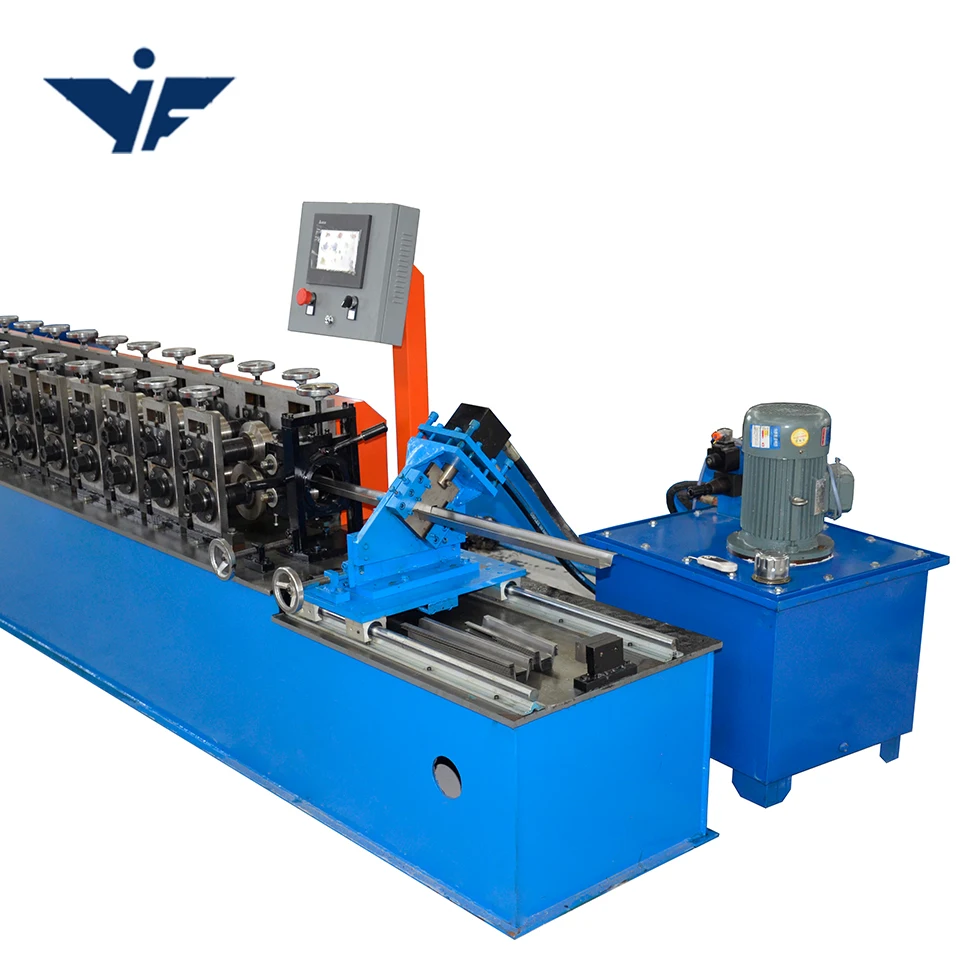

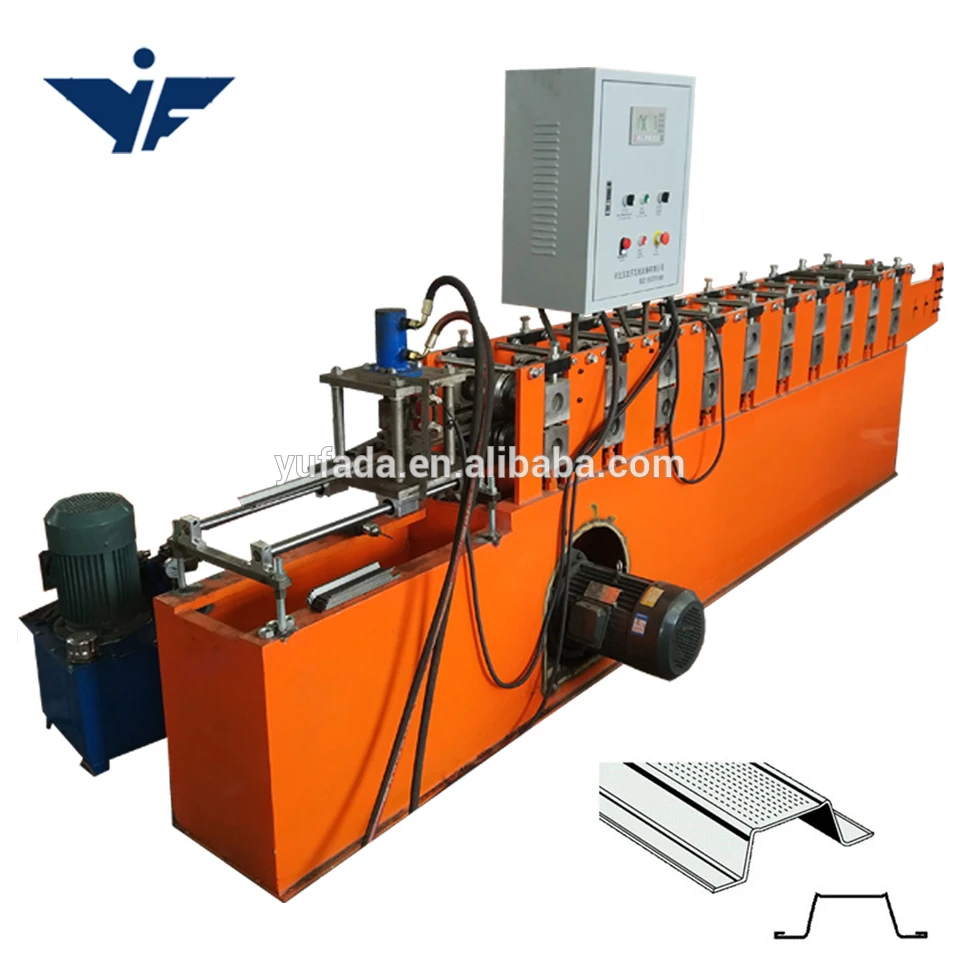

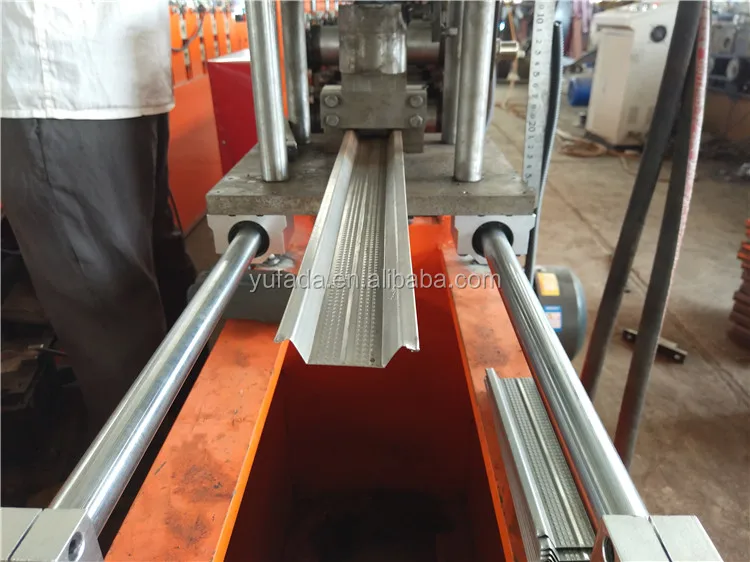

Now we factory have alreay Omega Light Steel Keel hat shape channel roll forming machine, welcome to visit and test. This machine have been exported to many countries, the most important is that all you need can be customized.

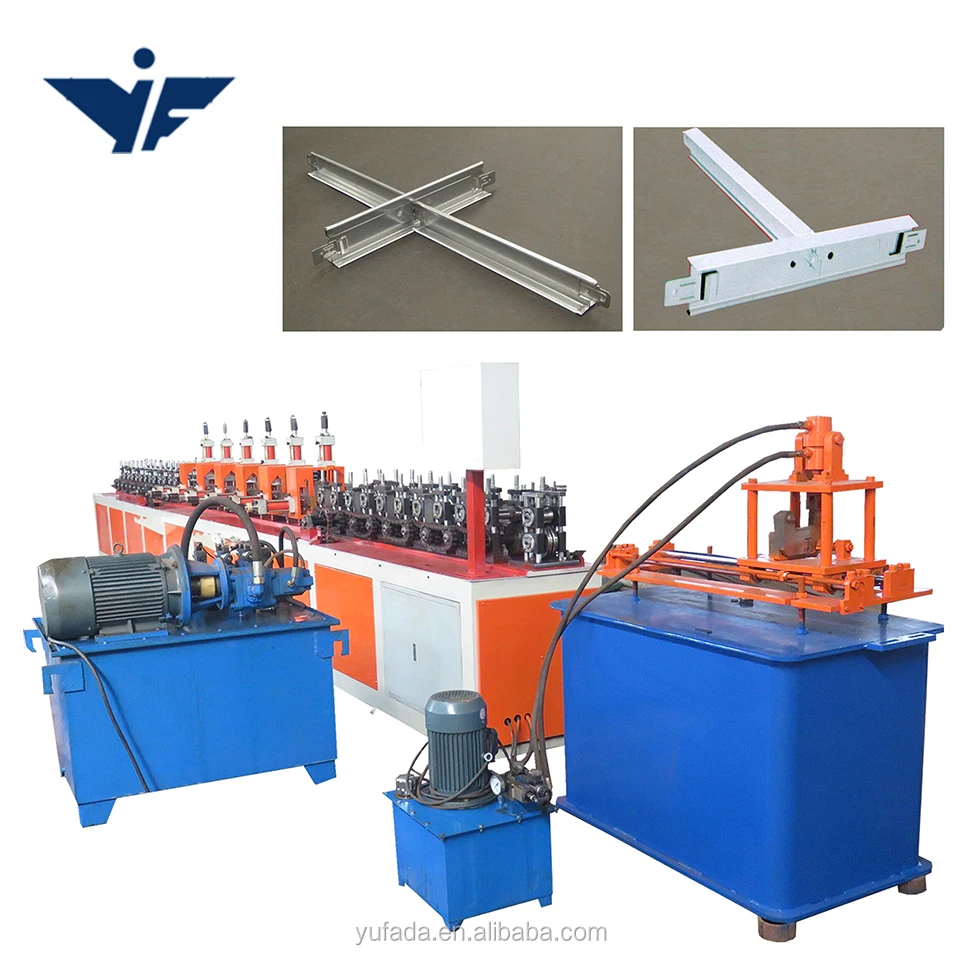

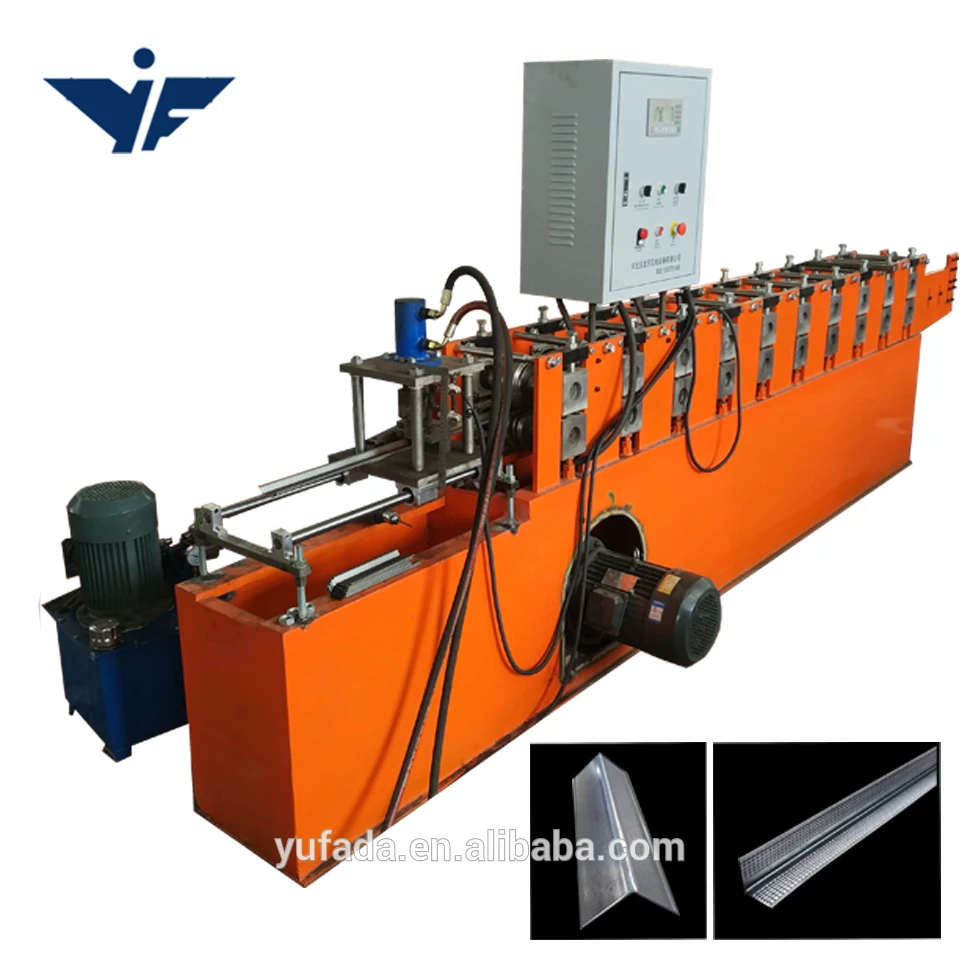

YOU MAY LIKE ATHER STYLES
Work flow

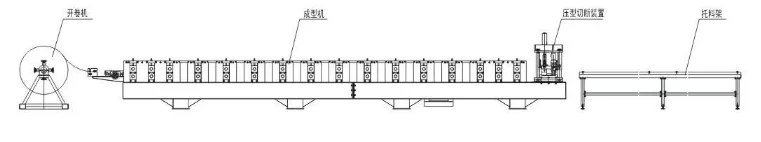

Manual uncoiler-- roll forming machine-- PLC control box-- hydraulic cutter- output table
Working video
If u want to see the machine working video, please contact with miao miao with any way below.
Article No.
Item Name
Specification
1
Effective width
27 mm
2
Thickness of feeding material
0.3-0.8 mm coil sheet
3
Roller station
10-25 stations
4
Shaft Diameter
45-75mm
5
Productivity
8-15m/min
6
Rollers' material
45# steel forge
7
Shaft material
45# steel
8
Weight
2.5-8 ton
9
length
5.5 m-11m
10
Voltage
380V 50Hz 3phases
11
Control
PLC
12
Decoiler
8 Tons
13
Motor
3kw-15kw
14
Driving way
Chain transmission
15
Chain size
0.6 inch-2 inch
16
Cutting system

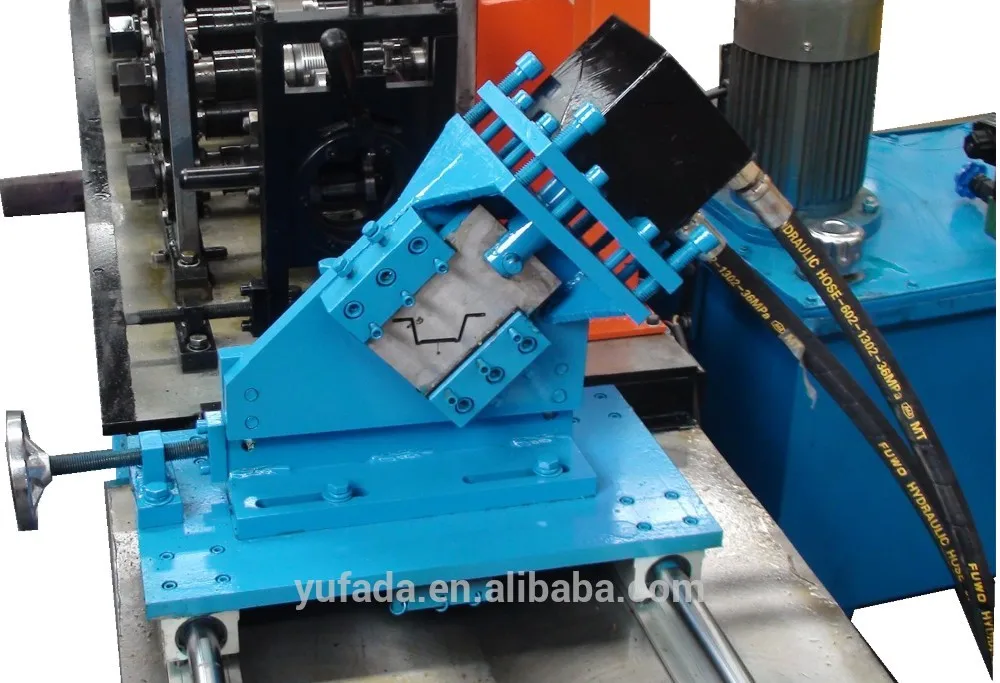

Hydraulic cutter
Company information
YuFaDa industrial CO.,Ltd is a professional manufacturer designing and producing roll forming machines established in June 1996. We have four factories working in Beijing, Tianjin and Hebei province. More than 400 workers provide service for u.
Products mainly include trapezoidal steel roof/wall panel machine, C&Z shape purline machine,high-way guardrail machine, sandwich panel production line, deck forming machine, C U L light keel machine, shutter slat door forming machine, cutting machine, downpipe machine, gutter machine, etc.
Our customer
Shippement
Our service
1.Free technical support and free accessories supply.
2.Engineer available to service machinery overseas.
3.One year warranty is provided.
4.Long life technical guidance for free.
5 We always offer technical support, quick response, all your inquire will be replied in 24 hour
FAQ
1.Q: How to visit our company:
A: Fly to Beijing Airport: By fast train From Beijing South station to Cangzhou west station
(1hour),then we can pick up you to factory(40min).
Fly to Shanghai Airport: By fast train From Shanghai Hongqiao station to Cangzhou west
station(4.5 hours),then we can pick up you to factory(40min).
2.Q: What should I provide if I want to customized machine?
A: U need provide profile drawing, material, thickness, voltage and your special requirements.
3.Q: What is the Warranty?
A: Within 12 mounts,all technicals are ready to serve you at any time.
4.Q: What can you do if the machine broken?
A: Our machine's warranty period is 12 months,if the broken parts can't repair, we will send
new parts replace the broken parts free,but you need pay the express cost if after warranty period. we can negotiate to solve the problem,and we supply the technical support for whole life of equipment.
5.Q: If need technician to workshop to debug and teach, how to do?
A: We sent technician to your country to fix the machine. Buyer should bear cost including:visa, round trip ticket and suitable accommodation, also buyer should pay the salary 100USD/day.
