Бетономешалка 4x2 YUEJIN 3,5 кубических 4 кубических метра, продажа на Филиппинах

Share on (62386011006):


Price:16 600,00 $ - 17 000,00 $

Quantity:


Product Overview

Description


4x2 YUEJIN 3.5 cubic 4 cubic meters concrete mixer trucks for sale in philippines



Product Description

3.5 cubic meters concrete mixer trucks4 cubic meters concrete mixer trucks

Our mixer truck is mainly used in cement mixing station, construction field and other place.The capacity ranges from 3 to 20m3, meeting customers' various needs.
It is can loading and unloading by itself. After discharging the concrete, the mixer drum will be cleaning automatically by its water suppling system.
Our concrete truck mixer consists of seven main parts. Theyare hydraulic pump, reducer, rotating drum mixer, operation system, drum cleaning system,concrete feed hopper,concrete outlet hopper.

Basic parameters

Vehicle name:

4-square concrete mixer truck

Product trademark:

Yuejin

engine:

Yuchai 130 horsepower

Cab:

Yuejin X300 single row cab

Gearbox:

5 speed with auxiliary shift

Rear axle:

7.5 ton reinforced rear axle

Dimensions:

5995×2200×3200 (mm)

Actual volume:

4 party

Total quality:

9990kg

Curb quality:

4900kg

Top speed:

80km/h

Displacement:

3922ml

Wheelbase:

3400 (mm)

Tire specifications:

8.25-20 nylon tire

Drive mode:

4×2

Braking method:

Steam brake

Fuel type:

Diesel

Emission Standards:

Country 5 (the country does not go to the household)

Top loading parameters

Head:

6mm thick high strength manganese steel (Q345) material is more wear resistant

Tank body:

5mm thick 16 high alloy steel

blade:

4mm thick (520JJ) alloy steel material (adding wear-resistant strips to increase service life)

Reducer:

Shijiazhuang wing (optional German ZF reducer)

Hydraulic system:

Long source oil pump, strong motor (optional US Sally, Interpp pump motor)

cooling system:

Xinxiang Zhenhua (optional Changzhou Kaipeng, Xugong radiator)

water supply system:

300L water tank pressure water supply

Operation method:

Left and right sides and cab three-way operation

Feeding speed:

3m3/min

Discharge speed:

2m3/min

Discharge residual rate:

Discharge residual rate ≤0.5

Discharge range:

180 ° height adjustment

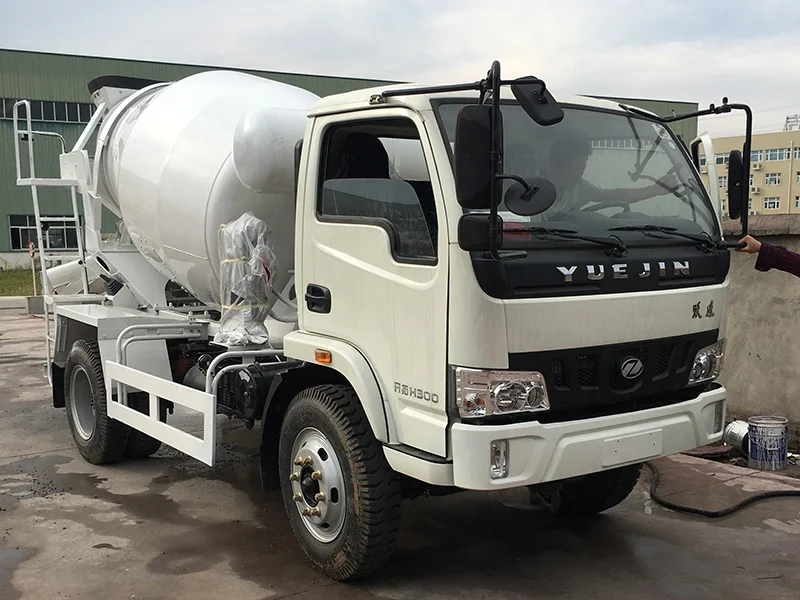

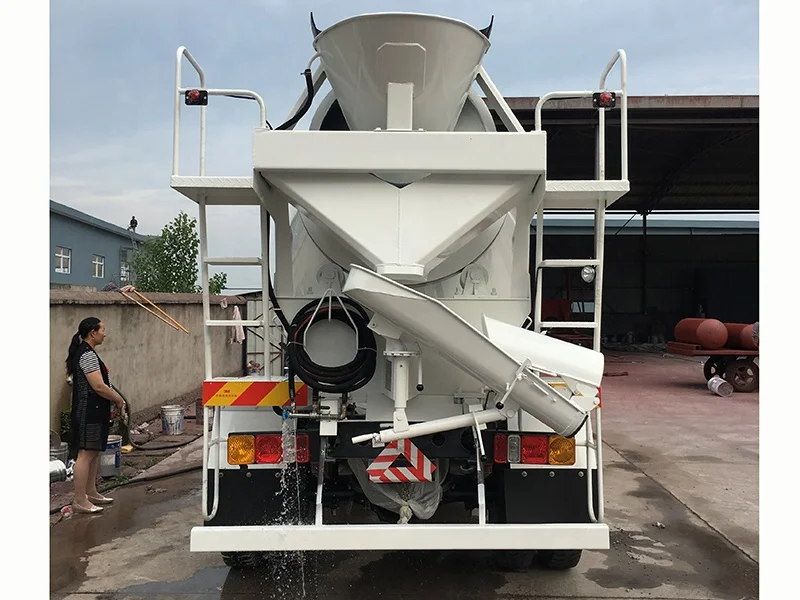

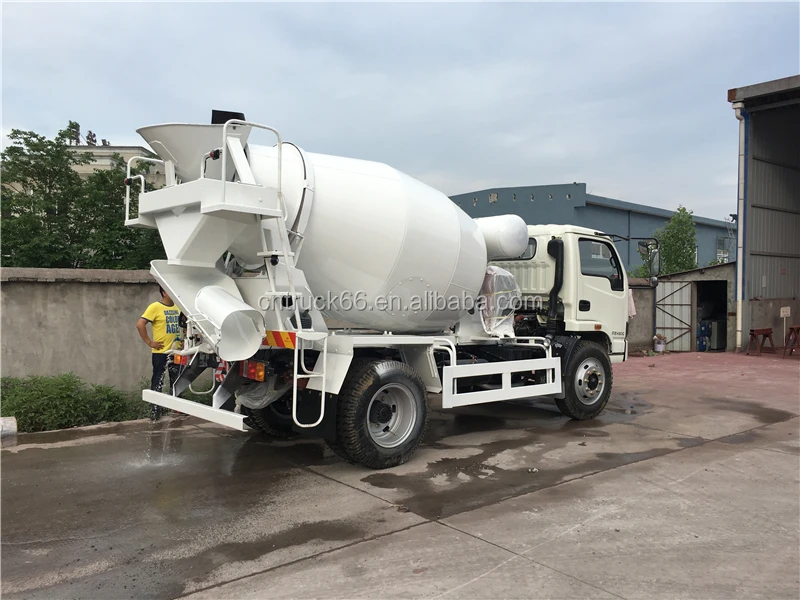

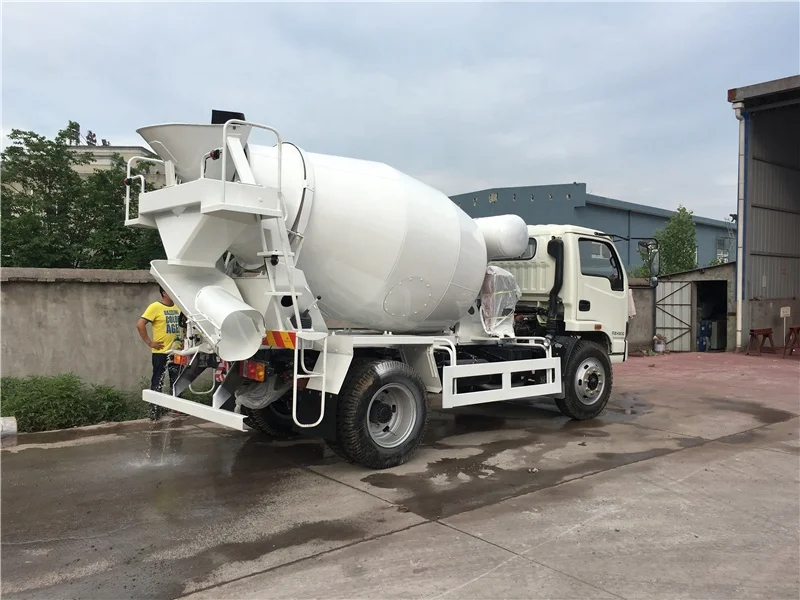

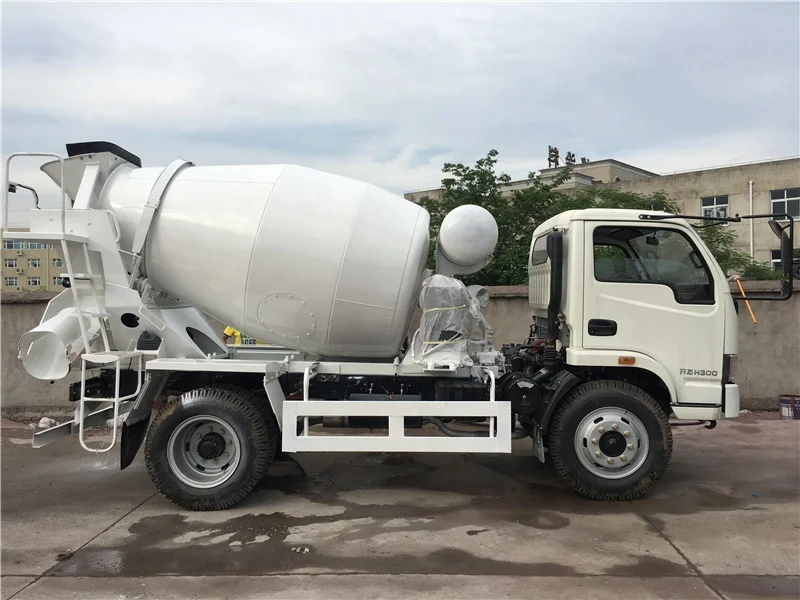

Detailed Images

 concrete batcher truckConcrete Mixer Truck.jpgmixer truck .jpgconcrete batcher truck


Our Services



1, 12 months whole vehicle warranty
We could support you original spare parts. Besides, we can give assistance in the following days by email or telephone. If necessary, our outwork engineer could go for technical assistance.

2,We will provide customers with the mos economical design according to the loading equipment and the payload.ODM & OEM customize, professional and technical team provide you the best design , free logo print.Trailer assembled under strict quality control, any process is inspected .

3,With years of export experience along with excellent quality, advanced services and competitive prices, Chengli truck has won numerous customers' trust and support.

4,Packaging Details : nude , covered with wax, small type can be put into 20'GP OR 40'GP container , over sized can be carried by bulk carriers or ro-ro ship , or according to your requirements.

5. Model: we have sewage suction truck and sewage suction cleaning truck;

6. Drive model: 4*2, 4*4, 6*2, 6*4, 6*6,8*4;

7.Chassis brand: Dongfeng FOTON JAC FAW I-SUZU IVECO Sinotruk HOWO Shacman JMC.etc;

9. Crane tonnage: 3cubic 4cubic 5cubic 6cubic 8cubic 9cubic 10cubic 12cuibc 14cubic 15cubic 16cubic 18cubic 20cubic 25cubic meters;

10. Right/Left hand drive, with A/C, single row or one and a half rows with sleeper.

Company Information

ChengLi



Packaging & Shipping

 1.By cargo bulk shipment or ro-ro shipment .
2.By Flat Rack Container
