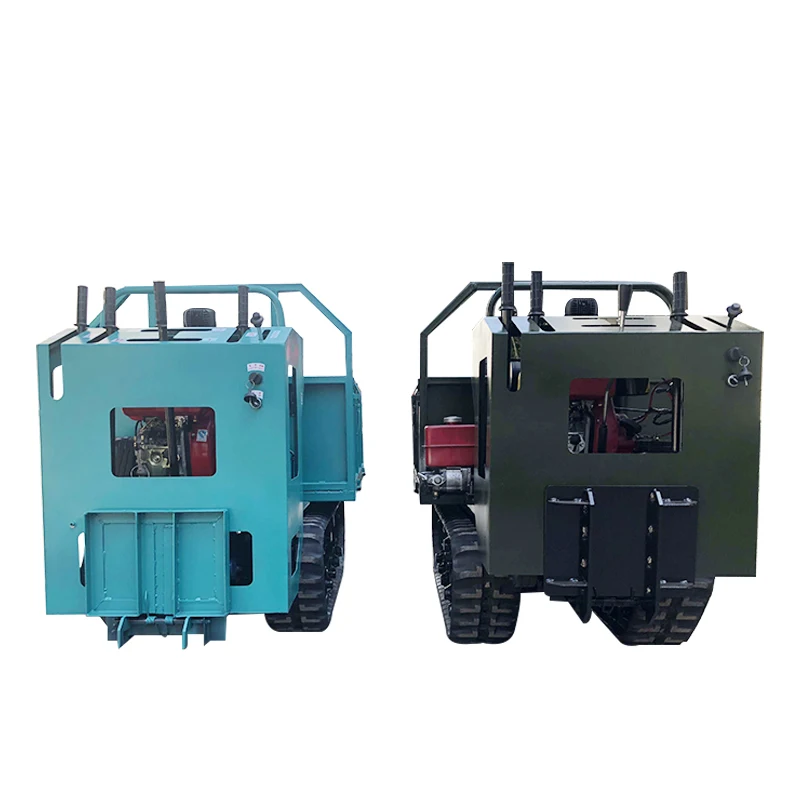

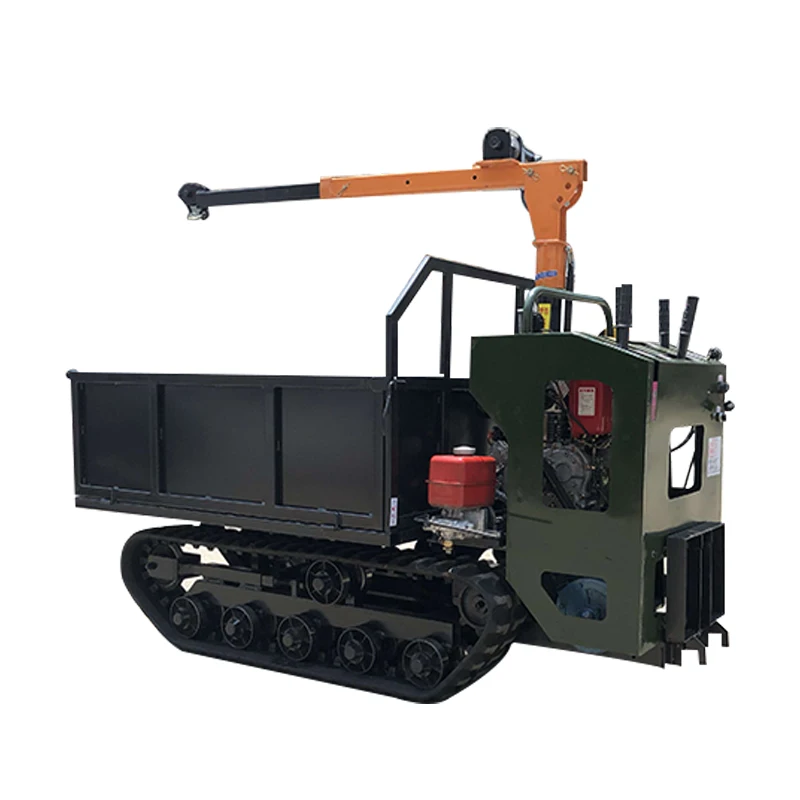

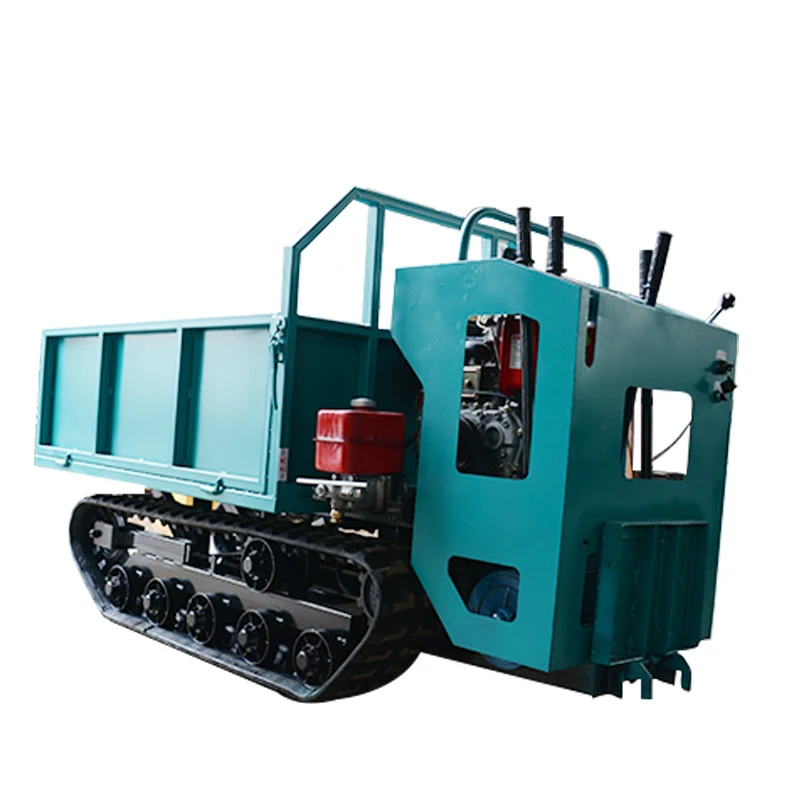

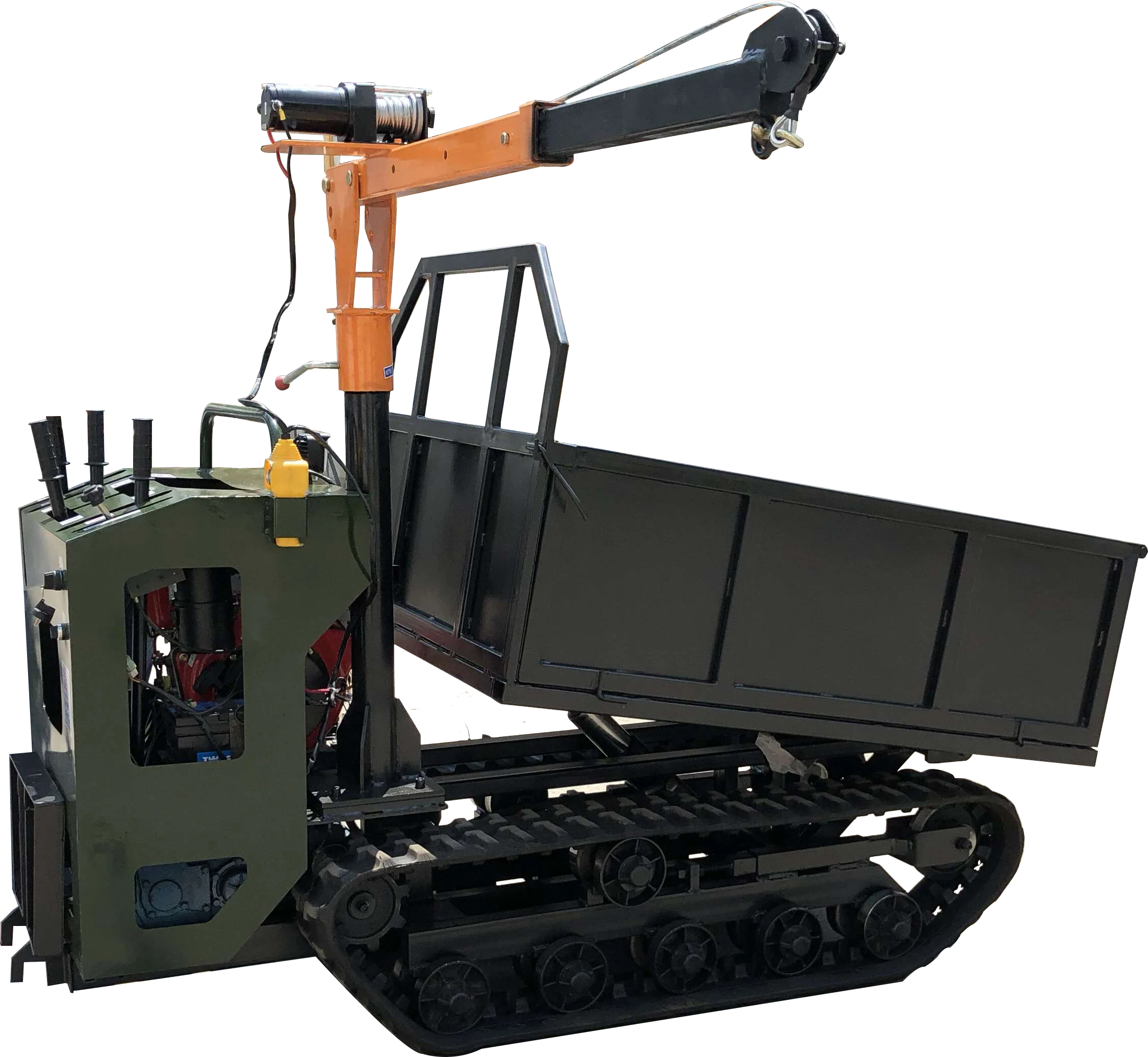

Self-loading Mini Track Dumper

All-terrain crawler transport vehicles are suitable for poor road conditions such as paddy fields, marshes, mountain roads, grasslands and deserts, ice and snow road, transport in agriculture and forestry orchards, freight yard loading, engineering construction

| Model | OKD-1.2 tons of hand support | |||
| Length * width * height (mm) | 2500*1050*1350 | |||
| Car size (mm) | 1650*1050*450 | |||
| Chassis width (m) | 0.85 | |||
| Engine specification | 192F | |||
| Engine power (kw) | 7.3 | |||
| Drive mode | Diesel engine (air-cooled) | |||
| Gearbox material model | 18 steel | |||
| Track specification model | 230*72*49 | |||
| Track system | Steel rubber track | |||
| Various round materials | v | |||
| Various shaft materials | High quality carbon structural steel | |||
| Hydraulic dump function | Have | |||
| Is it possible to add a crane? | can | |||
| Whether it can be raised or lowered | can | |||
| Startup mode | Electric start | |||
| Carrying weight (T) | 1.2 | |||
| Vehicle weight (KG) | 780 kg | |||
| Minimum turning radius (m) | 1.2 | |||
| Gear position | 3 in 1 retreat | |||
| Carton height from the ground | 50 cm | |||
| Standing angle | 35 degrees | |||
| Uphill angle | 45 degree | |||
| Driving speed (km/h) | 0.8-12 | |||
