Quality And Quantity Assured Rg59 Shv 5000V Cable Rf Connector (62387013798)

Share on:


Price:
Price in USD:Details

Quantity:


Product Overview

Description


Product Description

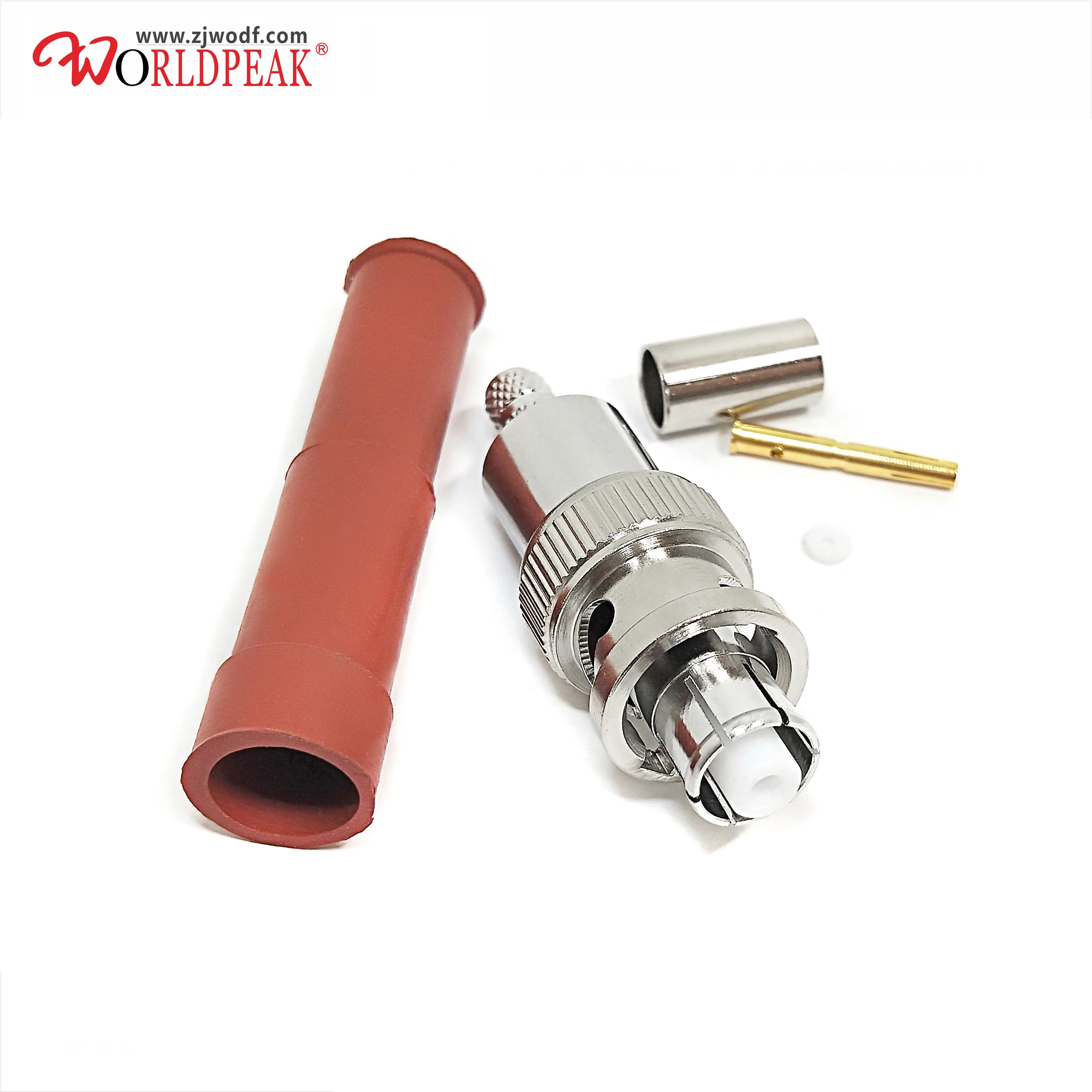

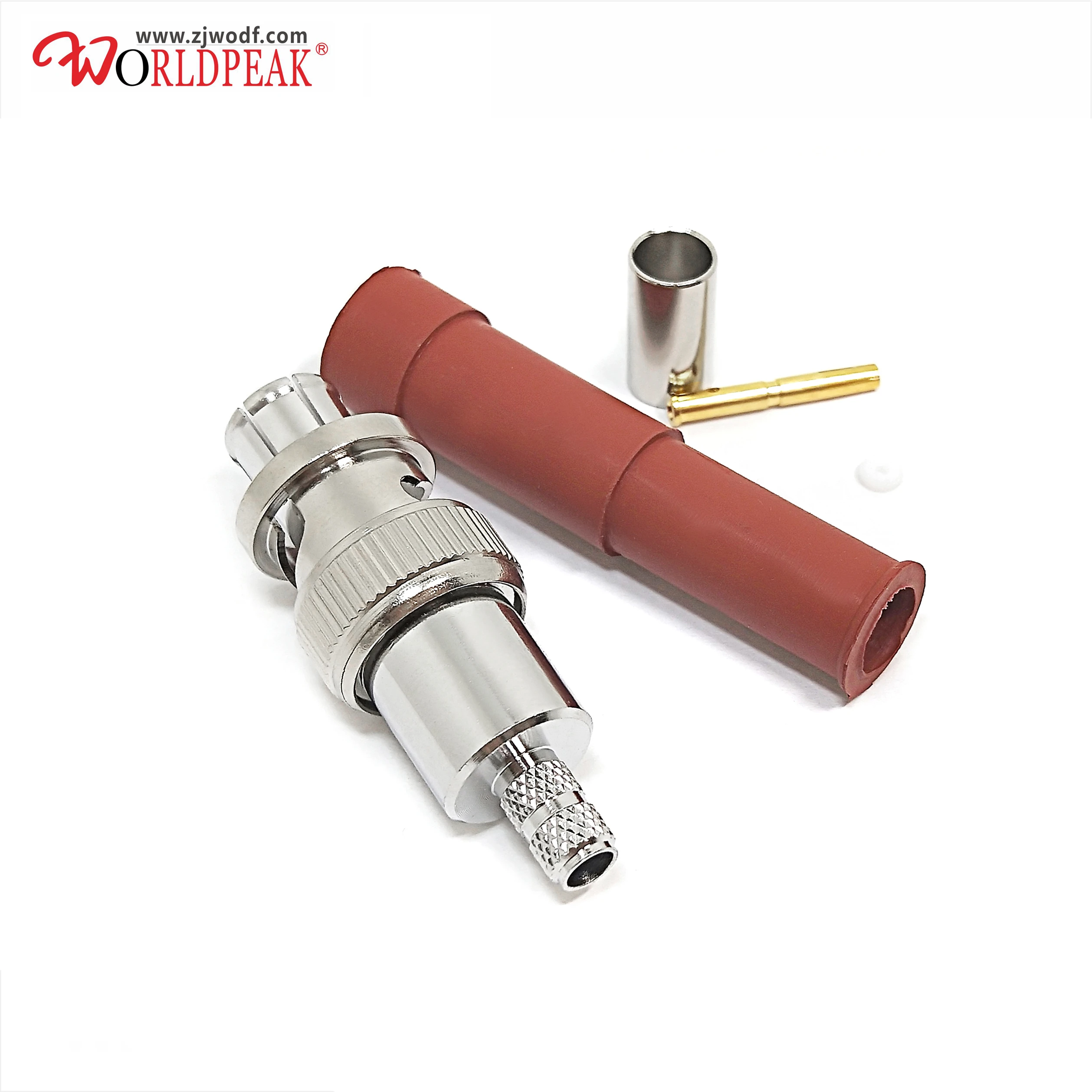

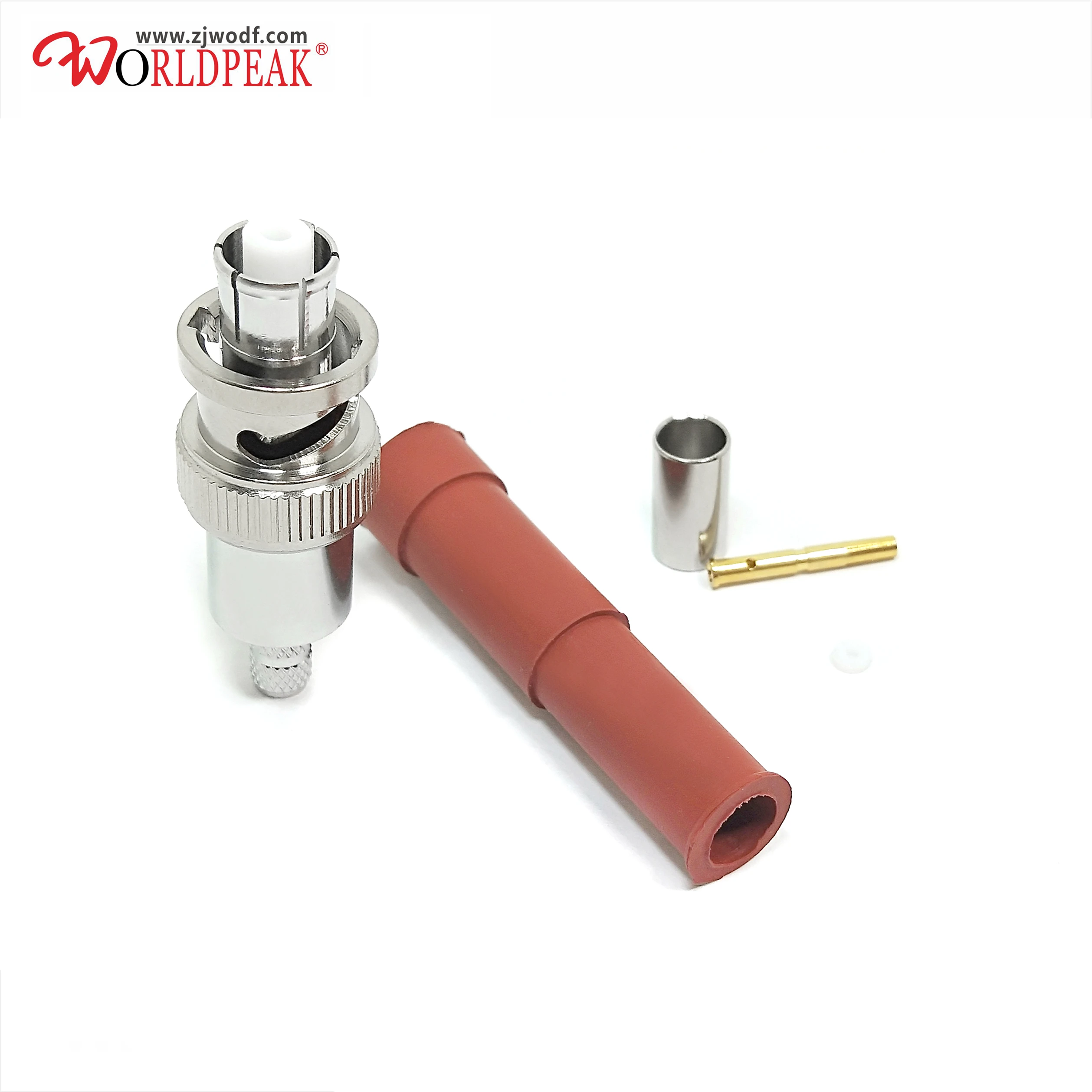

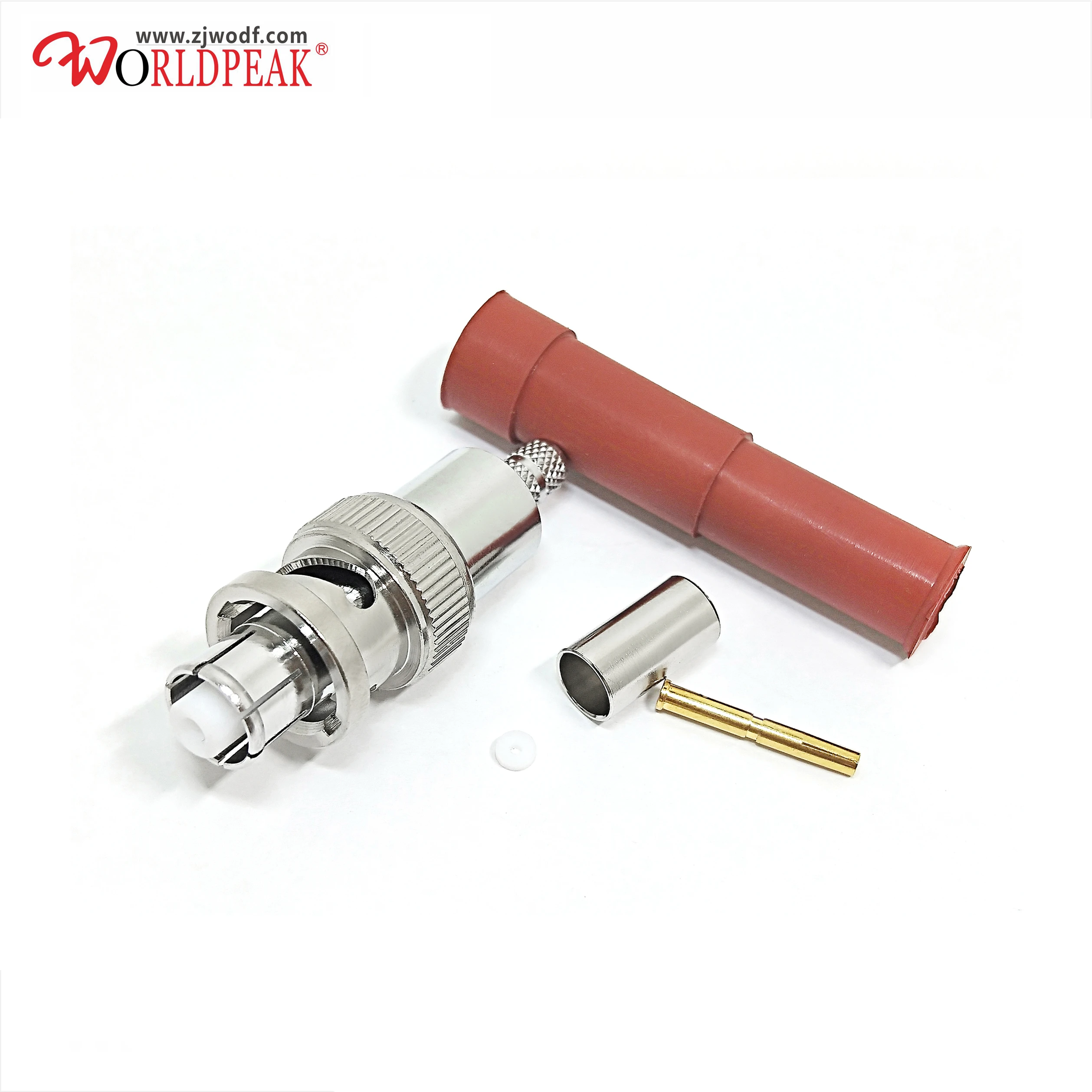

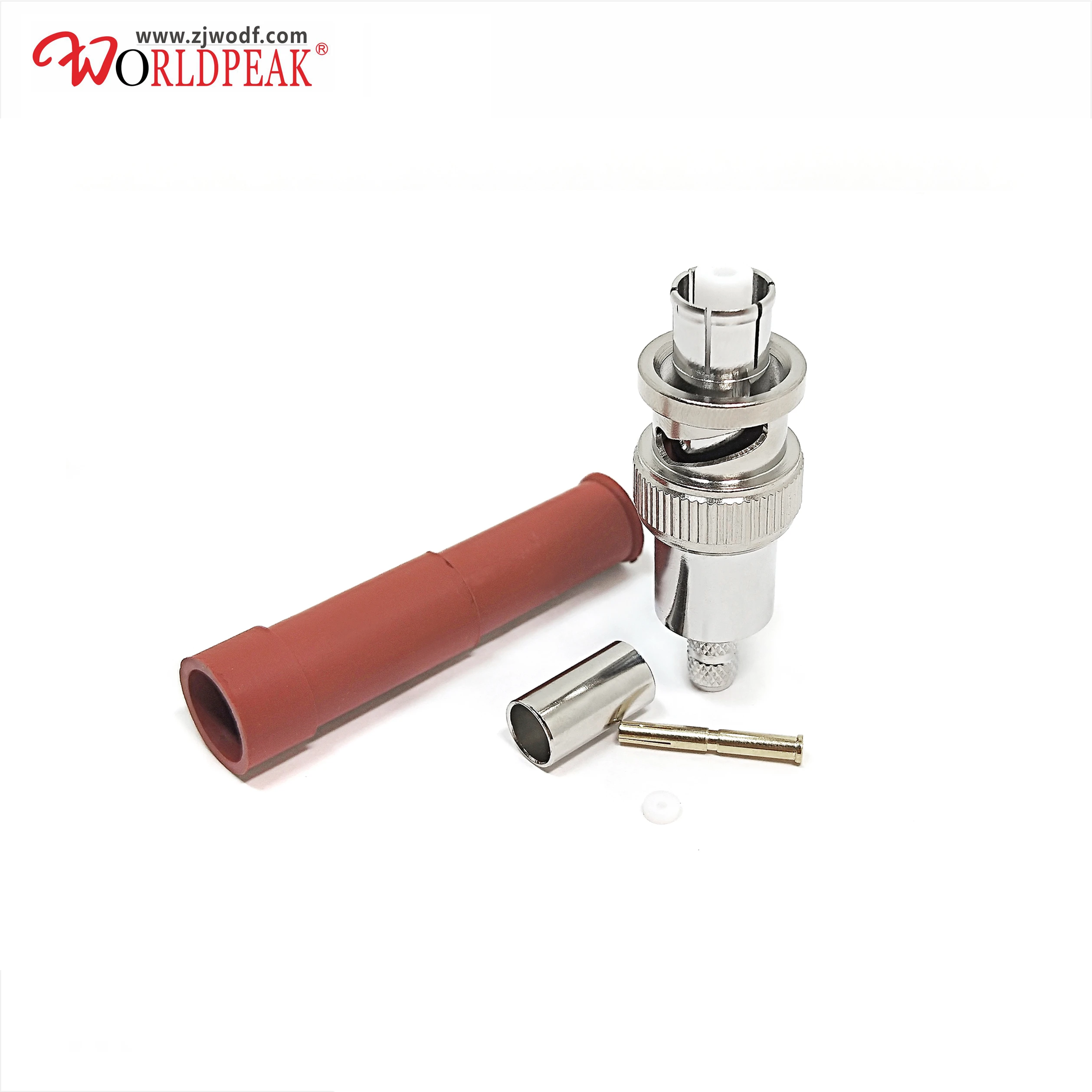

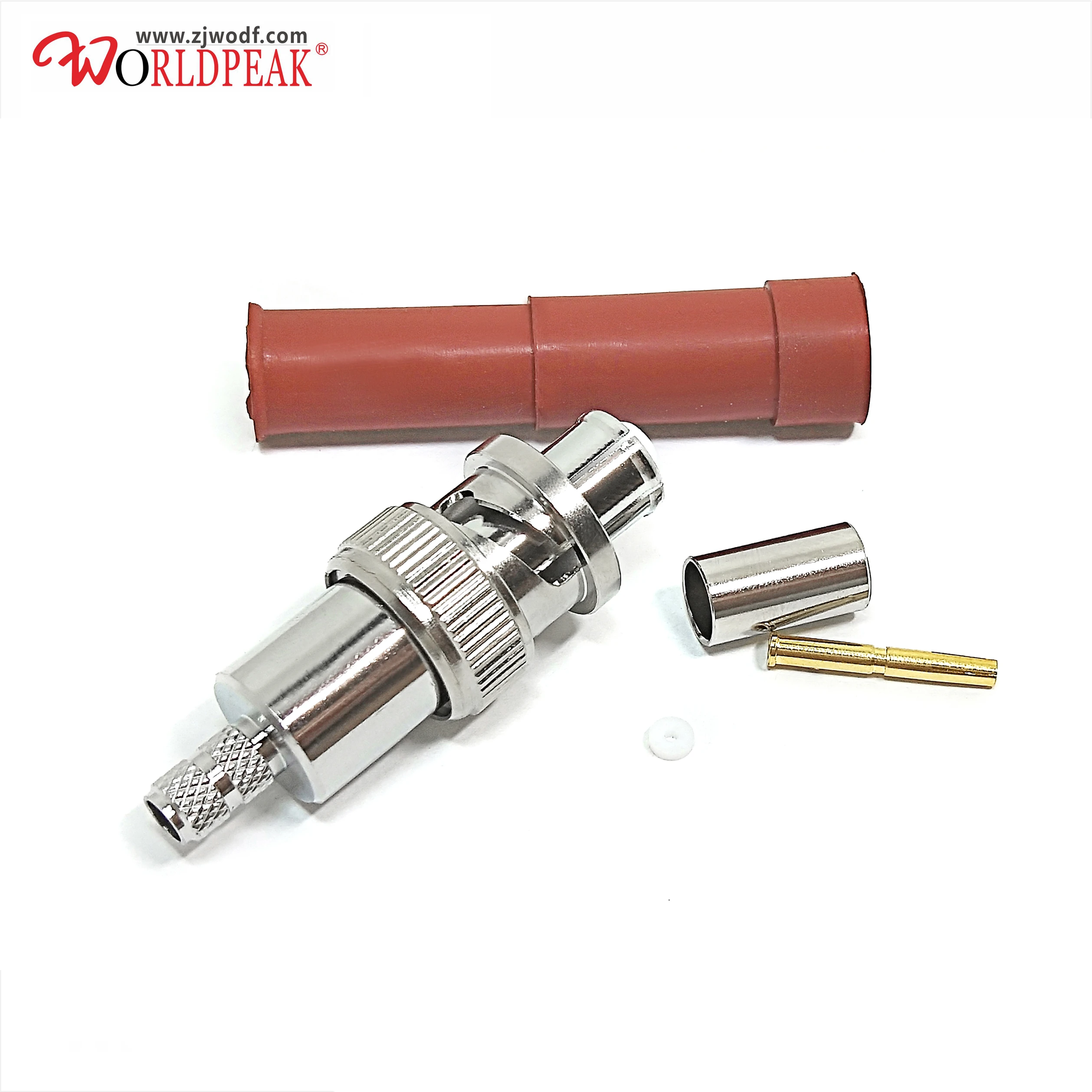

Quality And Quantity Assured Rg59 Shv 5000V Cable Rf Connector


☀ RF coaxial cable connectors (7/16 DIN/N/TNC/BNC/FME/U.FL/IPEX/L9/SMA/SMB/MMCX/MCX/OEM) .

☀ We focus on coaxial cable and cable connectors.

☀ Our cables and cable connectors are built-in and shipped worldwide.

☀ The N connector (in full, Type N connector) is a threaded, weatherproof, medium-\tsize RF connector used to join coaxial cables. It was one of the first connectors capable of carrying microwave-frequency signals, and was invented in the 1940s by Paul Neill of Bell Labs, after whom the connector is named.

☀ The N connector follows the MIL-C-39012 standard, defined by the US military, and comes in 50 and 75 ohm versions. The 50 ohm version is widely used in the infrastructure of land mobile, wireless data, paging and cellular systems. The 75 ohm version is primarily used in the infrastructure of cable television systems. Connecting these two different types of connectors to each other can lead to damage, and/or intermittent operation due to the difference in diameter of the center pin.

☀ RF cable connectors can be produced to be cable assemblies with many different cable types and custom lengths depending on your needs and applications.

☀ If you require a special RF cable assemblies configuration not found here, you can create your own RF cable assembly configuration by calling our sales department.
rg59 connector
\t
Quality And Quantity Assured Rg59 Shv 5000V Cable Rf Connector


\t

\t
Temperature Range
\t
-55~+155°C (PE Cable -40~+85°C)
\t
Characteristic Impedance
\t
50Ω
\t
Vibration
\t
100m/S2 (10~500Hz), 10g
\t
Frequency Range
\t
DC-11GHz
\t
Insertion Loss
\t
≤ 0.24dB/6GHz
\t
Withstanding Voltage
\t
2500V r.m.s at sea level
\t
2500V r.m.s at sea level
\t
1000Vr.m.s at sea level
\t
Insulation Resistance
\t
≥ 5000 MΩ
\t
Coupling nut retention force
\t
450N
\t
Durability
\t
≥ 500(cycles)
\t
Contact resistance:
\t
Center Contact ≤1mΩ
Outer Contact ≤1mΩ
\t
Voltage Standing Wave Ratio:
\t
Straight ≤ 1.15/6GHz
Straight ≤ 1.15/6GHz
\t
Piece part
\t
Material
\t
plating
\t
Body
\t
Brass
\t
Nickel plated
\t
Center conductor
\t
Phosphor bronze
\t
Gole or silver plated
\t
O-ring sealing
\t
6146 silastic
\t
\t
Insulator
\t
PTFE
\t
\t
Temperature Range
\t
-40°C~+85°C
\t
Note: We can provide other materials and plating specifications according to customers'requirements.
rf connector

About the Worldpeak

Zhenjiang WORLDPEAK electronic products co.,ltd is located Jingkou Road,zhenjiang City jiangsu Province China.

Specializing in the design,research,production and sales of a variety of RF coaxial connectors and rf coaxial cable,our company has advanced technique,perfect and full testing means and 100-bed CNC maching equipment.

The company passed ISO9001:2000 quality management system certification in 2001,and started to use the software of ERP management to organize the production control since 2006.
The main products are RF coaxial connectors,cable assemblies,totally more than 20 series , about 2000 varieties,N,BNC,TNC,SMA,SMB,L9,MCX,7/16DIN, CC4,MMCX/FME/QMA and so on.

Our production process is in accordance with international standards,the products meet the IEC and MIL technical standards throngh performance testing of authorities,widely used in the field of communications.
Our tenet is "Qualtiy is the first,customer is king",we export our goods to many countries and enjoy a high reputation both at home and abroad.
Our products have been exporting to East Europ, Weatern Europ ,Mid east, Africa, Southeast Asia.

rg59 shv 5000v cable connector


We are the Worldpeak, Our company has professional team, advanced equipment and enough stock. We can promise you professional support, nice service and fast delivery, We also support OEM&ODM, We can meet all your request. So choose us is your brightest decision.
rg59 connector

Factory aim: Let the quality become the sole measure of company strength.We are using the latest production technology, standardized management, strict censorship, standard packing, in order to meet the maximum needs of customers as the goal.

Packing & Delivery

Delivery:

Our cooperation and professional international logistics company, quick safe, cheap, let the customer trust.

About the Payment
We can do it

We can do it:


•Quality And Quantity Assured Rg59 Shv 5000V Cable Rf Connector factory sell directly
• Long-term,strong and steady supplying ability
• Delivery time: 1-2 working days
• Do as your requirements on package,brand or other designs
• Strong sales promotion policy
• Ex-factory price and competitive price
• We can provide you a good survice
• Replying you asap.(will reply you 10-20 mins on the basis of getting your require.)

Customization advantages Reliable performance Perfect production management system
(ISO9001,ISO14001) we have experience about RF components more than 20 years
Experienced R&D staff. All Goods will be tested before shipping OEM/ODM service available.

rf connector

FAQ

Q:what's your company MOQ?
A: In generally, if use customer brand, we will ask at least 500~800pcs, this we can negotiate.

Q: What's your delivery time?
A: This please ask our stock in first, products can send out once receive your deposit.If use customer brands, we will take a 3-5days to prepare materials and mass production.

Q: Can your company accept customize?
A: Welcome OEM & ODM.

Q: How do you solve after sale service?
A: This please ask us for technical support if you have workers know how to repair.If do not have engineers, please send back the items, we can repair the items for you.

Q: Can you send a sample for us to develop?
A: Yes, we can. Sample can send out once you ask for it, but will ask a sample fee. Sample fee will return back in future order.
