Гидравлическая машина для прессования стальных проволочных канатов для изготовления накладок на проволочные канаты
- Category: Hydraulic Press >>>
- Supplier: Jiangsu Xingtai Hydraulic Manufacture Co. Ltd.
Share on (62387700418):
Product Overview
Description

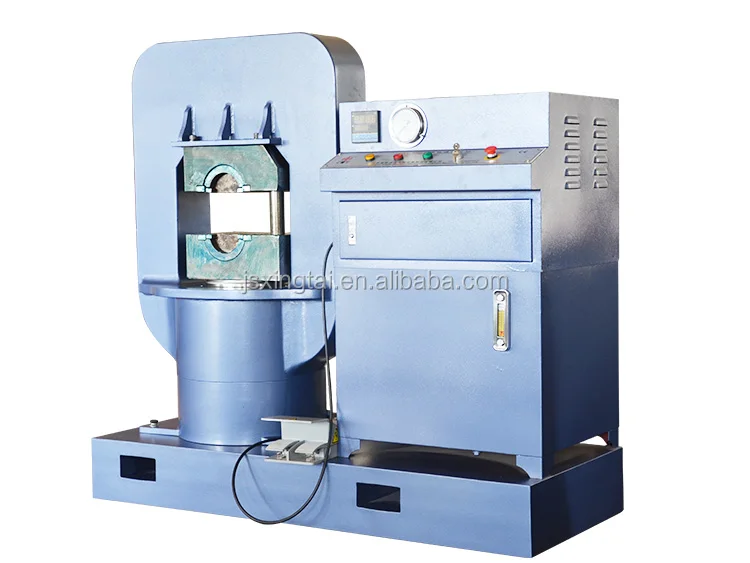

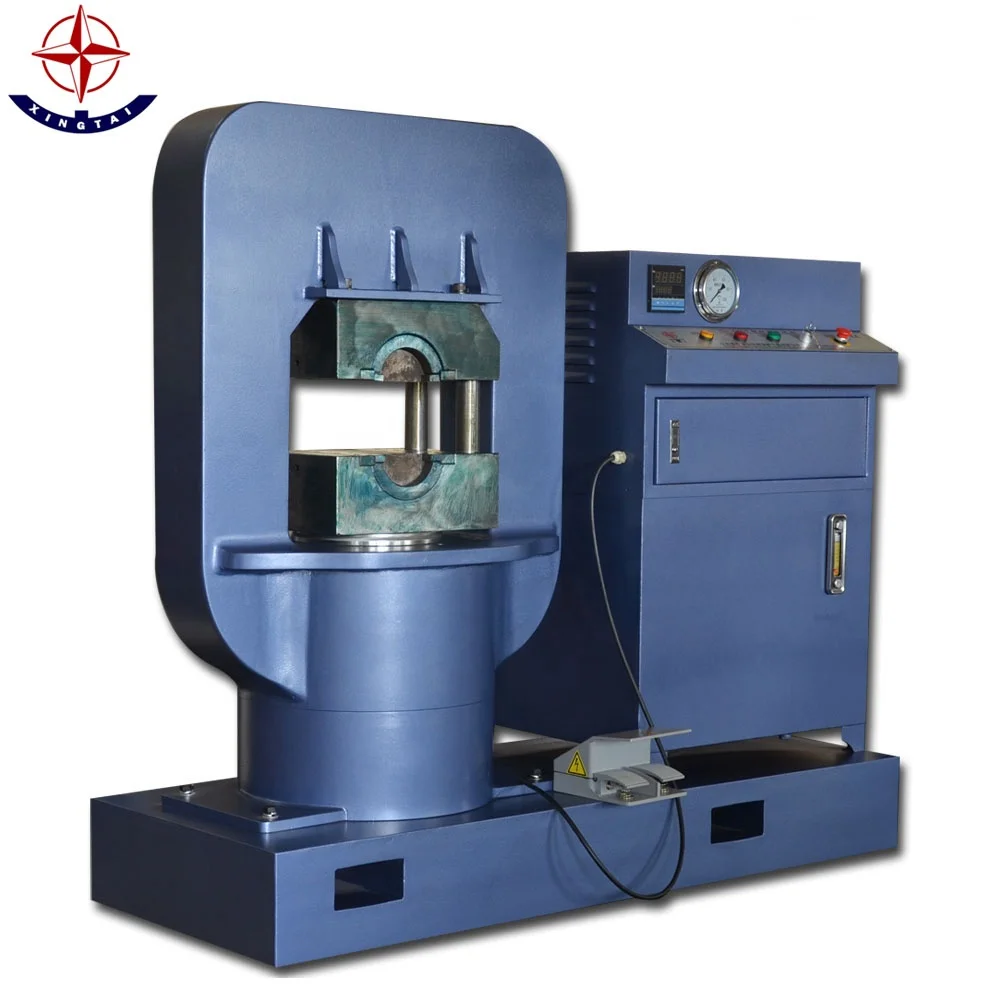

Hydraulic steel wire rope press machine to make wire rope slings

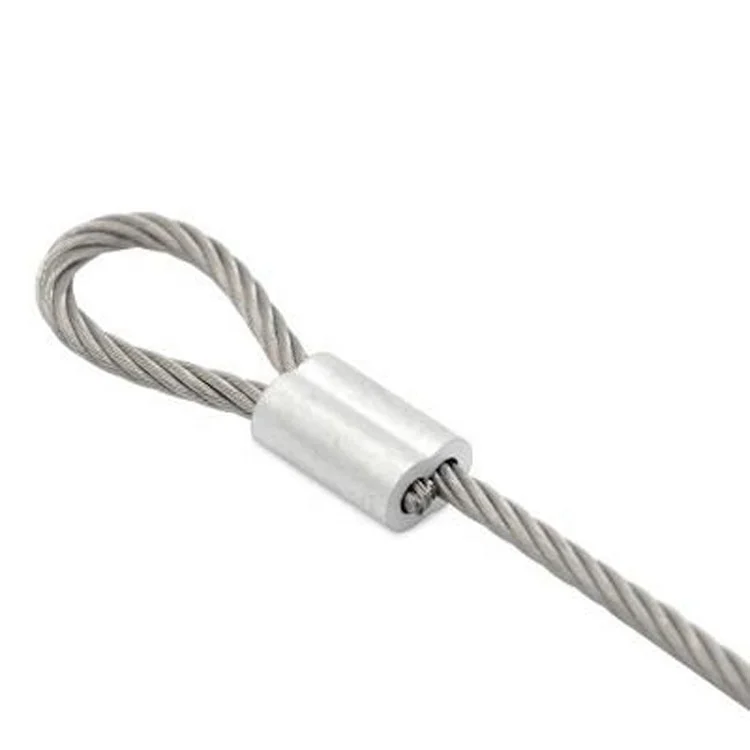

Xingtai wire rope press machines are used to make pressed wire rope sling.
The body of swagers are manufactured from one single block construction that ensure strength,
long service life and a minimum of maintenance. All swagers are thoroughly test run and are
supplied with a full tank of oil.

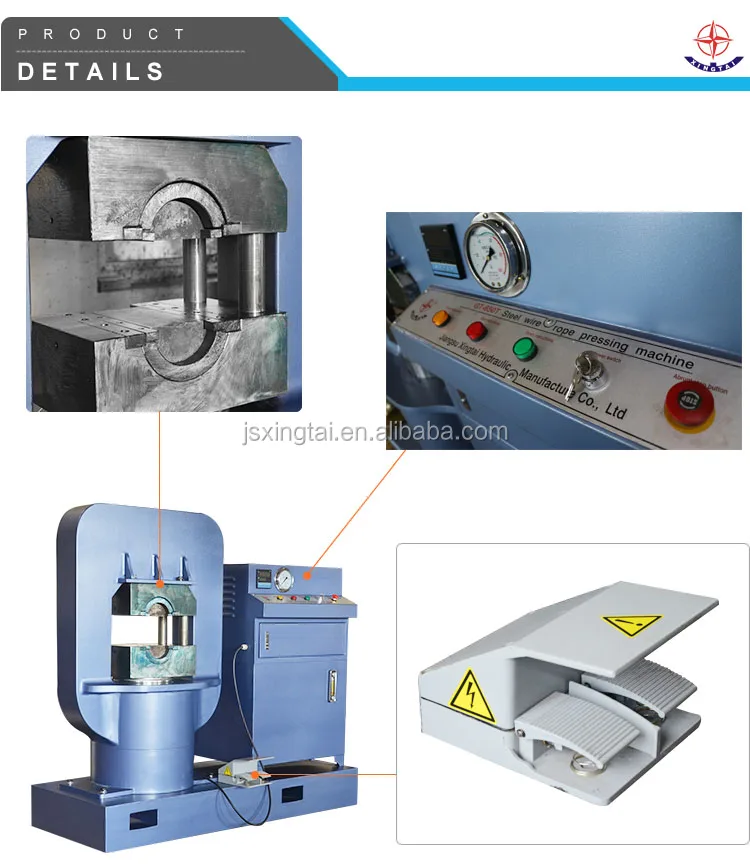

1. It uses a mechanical and electrical design, to switch to a different mold, you can suppress the different specifications of wire rope, easy to operate and safe.
2. Dual control for hydraulic system, the overflow valve, magnetic contact on the pressure gauge can be accurately controlled.
3. Electric control parts of the low-voltage control, an increase of operating system security.
4. Pull the rope to suppress large, beautiful, fast, and a wire rope press-fit just a few minutes to complete, significantly reduced the labor intensity and improve the work
efficiency.
5. Xingtai wire rope press machine have exported to many countries, UK, Australia, Holland, Latvia, Malaysia, Thailand, India, Nigeria, Russia, Botswana and so on.
Parameter chart of hydraulic steel wire rope press machine to make wire rope slings
Mode No. | GT-650T |
Max press power (KN) | 6500 |
Max wire rope diameter in one pressing (mm) | Φ38 |
Max wire rope diameter in multi-pressing (mm) | Φ48 |
Power (KW) | 5.5 |
Max working pressure (Mpa) | 56Mpa |
Max piston movement (mm) | 160 |
The up speed of piston (mm/sec) | 4.5 |
The down speed of piston (mm/sec) | 8 |
Total length (mm) | 1550 |
Total width (mm) | 650 |
Total height (mm) | 1600 |
Net weight (kg) | 3000 |
Packaging & Shipping
FAQ
Q: Are you trading company or factory?
A: We are professional wire rope pressing machine and wire rope annealing machines manufacturer with 20 years' experience.
Q: What is after-sales services?
A: 24 hours around the clock & 12 months warrantyLife-long maintenance service for the product
Q: If I didn't use press machine before, how can I install and operate the machine?

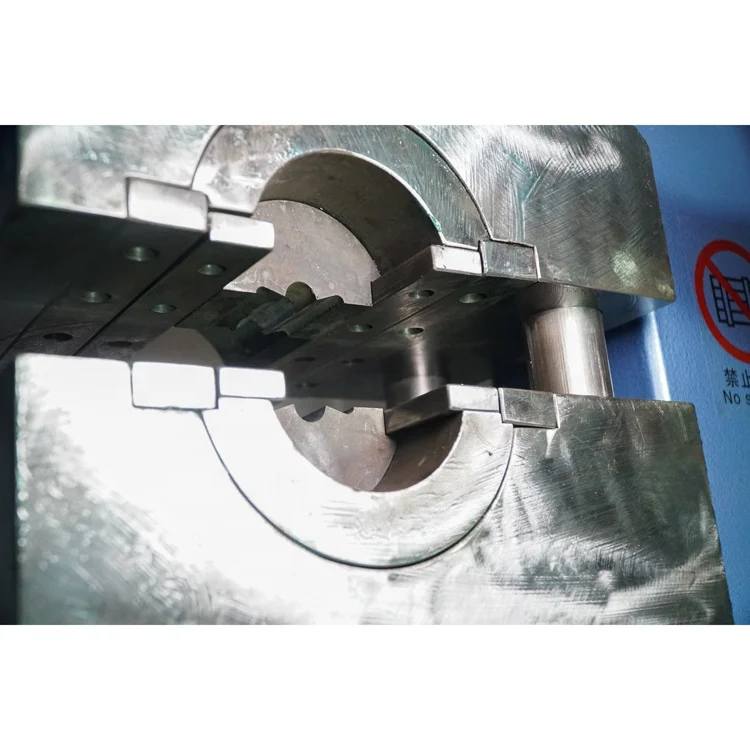

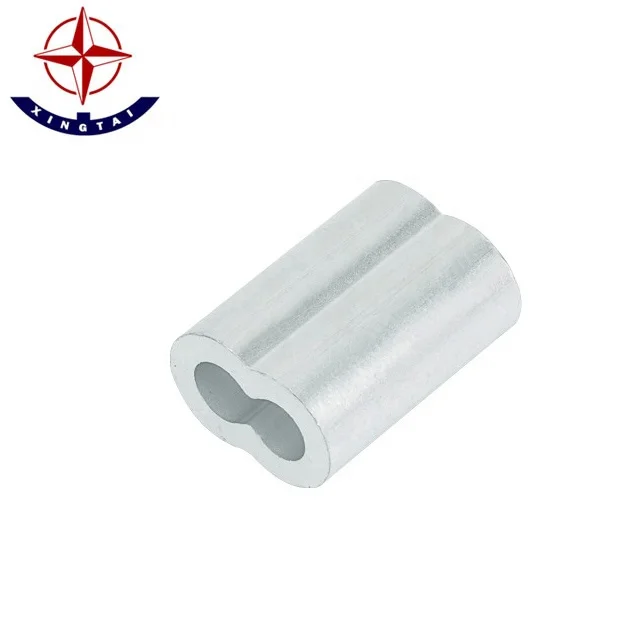

A: 1. Fix fitted mould, tight the bolts on the left of both tool set ( the tool is offered by factory); Refer diameter of wire rope table to adjust pressure, put sleeve with steel wire rope in the middle of mould Vertically.
2. Operate pedal rise switch, the piston will rise and the rising pilot lamp lights; Auto-stop when reach given pressure and finish pressing;
3.Operate descendent switch, the piston will descend and the descendent pilot lamp lights; and take out pressedsteel wire rope.
We will delivery machine with use manual and CD.
Q: Shall I see the machine work before I order?
a. Please send us inquiry and we will check whether there are customers in your country.
b. You may come our factory, we will teach you how to operate.
c. We may send you video.
Q: How long to finish one machine if I place order?
A: As usually, delivery time is 30 days. If we have machine and dies that you need in stock, we may delivery machine in 7-10 days after receipt of your payment.
Q: How can we believe your quality or service?
A: We have many oversea customers, you can contact them to know more about us. Maybe we have customers in your country, you may call them or visit them to see our machine.
If you have any other question please do feel free to contact us.
A: 24 hours around the clock & 12 months warrantyLife-long maintenance service for the product
Q: If I didn't use press machine before, how can I install and operate the machine?
A: 1. Fix fitted mould, tight the bolts on the left of both tool set ( the tool is offered by factory); Refer diameter of wire rope table to adjust pressure, put sleeve with steel wire rope in the middle of mould Vertically.
2. Operate pedal rise switch, the piston will rise and the rising pilot lamp lights; Auto-stop when reach given pressure and finish pressing;
3.Operate descendent switch, the piston will descend and the descendent pilot lamp lights; and take out pressedsteel wire rope.
We will delivery machine with use manual and CD.
Q: Shall I see the machine work before I order?
a. Please send us inquiry and we will check whether there are customers in your country.
b. You may come our factory, we will teach you how to operate.
c. We may send you video.
Q: How long to finish one machine if I place order?
A: As usually, delivery time is 30 days. If we have machine and dies that you need in stock, we may delivery machine in 7-10 days after receipt of your payment.
Q: How can we believe your quality or service?
A: We have many oversea customers, you can contact them to know more about us. Maybe we have customers in your country, you may call them or visit them to see our machine.
If you have any other question please do feel free to contact us.
