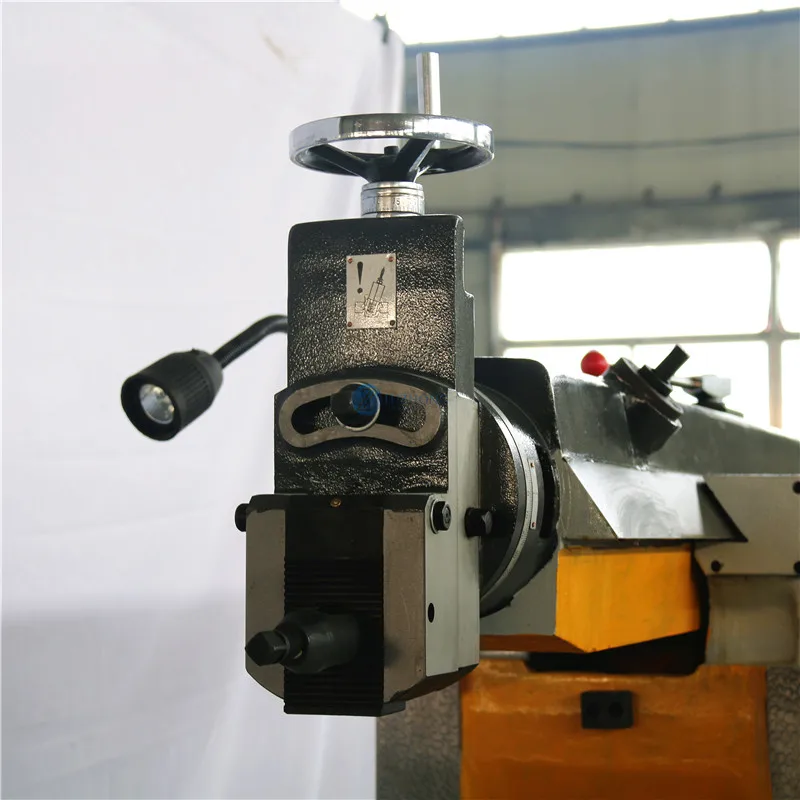

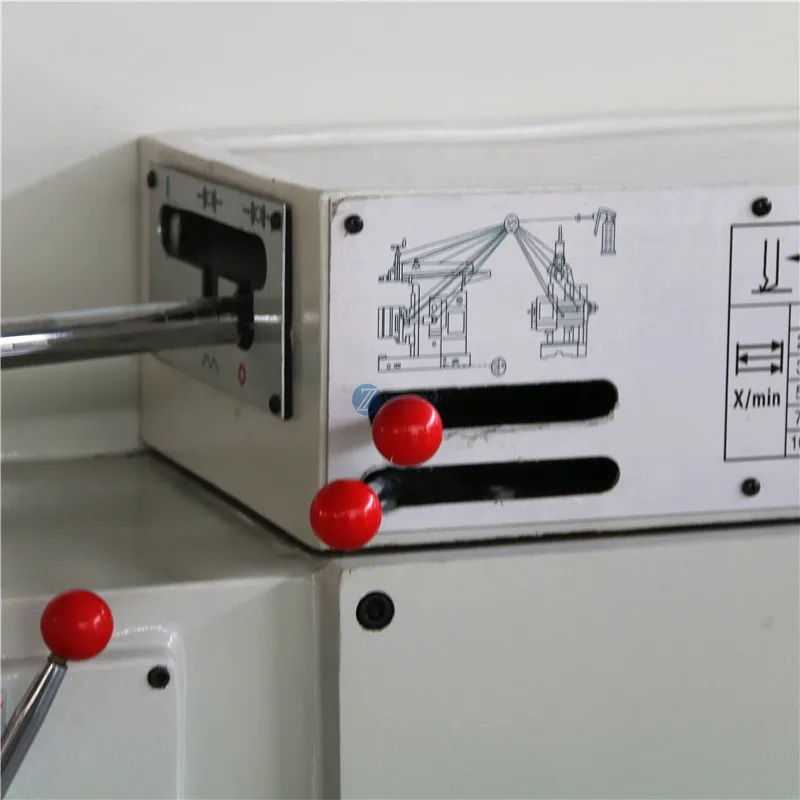

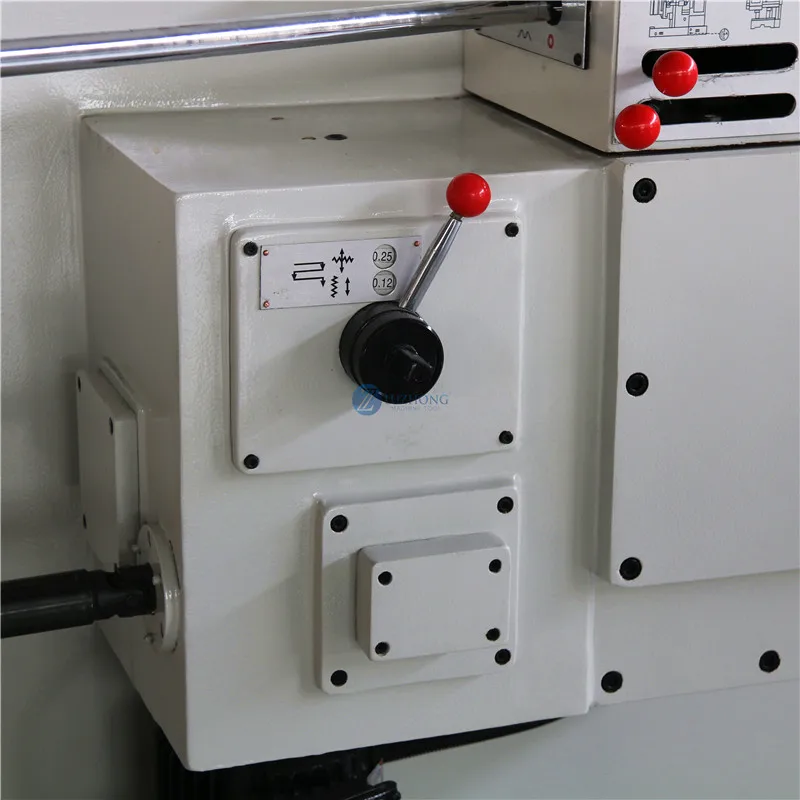

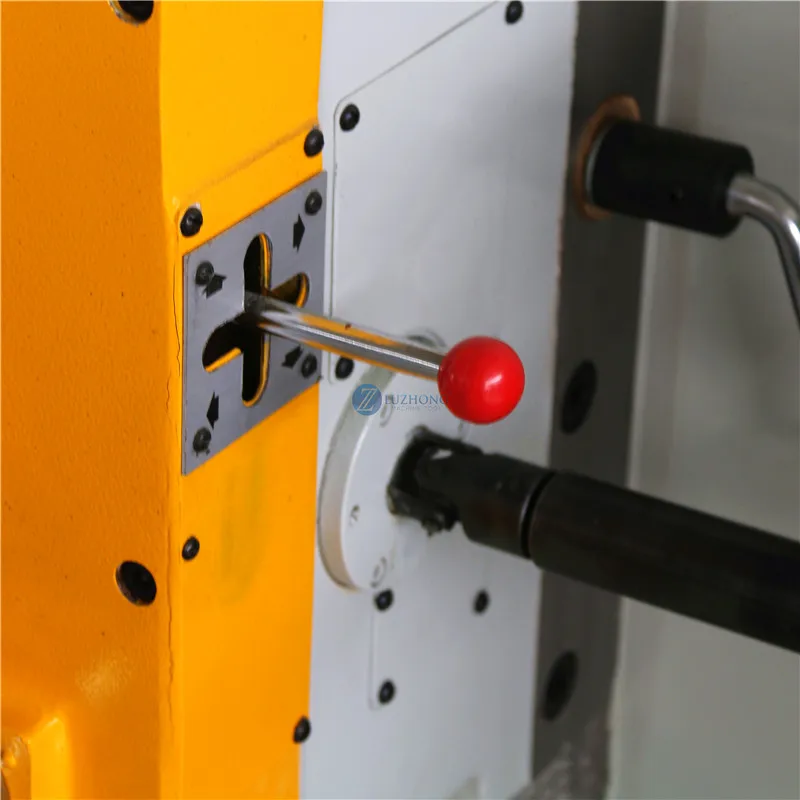

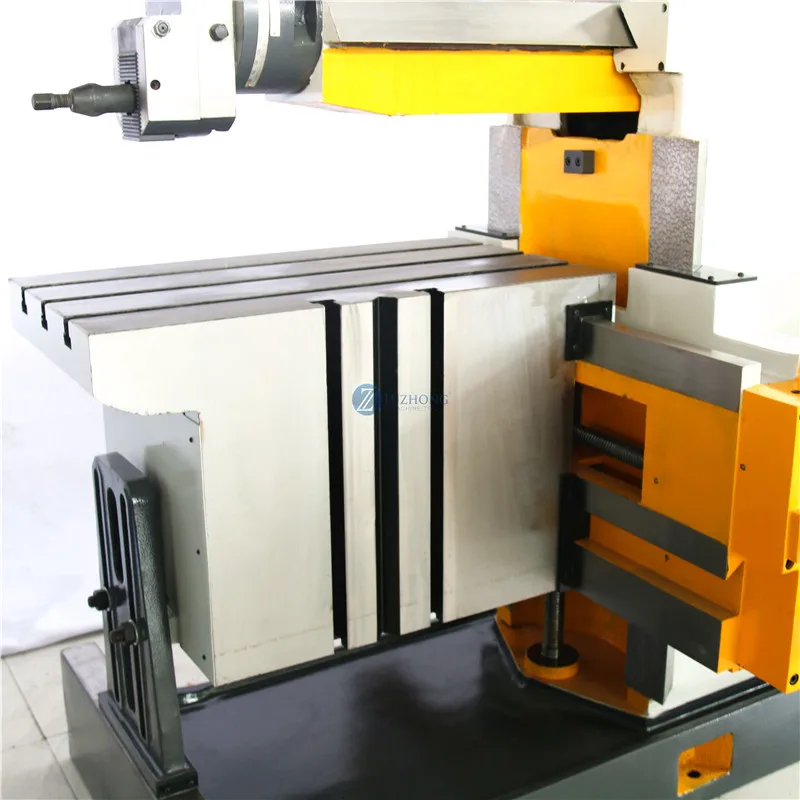

Metal shaper Machine BC6085 Horizontal slotting Machine
- Category: Planer & Slotting Machines >>>
- Supplier: Shandong Luzhong Machine Tool Co. Ltd.
Share on (62388252496):
Product Overview
Description
Product Description
Product main features:
It is a general purpose shaping machine, suitable for plane, T groove, dovetail slot shaped surface planing. This machine has the advantages of good rigidity, high working efficiency, low cost and low cost. It is suitable for small and medium spare parts and batch processing. It is the first choice of machine tool.
It is a general purpose shaping machine, suitable for plane, T groove, dovetail slot shaped surface planing. This machine has the advantages of good rigidity, high working efficiency, low cost and low cost. It is suitable for small and medium spare parts and batch processing. It is the first choice of machine tool.
Specifications | Units | BC6085 |
Maximum shaping length | mm | 850 |
Maximum distance from ram bottom to table surface | mm | 400 |
Maximum moving distance of the working table(horizontal) | mm | 710 |
Maximum moving distance of the working table (vertical) | mm | 360 |
Table size (L*W) | mm | 800×450 |
Maximum travel of tool head | mm | 160 |
Tool carrier rotary angle | ° | ±60° |
Number of ram reciprocating per minute | 17,24,35,50,70,100 | |
Feeding range of level travel(12steps) | mm | 0.25~3 12 steps |
Feeding range of vertical travel(12steps) | mm | 0.12~1.5 12 steps |
Rapid feed speed of table level | mm | 1.2 |
Rapid feed speed of table vertical | mm | 0.58 |
T-slots width | mm | 22 |
Main motor power | KW | 5.5 |
Overall dimension(L*W*H) | mm | 2950×1325×1693 |
N/G.W | kg | 2940/3090 |
Details Display
Company Profile
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
