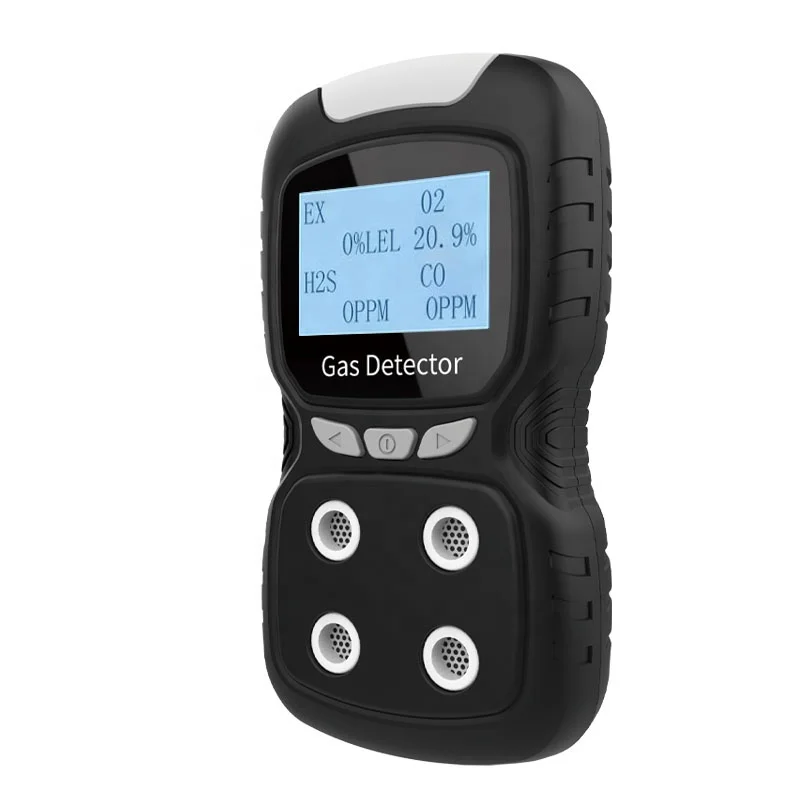

Manufacture CO H2S O2 Ex 4 Gases detector Portable Multi Gas Detector with Explosion proof CNEX Certificate

Share on (62388823235):


Price:$90.55 - $95.55

Quantity:


Product Overview

Description



Detector Description


                          Manufacture 4 Gases detector optional gas type portable multi gas detector

      Our portable multi gas detector with a large LCD. It can monitor CO, H2S, O2 and combustible gas simultaneously. The instrument with audio/visual and vibratory indicators, rechargeable battery, and simple use.
      It is widely used in the area where explosion-proof is required or toxic gas leaks, like underground channels or mining industry, so as to protect the workers' life and avoid damage on the relevant equipments.





Main Features


1.Advanced MCU control with low power consumption
2. Advanced integrated circuit technology, embedded microcomputer control
3.Adjustable low and high alarm level
4. Adjustable calibrating level
5. High concentration protection for combustible gas
6. Self test for the combustible gas sensor
7. Low battery indication
8. Self-adjustment function

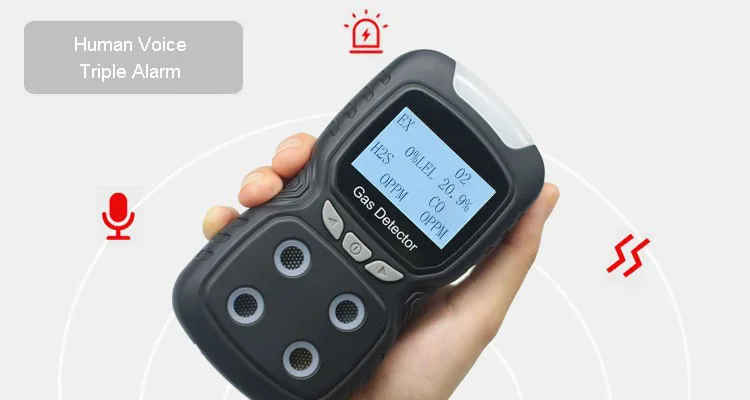

9. Visual and audible alarm with vibration
10. Advanced self-examination and self-renovation function
11. Password management to avoid wrong operation
12. Explosive proof housing

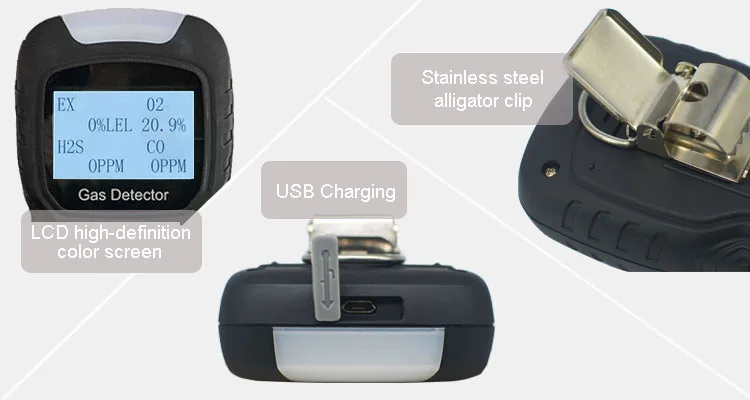

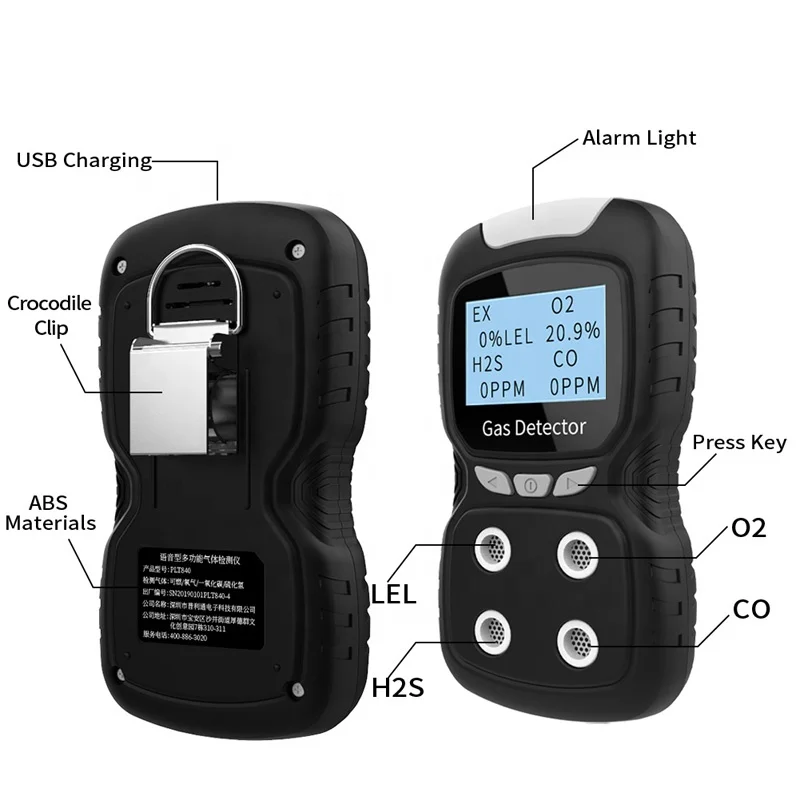

Detailed Images






Analyzer Parameters


Operating & Storage Environment
Temperature: -20°C~50°C (-4F~122F)
Humidity: <95% (Relative humidity non-condensing)
Pressure: 95~110kPa
Sampling method
Diffusion type
Detecting Range
CO: 0~1000ppm
H2S:0~100 PPM
O2: 0~30%vol
Combustible Explosive Gas (Ex / LEL / CH4): 0~100%LEL
Sensor
O2 /H2S / CO: plug-in electrochemical sensor
Combustible gas (LEL): plug-in catalytic combustion sensor
Alarm Type
low & high alarm, multiple gas alarm, sensor alarm, battery low alarm, prompt tone, automatic shutdown alarm
Resolution
0.1%VOL (O2), 1ppm (CO), 1ppm (H2S), 1%LEL (EX)
Sensor life
2 years
Accuracy
<5% F.S
Response time
<30s
Repeatability
1%
Zero drift
1%
Display
Alphanumeric large LCD displays the real time gas concentration and alarm stage
Backlight
Automatically activated when working in poor lighting environment or the alarm sounding or the button is knobbed down.
Self-checking Function
Self-checking Battery power, display, sensor, hardware failure
Explosion-proof
EXiaIICT4
Protection grade
IP65
Power Supply
Rechargeable lithium battery

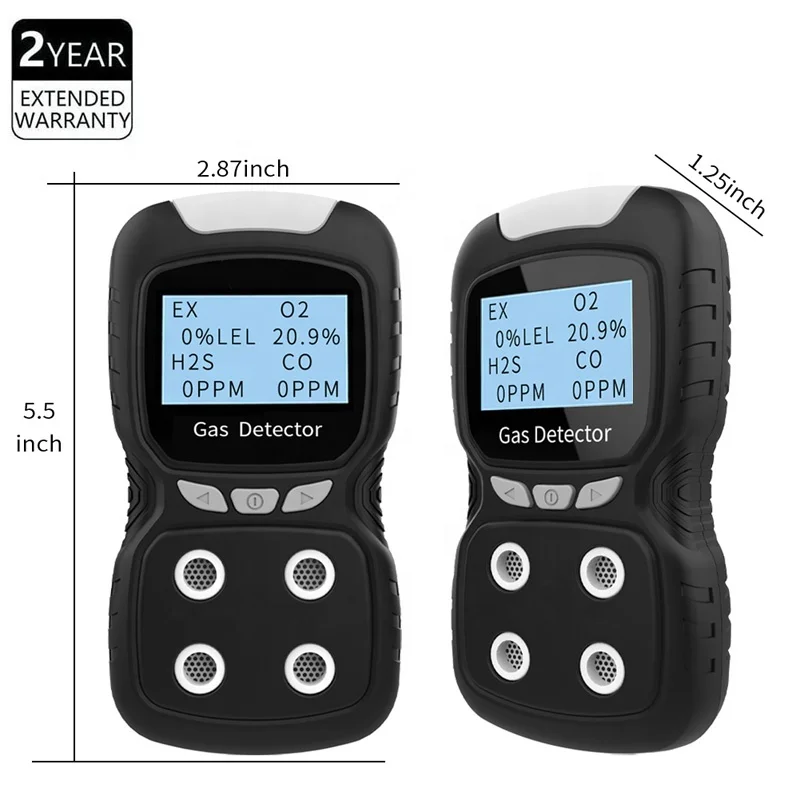

Dimensions
140mm*73mm*32mm


Analyzer Application




Measurable Gas Meter


No.
Detected
 Gas
Detecting Scope
     Optional Range
  Resolution
 Low/High Alarm Point
1
EX
0-100%lel
0-100%vol(Infrared)
1%lel/1%vol
20%lel/50%lel
2
O2
0-30%vol
0-30%vol
0.1%vol
19.5%vol/23.5%vol
3
H2S
0-100ppm
0-50/200/1000ppm
0.1ppm
10ppm/20ppm
4
CO
0-1000ppm
0-500/2000/5000ppm
1ppm
50ppm/150ppm
5
CO2
0-5000ppm
0-1%/5%/10%vol(Infrared)
1ppm/0.1%vol
1000%vol/2000%vol
6
NO
0-250ppm
0-500/1000ppm
1ppm
50ppm/150ppm
7
NO2
0-20ppm
0-50/1000ppm
0.1ppm
5ppm/10ppm
8
SO2
0-20ppm
0-50/1000ppm
0.1/1ppm
5ppm/10ppm
9
CL2
0-20ppm
0-100/1000ppm
0.1ppm
5ppm/10ppm
10
H2
0-1000ppm
0-5000ppm
1ppm
50ppm/150ppm
11
NH3
0-100ppm
0-50/500/1000ppm
0.1/1ppm
20ppm/50ppm
12
PH3
0-20ppm
0-20/1000ppm
0.1ppm
5ppm/10ppm
13
HCL
0-20ppm
0-20/500/1000ppm
0.001/0.1ppm
5ppm/10ppm
14
CLO2
0-50ppm
0-10/100ppm
0.1ppm
5ppm/10ppm
15
HCN
0-50ppm
0-100ppm
0.1/0.01ppm
10ppm/20ppm
16
C2H4O
0-100ppm
0-100ppm
1/0.1ppm
20ppm/50ppm
17
O3
0-10ppm
0-20/100ppm
0.1ppm
2ppm/5ppm
18
CH2O
0-20ppm
0-50/100ppm
1/0.1ppm
5ppm/10ppm
19
HF
0-100ppm
0-1/10/50/100ppm
0.01/0.1ppm
2ppm/5ppm


Note: The above table is a general parameter. If you need other gas and range, please contact our online customer service.



Contact us


mailbox:13163324931@163.com
wechat:yujing15139625254
QQ:1747335281


About Puliton




                                                                           Scope of Business

       Puliton was founded in 2014, specializing in the development and production of gas detectors, gas analyzers and rangefinder. At present, our research and development instruments have been spread all over the world.





                                                                              R&D and Production

      Puliton has always strictly implemented the ISO9001 quality management system. We adhere to the high standards of product quality, strict requirements, adopting the world-class production equipment, advanced management and production experience, developing the high-quality testing equipment.

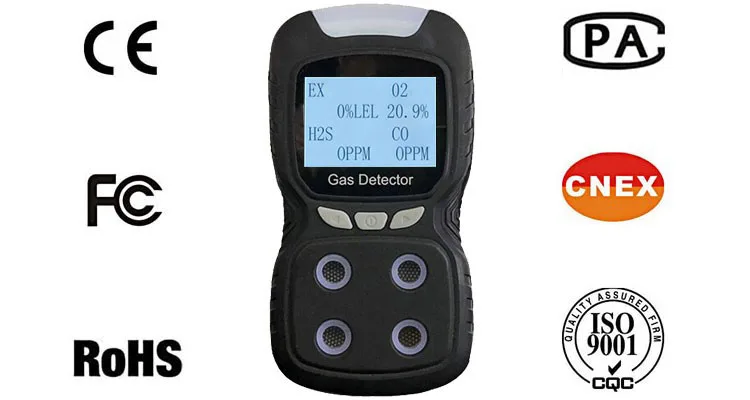

Certifications






Why Choose Us?
1. We are a factory,quality is more reliable, and the price is more lower.
2. Support OEM andODM, printing your Logo.(>500pcs)
3. All products will have been strictly Quality Checked before packing.
4. All our products have 1or 2 years warranty. And we sure the product will be free from maintenance within warranty period.
5.100% QC inspection Before Shipping.
6. If you found any inferior-quality products from us, we will send new ones to replace for free in your next order after confirmed.


FAQ
 1.Q:Can I have a sample order to test quality?
     A: Yes, we re commend and welcome sample order to test and check before order.

2. Q: What is the lead time?
     A: Sample needs 1-3 days, mass production time needs 7-15 days for order<=5000pcs.

3. Q: Do you have any MOQ limit?
     A: We don't have a MOQ limit, 1 pc are also welcome.

4. Q: Do you offer guarantee for the products?
     A: Yes, we offer 1 or 2 years guarantee for the products.

5. Q: If I order big quantity, Can I have a cheaper price?
     A: We will reduce the price according to the specific quantity and your requirements for the product.

6.Q: How does your I factory do regarding the quality control?

    A: Quality is priority, Our factory has passed ISO 9001 with annual audit.Established a procedure to check products at all stages of the manufacturing process-raw materials, in process materials.validated or tested materials, finished goods.etc.
