Product Overview
Description
Product Description

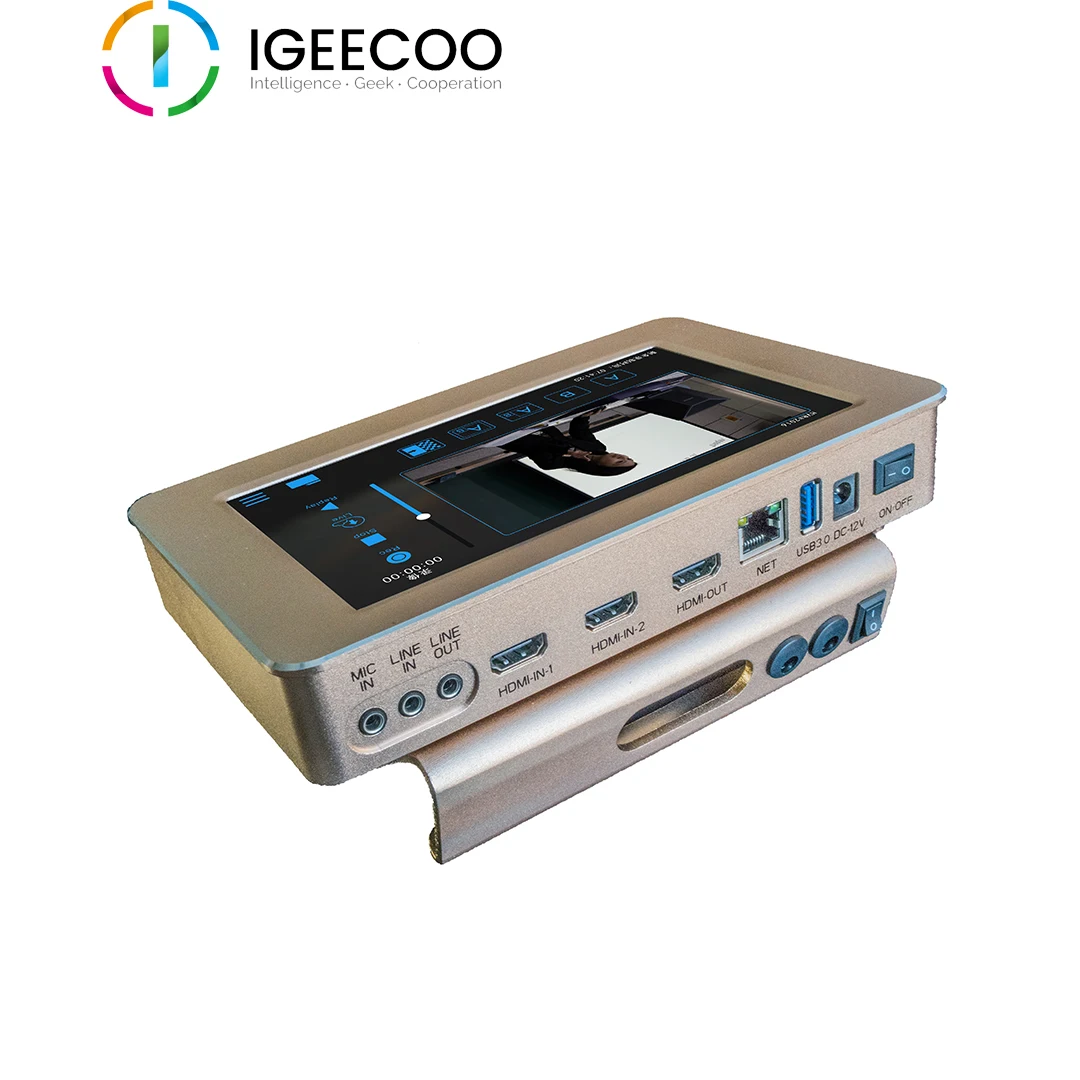

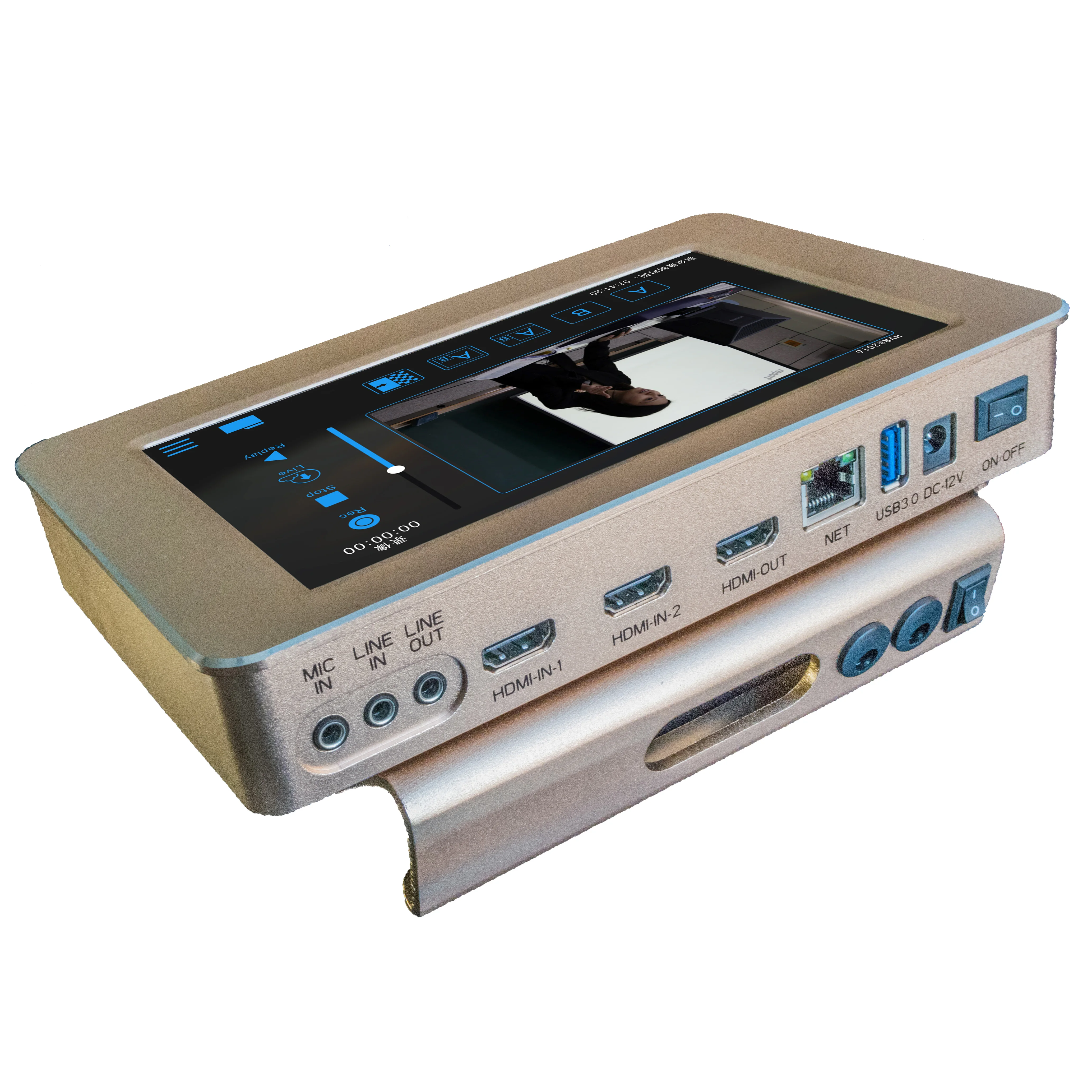

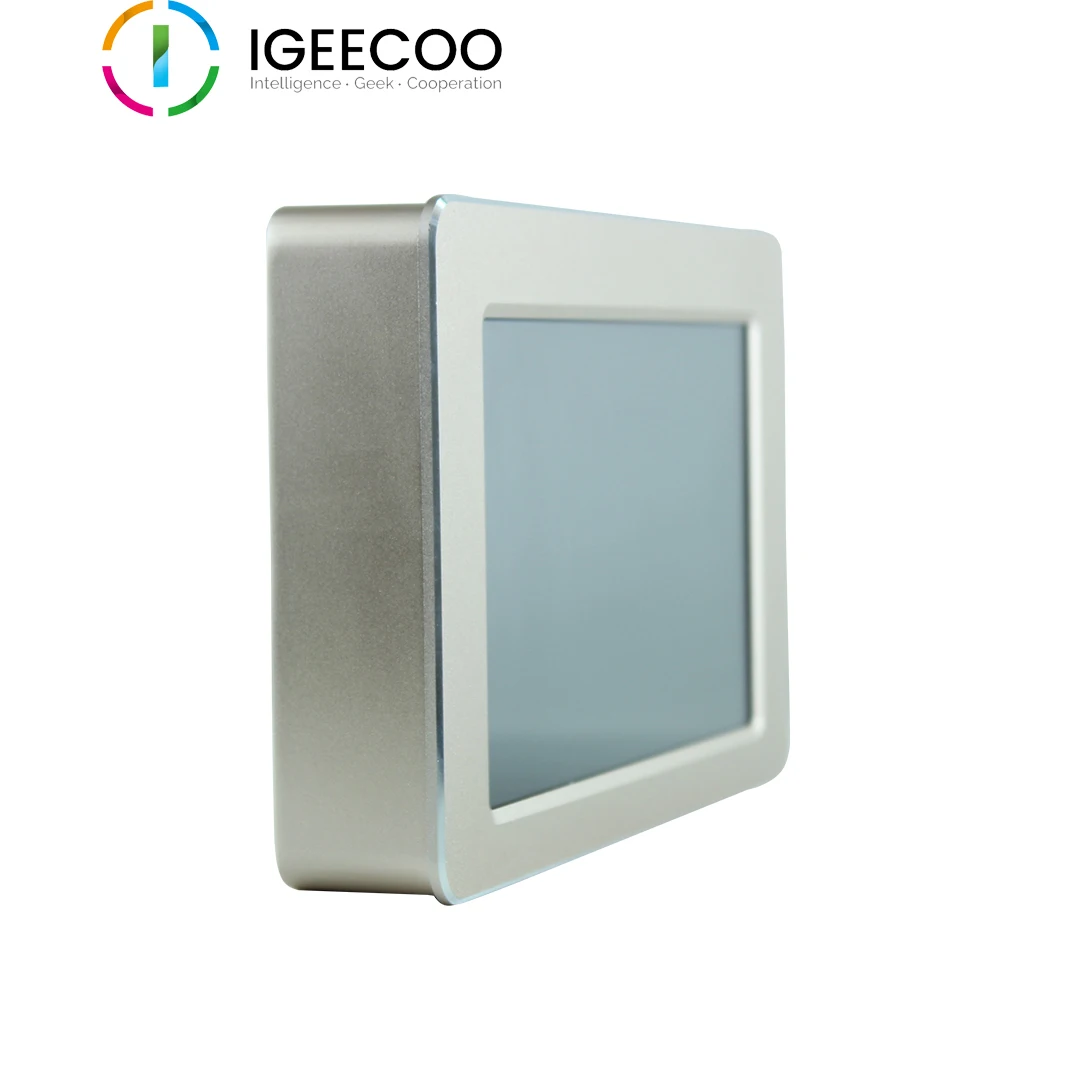

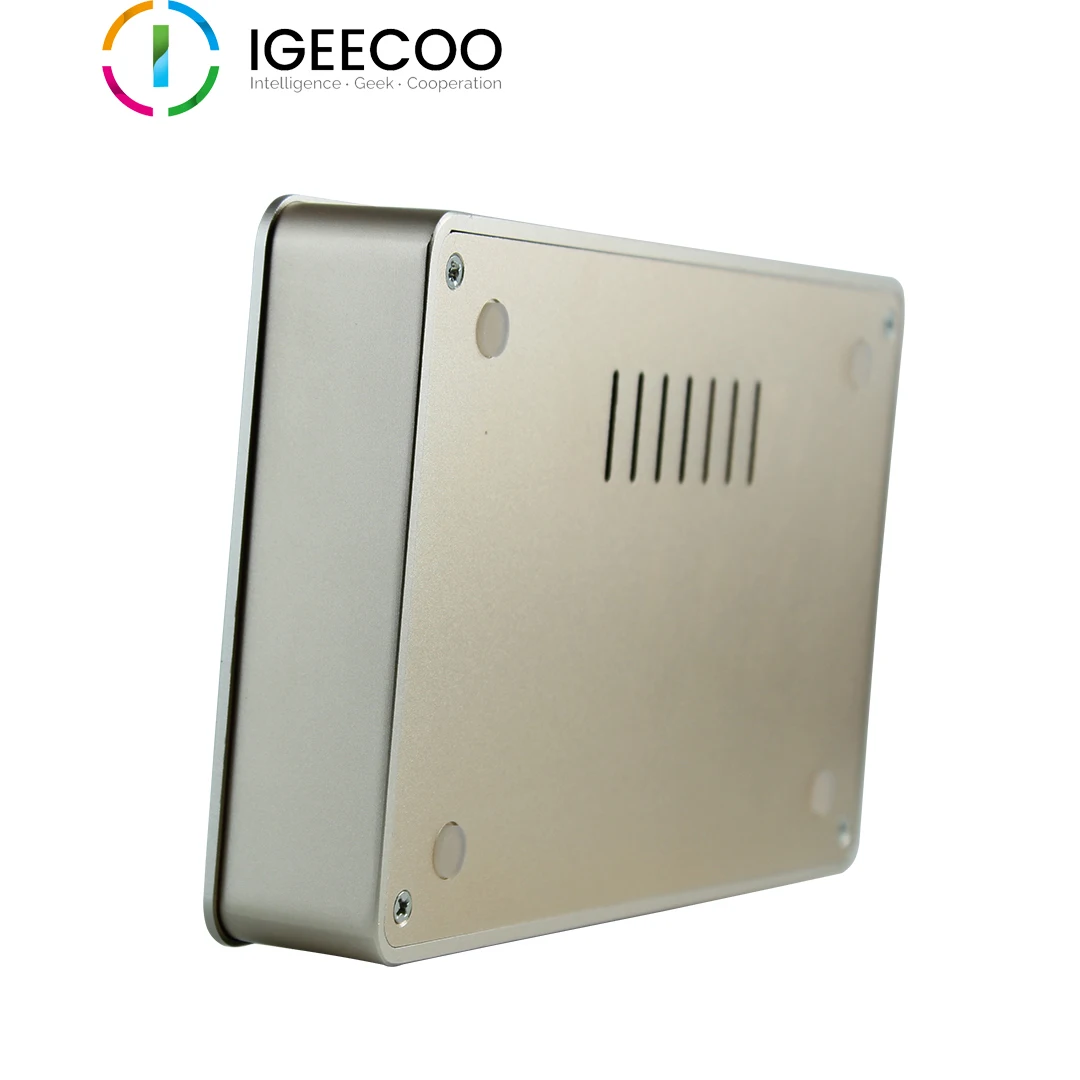

Normalized Recording & Broadcasting Terminal with 2 HDMI from IGEECOO

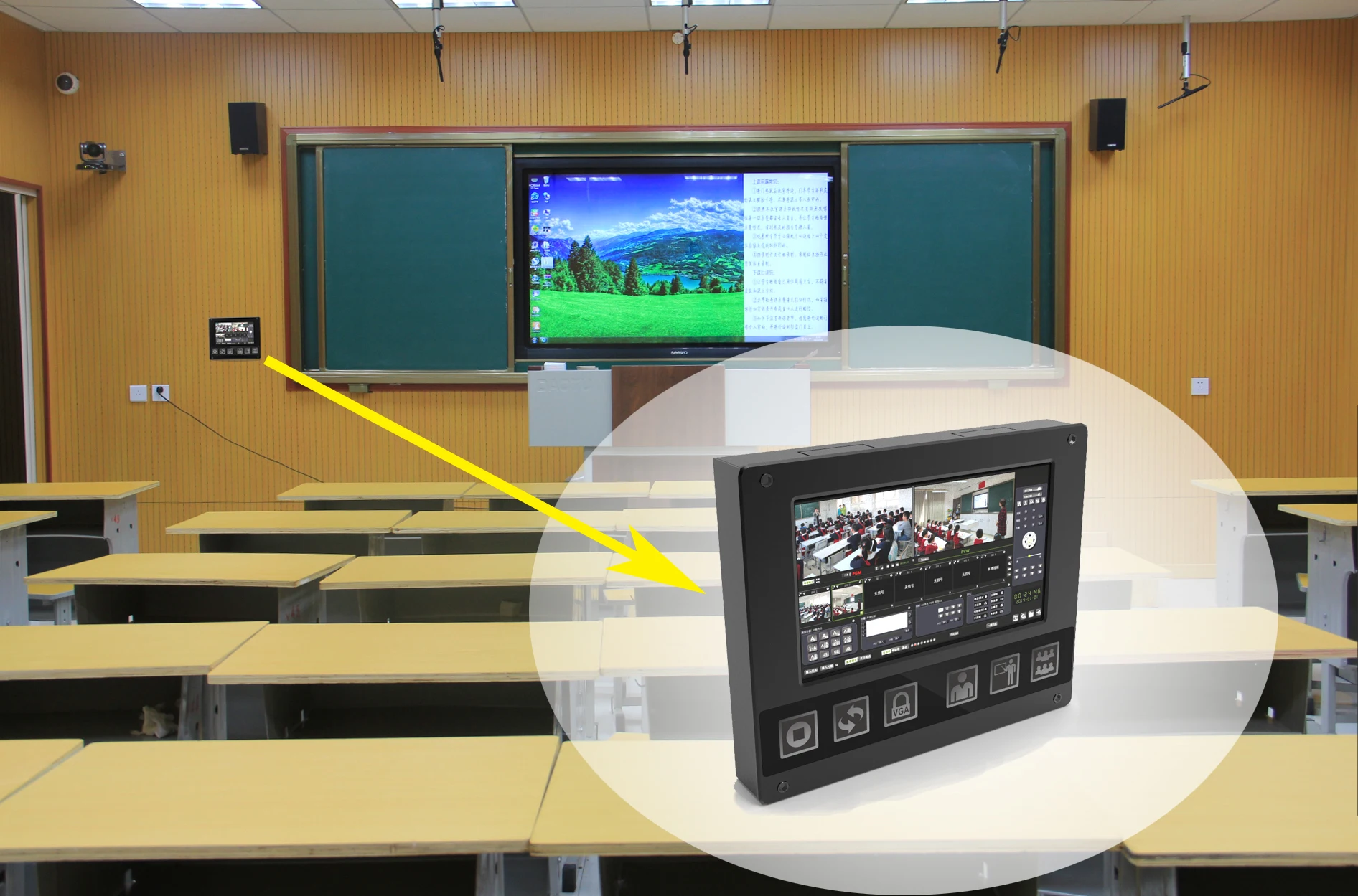

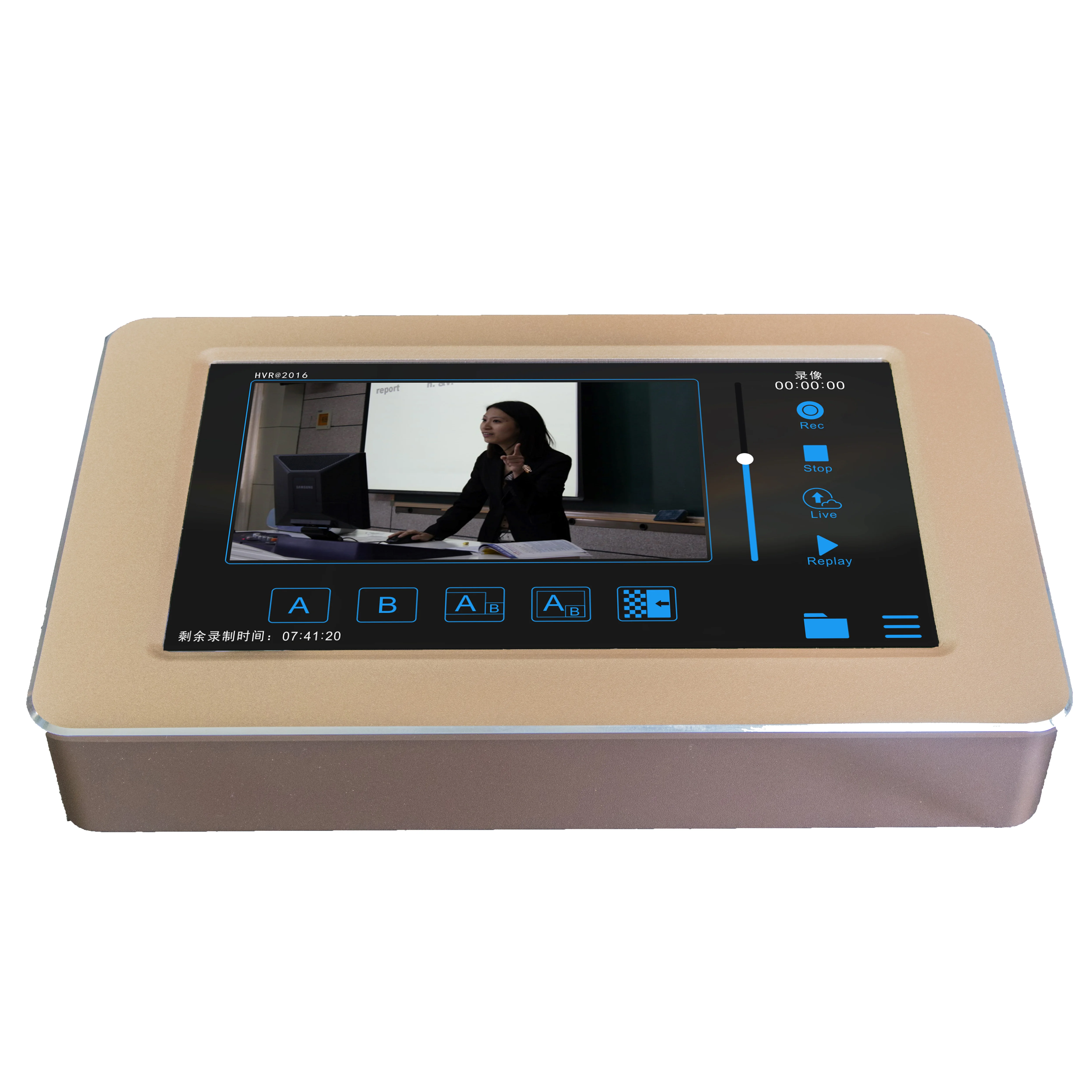

Embedded Normalized Recording & Broadcasting Terminal RSX2H(2*HDMI), adopt super powerful full HD Video processor chip and makes 1080P video perfect. With Small size, easy to carry, the interface is simple, easy to set up, as 2*HDMI normalized mobile recording and broadcasting terminal makes it suitable for broadcasting lecturing and training room. 2*HDMI-IN support 1080P60; 1*HDMI-OUT for PGM Video or works as video-in for video conference. With 7 inch LCD touch screen display makes user can direct by touch screen, can also control by connect mouse and display, and load IE for remote direct from PC or tablet. This highly integrated broadcasting and recording device can meet the requirement of professional team for lecturing and training and also can meet the requirement of teacher DIY broadcasting.
Item | Parameter | Performance Index |
System | Language | Chinese/English |
UI | Graphical user interface | |
OS | Embedded Linux | |

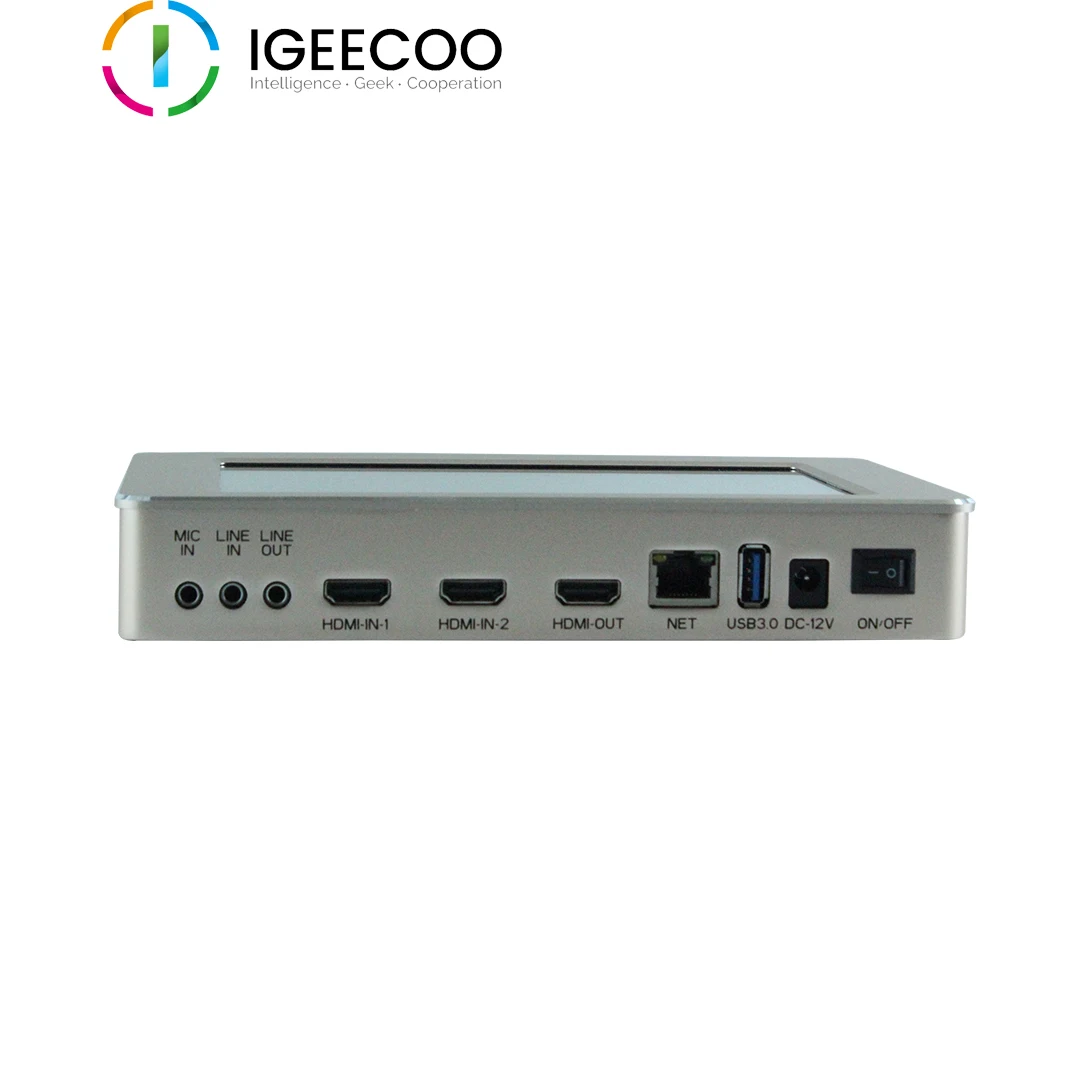

Video | Video-In | 2*HDMI Video In, (1920*1080) |
Video-Out | 1*HDMI Video Out, (1920*1080) | |
Display | Sole Picture, PIP, 2 split screen | |
Video Standard | Digital HD Signal | |
Max FPS In | 1080P@60 | |
Video IN | HDMI: 1024*768p@60fps、1280*720p@50/60fps、1920*1080i@60/50fps、1920*1080p@30/25fps、1920*1080p@60/50fps | |
Audio | Audio-In | 4*Audio In (1*3.5mm MIC-IN&1*LINE-IN&2*HDMI Audio-IN) |
Audio-Out | 2*Audio Out (1*HDMI Audio Out&1*3.5mm LINE-OUT) | |
Audio Coding | AAC | |
Record Methods | Video & Audio Sync Recording | |
Video Processing & Storage | Video-Out Format | MP4 |
Video Coding Frame | 1~30fps | |
Video Rate | 64kbps~20Mbps adjustable | |
Audio Rate | 8~128KB adjustable | |
Storage | Built-in SATA disk and USB3.0 flash disk | |
Communication Port | RJ45 | 1* 802.3ab 1000Base-T Gigabit Ethernet |
USB | 1*USB3.0 (mouse, USB flash disk) | |

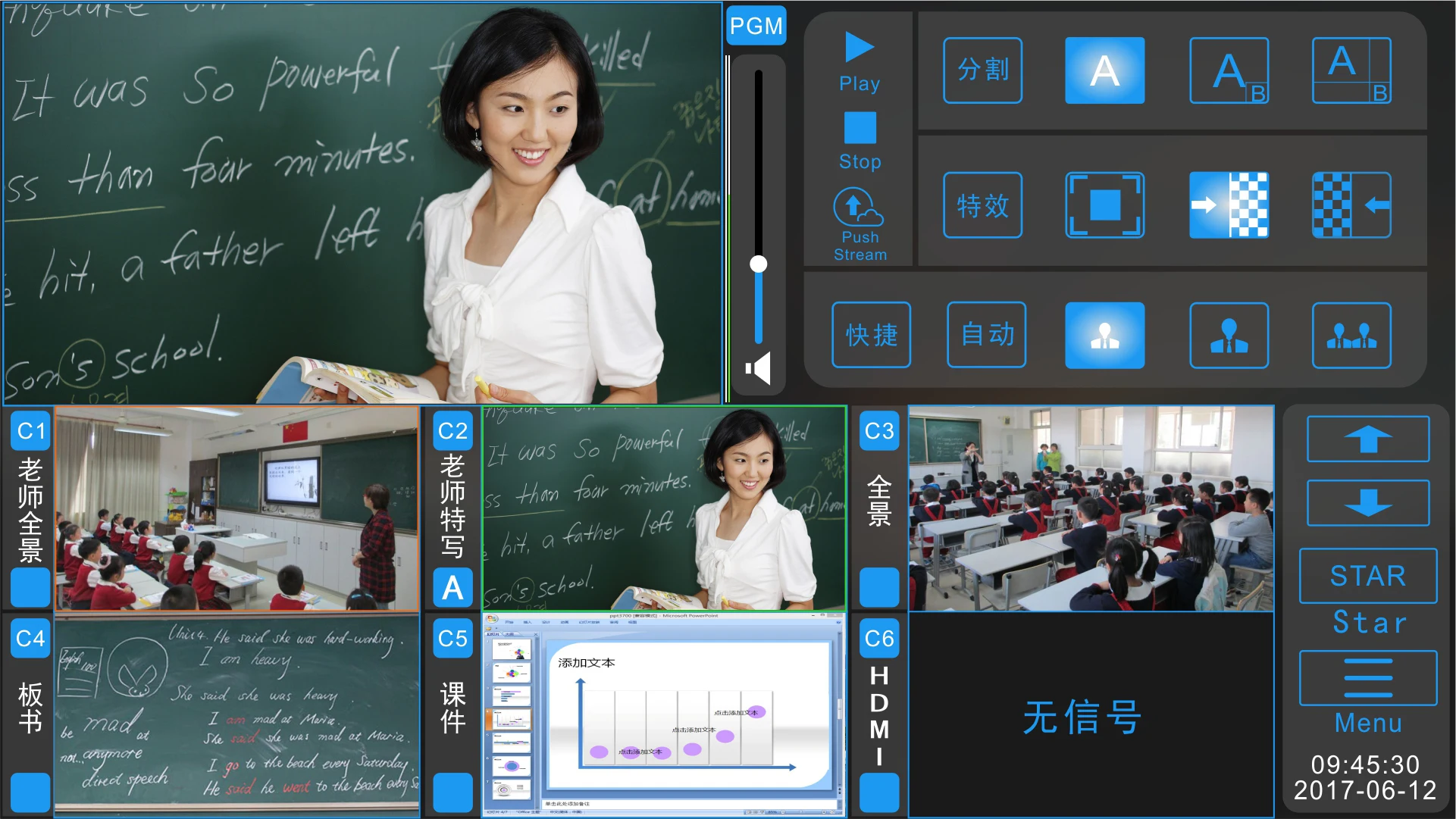

Functions | Director | Video Preview/broadcasting screen monitor/video switch/pre-broadcasting screen monitor/split screen/dual movie director mode/adjust audio/video split/PTZ/special effect/subtitle/OSD/corner mark/logo... |
Broadcasting & Recording | Real-time Stream/Sync Record/Movie Mode/Source Mode/Movie & Source at same time/Manual & Auto Director/ One-Key Stream & Record/ Local Play Back/Built-in Player/ Double Movie Mode | |
Software Updating | Support Network/RS232 Update | |
Storage | Support built-in disk, USB disk, NAS disk mapping; Support USB Video export; Support SAMBA sharing download; Support FTP Download/Upload video | |
Live Protocol | Standard RTMP, RTSP, UDP Multicast, TCP Unicast | |
Networking Protocol | TCP, UDP, RTMP, RTSP, RTP, NFS, FTP, DHCP | |
Environment | Voltage | DC12V |
Working Temperature | -10℃-85℃, Well ventilated working areas | |
Working Humidity | <85%RH | |
Weight | 1KG(GW) | |
Size(mm) | 204mm*127mm*34mm |
