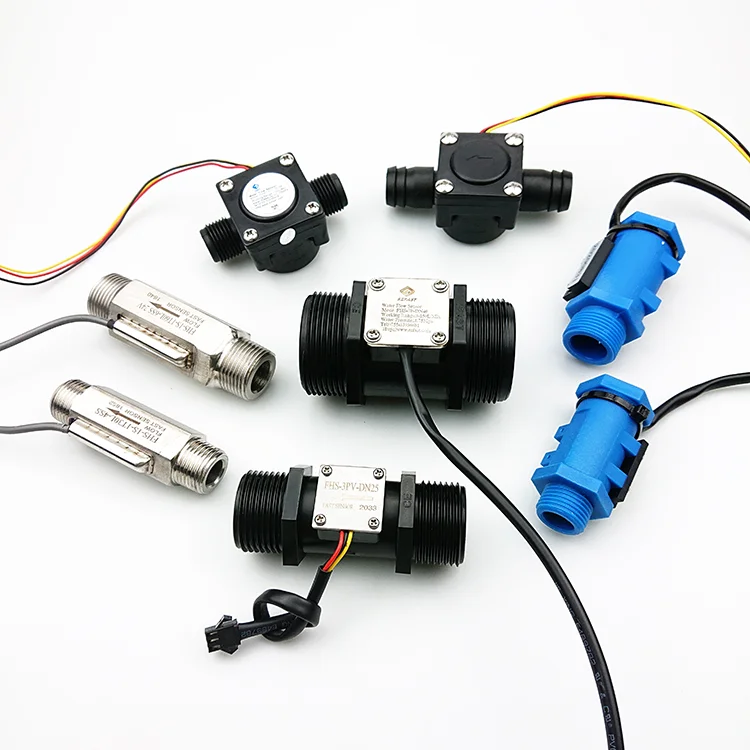

DN15 pipe hall sensor 2 30L/min magnetic water flow sensor
- Category: Flow Sensors >>>
- Supplier: FAST ELECTRIC LIMITED
Share on (62390165503):
Product Overview
Description
Best sale G1/2'' 1~30l/min vertical and horizontal direction hall magnetic water flow sensor
Product Description

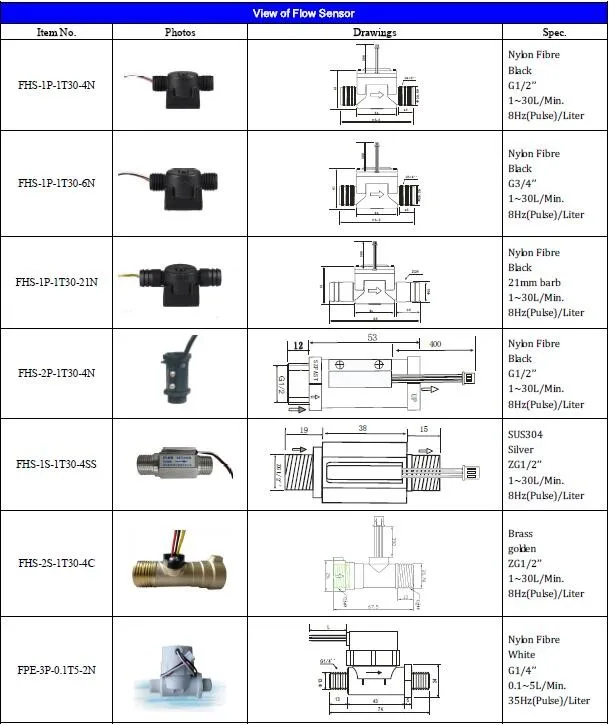

| Model | FHS-1P-1T30-4N |
| Material | Nylon and fibre |
| Product Color | Black |
| Product Type | Latched Hall Element |
| Output Signal | Pulse waves (Hz) |
| Working Voltage | 3V~18V DC |
| Max. Current | 25MA(DC12V)/15MA(DC5V) |
| Start-up Flow | ≥1L/Min. |
| Flow Range | 1.0~30 L/Min. |
| Flow Feature | F=8N (F=HZ, N=L/Min.) |
| Accuracy | ±5% |
| Pressure | ≤1.75Mpa |
| Installation | Vertical and horizontal direction (as per arrow) |
| Temperature | 0~90℃ |
| Wire spec | UL1007 AWG24 |

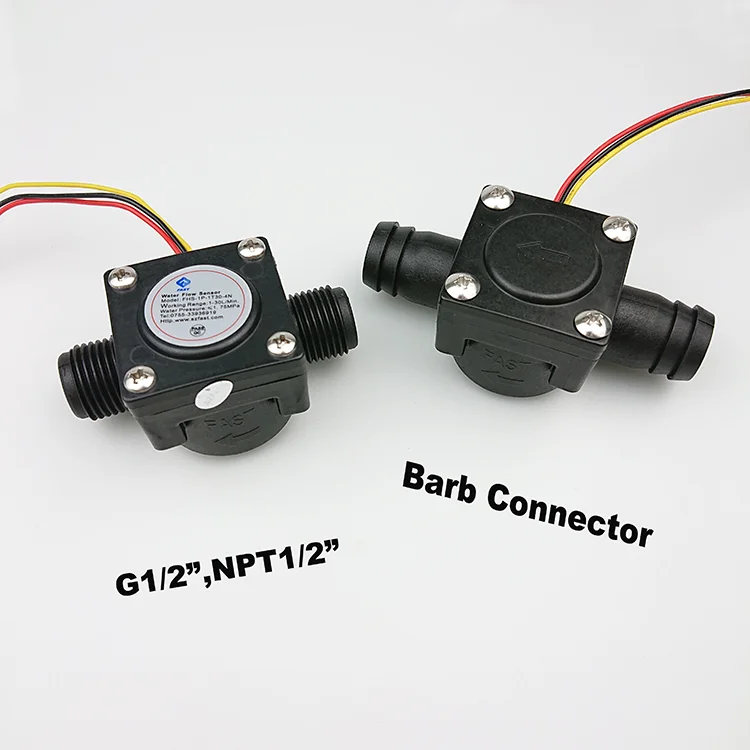

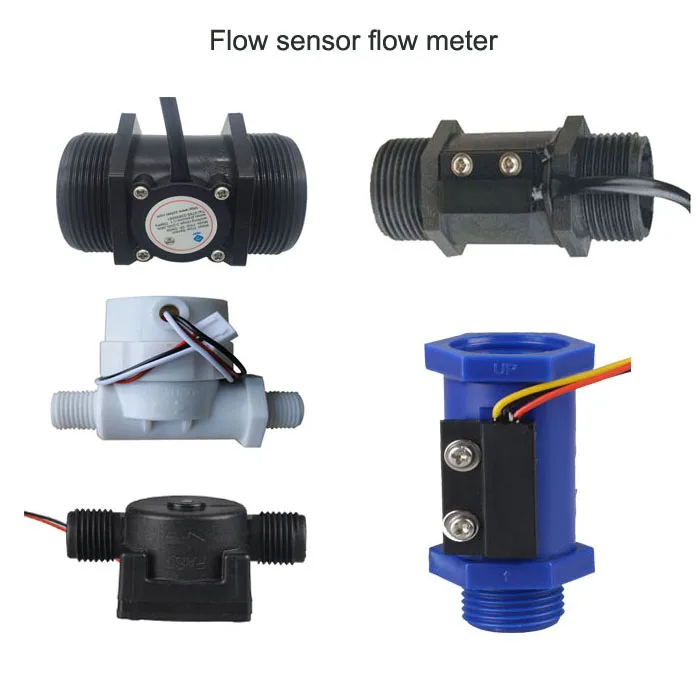

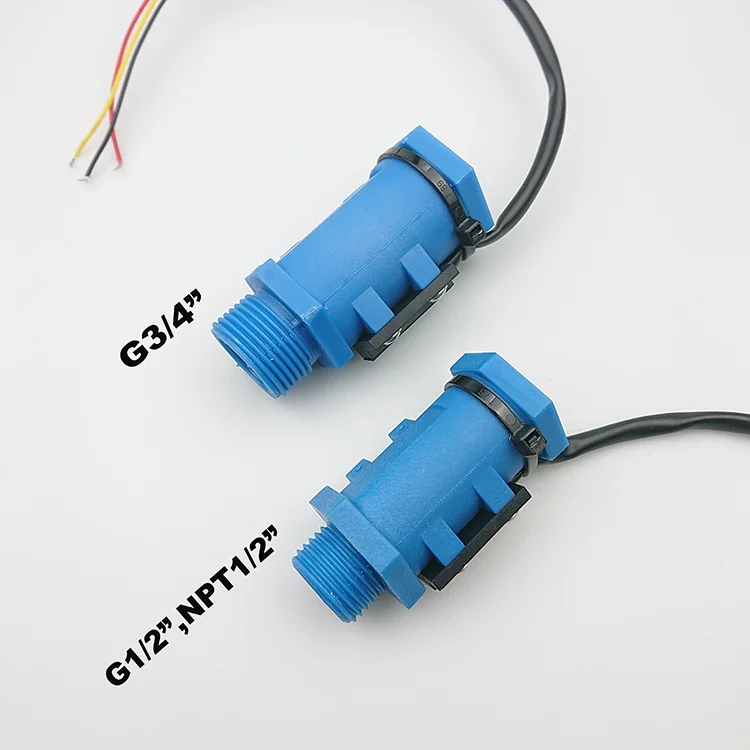

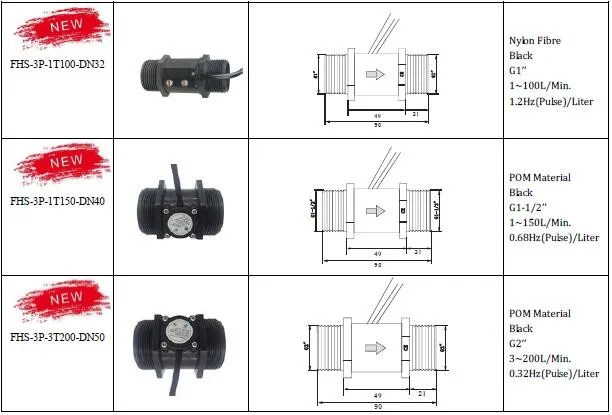

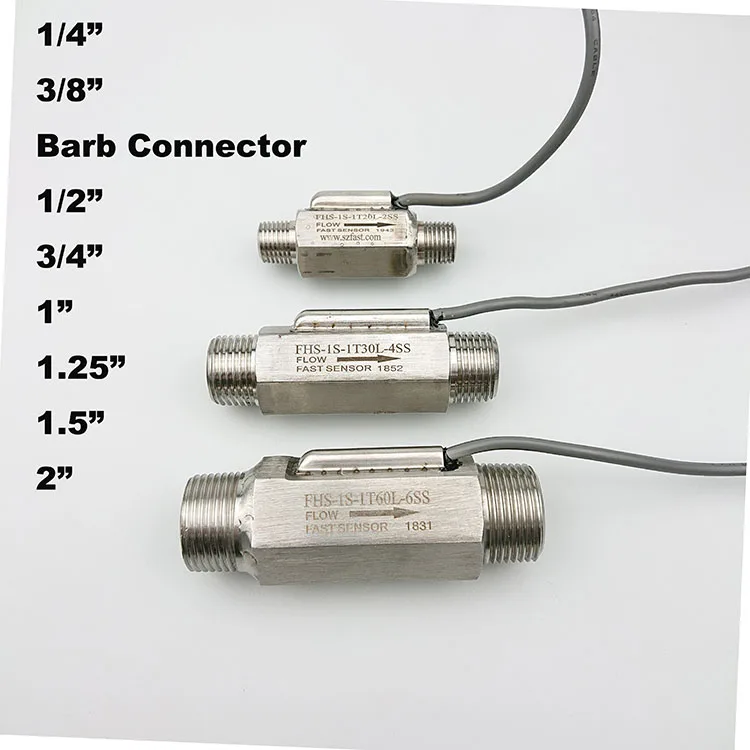

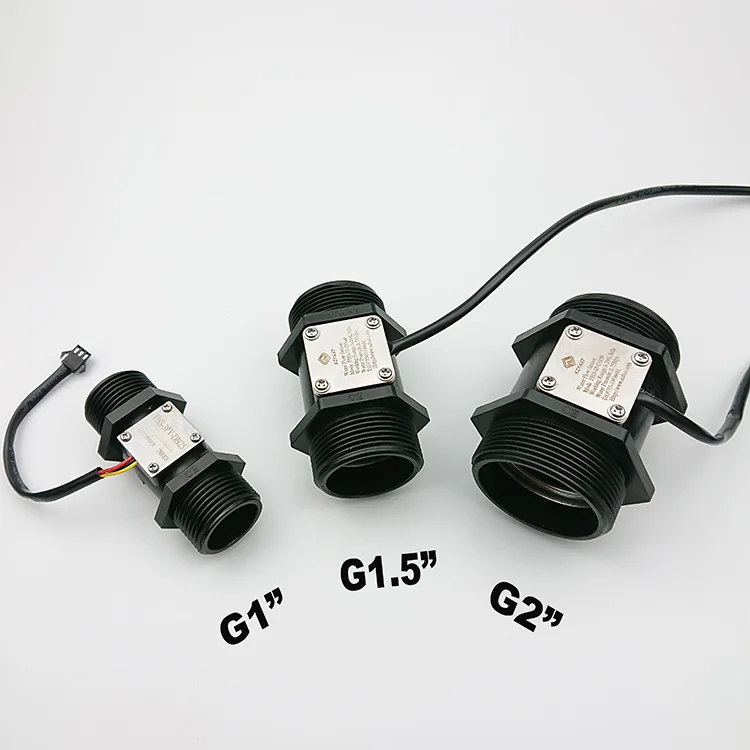

Product show
Hot sale
Company Information
Packaging & Shipping
FAQ
1. Q: How To Order ?
A: Step 1, please tell us what model and quantity you need;
Step 2, then we will make a PI for you to confirm the order details;
Step 3, when we confirmed everything, can arrange the payment;
Step 4, finally we deliver the goods within the stipulated time.
2 . Q: When will make delivery ?
A: Delivery Time
Sample Order: 1-3 days after receipt of the full payment.
Stock Order: 3-7days after receipt of the full payment
OEM Order: 12-20days after receipt of the deposit.
3. After-sales Service
A:1 year warranty for all kinds of products;
If you find any defective accessories first time, we will give you the new parts for free to replace in the next order, as an experienced manufacturer, you can rest assured of the quality and after-sales service.
4.Q Do you support drop shipping?
A:Yes, your drop shipping is available.
