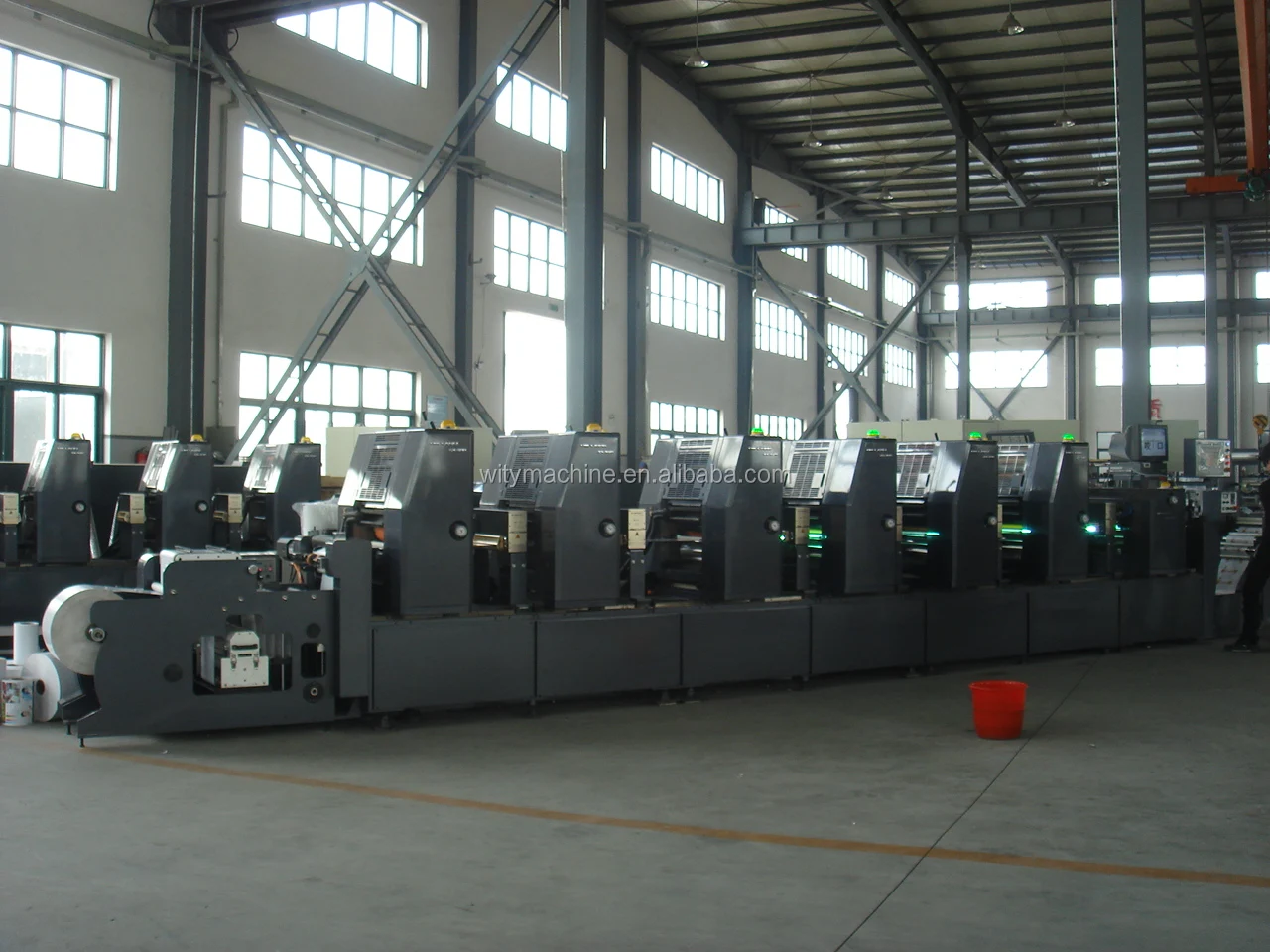

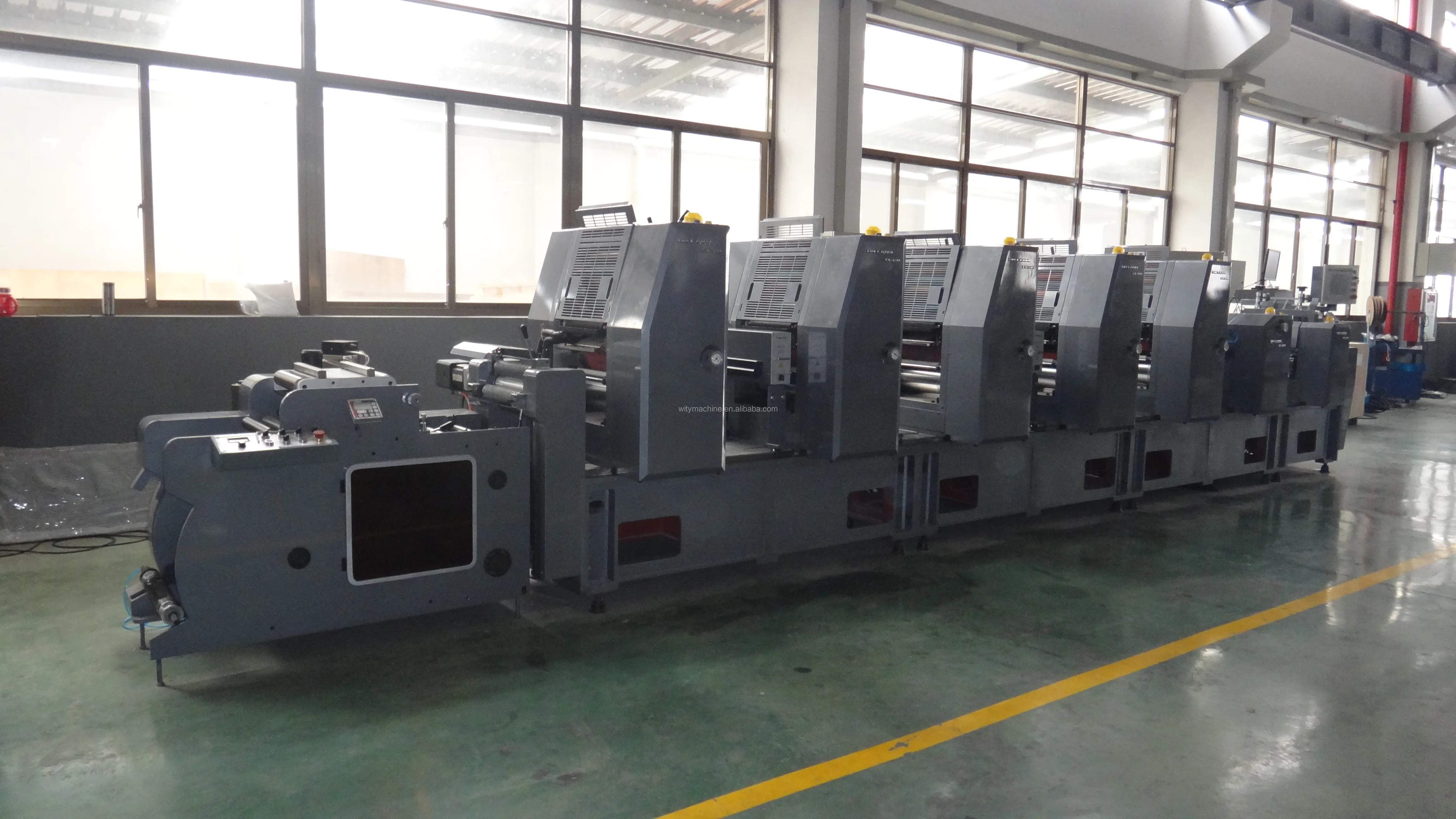

Intermittent Label Offset Printing Machine 4 5 6 8 10 Colors with Servo Control System
Intermittent Label Offset Printing Machine 4 5 6 8 10 Colors with Servo Control System
Intermittent Label Offset Printing Machine 4 5 6 8 10 Colors with Servo Control System
Intermittent Label Offset Printing Machine 4 5 6 8 10 Colors with Servo Control System
Intermittent Label Offset Printing Machine 4 5 6 8 10 Colors with Servo Control System
Intermittent Label Offset Printing Machine 4 5 6 8 10 Colors with Servo Control System
Intermittent Label Offset Printing Machine 4 5 6 8 10 Colors with Servo Control System

Intermittent Label Offset Printing Machine 4 5 6 8 10 Colors with Servo Control System

Share on (62390508209):


Price:

Quantity:


Product Overview

Description


Product Description

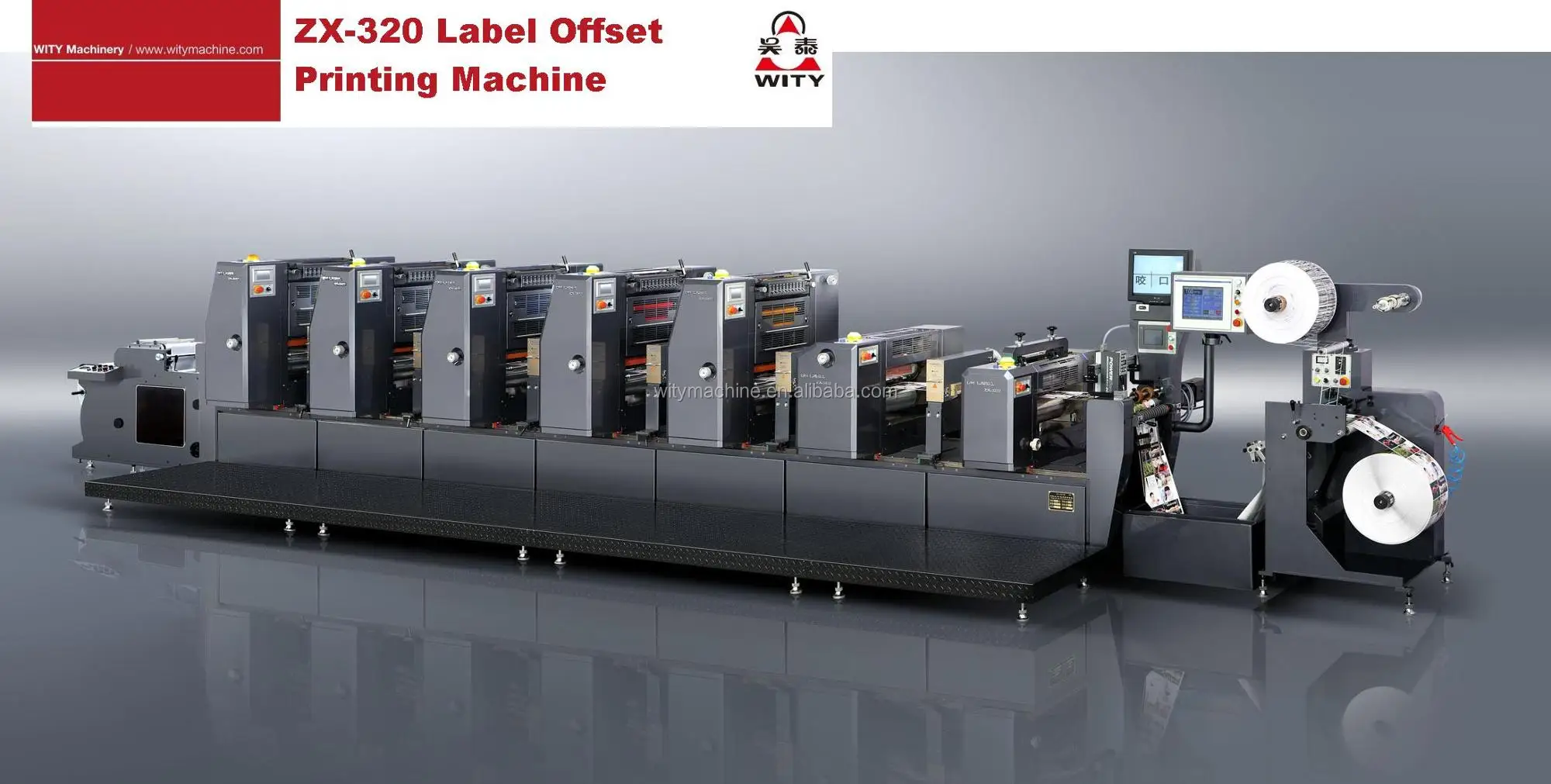

ZX-320 machine adopts latest servo control system which can ensure the stabilization when the printing material in the printing process. It can free from the printing roller change. The operation of this machine is fast, convenient and simple.
Technical Parameters
Printing speed:
50-180 rpm/Min
Printing color:
4-10colors
Max. printing length:
350mm
Max. web width:
320mm
Max. printing width:
300mm
Max. unwinding diameter:
700mm
Max. rewinding diameter:
600mm
Power supply:
3 phase 380V
Total power:
33.6kw (without UV power)
Main machine size:
10550mm×1600mm×1850mm（L×W×H）6 colors
Machine weight:
about 8.0t
Samples

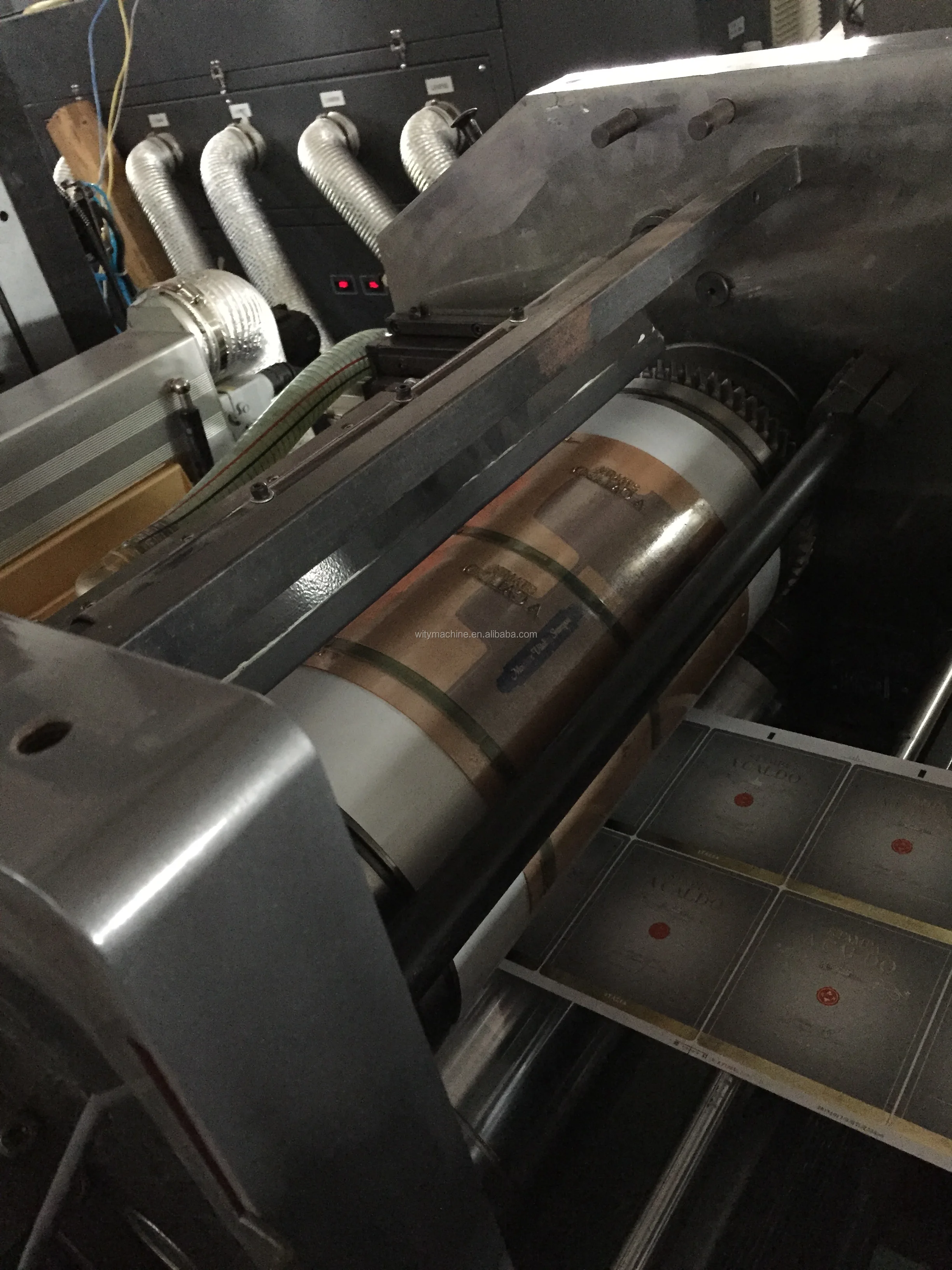

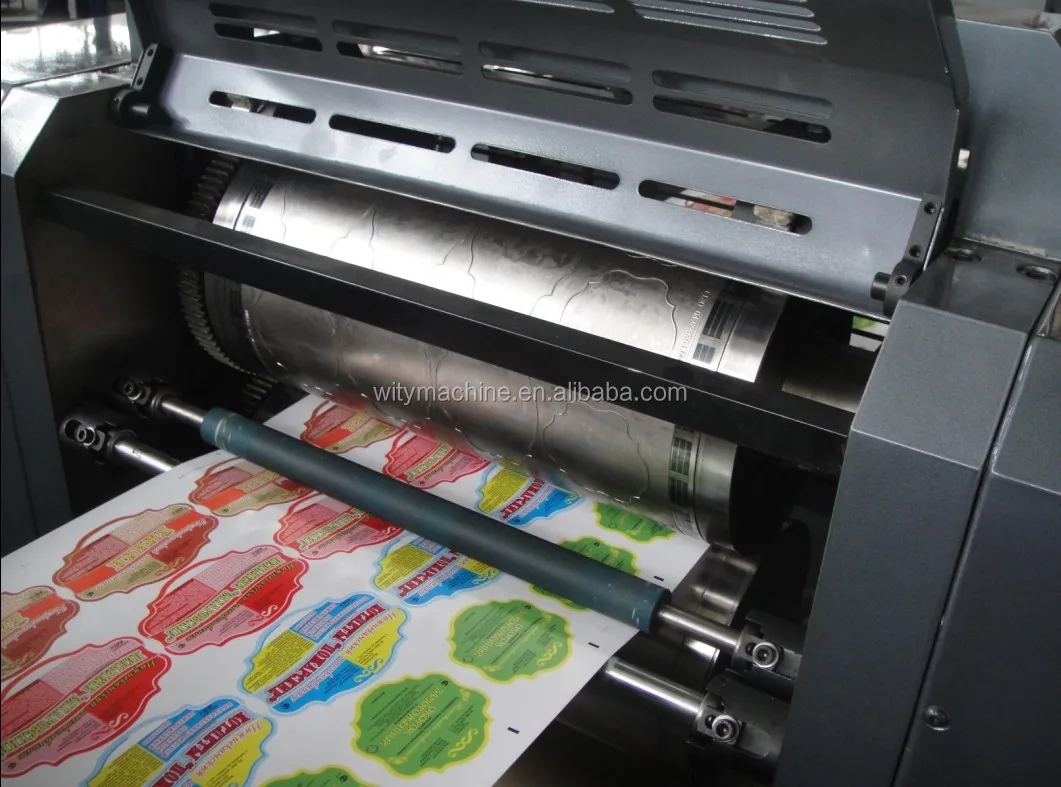

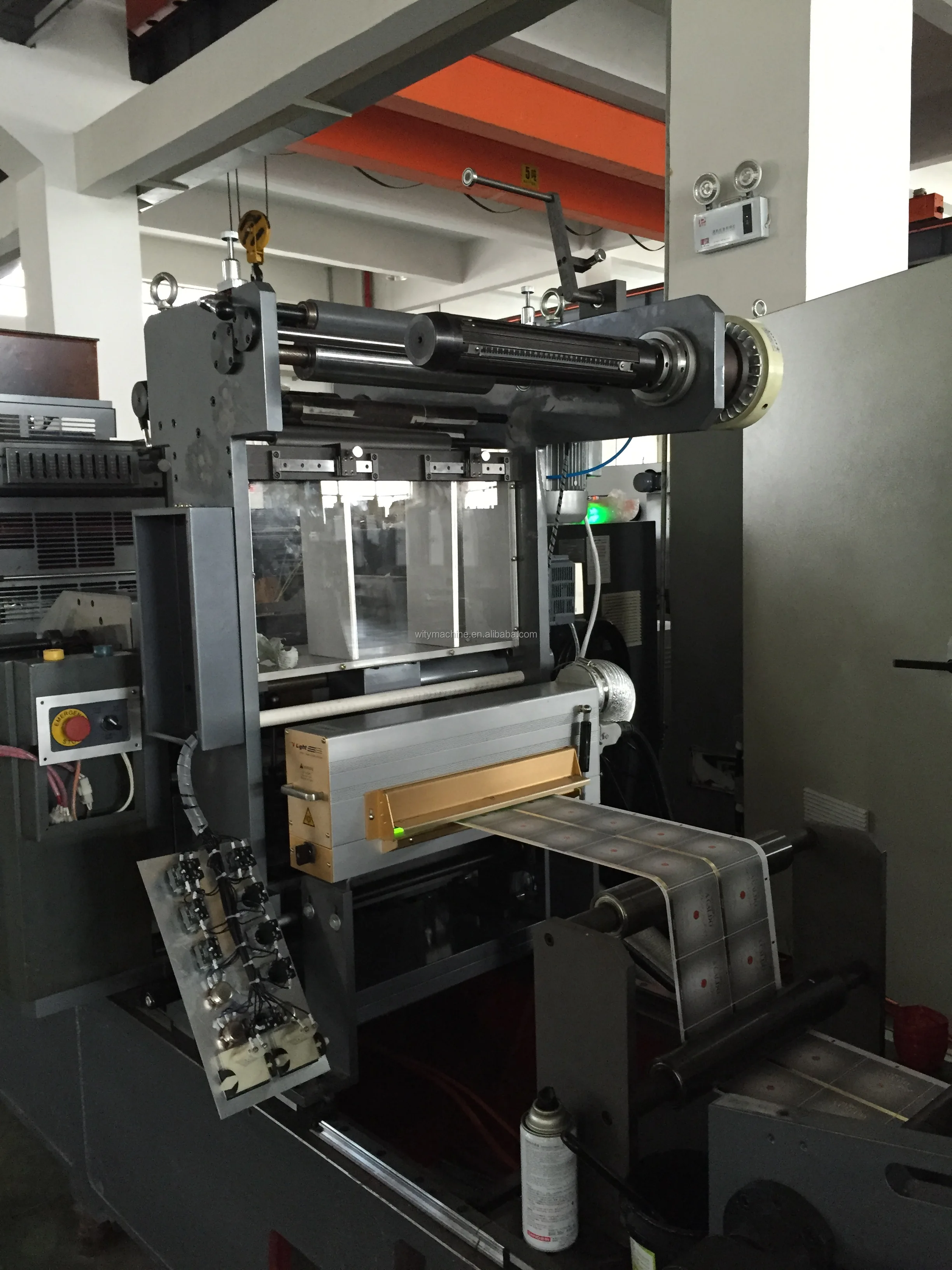

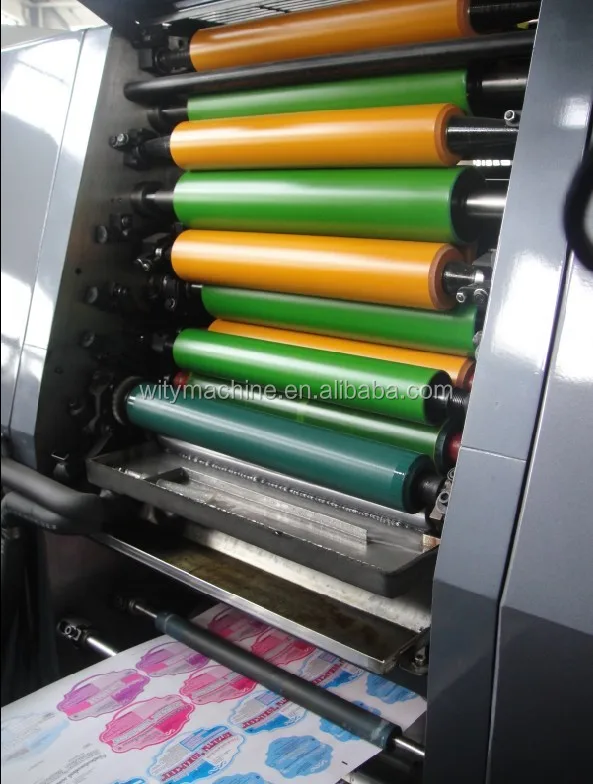

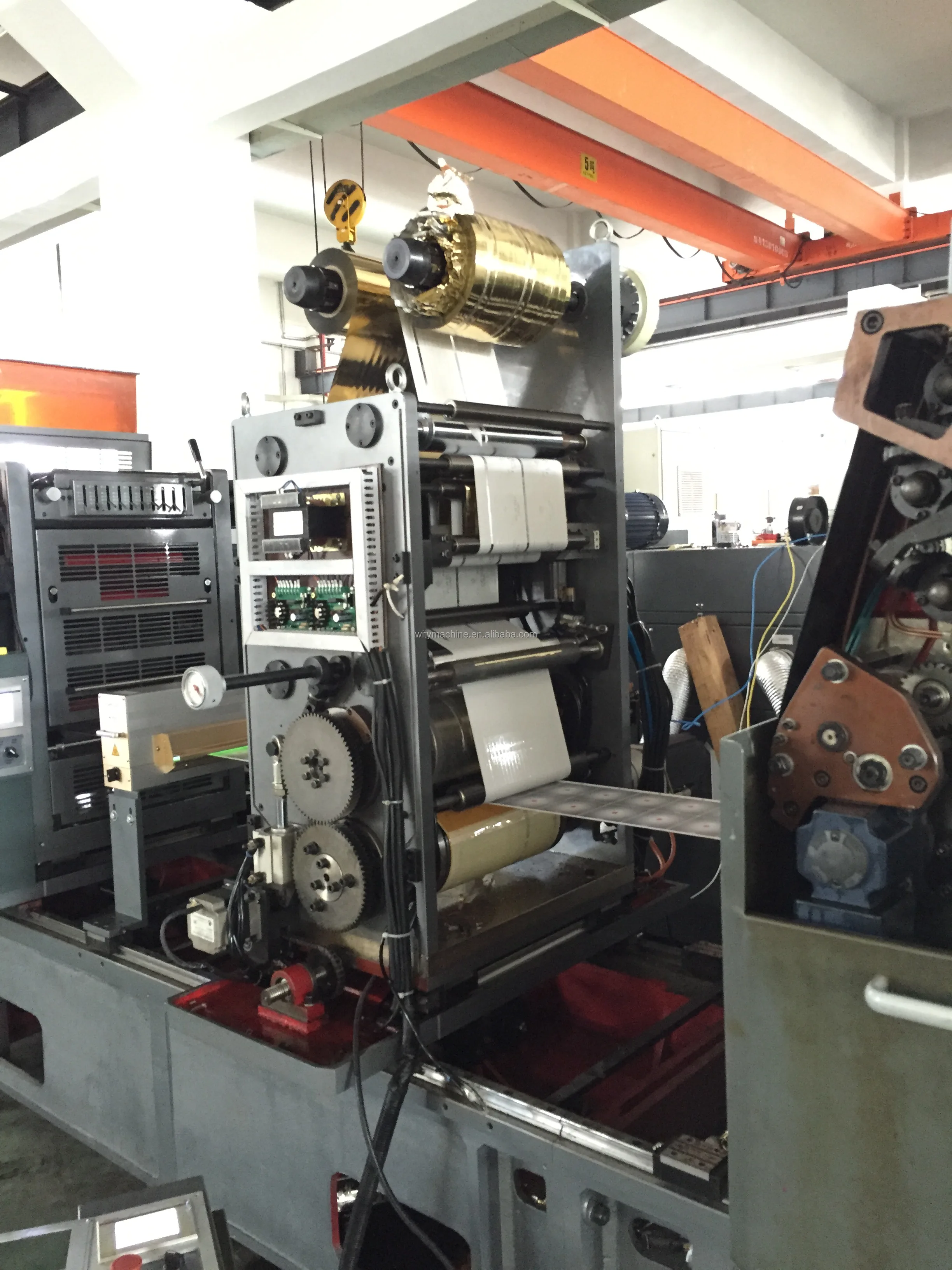

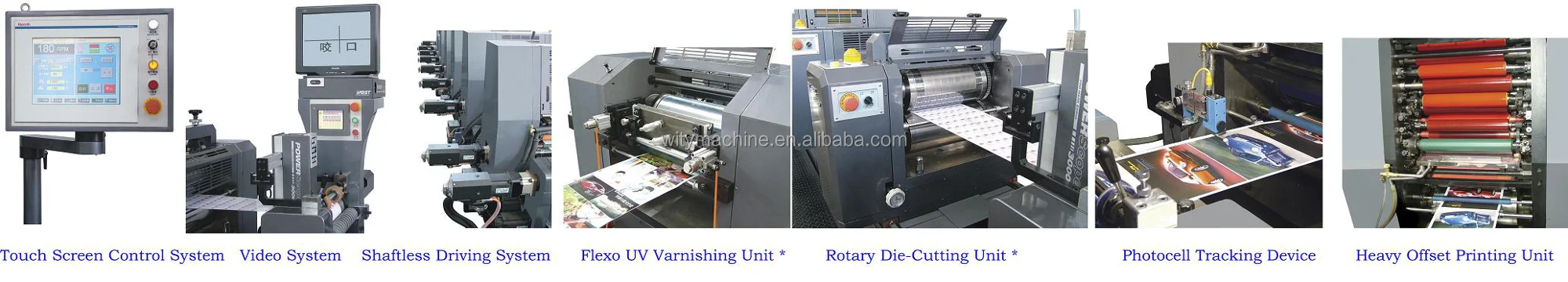

Details Images
