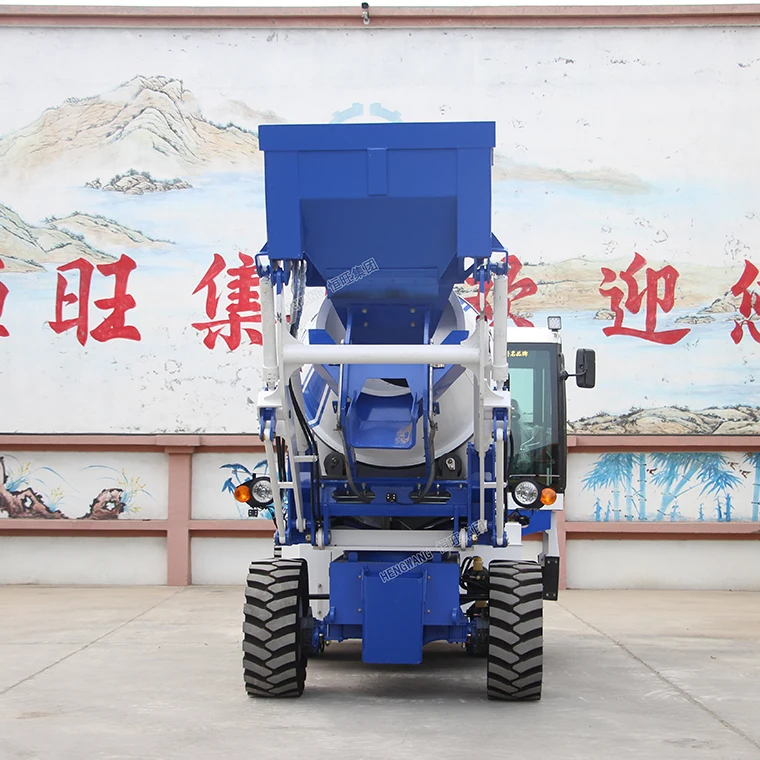

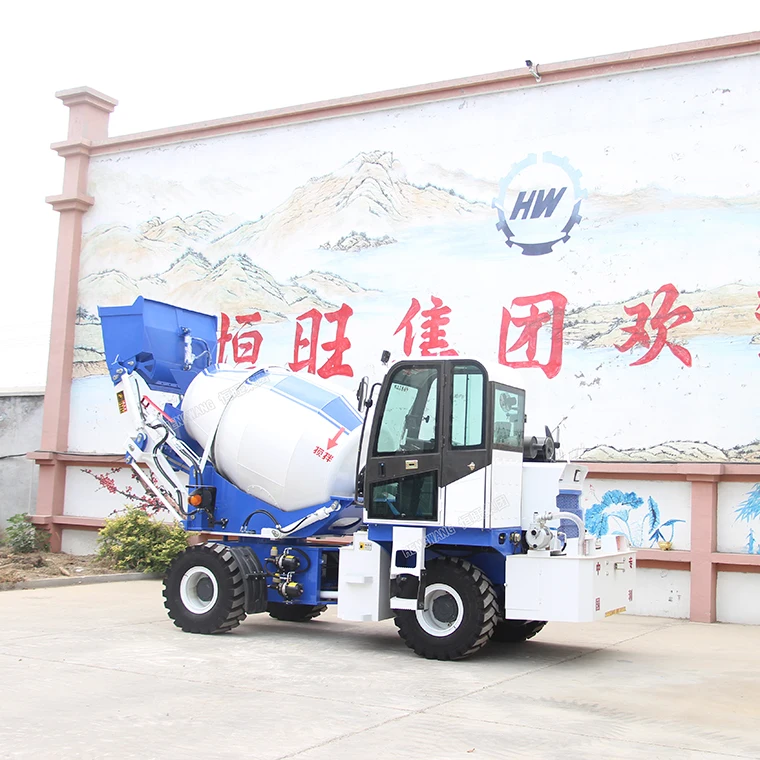

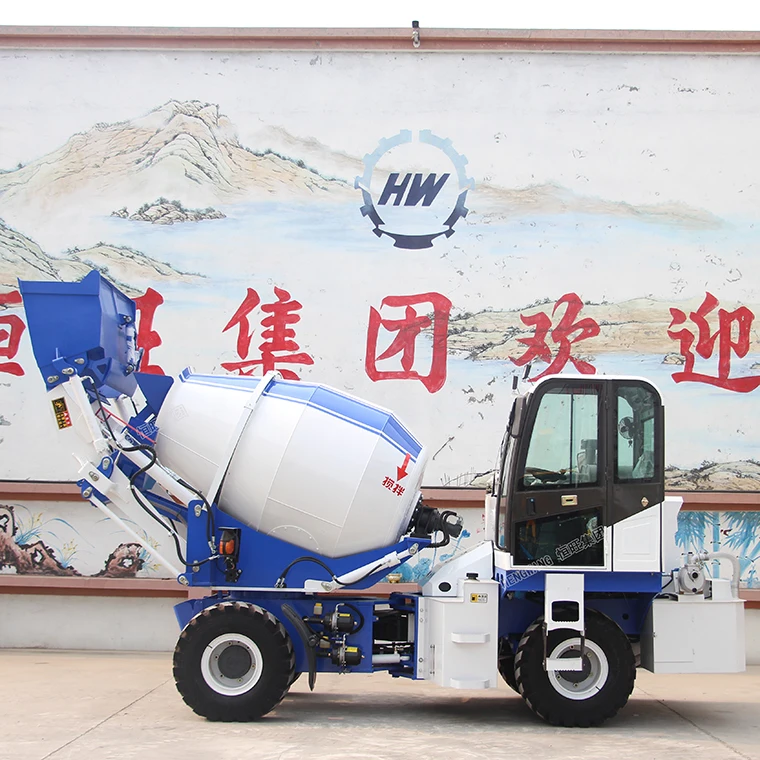

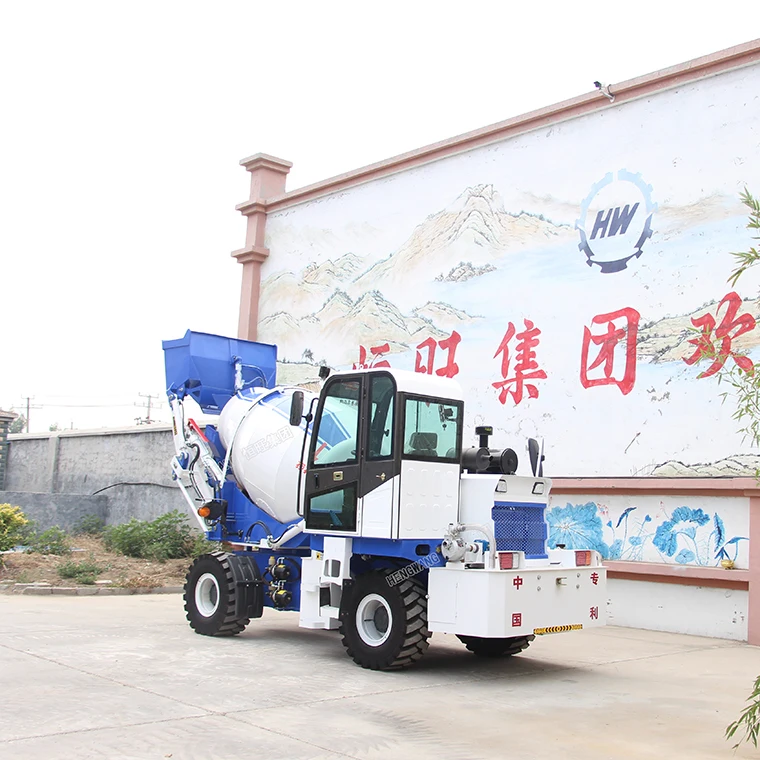

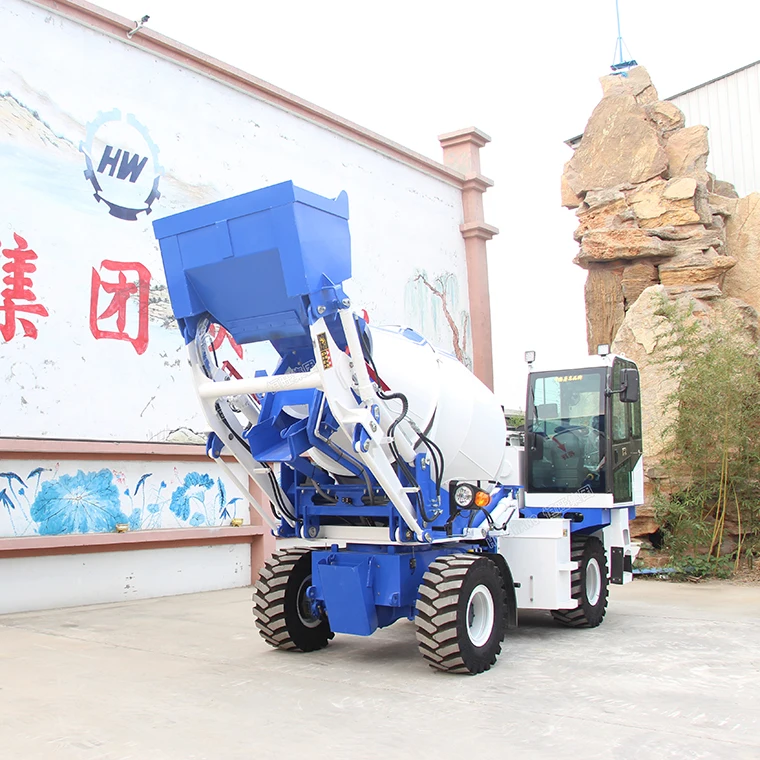

От 0, 8 м3 до 4 м3, мобильный самозагружающийся бетоносмеситель для продажи
От 0, 8 м3 до 4 м3, мобильный самозагружающийся бетоносмеситель для продажи
От 0, 8 м3 до 4 м3, мобильный самозагружающийся бетоносмеситель для продажи
От 0, 8 м3 до 4 м3, мобильный самозагружающийся бетоносмеситель для продажи
От 0, 8 м3 до 4 м3, мобильный самозагружающийся бетоносмеситель для продажи
От 0, 8 м3 до 4 м3, мобильный самозагружающийся бетоносмеситель для продажи
От 0, 8 м3 до 4 м3, мобильный самозагружающийся бетоносмеситель для продажи

От 0, 8 м3 до 4 м3, мобильный самозагружающийся бетоносмеситель для продажи

Share on (62391408716):


Price:

Quantity:


Product Overview

Description


Product Description
Combine concrete truck mixer with concrete mixer, self loading concrete mixer can automatic feeding, metering, and mixing to discharge, and more, it can realize the transportation and site construction operations, which greatly improves the work efficiency, reduce production cost and time.
Advantage :
1. Italy leading design, automatic feeding mixing system
2. Simple and convenient operation
3. High efficiency output, save time and labor, save cost
4. The perfect combination of mixing truck and loading car.
Product Paramenters
Actual stirring capacity
2.4 m3
Rotary drum capacity
2.3 m3
Degree of bias
16 °
Rotation Speed
20-30 r/min
Direction of rotation
feed:clockwise output:counter clockwise
Mixing drum blade
Two sets of spiral blade and 4 sets of auxiliary blades
Slump of concrete
70-260mm
Hydraulic Power Transmission System
Pump model
CBGV-4025
Hydraulic model
BM5-400
Reducer Ratio
01:24
Water Supply
Tank Capacity
540L
Engine power
78Kw /2400 r/min
Max.torque
380 N.M /1500-1800 r/min
Max.running speed
24 km/h
Min. steering radius
4500mm
Climbing capacity
30 °
Tire
16/17-20
Driving type
4X4
Max.load capacity
5600kg
Whole machine weight
11150 kg
Dimension
6350*2510*2850mm
Wheelbase
2300mm
Bucket capacity
0.5  m3
Detailed Images
Related Products
Company Introduction

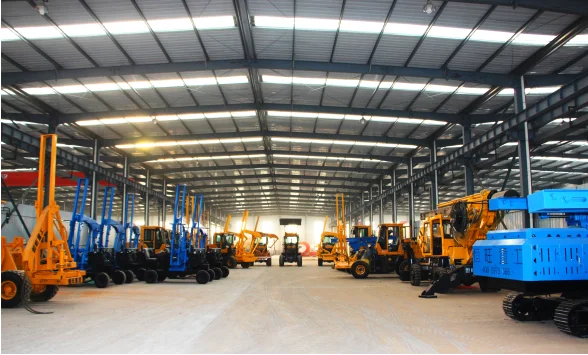

  Our Company Introduction: Shandong Hengwang Group Is located in Shiqiao Industrial Park, Beihu Provincial Tourist & Resort Area, Jining city ,Shandong Province,covers an area of 40000 square meters, is a collection of pile driving machinery , driling machine and conctruction machinery design,manufacture and installation of an integrated enterprise.
  Our company produces the piling machinery a total of 10 major series more than 20 varieties, mainly include photovoltaic crawler pile driver, caterpillar screw drivers, HW series, KLB hydraulic pile driver walking long spiral drill, caterpillar diesel pile hammer machine, vibration sinking pipe pile, DZB multifunction rig, water well driling rig machine,concrete pump and other products. Widely used in civil engineering, municipal and building foundation construction of installation works. Can meet the roads, railways, Bridges, industrial and civil building, harbor wharf, the need for the basic construction of the dam seepage control and so on.
Our Services & Strength
.about after-sale service ,we have 20 engineer have valid visas all over the world . they can fly at any time if you need technology support .
we have sufficient stock in our spare parts warehouse ,can send out the spare parts at once when you need them.
