Double Layer Roll Forming Machine Steel Tile Hydraulic Automatic Manual Decoiler 12 15m/min 0.3 0.8mm 18 Stations Green orange
- Category: >>>
- Supplier: Xiamen Bms Group
Share on (62392648925):
Product Overview
Description

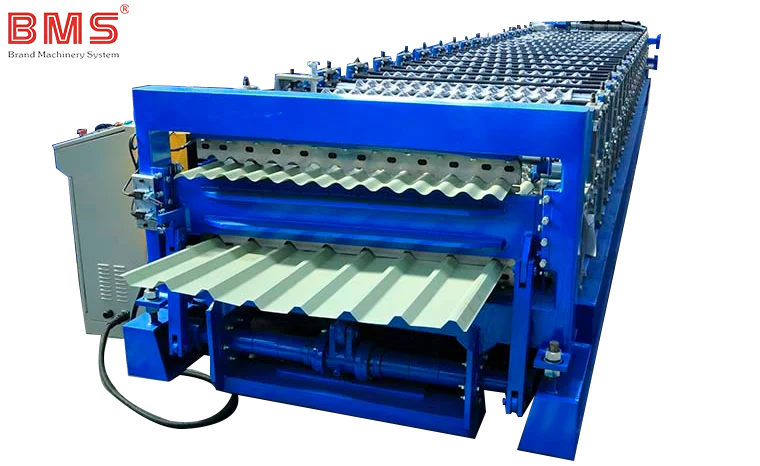

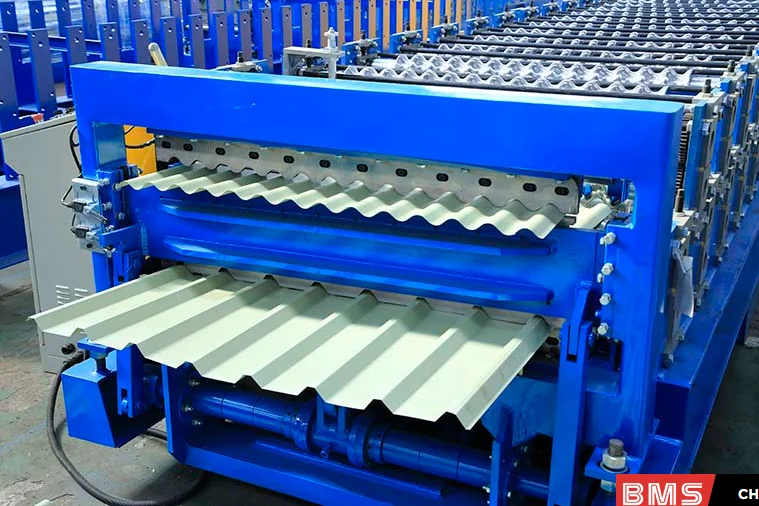

Double layer roll forming machine
Main features of double layer roll forming machine
The advantages of double layer roll forming machine are as follows:
1.Produce different profiles
2.Easy operation, low maintenance cost
1.Produce different profiles
2.Easy operation, low maintenance cost
3.stable and durable
4.save space,

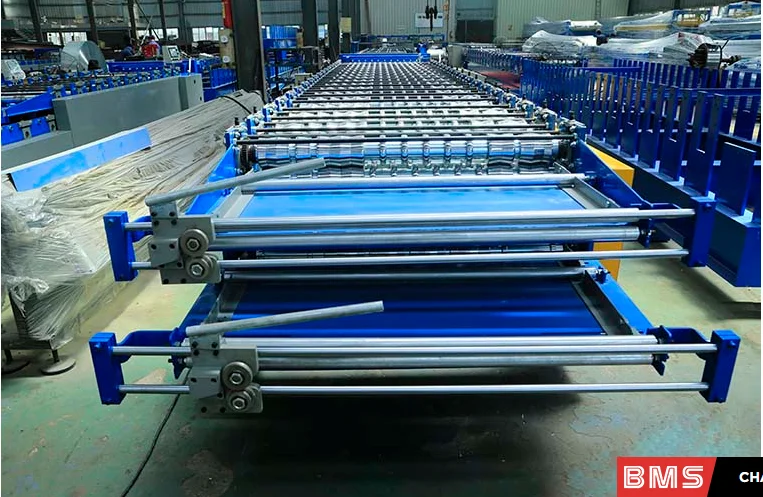

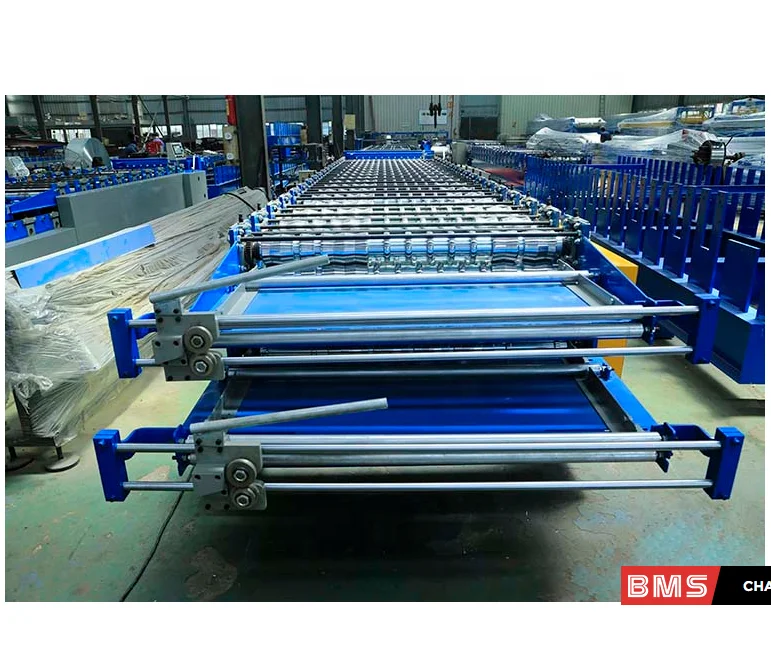

Detailed Images of double layer Roll Forming Machine
Machine Parts
1) double layer Roll Forming Machine pre-cutter:
Brand: BMS Original: China
1) double layer Roll Forming Machine pre-cutter:
Brand: BMS Original: China

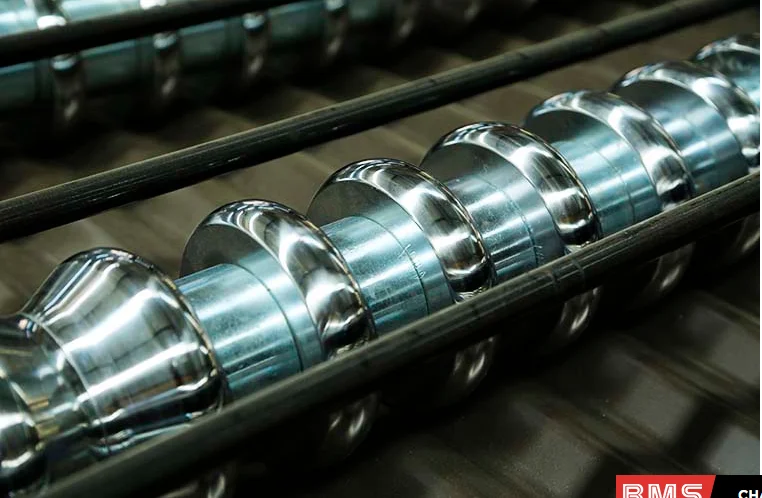

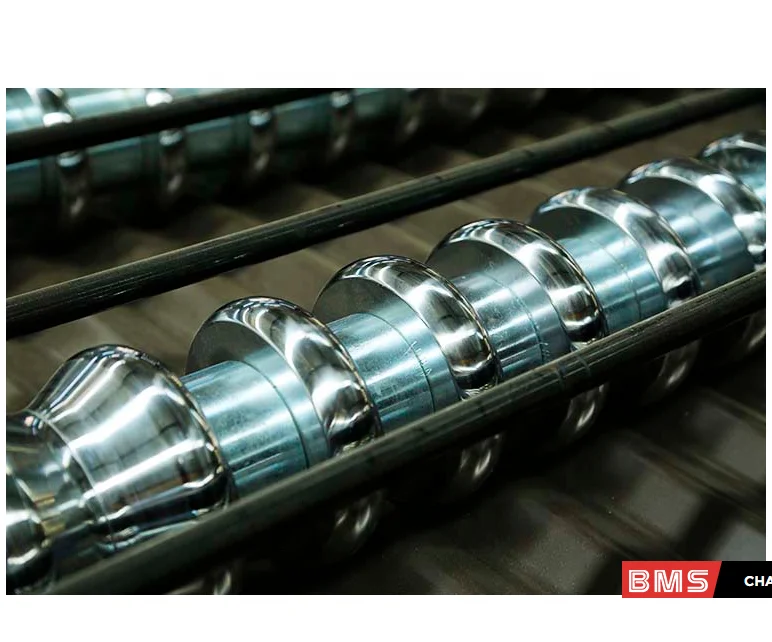

double layer Roll Forming Machine machine rollers
Brand: BMS Original: China
Rollers manufactured from high quality bearing steel GCr15/mold steel Cr12MoV(=D3 steel), CNC lathes, Heat Treatment.
with black treatment or Hard-Chrome Coating for options.
With feeding material guide, body framemade from 450# H type steel by welding
Rollers manufactured from high quality bearing steel GCr15/mold steel Cr12MoV(=D3 steel), CNC lathes, Heat Treatment.
with black treatment or Hard-Chrome Coating for options.
With feeding material guide, body framemade from 450# H type steel by welding
CZ purlin machine post cutter
Brand: BMS Original: China
No need to change cutter for different size,
made by high quality mold steel Cr12MoV with heat treatment
Cutter frame made from high quality 30mm steel plate by welding
Pre-punching & Pre-cutting, stop to punch, stop to cut
Hydraulic pressure range: 0-16Mpa
No need to change cutter for different size,
made by high quality mold steel Cr12MoV with heat treatment
Cutter frame made from high quality 30mm steel plate by welding
Pre-punching & Pre-cutting, stop to punch, stop to cut
Hydraulic pressure range: 0-16Mpa

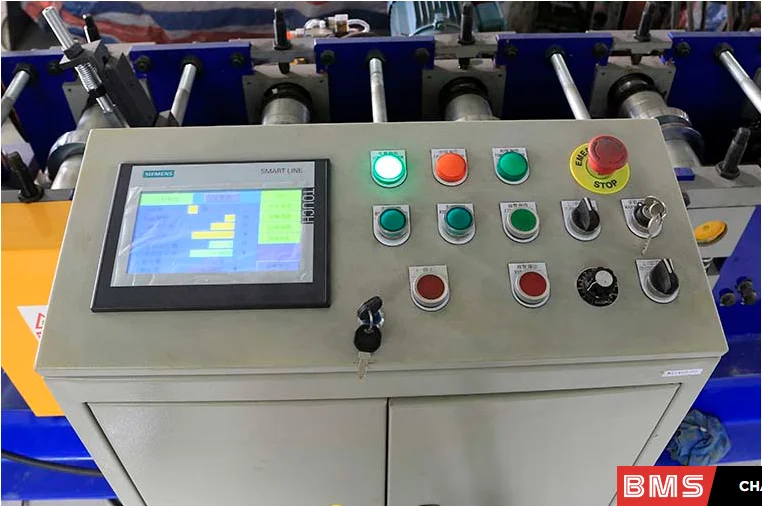

double layer Roll Forming Machine Plc control system
Easy to operate

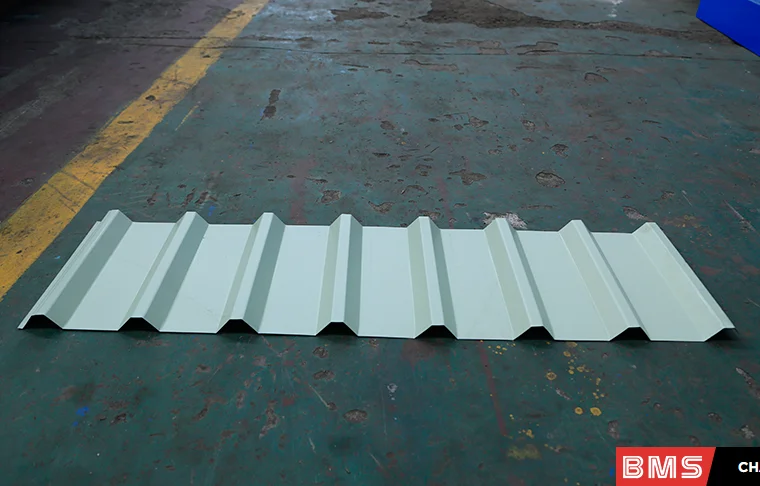

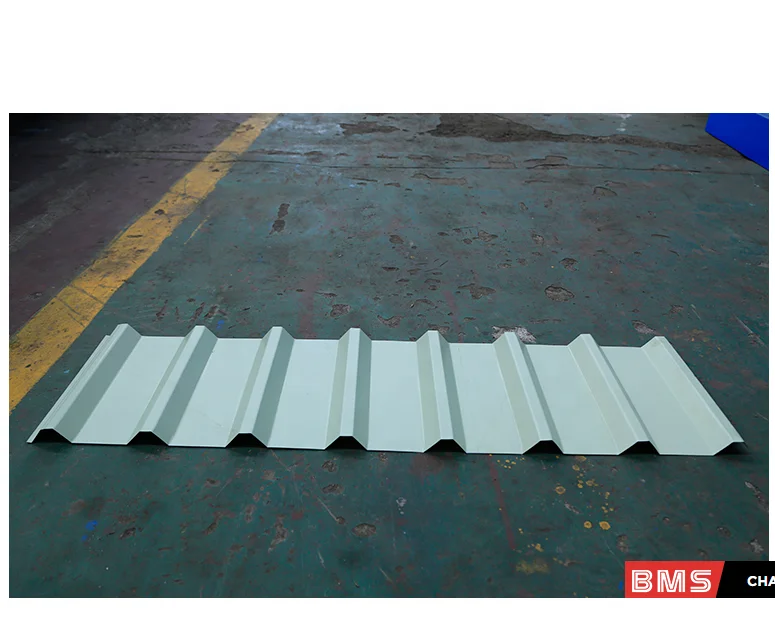

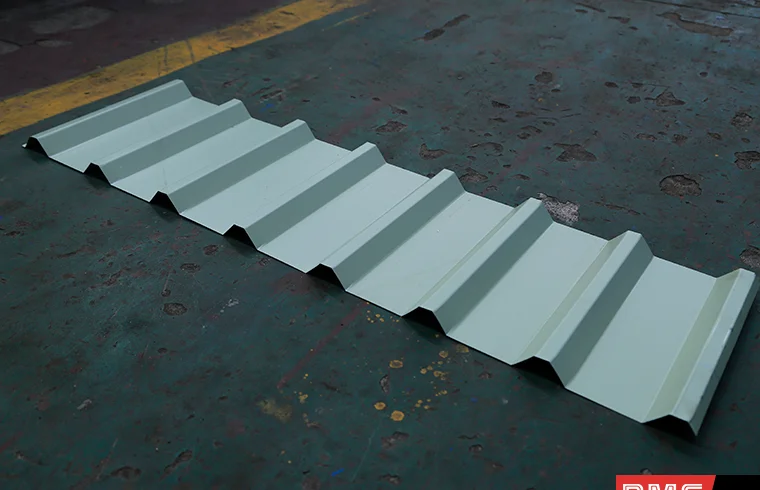

Product show

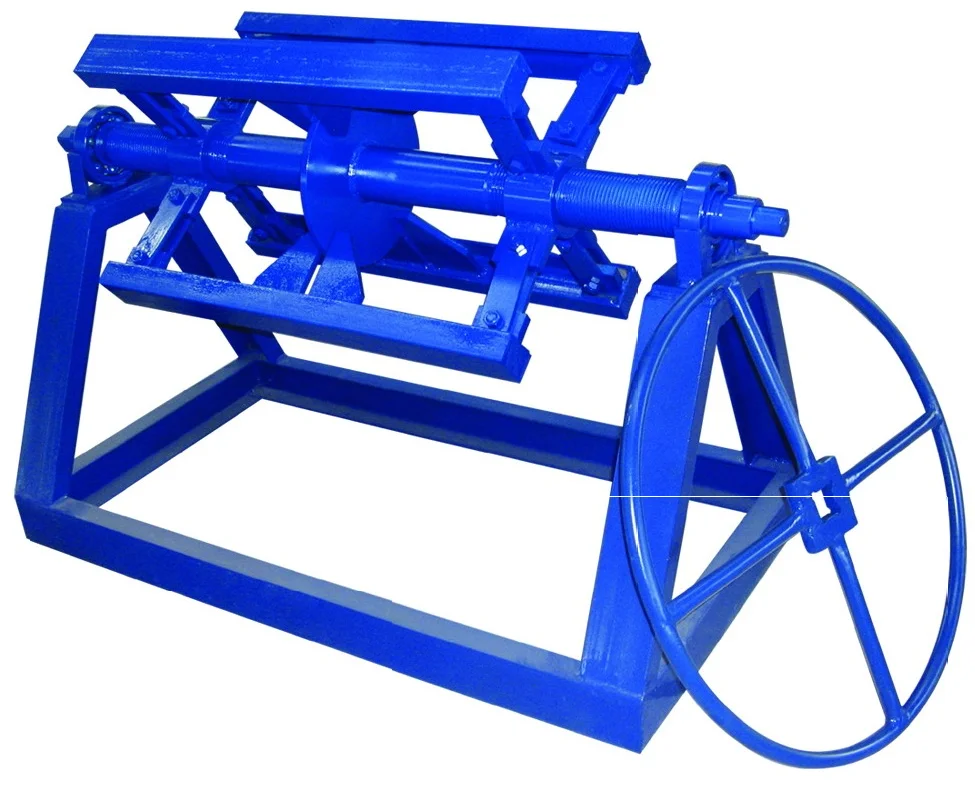

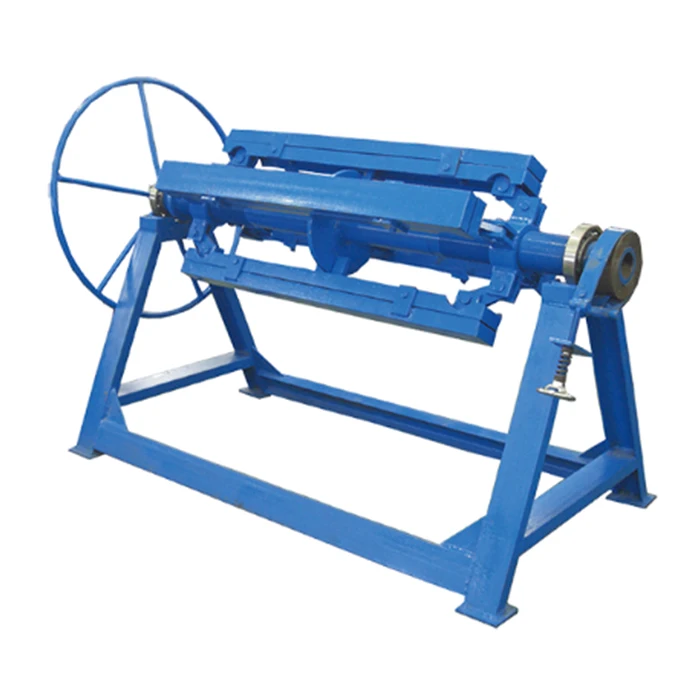

9 Tons Mannual Decoiler:one set
Hydraulic control steel coil inner bore shrinkage and stop
Max Feeding Width:600mm
Coil ID Range:508±30mm,Outside Diameter:1250mm
Max capacity:9tons,
Add automatic feeding power and self-stop device
With hydraulic pressure arm device

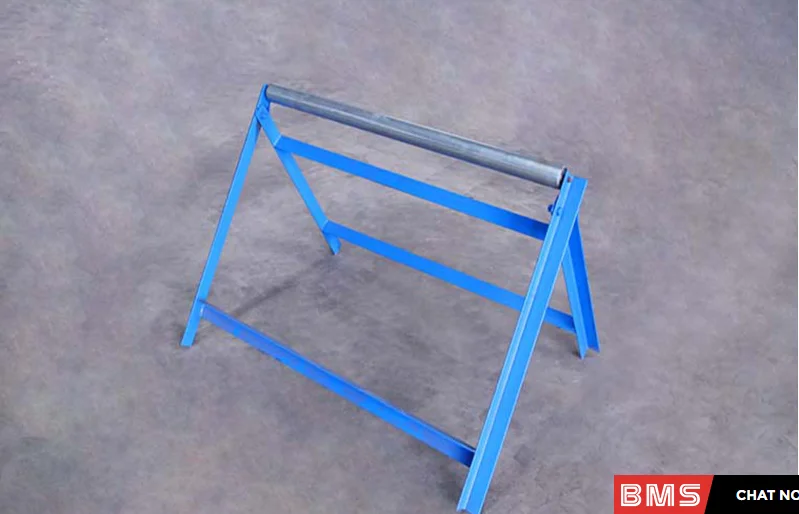

Exit Rack
Un-powered,Three units,with rollers on it for easy movement.
Other detailes of double layer Roll Forming Machine
Suitable for material with thickness 0.3-0.8 mm
Shafts manufactured from 45#,Main shaft diameter=φ85mm,precision machined
Motor driving,Gear chain transmission, 15 rollers to form
Main motor=7.5KW(bigger power for higher speed) ,Frequency speed control. Forming speed approx.12-15m/min
PLC Control System (Touch screenbrand:German Schneider Electric/Taiwan WEINVIEW,
Inverter brand:Finland VOCAN/Taiwan DELTA/ALPHA,Encoder brand:Japan Koyo/OMRON)
Combined with: PLC, Inverter, TouchScreen, Encoder, etc
Cut-to-lengthtolerance≤±1 mm
Control Voltage 24V
User's manualin English
Shafts manufactured from 45#,Main shaft diameter=φ85mm,precision machined
Motor driving,Gear chain transmission, 15 rollers to form
Main motor=7.5KW(bigger power for higher speed) ,Frequency speed control. Forming speed approx.12-15m/min
PLC Control System (Touch screenbrand:German Schneider Electric/Taiwan WEINVIEW,
Inverter brand:Finland VOCAN/Taiwan DELTA/ALPHA,Encoder brand:Japan Koyo/OMRON)
Combined with: PLC, Inverter, TouchScreen, Encoder, etc
Cut-to-lengthtolerance≤±1 mm
Control Voltage 24V
User's manualin English
After-sale service of c purlin roll forming machine
1. The warranty of c purlin roll forming machine
is two years after the client receives the machine.
Within the two years, we will courier the replacement parts to the client free of charge.
2. We offer technical support for the entire life of our machines.
3. We can send our technicians to install and train the workers in the clients' factories with extra cost.
is two years after the client receives the machine.
Within the two years, we will courier the replacement parts to the client free of charge.
2. We offer technical support for the entire life of our machines.
3. We can send our technicians to install and train the workers in the clients' factories with extra cost.
Terms of trade
1. Minimum order quantity (MOQ): 1 piece
2. Delivery time: about 45 workdays
3. Port of loading: port of Xiamen
4. Type of payment: by T/T or by L/C
5. Export: Australia, UK, Ireland, Mexico, Brazil ,Israel ,Dubai, Russia ,India, Taiwan, Singapore,
Malaysia ,Thailand, Philippines, Myanmar ,Vietnam, South Africa, Mozambique,
Zambia, Zimbabwe, Nigeria, Egypt, Sudan, etc.
2. Delivery time: about 45 workdays
3. Port of loading: port of Xiamen
4. Type of payment: by T/T or by L/C
5. Export: Australia, UK, Ireland, Mexico, Brazil ,Israel ,Dubai, Russia ,India, Taiwan, Singapore,
Malaysia ,Thailand, Philippines, Myanmar ,Vietnam, South Africa, Mozambique,
Zambia, Zimbabwe, Nigeria, Egypt, Sudan, etc.
