Outdoor Self Supporting Aerial Optical Fiber FTTH Drop Cable GJYXCH

Product Overview

Description

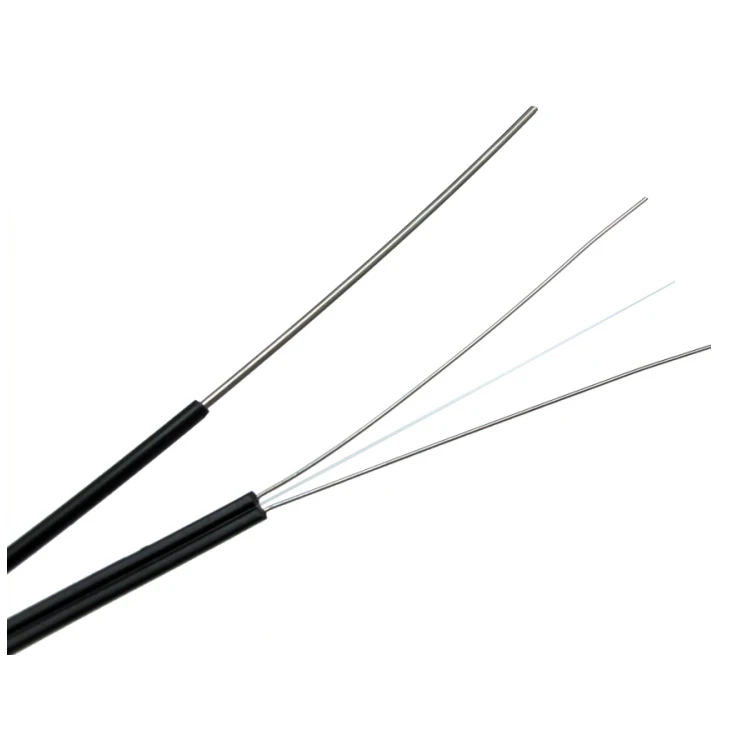

Outdoor Self Supporting Aerial Optical Fiber FTTH Drop Cable GJYXCH





The optical fiber unit is positioned in the center. Two parallel galvanized steel wires are placed at the two sides as strength member. A steel wire as the additional strength member is also applied. Then, the cable is completed with a black or colored LSZH sheath.





Characteristics:

• Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property.


• Two parallel steel wires ensure good performance of crush resistance to protect the fiber.


• Single steel wire as the additional strength member ensures good performance of tensile strength.


• Simple structure, light weight and high practicability.


• Novel flute design, easily strip and splice, simplify the installation and maintenance.


• Low smoke, zero halogen and flame retardant sheath.

Technical Parameters:

Fiber Count	Cable Size (mm)	Cable Weight (kg/km)	Bending Radius (mm)		Tensile Strength (N)		Cruch Resistance (N/100mm)
			Static	Dynamic	Long term	Short term	Long term	Short term
1	(2.0±0.1) x (5.2±0.1)	20	15D	30D	60	120	500	1000



Optical Characteristics:

		G.652	G.657
Attenuation(+20°C)	@850nm
	@1300nm
	@1310nm	≤0.45dB/km	≤0.45dB/km
	@1550nm	≤0.30dB/km	≤0.30dB/km
Bandwidth (Class A)	@850nm
	@1300nm
Numerical Aperture
Cable Cut-off Wavelength λcc		≤ 1260nm	≤ 1260nm



 Transport/Storage/Operating Temperature: -20°C ~ +60°C





Q1: Can I have some free samples for testing?
A1: Yes, we can provide free samples, but you have to bear the shipping cost.

Q2: What is the delivery time if I place an order?
A2: Normally within 10days, but if you have special requirements or large quantity, let us check and confirm again.

Q3: What is your MOQ? And do you support OEM/ODM?
A3: The MOQ is 1km, and we provide OEM/ODM services.

Q4: What is your fiber supplier?
A4: Our fibers are supplied by YOFC and FiberHome.

Q5: What payment terms do you accept?
A5: We accept T/T, L/C,Western Union and Paypal.

Q6: What is your guarantee period?
A6: Warranty period is 25 years for cables, and 24 months for others.
