Self Loading Concrete Mixer is a kind of multifunctional machinery which combines the transit mixer, concrete mixer and wheel loader together. It can automatically load, measure, mixing and discharge concrete mixture. Equipped with powerful Yunnei / YUCHAI (Cummins optional ) Diesel engine and 4 wheel drive plus 2 wheel steering, the self loading concrete mixer is just like a truck and the operator can drive it to where it needs to go. It is very convenient for loading material, such as cement, aggregate,stone,etc .
We have different capacity 0.8m3 ,1.2m3 ,1.8m3 ,2.0m3 ,2.4m3 ,3.5m3,4m3 ,etc.
Product Paramenters
Actual stirring capacity
2.4 m3
Rotary drum capacity
2.3 m3
Degree of bias
16 °
Rotation Speed
20-30 r/min
Direction of rotation
feed:clockwise output:counter clockwise
Mixing drum blade
Two sets of spiral blade and 4 sets of auxiliary blades
Slump of concrete
70-260mm
Hydraulic Power Transmission System
Pump model
CBGV-4025
Hydraulic model
BM5-400
Reducer Ratio
01:24
Water Supply
Tank Capacity
540L
Engine power
78Kw /2400 r/min
Max.torque
380 N.M /1500-1800 r/min
Max.running speed
24 km/h
Min. steering radius
4500mm
Climbing capacity
30 °
Tire
16/17-20
Driving type
4X4
Max.load capacity
5600kg
Whole machine weight
11150 kg
Dimension
6350*2510*2850mm
Wheelbase
2300mm
Bucket capacity
0.5 m3

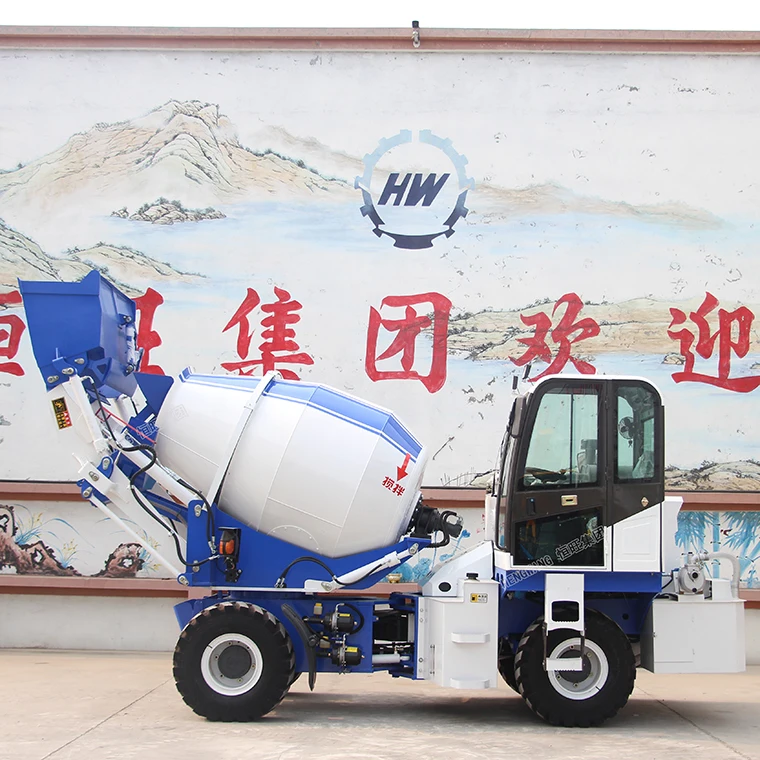

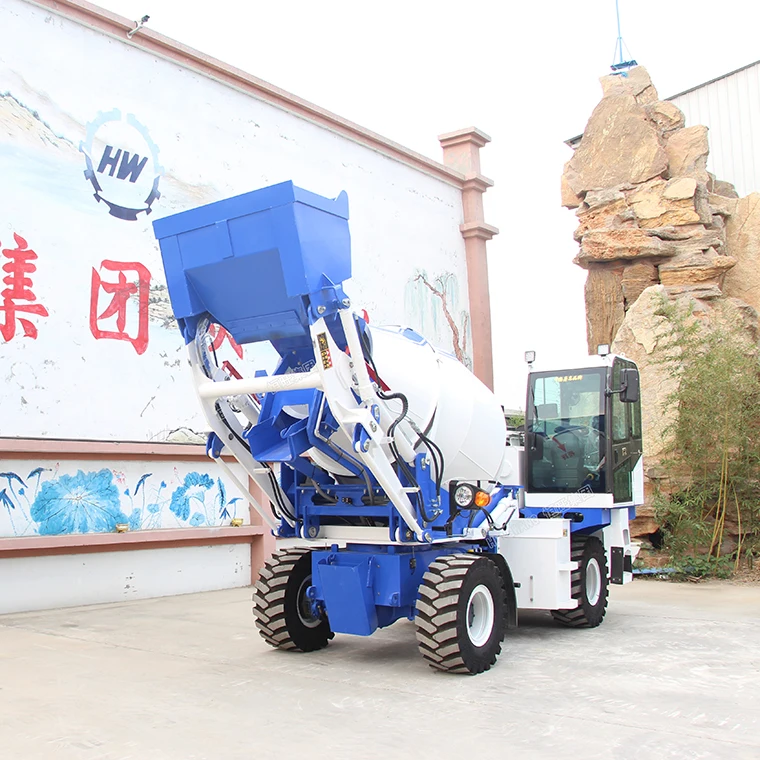

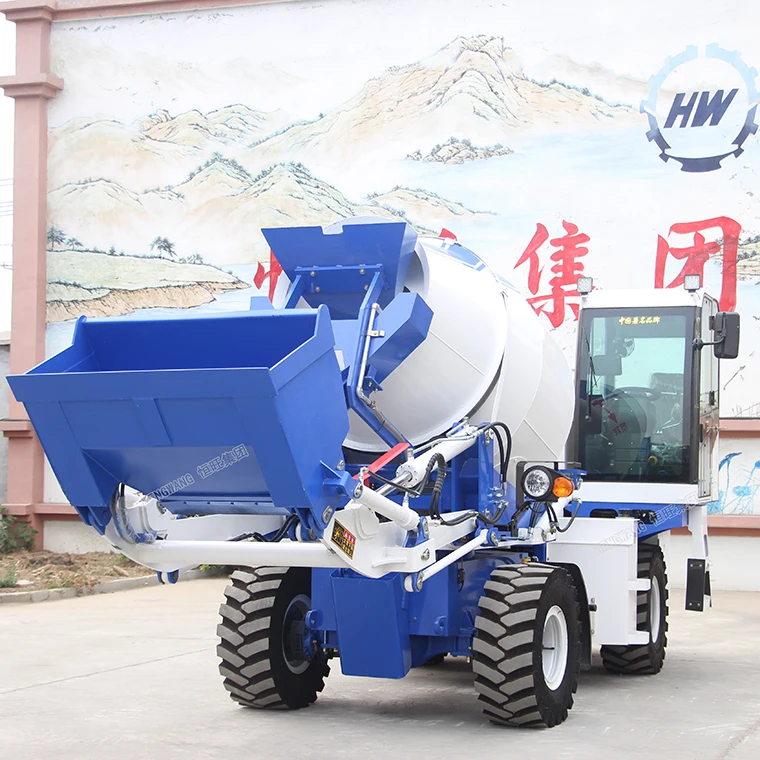

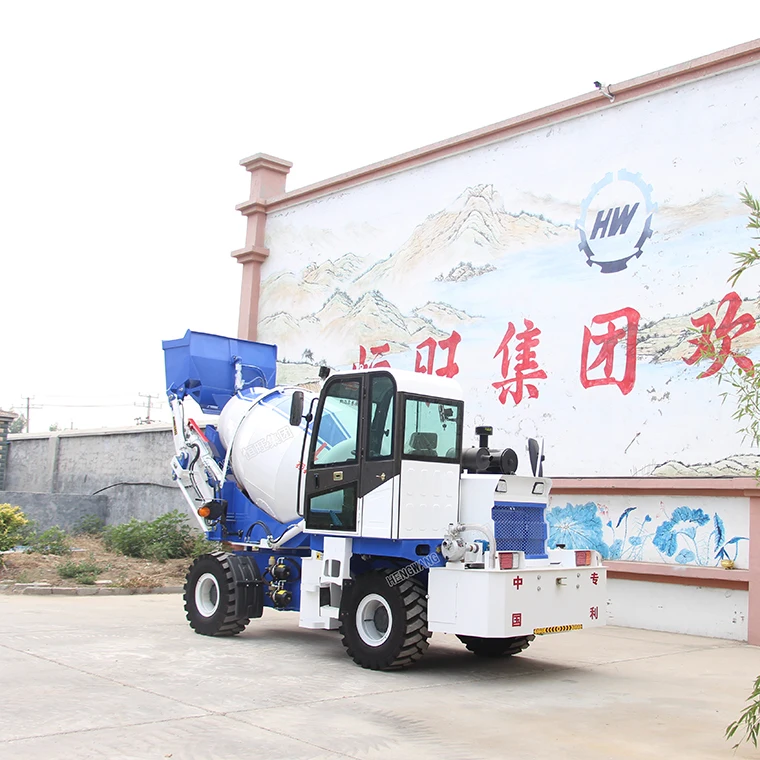

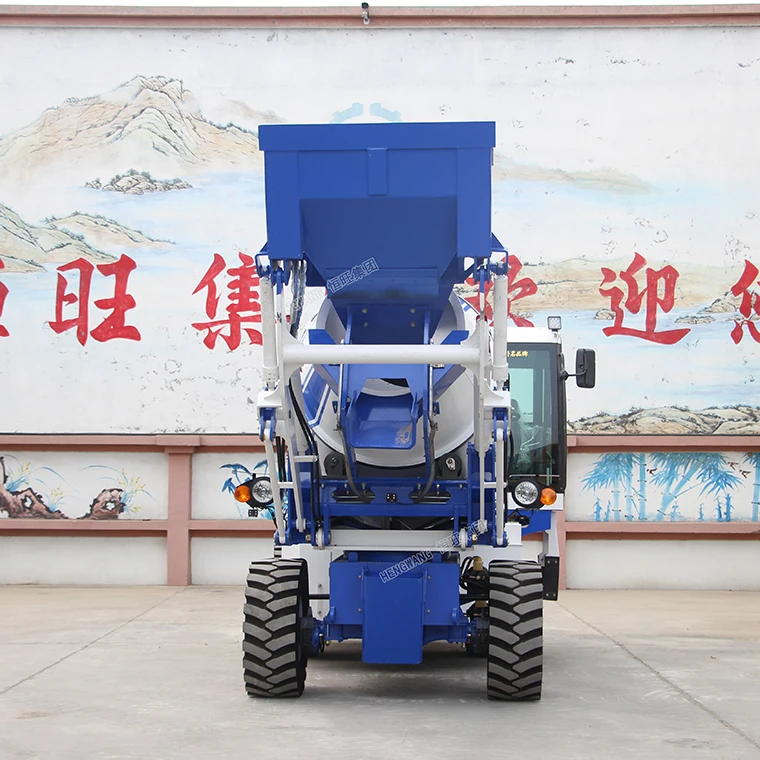

Detailed Images
Concrete Mixer Truck Advantage : 1. Italy leading design, automatic feeding mixing system 2. Simple and convenient operation 3. High efficiency output, save time and labor, save cost 4. The perfect combination of mixing truck and loader. 5.Standard equip with auto water metering supply , drive camara . and weighting system ,seat rotary , Air conditioning ,etc optional .
