Metal Roofing Sheet Molding Corrugated Roll Forming Machine Prices
- Category: >>>
- Supplier: Botou Shibo Machinery Manufacturing Co. Ltd.
Share on (62395114265):
Product Overview
Description
Metal Roofing Sheet Molding Corrugated Roll Forming Machine Prices
Product Description

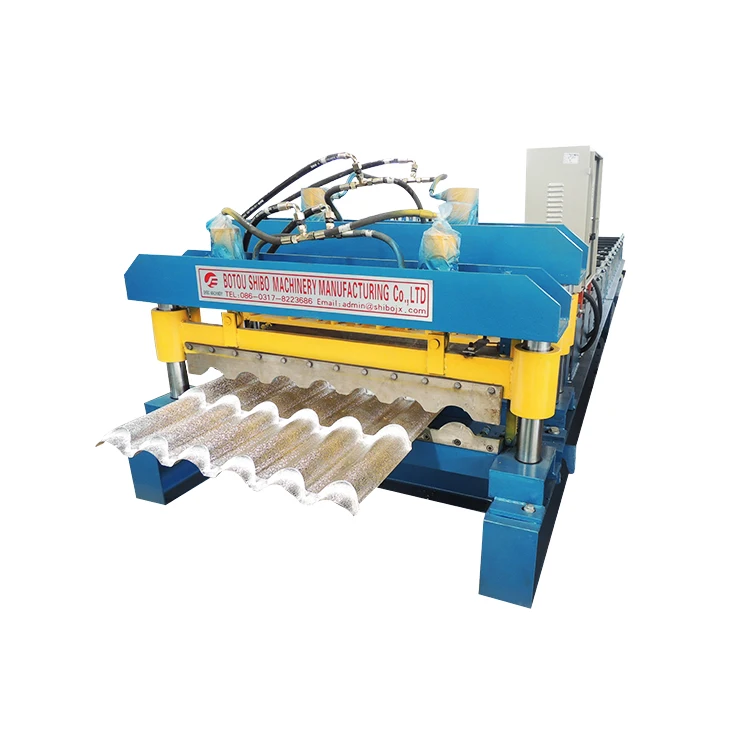

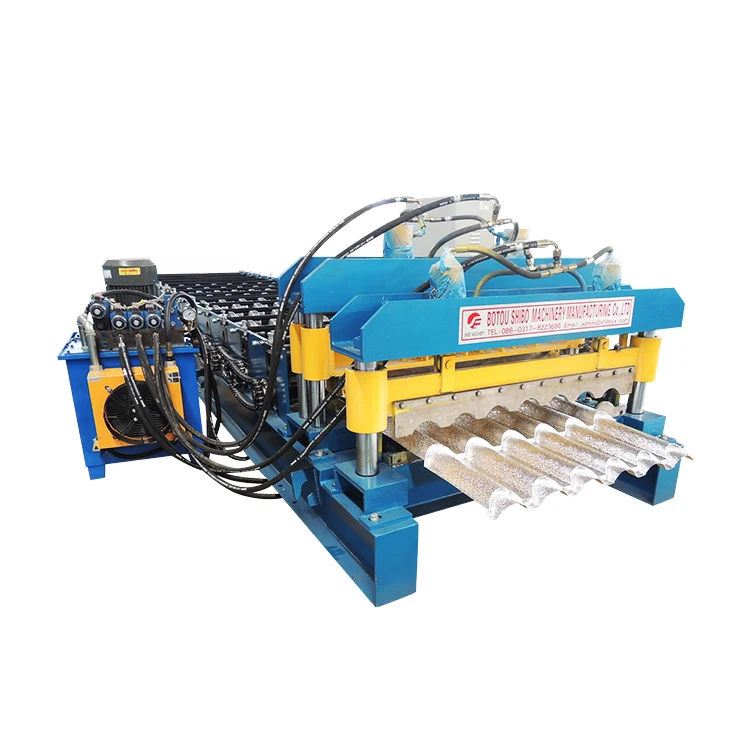

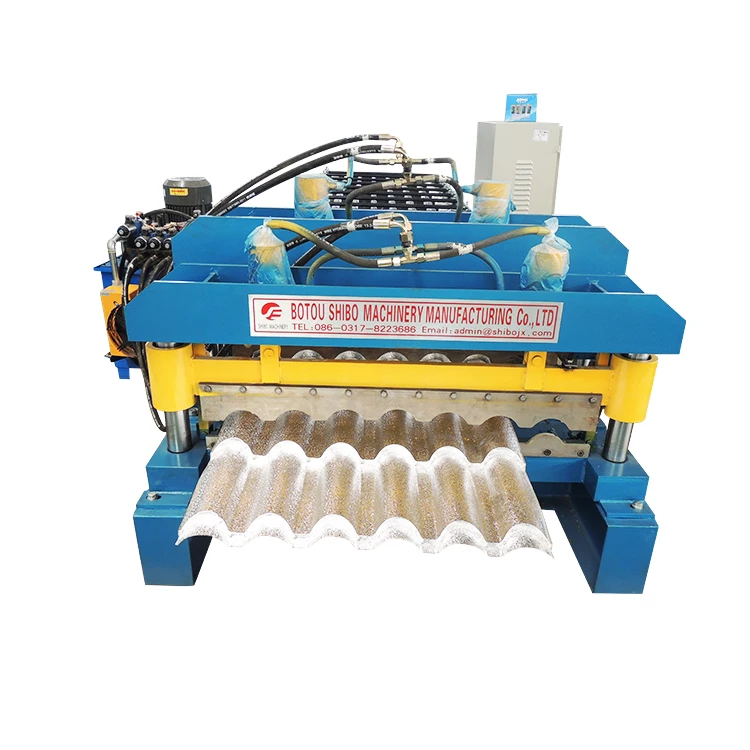

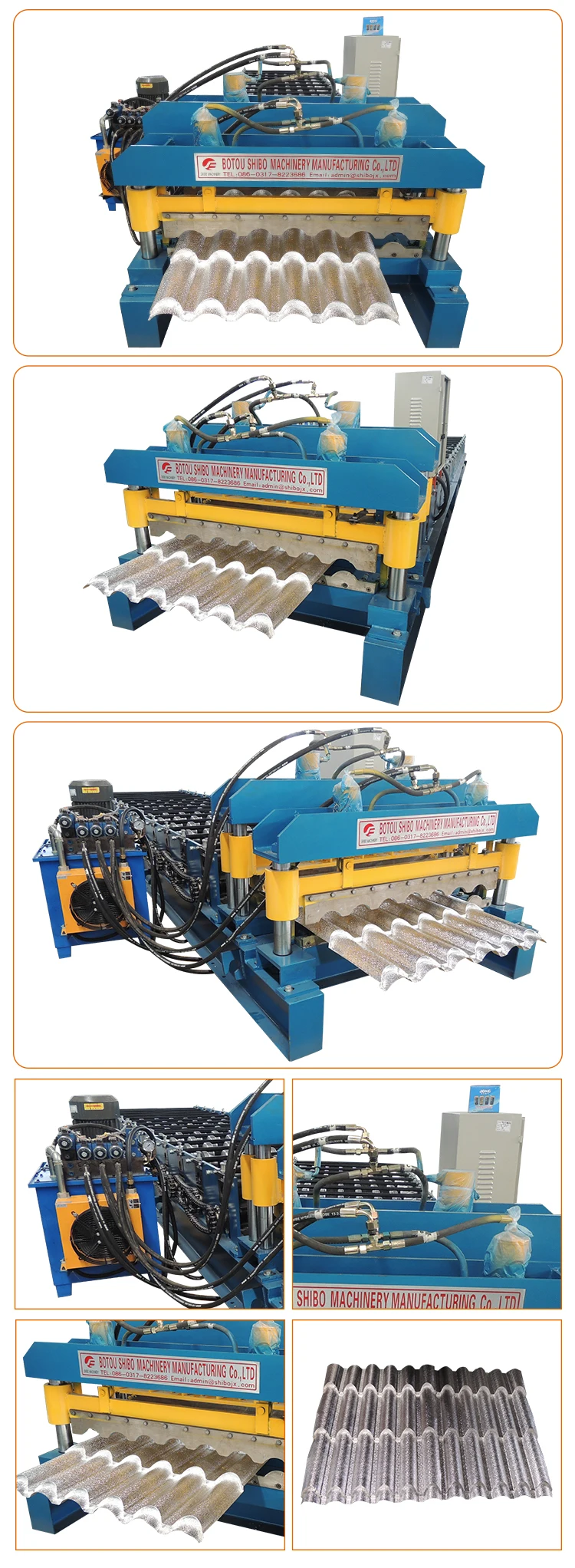

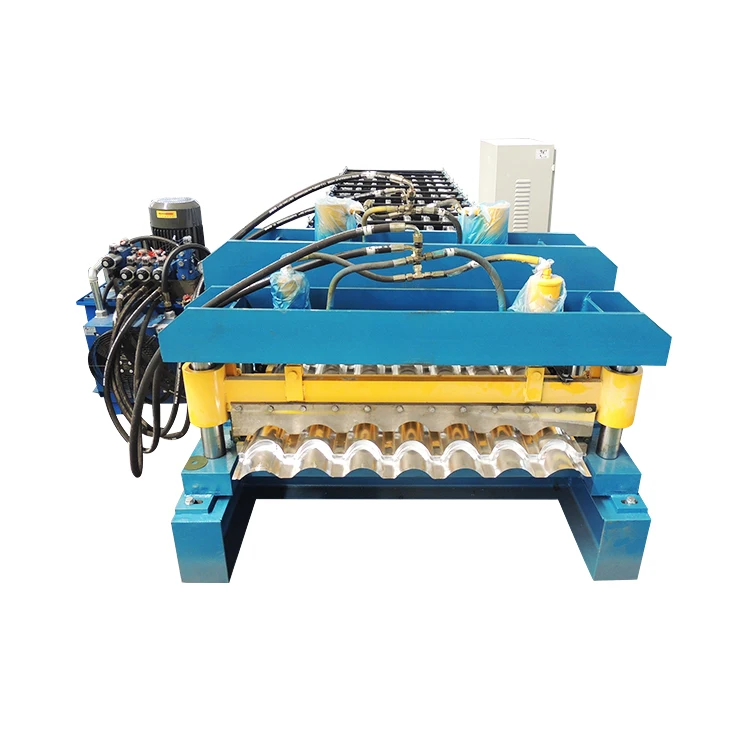

TRAPEZOID TILE ROLL FORMING MACHINE | |
Feeding material | PPGI |
Thickness of the plate | 0.3-0.8mm |
Coil width | 914/1000/1200/1220/1250mm |
Machine size | about 7000mmX1600mmX1000mm |
Diameter of the axle | Φ70/Φ75mm |
Rolling stages | 15-18 stages |
Productivity | 8-12m/min |
Total power | 4kw machine motor +4 kw pump station motor |
Voltage | 220V 60Hz 3phase or as requirement |
Weight | about 4.5T |
Base frame | 300H steel |
Side board thickness | 16mm |
Cutting blade | Cr12 with heat treatment |
Cutting system | Hydraulic cutting system after forming |
Control cabinet | PLC and frequency changer in it |
