3 5 7 12 14 16 18 tons hook lift trailer
- Category: Garbage Truck >>>
- Supplier: Hubei Jiangnan Special Automobile Co. Ltd.
Share on (62396479264):
Product Overview
Description
Gvw of the vehicle (t) | 4.05 | Body width（mm） | 1060 |
Capacity (Ton)
| 3 | Installation height（mm） | 145 |
H = Hook height (mm) | 930 | MIN. Free tunnel height(body) (mm) | 80 |
L = G-length (mm) | 2700 | Centre of gravity (mm) | 1440 |
LR = Container length (internal) (m) | 3.0-3.5 |
S = Sliding distance（mm）
| 545 |
Tipping angle (º)
| 49° | Max. operating pressure (mpa) | 250 |
Equipment weight (kg) | 460 | Recommended oil flow (l/min) | 15-20 |
Detailed Images

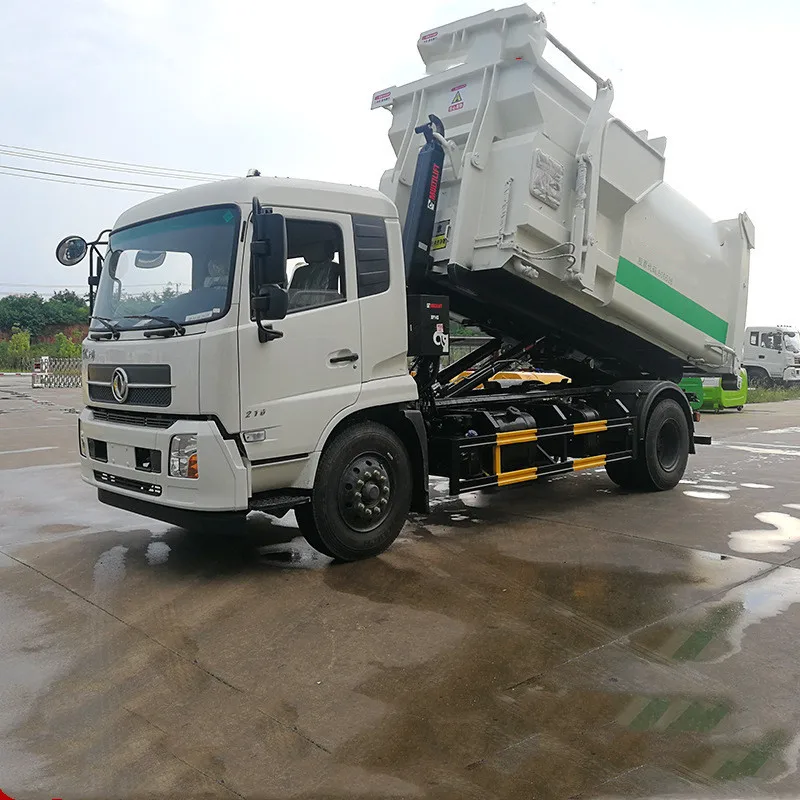

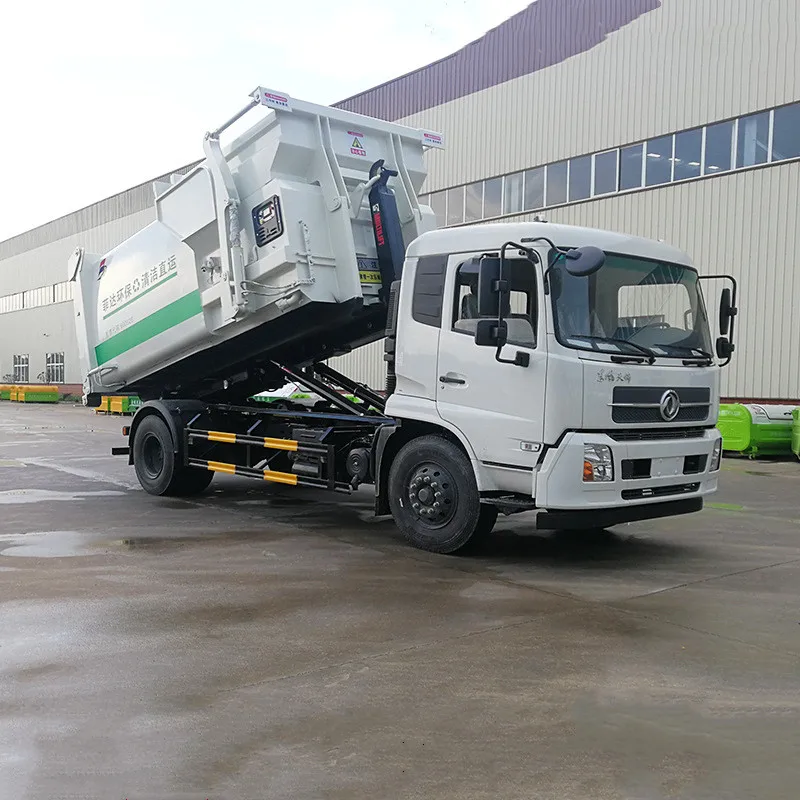

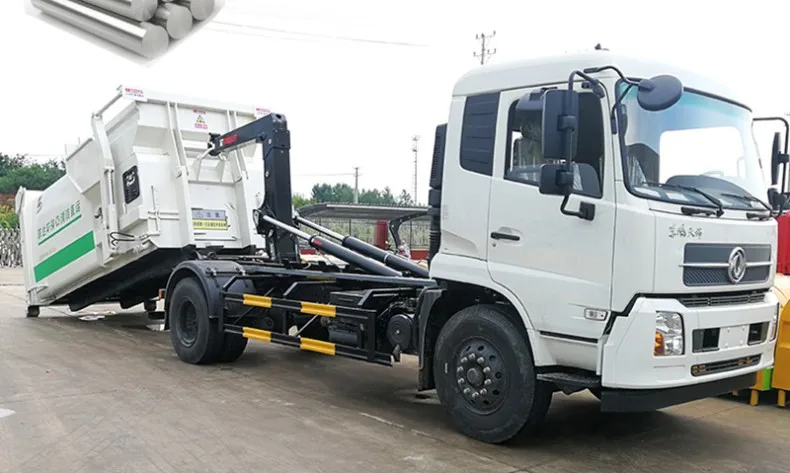

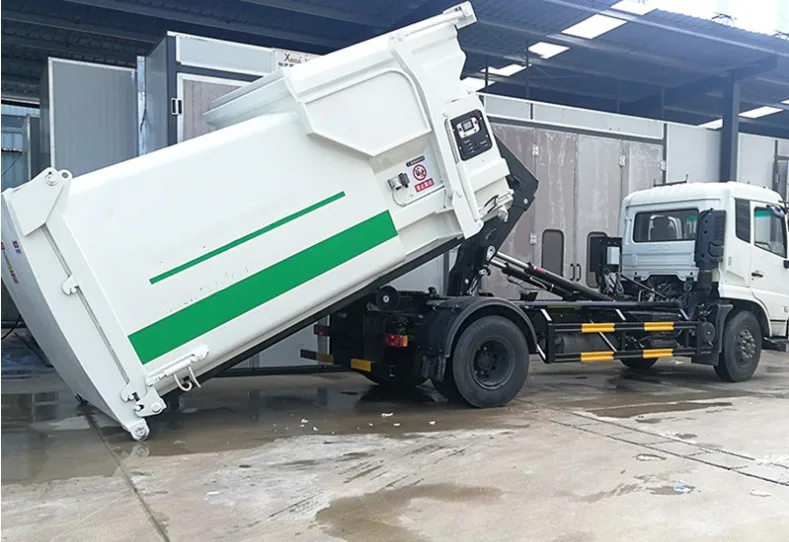

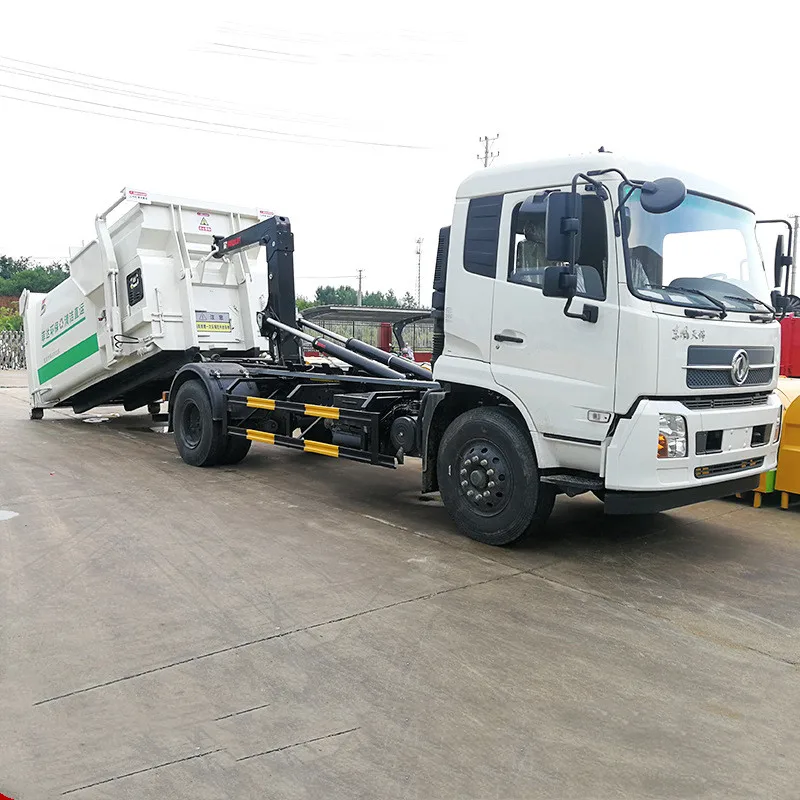

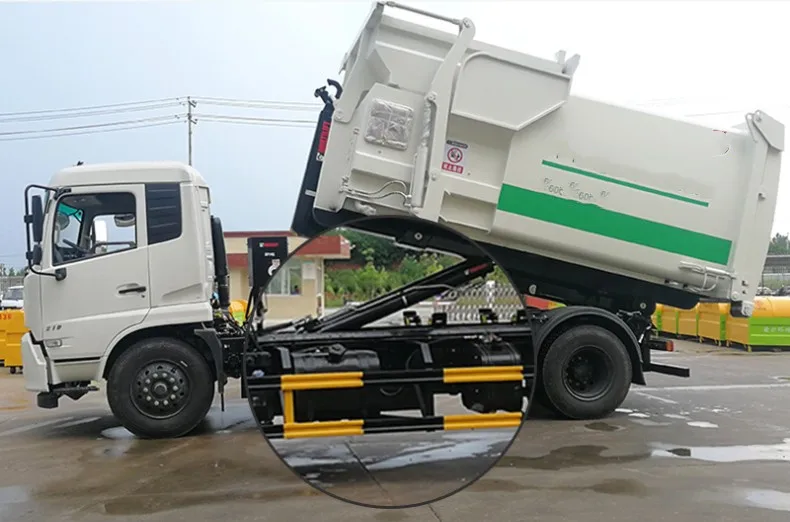

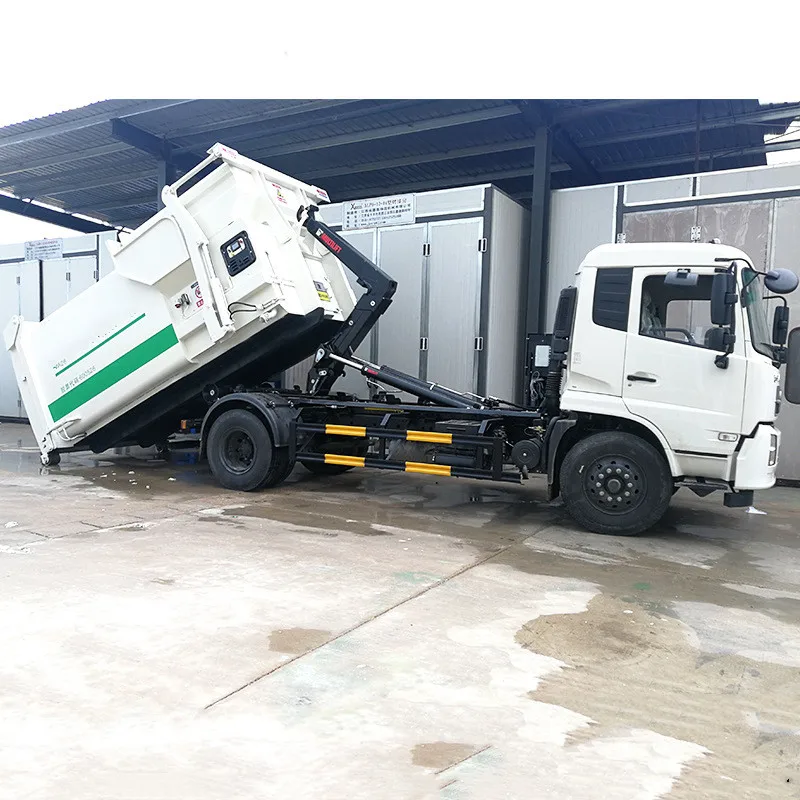

The hook-arm garbage truck is a special vehicle used for garbage transfer and unloading operations in urban garbage compression stations.

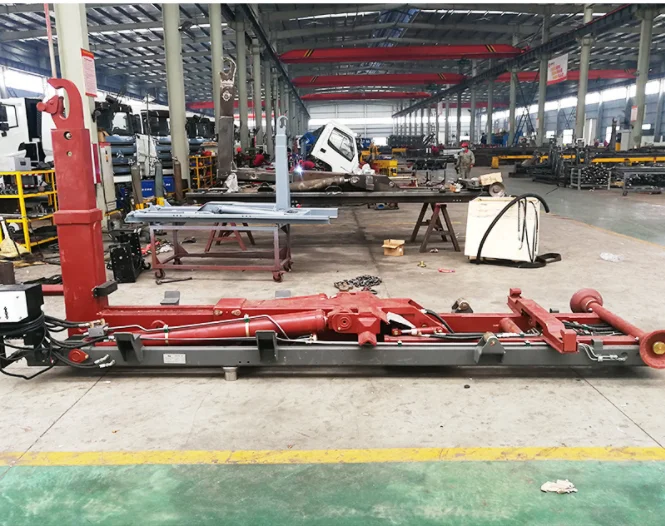

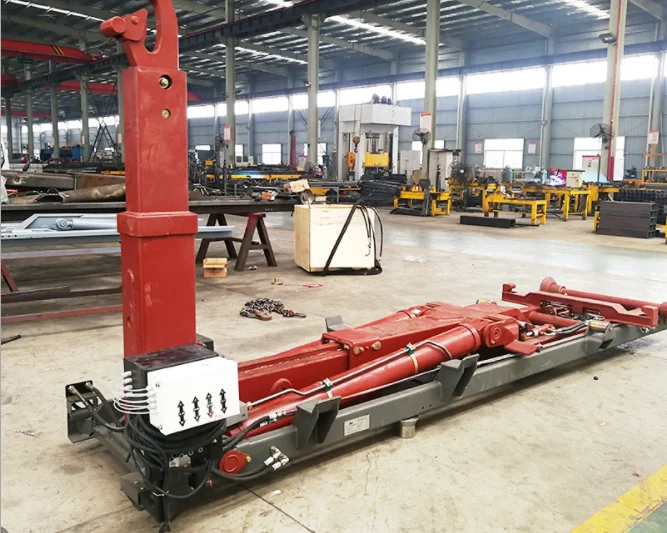

It consists of a car chassis, a dump cylinder, a rear door cylinder, an attached frame, a garbage bin and a rear door swing lever.
The operation is completed by the hydraulic control system, and the control mode can be manual or electrical control.
It is mainly used for garbage removal in urban and rural garbage compression stations.
