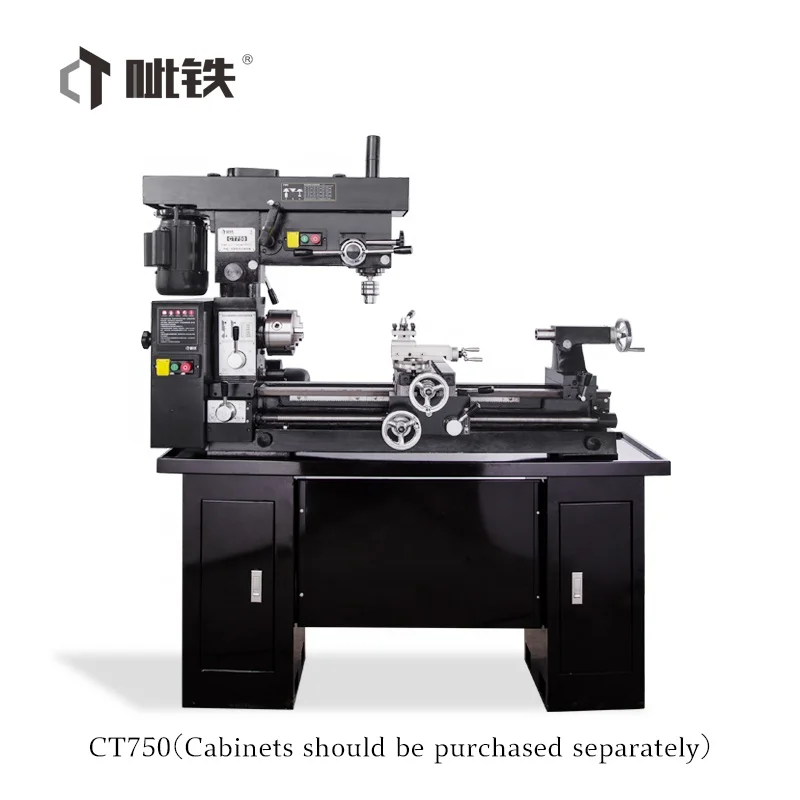

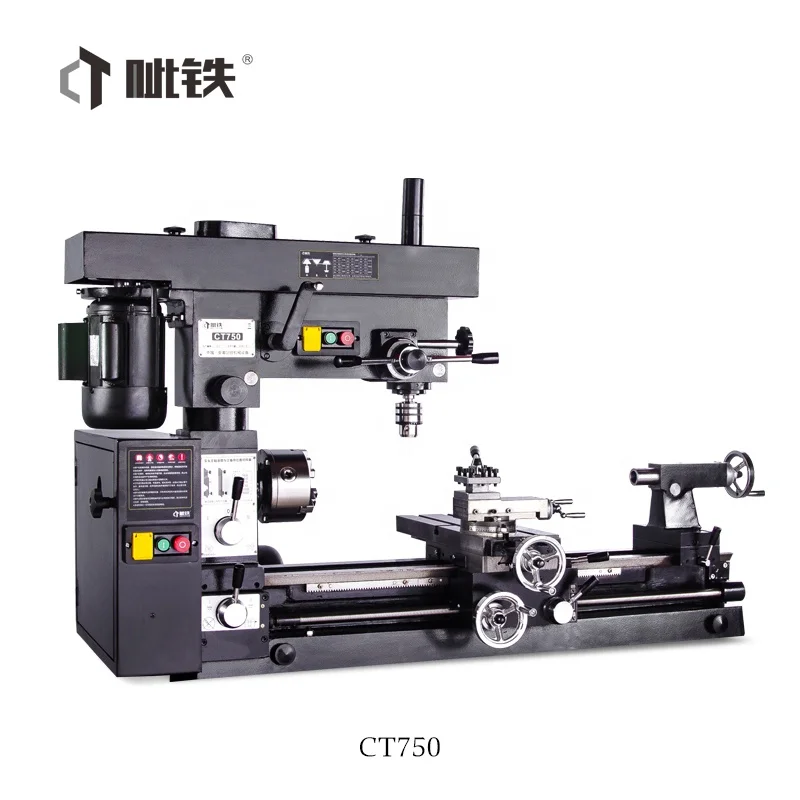

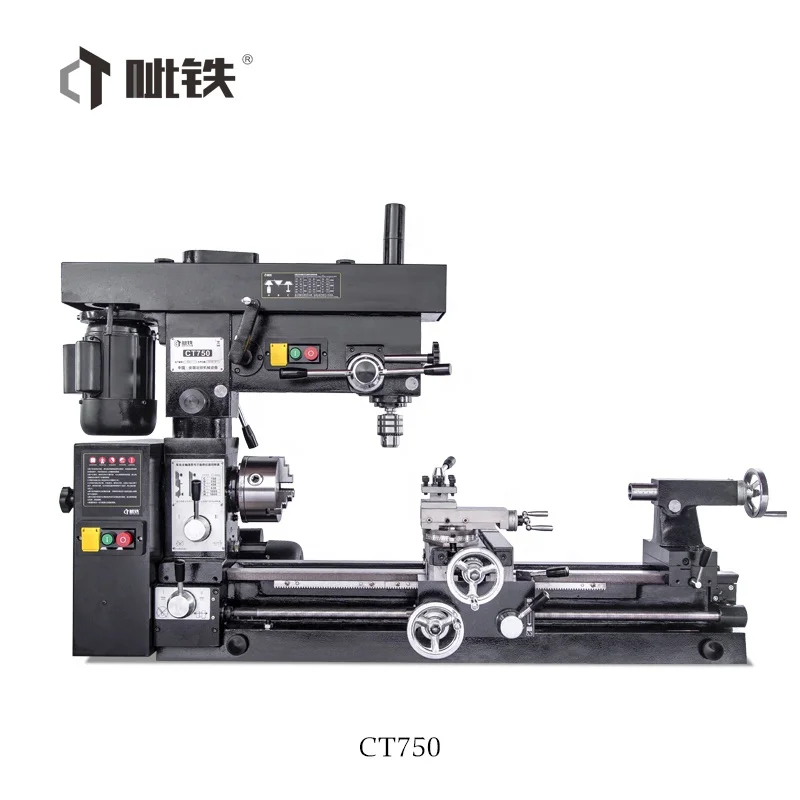

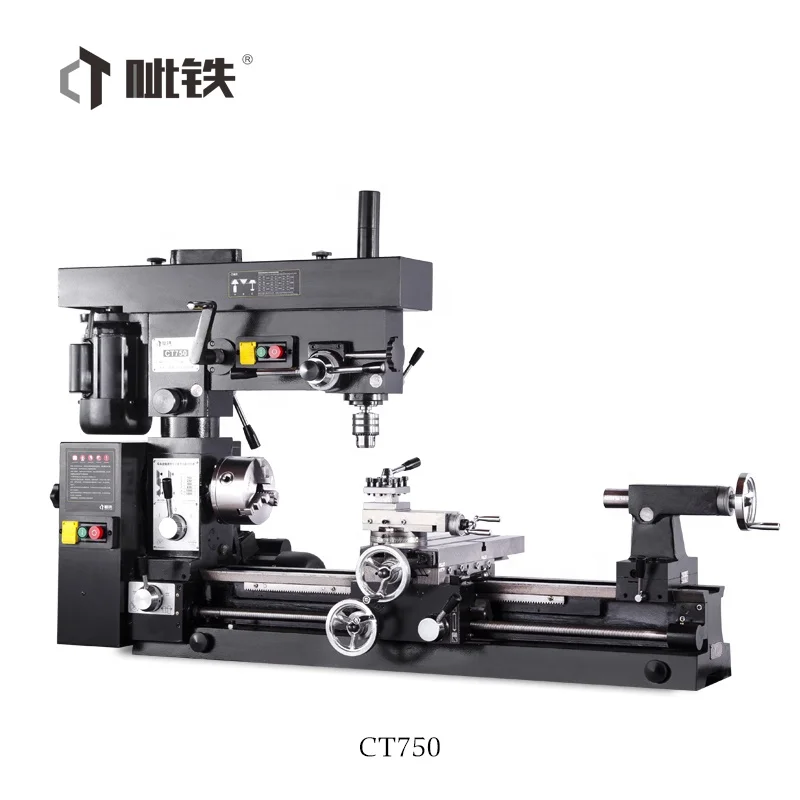

CT750 Multi function Turning and Drilling and Milling Machine with CE 220V CE ISO 1.5 Years Provided 1450*570*980mm CN;ANH 1mm/s
CT750 Multi-function Turning and Drilling and Milling Machine with CE 220V CE ISO 1.5 Years Provided 1450*570*980mm CN;ANH 1mm/s
CT750 Multi-function Turning and Drilling and Milling Machine with CE 220V CE ISO 1.5 Years Provided 1450*570*980mm CN;ANH 1mm/s
CT750 Multi-function Turning and Drilling and Milling Machine with CE 220V CE ISO 1.5 Years Provided 1450*570*980mm CN;ANH 1mm/s
CT750 Multi-function Turning and Drilling and Milling Machine with CE 220V CE ISO 1.5 Years Provided 1450*570*980mm CN;ANH 1mm/s
CT750 Multi-function Turning and Drilling and Milling Machine with CE 220V CE ISO 1.5 Years Provided 1450*570*980mm CN;ANH 1mm/s

CT750 Multi function Turning and Drilling and Milling Machine with CE 220V CE ISO 1.5 Years Provided 1450*570*980mm CN;ANH 1mm/s

Share on (62402438657):


Price:$1,630.00 - $1,720.00

Quantity:


Product Overview

Description

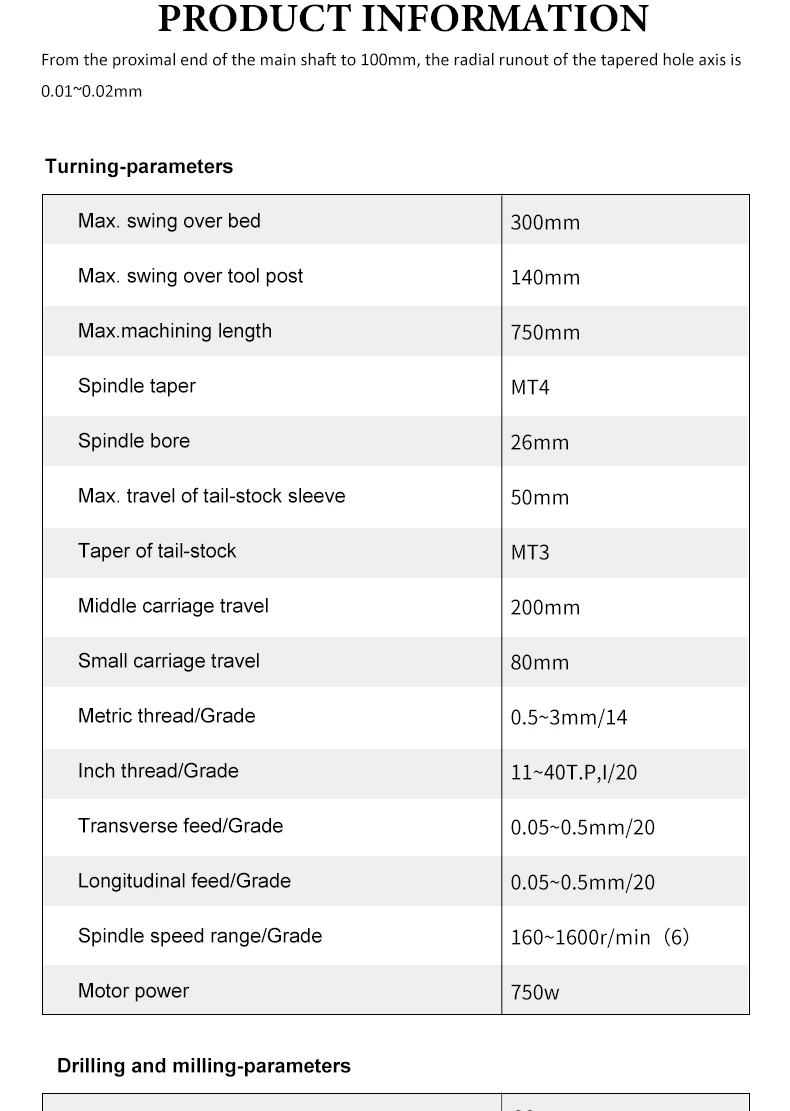

lathe
Maximum workpiece turning diameter of the bed300mm
Maximum workpiece length750mm
Maximum workpiece turning diameter of tool post140mm
Spindle hole diameter26mm

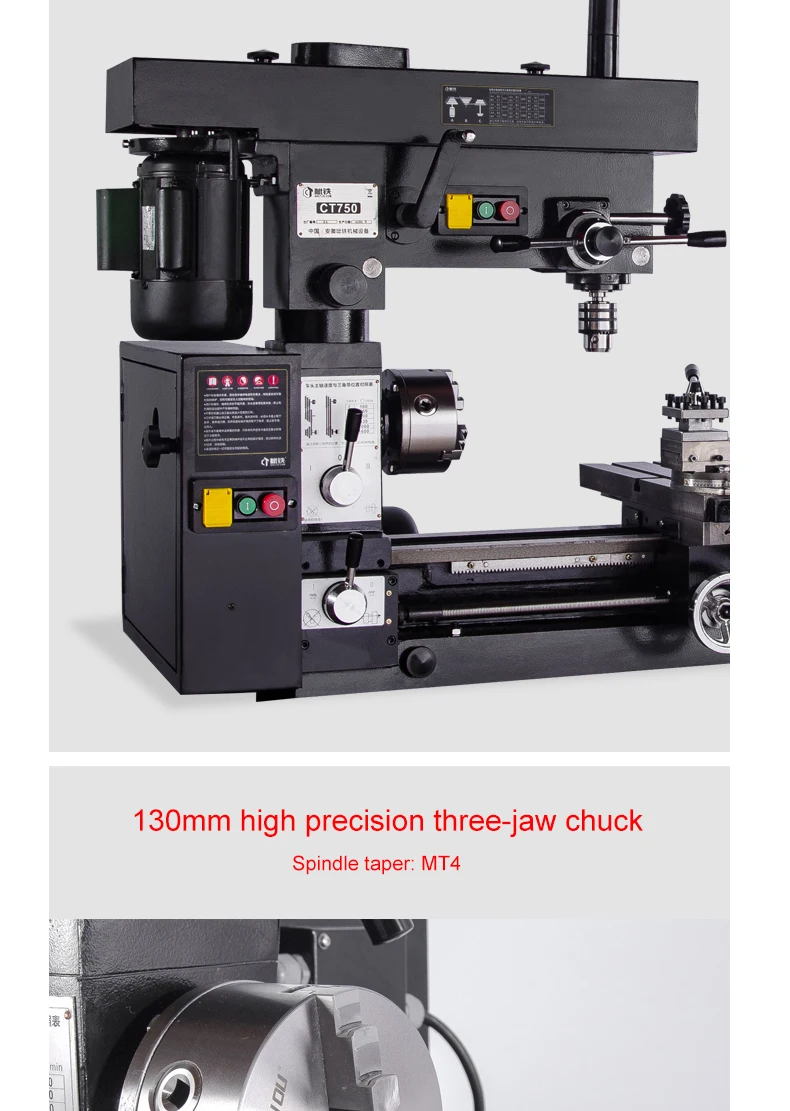

Spindle taperMT4
Processing metric thread pitch range/species0.5-3mm/14
Processing inch thread pitch range/species11-40 1/n"/20
Each longitudinal turret spindle feed / Series0.05-0.5mm
Infeed amount per spindle / turret progression0.05-0.5mm
Longitudinal feed level20
Horizontal feed level20
Transverse stroke of tool post200mm
Longitudinal stroke of small tool post80mm

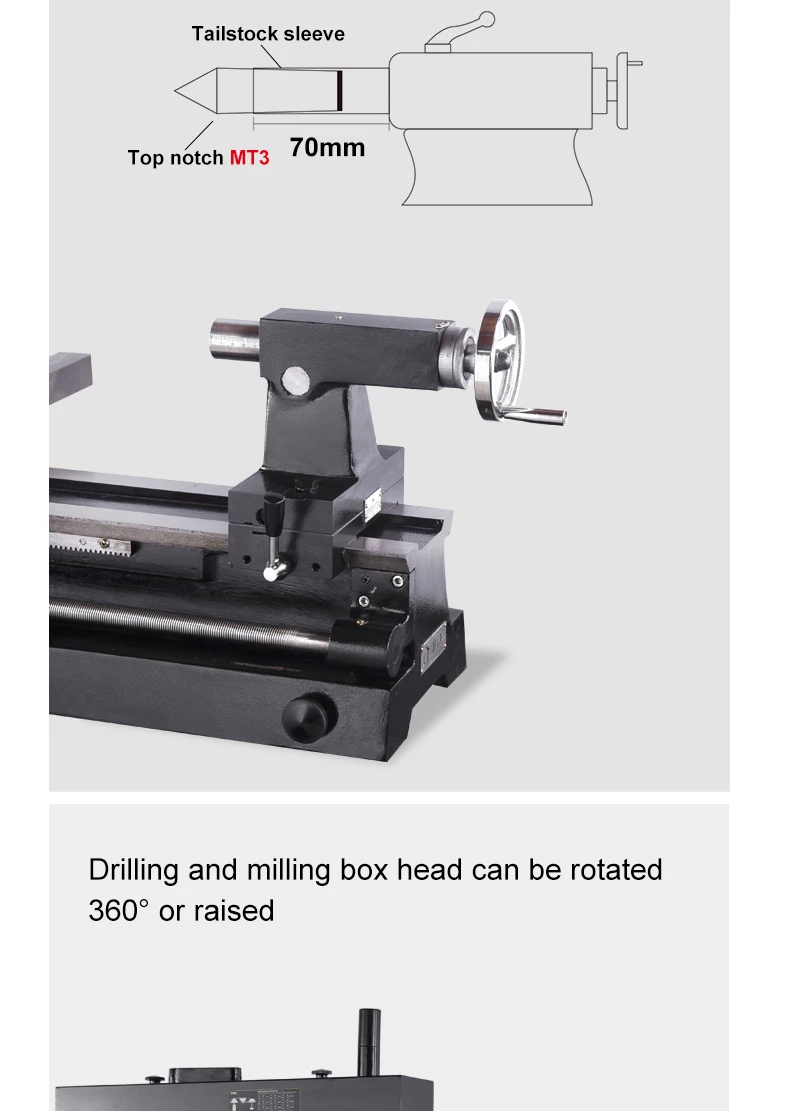

Tailstock quill stroke50mm
Tailstock sleeve taperMT3
Spindle speed range/level160-1600rpm/6

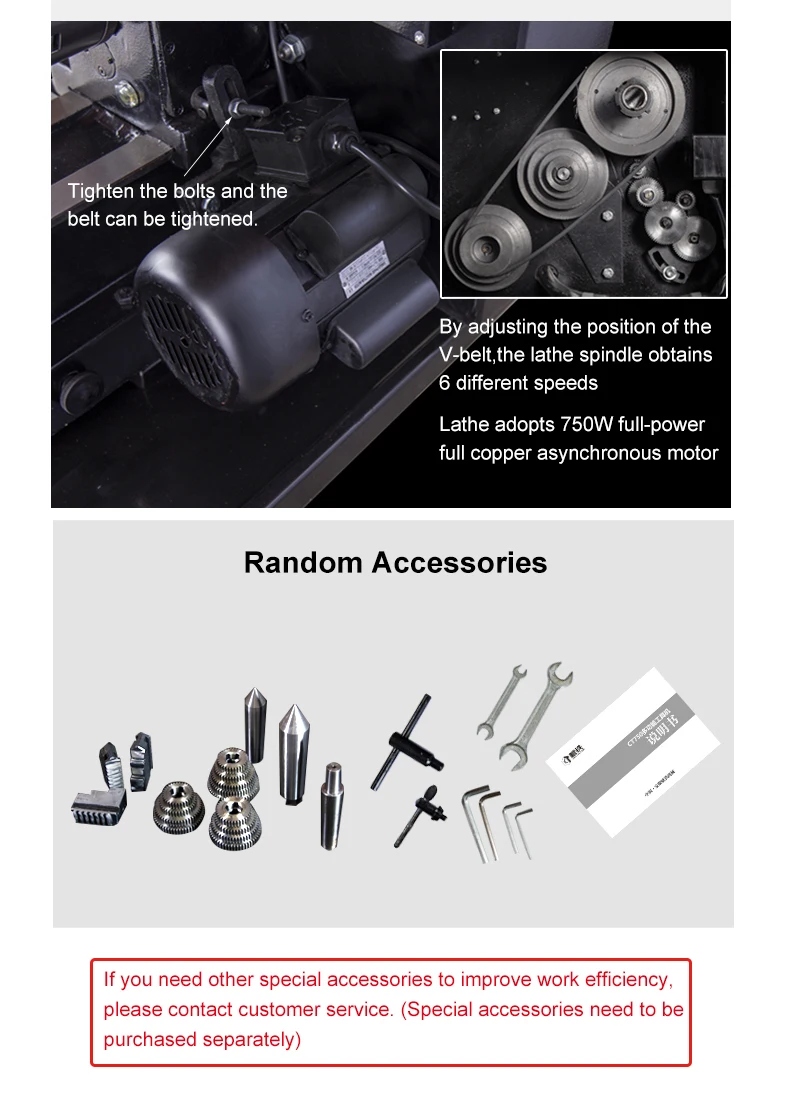

Motor750w/220v/50Hz

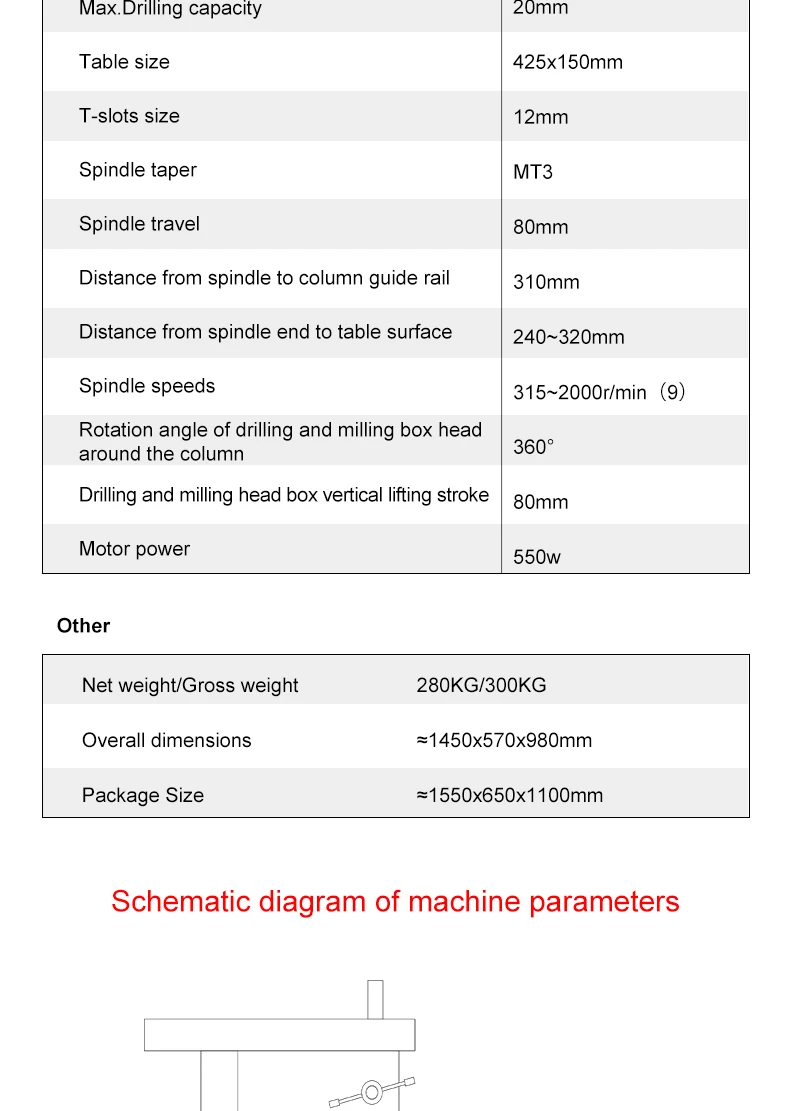

Drilling and milling
Maximum drilling diameter20mm

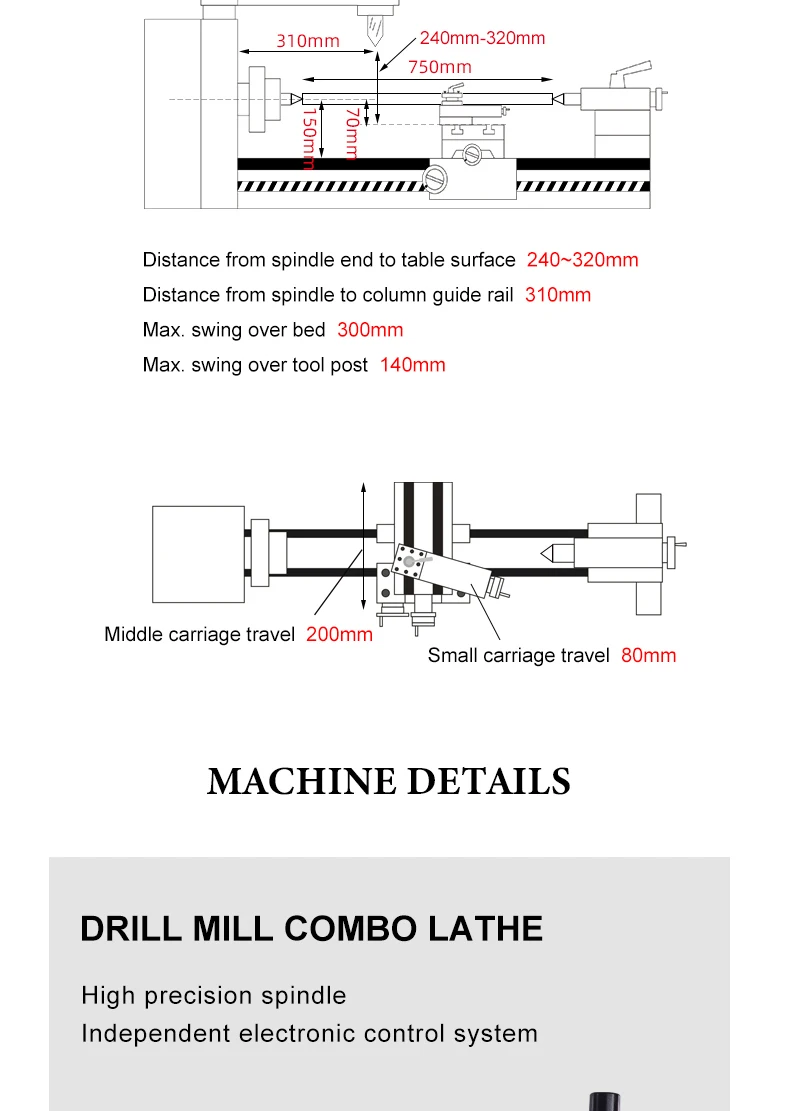

Distance from spindle end to worktable240-320mm
Distance from spindle center line to column surface310mm
Rotation angle of the column of the drilling and milling case360°
Drilling and milling spindle taperMT3

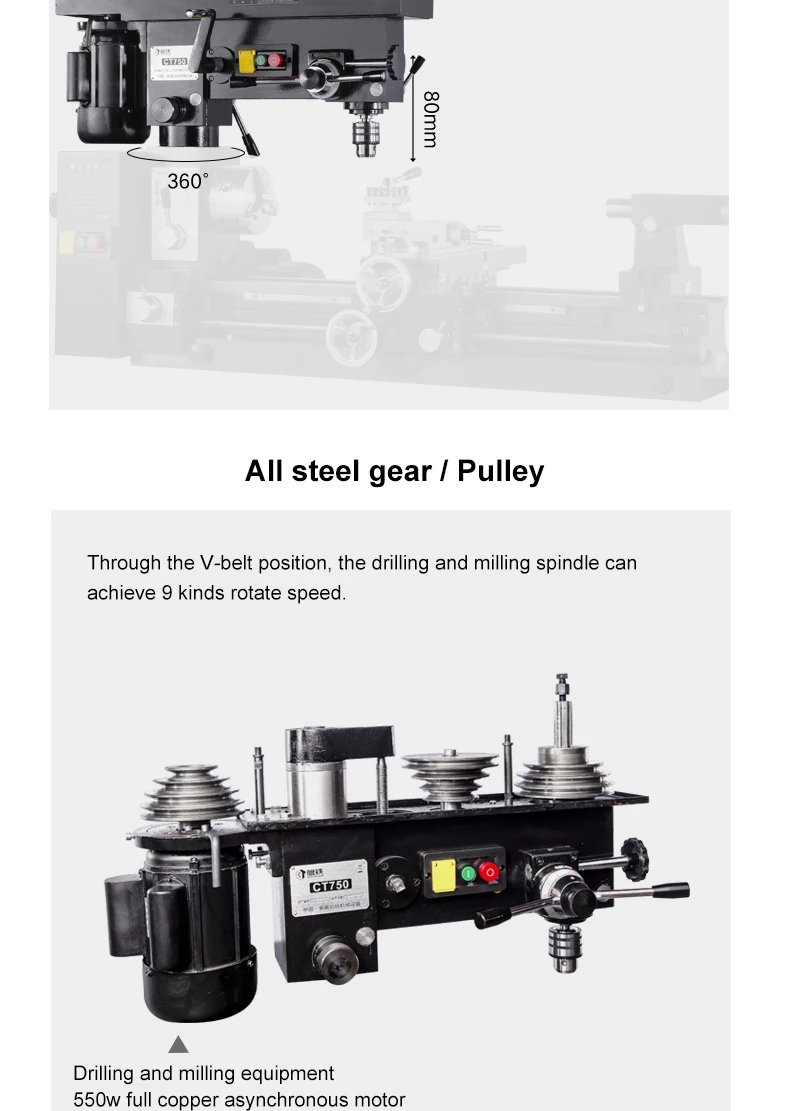

Spindle speed range/level315-2000rpm/9
Vertical lifting stroke of drilling and milling case80mm

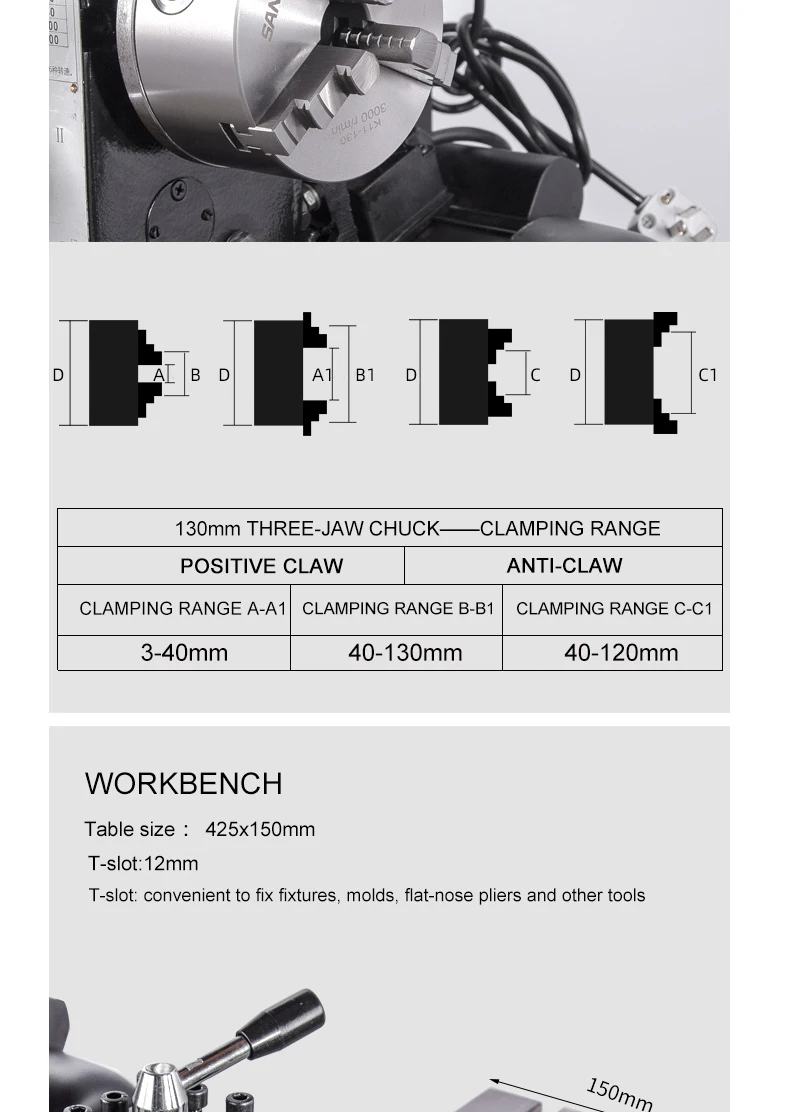

Working surface width150mm
Length of working surface425mm
T-slot width of worktable12mm
Spindle sleeve stroke80mm
Transverse travel of worktable200mm
Motor550w/220/50Hz

N.W./G.W.280/300kg
Machine size1450×570×980mm
Packing size1550×650×1100mm




CT750-_01CT750-_02CT750-_03CT750-_04CT750-_05CT750-_06CT750-_07CT750-_08CT750-_09CT750-_10.jpg
