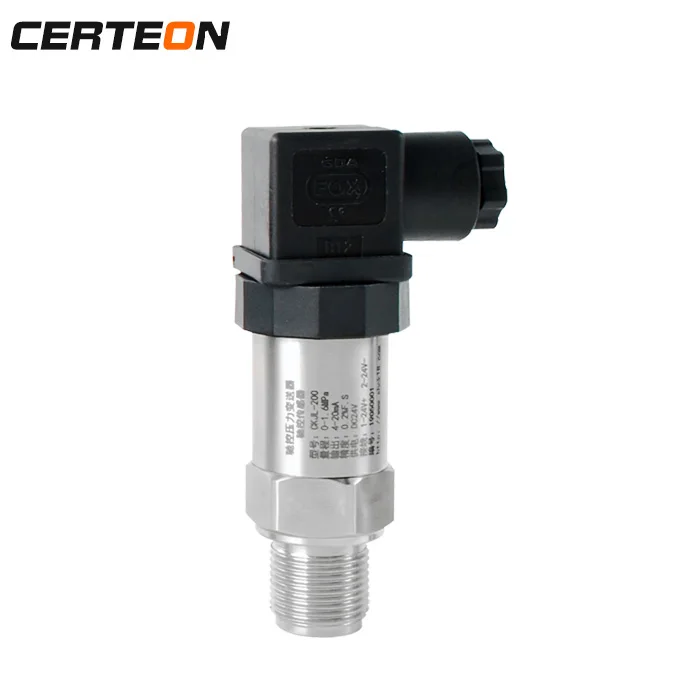

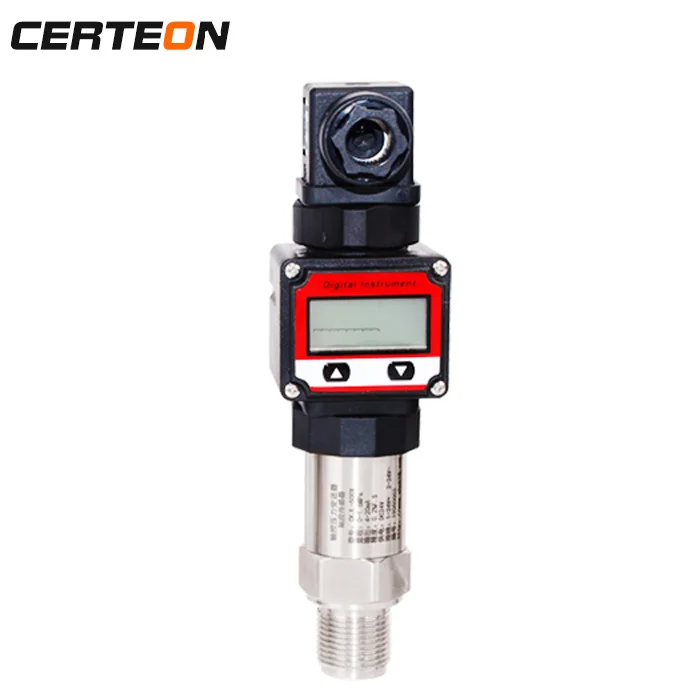

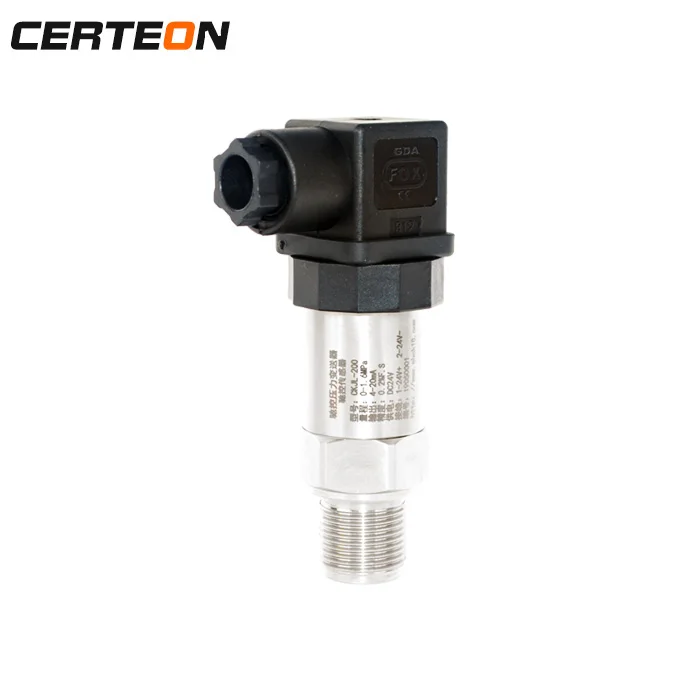

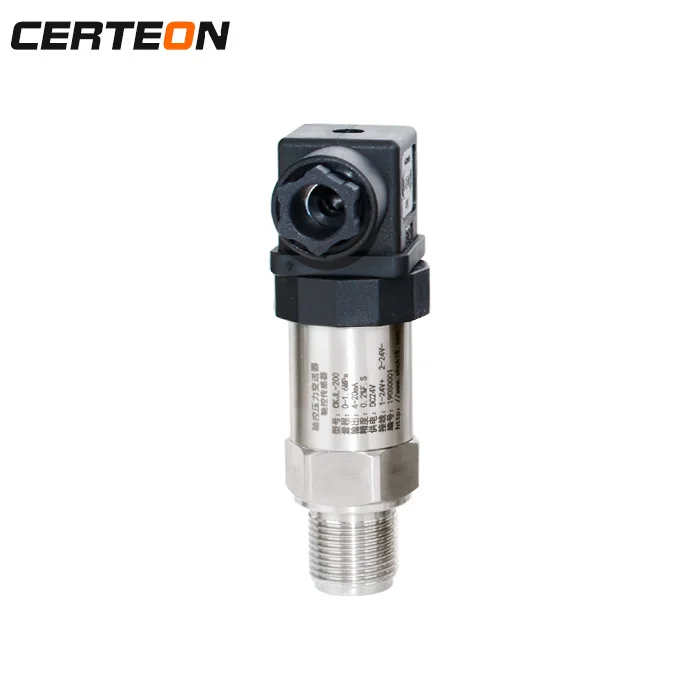

oil well 0 20mA 1 5V 4 20mA 12v high frequency Hirschmann clamp transmitter pressure transducer for pipelines engine
- Category: Pressure Transmitters >>>
- Supplier: Shanghai Chikong Automation Instrument Co. Ltd.
Share on (62403643620):
Product Overview
Description
Company Information
Product parameters
Items | Parameter |
Range | -0.1MPa...0kPa~10kPa...100MPa |
Overload capability | Below 10MPa ≤ 2 times full scale 10MPa and above ≤1.5 times full scale |
Pressure Type | G (gauge pressure), A (absolute pressure), S (sealed gauge pressure) |
Accuracy | 0.1% (custom), 0.25% (typical), 0.5% (maximum) |
Long-term stability | ±0.1%FS/year (typical), ±0.2%FS/year (maximum) |
Zero temperature drift | ±0.03%FS/°C (≤100kPa), ±0.02%FS/°C (>100kPa) |
Sensitivity temperature drift | ±0.03%FS/°C (≤100kPa), ±0.02%FS/°C (>100kPa) |
Compensation temperature | 0°C~50°C(≤100kPa), -10°C~70°C(typical) |
Working temperature | -40°C~80°C, -20 ° C ~ 60 ° C (explosion-proof type) |
Power supply | 15~ 30V (Default 24V) |
Live display | 4-digit LED or LCD |
Output Signal | 4mA~20mA (superimposable HART protocol) RS485 (can output 4mA~20mA signal at the same time) |
Load Resistance | Current type: ≤ (U-12) / 0.02 (Ω) |
Explosion-proof grade | Intrinsically safe type: Ex d IIC T5 Gb |
Protection level | IP65/IP67 |
FAQ
Q: How long will you give me the reply?
A: we will contact you in 1 hours as soon as we can.
Q:What is the delivery time ?
A:Our delivery time is within 3-7days after we get your payment ; for large qty mass order , the time should be confrimed again for you
Q:How about your package ?
A:Do not worry about the package ,we have rich experience at packing , all our package is standard exporting package .
Q: How about the Warranty time ?
A:Our warranty time is 12 months after you get our goods . All lifelong technology service and support .
Q:How about the payment terms ?
A:You can choose T/T, Western union , or you can choose by alibaba -credit insurance .
Q:Could I visit your factory?
A: Sincerely invite you to visit our factory
Q: Do you provide samples ?
A: Yes,we have materials in stock to help you to get the samples as soon as we can.
Q:What is the MOQ?
A:1PC.
Q:Can I get a lower price if I order large quantities?
A:Yes,cheaper prices with more bigger size orders.
Q:Can I have my own logo of the products?
A:Of course.We provide OEM services.The products’ material,dimansions,color,etc. will according to your requirement.
