Product Overview
Description
products descriptio

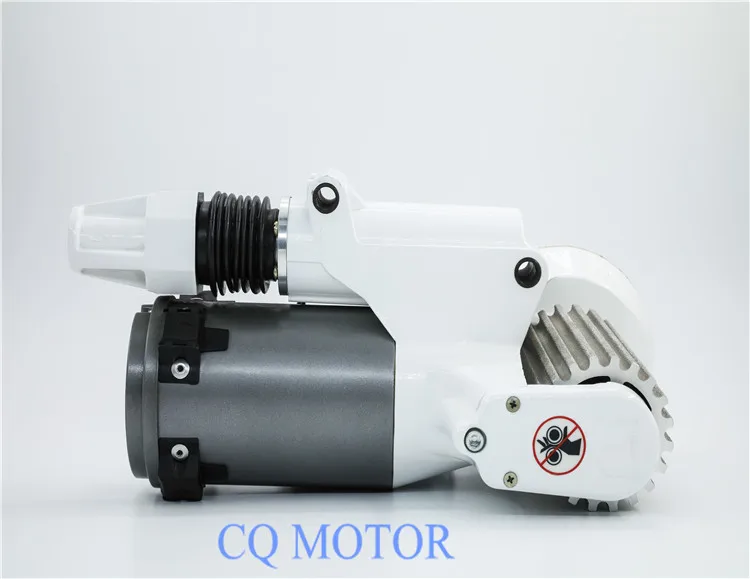

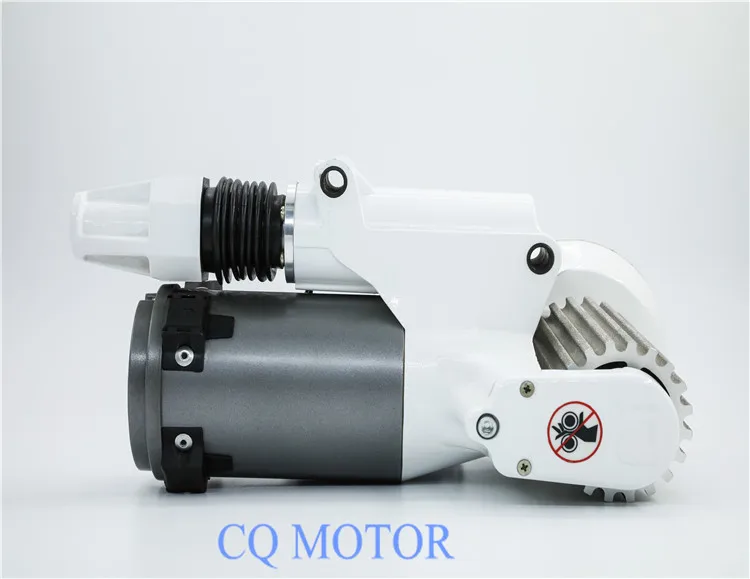

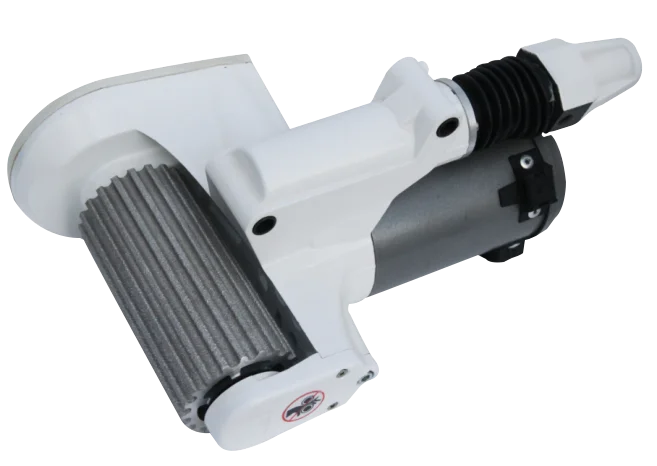

90ZYJ-0828 DC permanent magnet gear motor consists of DC permanent magnet motor and gear reducer. Its characteristics are generous appearance, large torque, large power, stable operation, low noise, positive and negative rotation. It can be used as actuating element in drive components and control systems. Such as caravan movers, lifting devices, etc.
Product parameters
Product presentation
Motor Technical Data
Type | Voltage V | Torque N.m | Current A | Rated-Speed r/min | Power W | Length mm |
90ZY-155 | 12/24 | 0.88 | 34/17 | 3200 | 300 | 155 |
Gearbox Technical Data
Ratio | Size L*W*H | No-Load Speed r/min | Loaded Speed r/min | Rated Torque N.m | Max Torque N.m |
134:1 | 119*165*221 | 41 | 36 | 36 | 90 |
Company introduction
Zibo Chuanqiang Motor Co.,Ltd is a professional motor manufacturing enterprise which set develop,research,production and sale in one. We have been working on motor since 2002. Our main products are DC motors, worm gear motors and special gear motors. The application arena covers field mower, truck tarp systems, golf cart, wheelchair, automatic tarp etc. The company is located in Boshan, Shandong—the most influencial Chinese industrial area of electric motor. By cooperating our sophisticated equipment and advanced process with good working environment efficient reflected. Our company is one of the biggest tarp motor OEMs in USA, UK and Australian market, one of the best suppliers of Dongfeng Automobile Co.,Ltd—the biggest automobile manufacturer in China.
Packaging & Shipping
Packed in pallets according to the international container standard. Deliver in Qingdao or any other ports which are suitable for customers.
For more products please come to the link :www.chuanqiangmotor.com
Our contact information: WhatsApp : +8617663027289
