Growatt Inverter DC to AC Solar Inverter Three Phase on Grid 20KW 30KW 40KW 20KVA 30KVA 40KVA
- Category: Solar Inverter >>>
- Supplier: Eitai (Xiamen) New Energy Technology Co. Ltd.
Share on (62404205148):
Product Overview
Description
Product datas
Parameter Display Example
Datasheet | 20000TL3-S | 25000TL3-S | 30000TL3-S | 40000TL3-NS | ||||
Input Data (DC) | ||||||||
Max. recommended PV power (for module STC) | 25000W | 31250W | 37500W | 50000W | ||||
Max. DC voltage | 1000V | 1000V | 1000V | 1000V | ||||
Start voltage | 250V | 250V | 250V | 250V | ||||
PV voltage range | 200V - 1000V | 200V - 1000V | 200V - 1000V | 200V - 1000V | ||||
MPP work voltage range( nominal voltage) | 580V | 580V | 580V | 580V | ||||
Full load dc voltage range | 400V - 800V | 400V - 800V | 450V - 800V | 540V - 800V | ||||
Max. input current | 37.5A/37.5A | 37.5A/37.5A | 34A/34A | 38A / 38A | ||||
Number of independent MPP trackers / strings per MPP tracker | 12.5A | 12.5A | 12A | 12A | ||||
Output (AC) | ||||||||
Rated AC output power | 20kW | 25kW | 30 KW | 40 KW | ||||
Max. AC power | 22.2kVA | 27.7kVA | 33.3 KVA | 44.4 KVA | ||||
Max. output current | 32.2A | 40.3A | 48.3A | 64.5A | ||||
AC nominal voltage | 230V/400V | 230V/400V | 230V/400V | 230V/400V | ||||
AC grid frequency; range | 50Hz/60Hz | 50Hz/60Hz | 50Hz/60Hz | 50Hz/60Hz | ||||
Adjustable power factor | 0.8 leading - 0.8 lagging | 0.8 leading - 0.8 lagging | 0.8 leading - 0.8 lagging | 0.8 leading - 0.8 lagging | ||||
THDI | <3% | <3% | <3% | <3% | ||||
AC connection | 3W+N+PE | 3W+N+PE | 3W+N+PE | 3W+N+PE | ||||
Efficiency | ||||||||
Max. efficiency | 98.70% | 98.70% | 98.90% | 99% | ||||
Euro weighted efficiency | 98.40% | 98.40% | 98.40% | 98.50% | ||||
MPPT efficiency | 99.50% | 99.50% | 99.50% | 99.50% | ||||

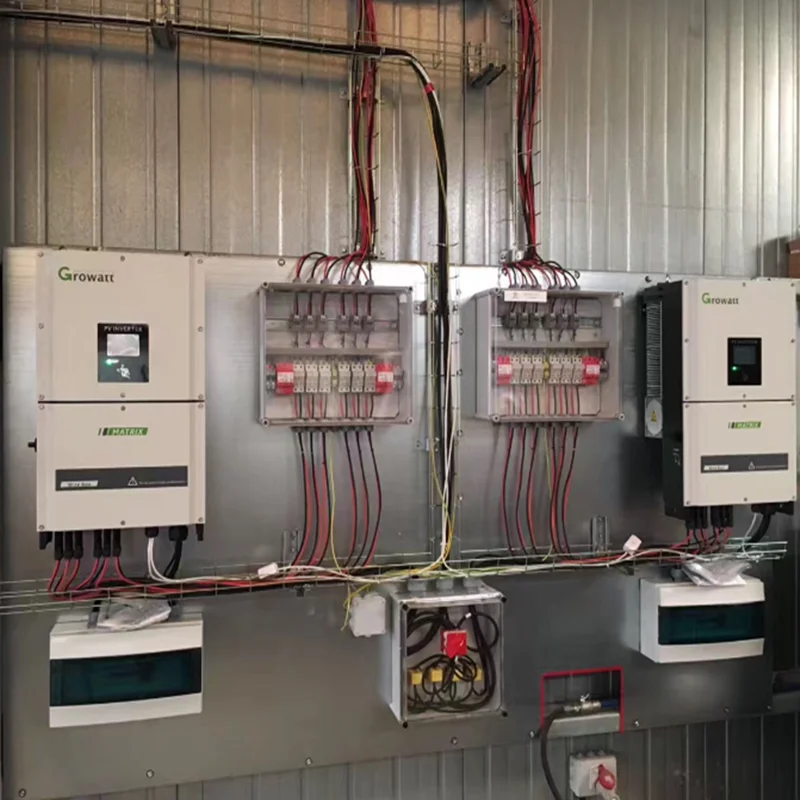

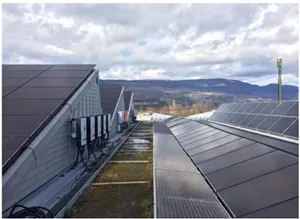

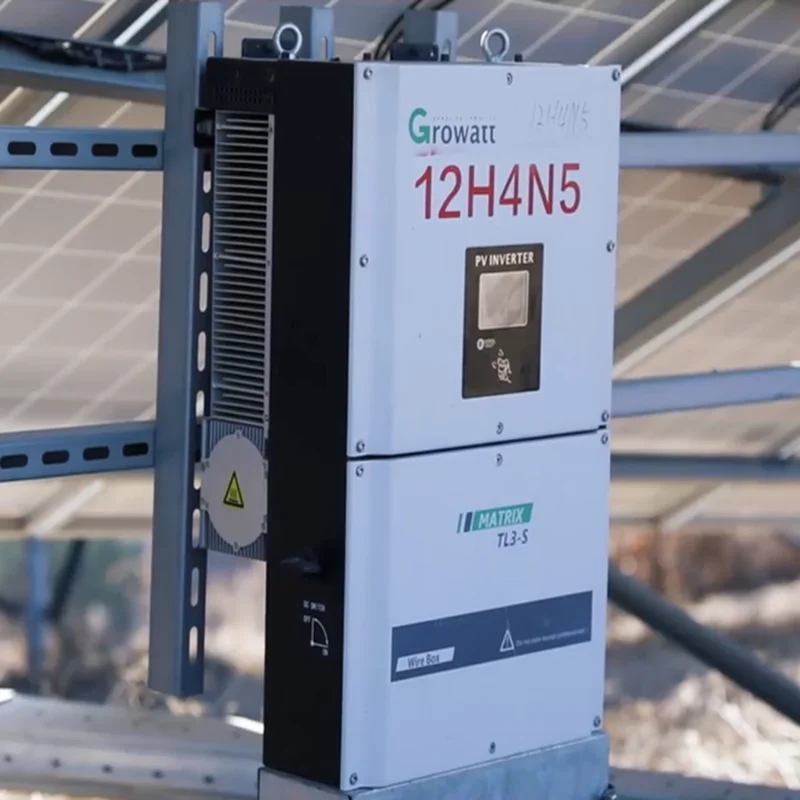

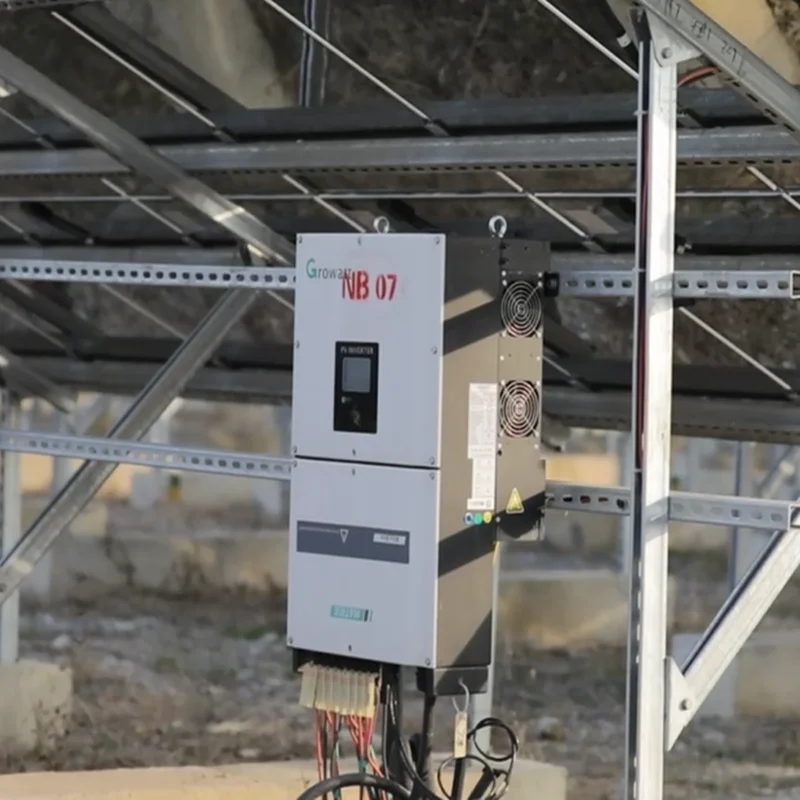

Installation and Project
Product Line

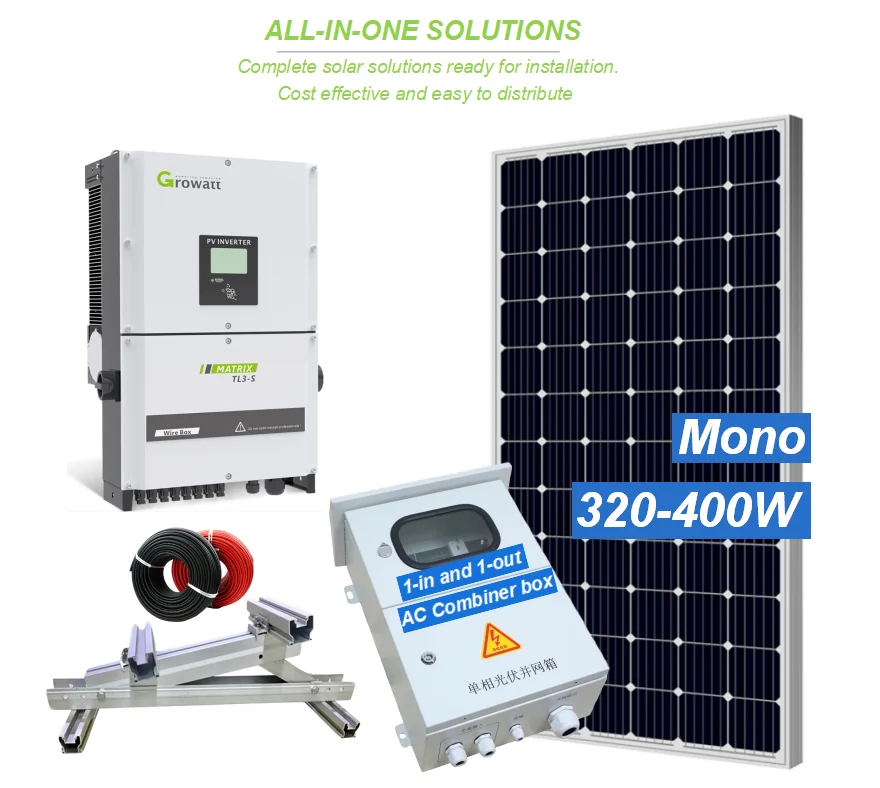

Request Complete System
Exhibition

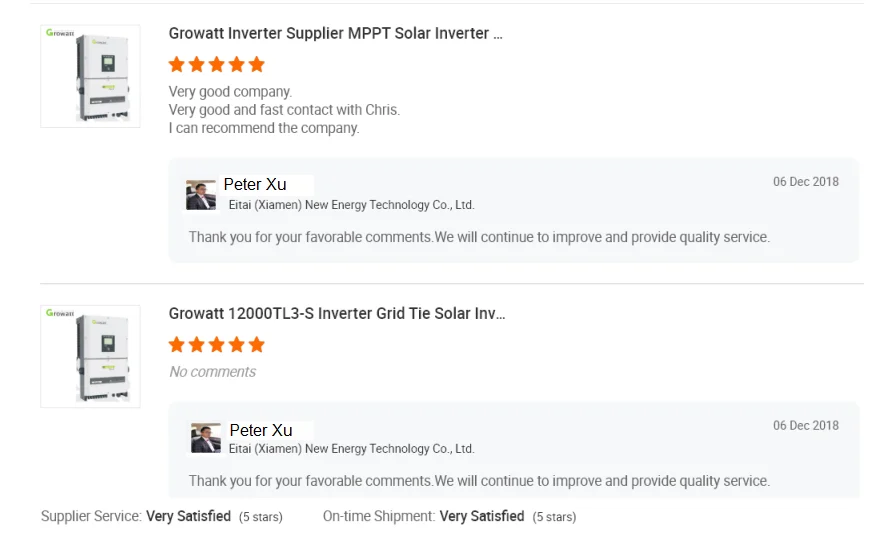

Customer Feedback
Company&Partner
Growatt is a new energy enterprise dedicated to the R&D and manufacturing of PV inverters including on-grid, off-grid and storage inverters, and user side smart energy management solutions as well. The power capacity of Growatt on-grid inverters ranges from 1 kW to 100 kW, meanwhile its off-grid and storage inverters cover a power range from 1 kW to 630 kW. Growatt inverters are extensively used worldwide for applications in residential, commercial, utility-scale scenarios as well as other storage power station projects.
Since its foundation in 2010, Growatt has established branch offices one after another in Germany, US, UK, Australia, Thailand, India, Netherlands, etc in order to better serve the customers across the globe. Growatt always sticks to the R&D investment and technology innovation, and provides customers with premium products and services through its core inverter technology, rigorous quality control and continuous improvement of customer service. By end of September 2018, Growatt has shipped over 1.2 million inverters to over 100 countries and regions across the globe, growing into a Global Top 10 Inverter Brand and becoming the No.1 Chinese Residential PV Inverter Brand.
