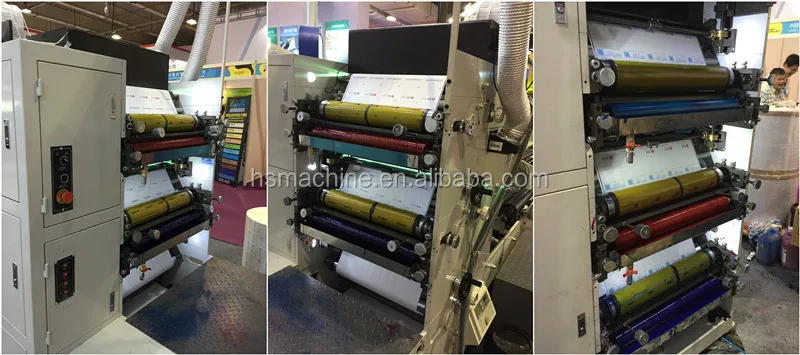

HSS-320G 5 colors Flexo Printing Machine is equipped with high-quality ceramic anilox cylinder to transfer the ink.
Tensions on unwinding & rewinding part is controlled by magnetic powder & magnetic clutches.
(Mitsubishi Automatic Tension Controller is optional for higher performance.) Each plate is adjustable for 360-degree.
Each station is equipped with IR dryer. (UV dryer is optional.)
This machine is equipped with one rotary die cutting station in standard configuration, and it can
finish printing & die cutting in one process.
When the machine stops, the ink rollers come off from the machine automatically, keeping rotating,
preventing the ink from drying.
Model
HSS-320
HSS-450
HSS-570
Max. Web Width(mm)
320
450
570
Max. Printing Width(mm)
310
440
560
Max. Unwind Diameter(mm)
Φ600
Φ600
Φ600
Unwind tension control
Magnetic powder brake with automatic controller
Magnetic powder brake with automatic controller
Magnetic powder brake with automatic controller
Inner core diameter(mm)
76mm(3")
76mm(3")
76mm(3")
Web guiding system
Automatic web guiding system with ultrasonic sensor
Automatic web guiding system with ultrasonic sensor
Automatic web guiding system with ultrasonic sensor
Max. Rewind Diameter(mm)
Φ600
Φ600
Φ600
Rewind tension control
Magnetic powder clutch with automatic controller
Magnetic powder clutch with automatic controller
Magnetic powder clutch with automatic controller
Mechanical speed(m/min)
≤80
≤80
≤80
Precision of printing(mm)
±0.1
±0.1
±0.1
Main Motor Power(kw)
2.2
2.2
3
Weight(kg)
2200
3350
4000
Packing&Shipping
Our engineer can be available to service machinery overseas. 1)Machines with good quality in one year, life-long maintenance 2)We have many machines can be throughed via the Internet, solve customer requirements in a timely manner. 3)We have several senior,continuous innovation and reform, in order to ensure the quality of mechanical stability. 4)Undertake various non-standard machinery, solve the customers' requirements.
Company Introduction
Zhejiang Hongsheng Machinery Co., Ltd. is located in Feiyun Industrial zone, with convenient
transportation.
Many elites in research, design, production and sales have been engaged in our company. Therefore, our
products remain superior, efficient and innovative. In addition, we have a very good procurement team that
can help us find better resources and suppliers and reduce our machine costs. It makes our prices more
reasonable and more competitive.
We produce a variety of machine, such as die cutter, slitter, rewinder, label inspector. What is worth
mentioning is our honor products, sleeve flexographic printing machine and flower petal flexographic printing
machine. There is a very large and experienced team of designer and engineers working on these machines.
Therefore, for these two flexo printers, we’ve achieved great success that the quality of printing is very high.
We have been selling our products to India, Middle East, Southeast Asia & South America. Our total
export amount was about 800,000.00 US dollars in 2017. Besides, all of our products have passed the CE and
ISO9001 QMS certification.As for our customers, we have an experienced team to assist all of our clients to purchase more useful and more suitable machines. They can respond to every inquiry rapidly, gently and patiently. We also have a
very robust system and clause in after sales. We have a permanent responsibility for every machine we produce.
We’re here confident to be your smartest choice, and wait for your needs.
Our Services & Strength
A free service to creat trust between you and us 1. Know who you're dealing with. 2. Enjoy comprehensive protection 100% product quality protection,100% on-time shipment. protection,100% payment protection for your covered amount. 3. Rate and influence your suppliers..
FAQ
1. your company is a manufacture or a trading company? We are a manufacturer.
2. What is the terms of payment you accept? We can accept the T/T payment, we need 30% of total amount as deposit,pay the 70% balance before delivery, we can also accept the L/C,western union,paypal,private account,cash and others.
3. Where is your factory located ? How can I visit there? Our factory located in Ruian city, the nearest airport is WENZHOU airport, the nearest train station is RUIAN city. If you need, we can we pick you up from airport or train station.
4,What about the warranty? All of our machines have 1 year warranty, if need we send engineer to install and test, buyer pay for the round air-tickets, food, hotel and transport, pay our engineer 100 usd / day / person as salary.
In warranty period, if spare parts broken, we exchange for free. after the warranty period, we supply the machine’s full life service, buyer pay for the material cost of exchanging spare parts and repairing.
