L BW380 plastic injection machine
- Category: Plastic Injection Machines >>>
- Supplier: Zhejiang Lebao Plastics Equipment Factory
Share on (62407238593):
Product Overview
Description
Product introduction
L-BW380 plastic injection moulding machine are suitable for all thermoplastic material such as PP,PE,PET,PS,PVC,ABS,SAN etc, and it is widely used to produce preforms,bottle caps,cups as well as other plastics products.
Technical parameter
Type |
L-BW380 |
Screw diameter (mm) | 75 |
Shot weight (g) | 1286 |
Injection rate (g/s) | 365 |
Screw stroke(mm) | 315 |
Screw L/D ratio (L/D) | 19.4:1 |
Plasticizing Capacity (g/s) | 60 |
Clamping tonnage (KN) | 3800 |
Clamping stroke (mm) | 680 |
Mould height (mm) | 250-720 |
Space between Tie-bars (mm) | 680*680 |
Ejector stroke (mm) | 200 |
Ejector Force (ton) | 11 |
Heat power (KW) | 19 |
Pump motor power (KW) | 37 |
Machine dimension (m) | 7.18*1.95*2.6 |
Machine weight (ton) | 11.5 |
Oil tank capacity (L) | 1000 |
Components
| PLC | TECHMATION IN TAIWAIN |
| HYDRAULIC SYSTEM | YUKEN IN JAPAN |
| CONTROLLER | SUMSUNG IN HONGKONG |
| DIRECTIONAL VALVE | AMERICAN VICKERS |
| ENCODER | GERMANY |
| CONTACTOR | FUJI IN JAPAN |
| AIR BREAKER | FUJI IN JAPAN |
| THERMO OVERLOAD RELAY | FUJI IN JAPAN |
| LIMIT SWITCH | OMRON IN JAPAN |

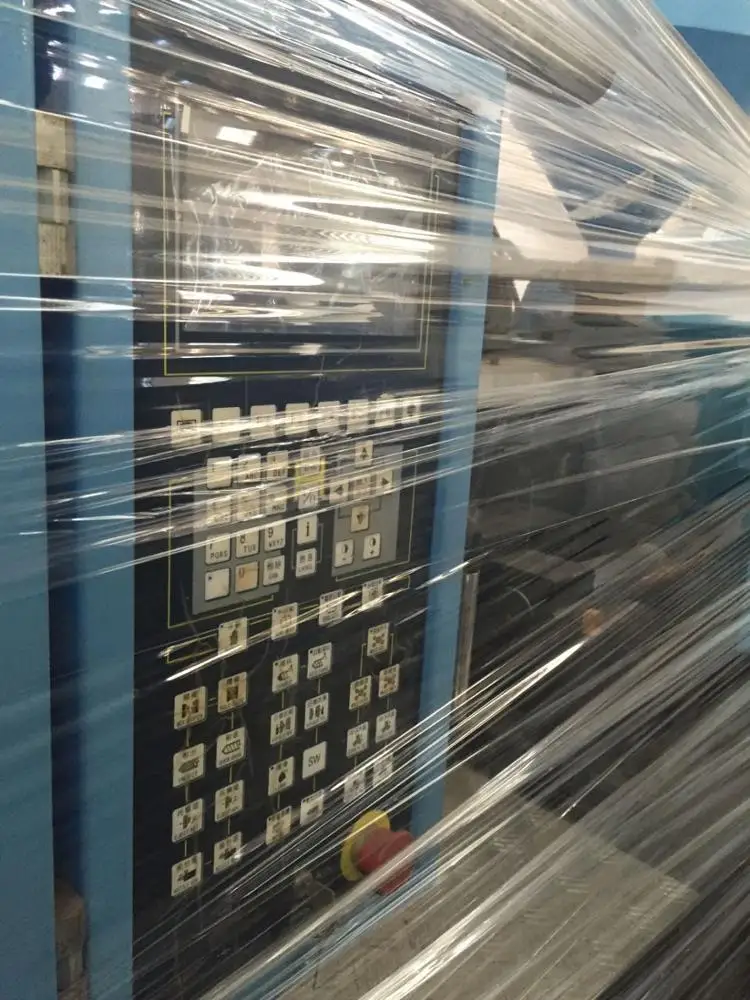

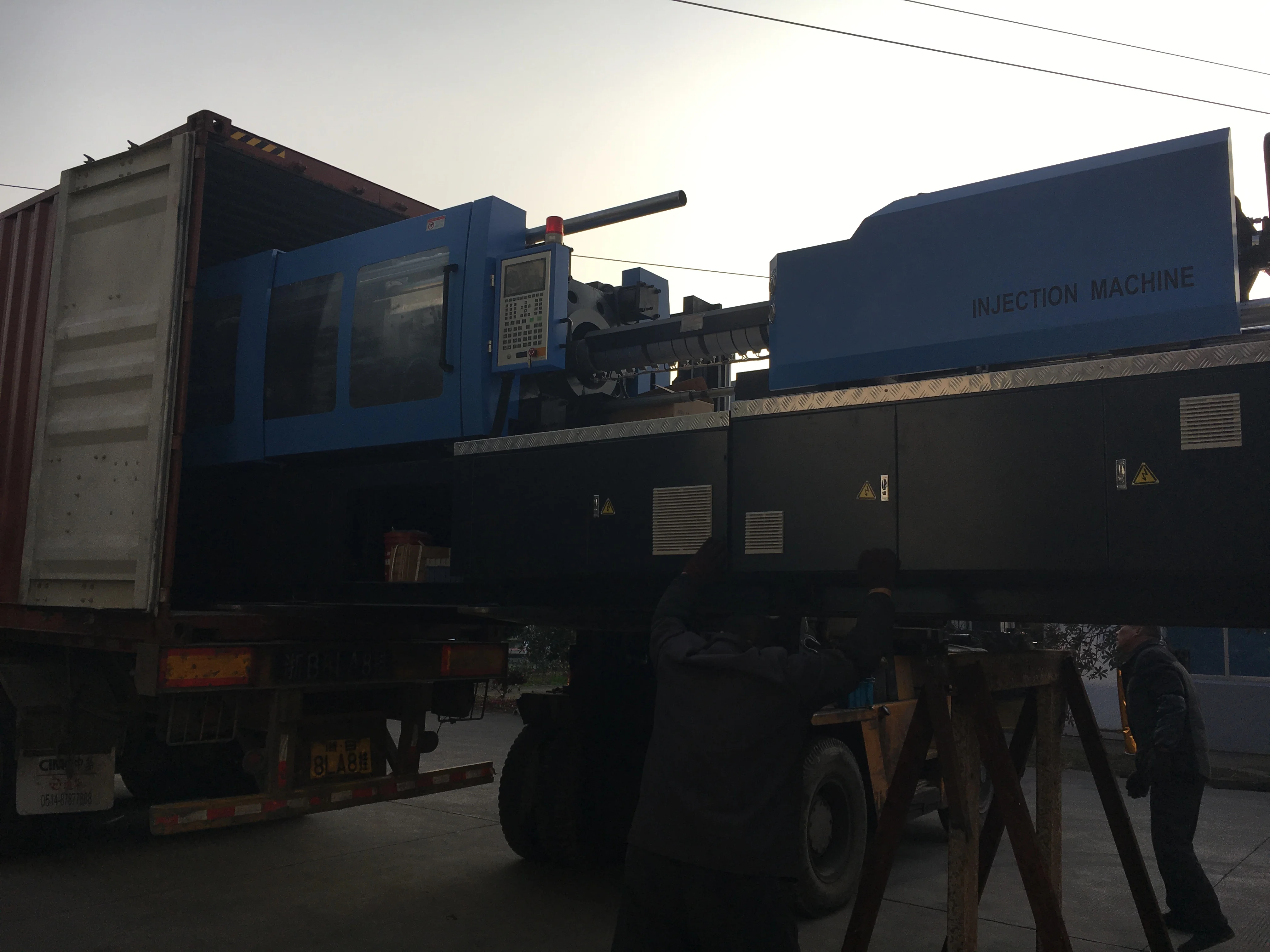

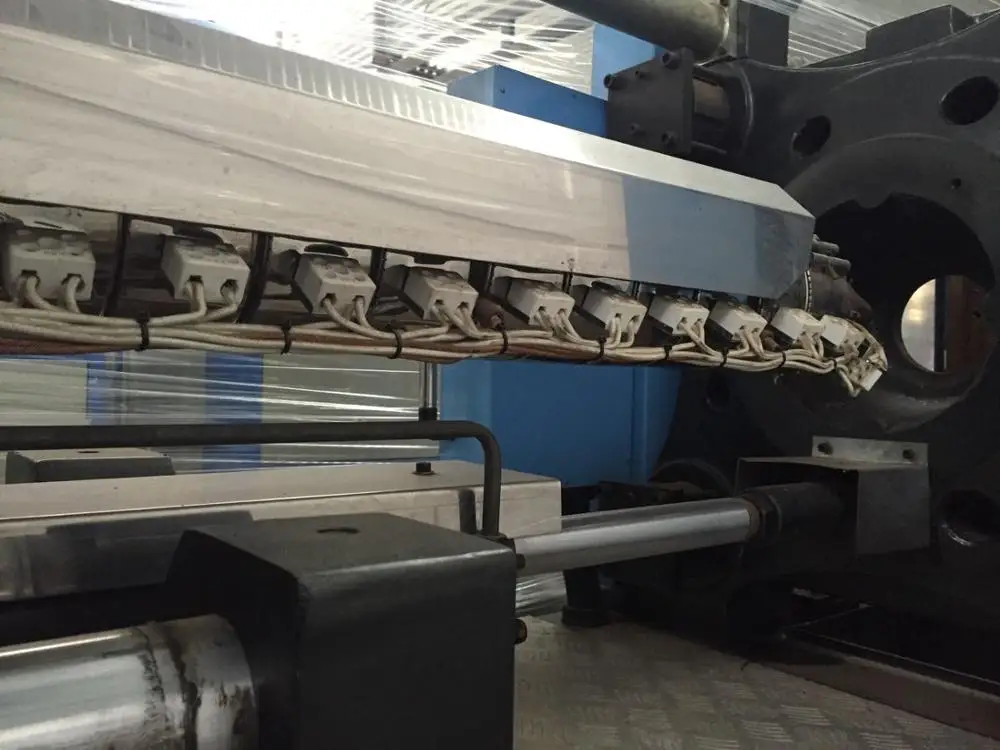

Photos
