off grid hybrid solar inverter without battery MKSII 5kva 5kw 48v 80a mppt can parallel

Product Overview

Description

off grid hybrid solar inverter without battery MKSII 5kva 5kw 48v 80a mppt can parallel

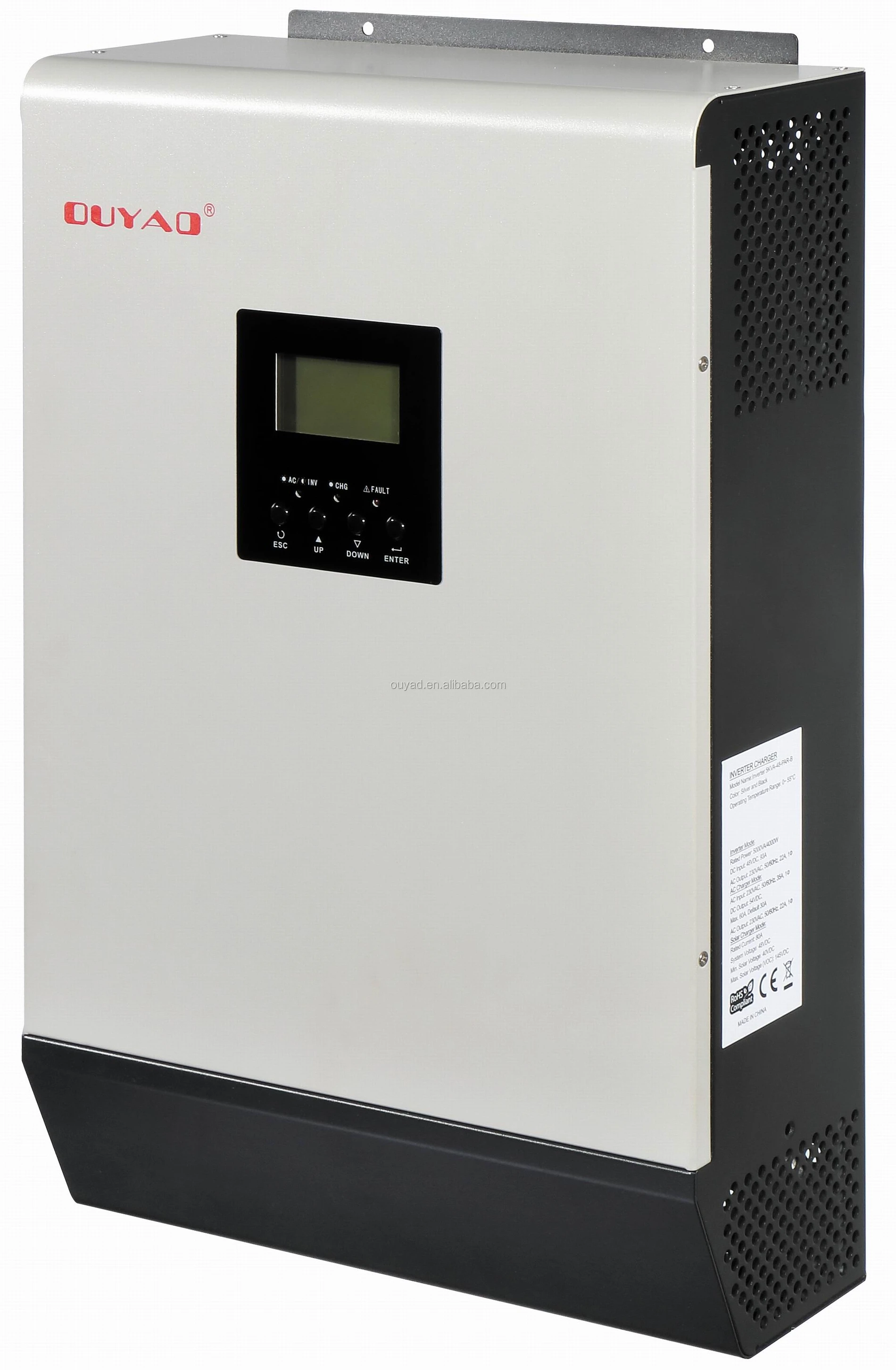

 Picture :





  Features:





High efficiency pure sine wave inverter (PF=1);

Wide PV input range (120-450VDC) 80A MPPT SCC;

Intelligent 3 stage 80A AC battery charger inbuilt;

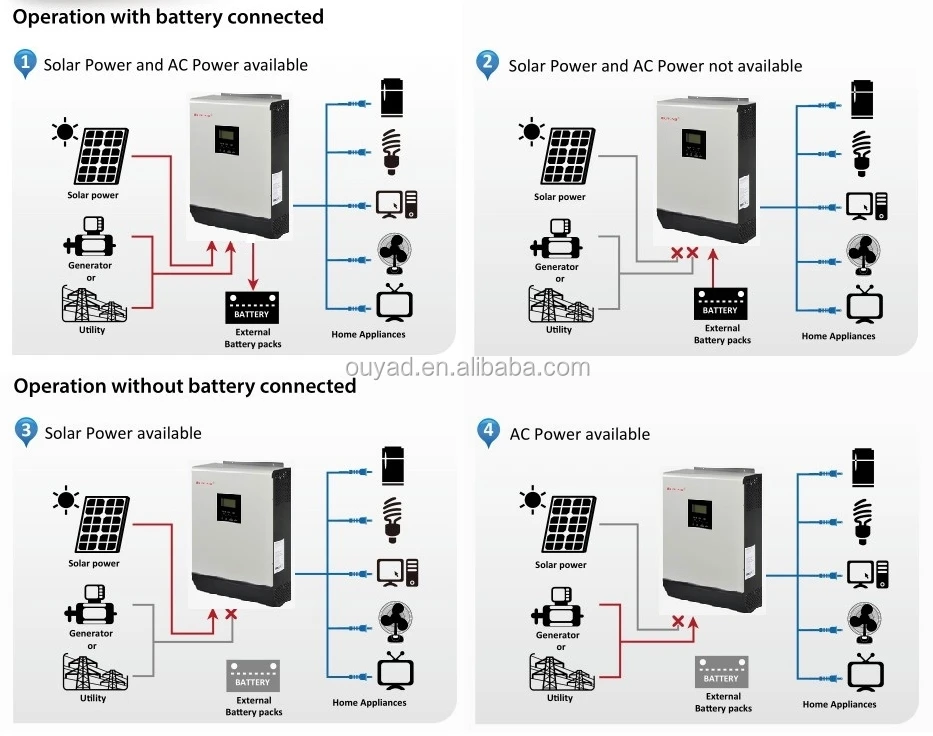

This inverter can work without batteries when there is the sun;

Parallel operation up to 9 units;

Surges to 2X continuous power for 5 seconds for motor loads;

Intellighent functionality enables utility and solar input prioritization.

Wide utility input range (90-280VAC) for unreliable grid even in the most challenging environments.

Field serviceable with replacement boards and spare parts.

System configures quickly into compact, wall-mount system;

Monitor, troubleshoot, or communication with USB/RS232.





Specification:



Model No.		MKSII 5KVA
Rated power		5000VA / 5000W
Input	Voltage	230VAC
	Selectable voltage range	170-280VAC (for personal computers) 90-280VAC (for home appliances)
	Frequency range	50Hz/60Hz (auto sensing)
Output	AC voltage regulation (Batt. mode)	230VAC ±5%
	Surge power (5 seconds)	10000VA
	Efficiency (peak)	93%
	Transfer time	10ms (for personal computers); 20ms (for home appliances)
	Waveform	Pure sine wave
Battery & Chargers	Battery voltage	48VDC
	Floating charge voltage	54VDC
	Overcharge protection	62VDC
	Max. solar charge current	80A
	Max. PV array power	4500W
	MPPT range@ operating voltage	120-430V
	Max. PV array open circuit voltage	450VDC
	Max. charging current	80A
	Standby power consumption	2W
Physical	Dimension, D*W*H(mm)	120*295*468
	Net weight (kgs)	12KG
Operating Environment	Humidity	5%-95% relative humidity ( non-condensing)
	Operating temperature	0℃-55℃
	Storage temperature	-15℃-60℃







Drawing:



Products Detail:







Package:



Project Case:





Production line:



Factory power & Certifications:





FAQ:

Q1: How to choose a right inverter?

A1:Tell us your demand, then our sales will recommend a suitable inverter to you.



Q2: What's the different between inverter and solar inverter?

A2:  Inverter is only accept AC input, but solar inverter not only accept AC input but also can connect with solar panel to accept PV input, it more save power.



Q3: How about the delivery time?

A3:  7 days for sample; 25 days for bulk order.



Q4: What is the warranty of inverter?

A4: One year warranty



Q5: How to solve the technical problem?

A5: 24 hours after-service consultancy just for you and to make your problem to solve easily.
